Before operating the unit, please read this
manual thoroughly and retain it for future
reference.
To reduce the risk of fire or
electric shock, do not expose
this apparatus to rain or
moisture.
To avoid electrical shock, do
not open the cabinet. Refer
servicing to qualified
personnel only.
THIS APPARATUS MUST BE
EARTHED.
For the customers in the U.S.A.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules....

3 GB
GB For the customers in Taiwan only
For the Customers in Brazil only
DESCARTE DE PILHAS E BATERIAS
Pilhas e Baterias não recarregáveis
Atenção:
Verifique as instruções de uso do aparelho
certificando-se de que as polaridades (+) e
(-) estão no sentido indicado. As pilhas
poderão vazar ou explodir se as polaridades
forem invertidas, expostas ao fogo,
desmontadas ou recarregadas.
Evite misturar com pilhas de outro tipo ou com
pilhas usadas, transportá-las ou armazená-las
soltas, pois aumenta o...

GB 4
Table of Contents
Precautions ......................................... 6
Front/Right Side ................................. 8
Rear/Bottom ....................................... 9
Remote Control  ................................ 10
Unpacking ........................................ 11
Step 1: Installing the Projector ......... 13
Before Setting Up the
Projector ..................................... 13
Safety precautions for installing the
unit on a ceiling  .......................... 14...

5 GB

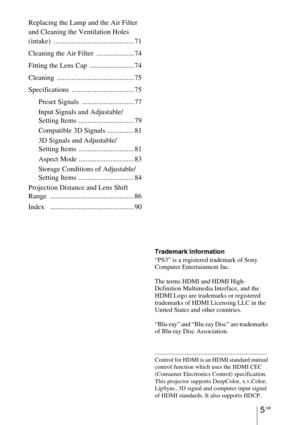

Replacing the Lamp and the Air Filter
and Cleaning the Ventilation Holes
(intake) ............................................. 71
Cleaning the Air Filter  ..................... 74
Fitting the Lens Cap  ......................... 74
Cleaning ........................................... 75
Specifications ................................... 75
Preset Signals  ............................. 77
Input Signals and Adjustable/
Setting Items  ............................... 79
Compatible 3D Signals...

GB 6

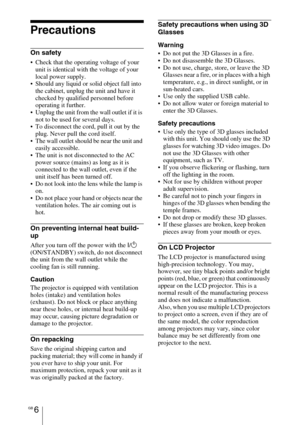

Precautions
On safety
 Check that the operating voltage of your
unit is identical with the voltage of your
local power supply.
 Should any liquid or solid object fall into
the cabinet, unplug the unit and have it
checked by qualified personnel before
operating it further.
 Unplug the unit from the wall outlet if it is
not to be used for several days.
 To disconnect the cord, pull it out by the
plug. Never pull the cord itself.
 The wall outlet should be near the unit and
easily...

7 GB

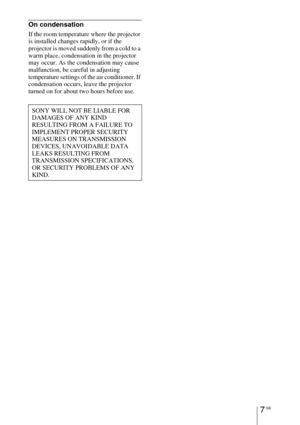

On condensation
If the room temperature where the projector
is installed changes rapidly, or if the
projector is moved suddenly from a cold to a
warm place, condensation in the projector
may occur. As the condensation may cause
malfunction, be careful in adjusting
temperature settings of the air conditioner. If
condensation occurs, leave the projector
turned on for about two hours before use.SONY WILL NOT BE LIABLE FOR
DAMAGES OF ANY KIND
RESULTING FROM A FAILURE TO
IMPLEMENT PROPER...

GB 8
Front/Right Side

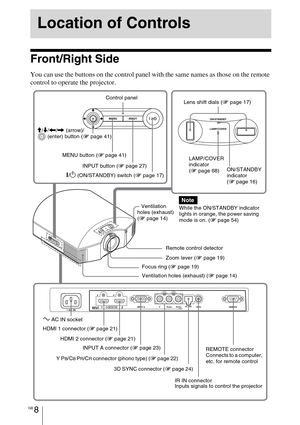

You can use the buttons on the control panel with the same names as those on the remote
control to operate the projector.
Location of Controls
INPUT button (1 page 27) MENU button (1 page 41)
ON/STANDBY
indicator
(1 page 16)
Remote control detector Ventilation
holes (exhaust)
(1 page 14)
?/1 (ON/STANDBY) switch (1 page 17)LAMP/COVER
indicator
(1 page 68) M/m/

Location of Controls
9 GB

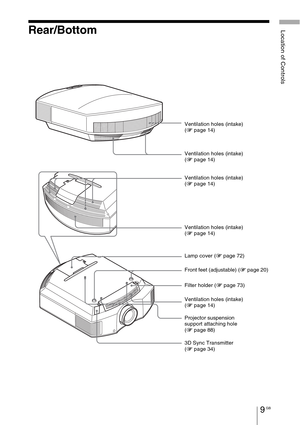

Rear/Bottom
Filter holder (1 page 73) Ventilation holes (intake)
(1 page 14)
Lamp cover (1 page 72) Ventilation holes (intake)
(1 page 14)
Projector suspension
support attaching hole
(1 page 88) Front feet (adjustable) (1 page 20) Ventilation holes (intake)
(1 page 14) Ventilation holes (intake)
(1 page 14)
Ventilation holes (intake)
(1 page 14)
3D Sync Transmitter
(1 page 34)

GB 10

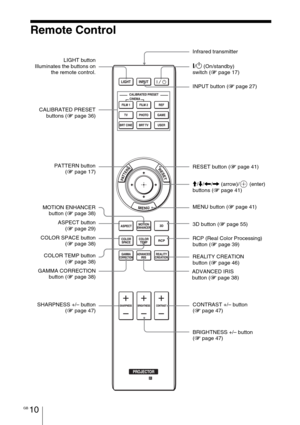

Remote Control
INPUT button (1 page 27)
Infrared transmitter
?/1 (On/standby)
switch (1 page 17)
COLOR SPACE button
(1 page 38)M/m/
