Sony Projector VPL-HW55ES User Manual

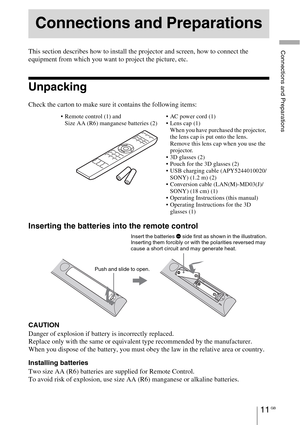

Connections and Preparations
11 GB
This section describes how to install the projector and screen, how to connect the
equipment from which you want to project the picture, etc.
Unpacking
Check the carton to make sure it contains the following items:
Inserting the batteries into the remote control
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
When you dispose of the battery, you must obey the law in the...

GB 12

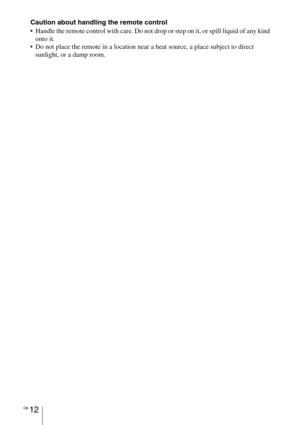

Caution about handling the remote control
 Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind
onto it.
 Do not place the remote in a location near a heat source, a place subject to direct
sunlight, or a damp room.

Connections and Preparations
13 GB

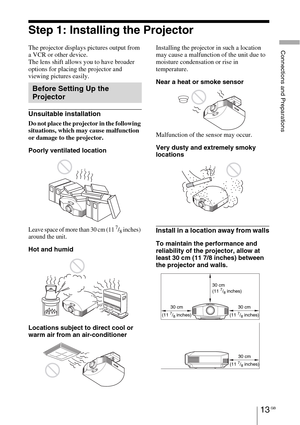

Step 1: Installing the Projector
The projector displays pictures output from
a VCR or other device.
The lens shift allows you to have broader
options for placing the projector and
viewing pictures easily.
Unsuitable installation
Do not place the projector in the following
situations, which may cause malfunction
or damage to the projector.
Poorly ventilated location
Leave space of more than 30 cm (11 7/8 inches)
around the unit.
Hot and humid
Locations subject to...

GB 14

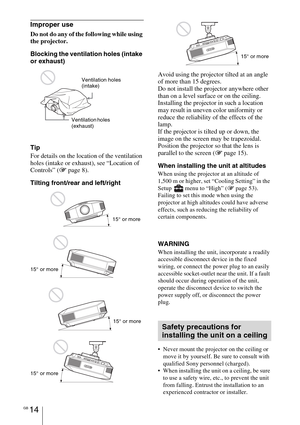

Improper use
Do not do any of the following while using
the projector.
Blocking the ventilation holes (intake
or exhaust)
Tip
For details on the location of the ventilation
holes (intake or exhaust), see “Location of
Controls” (1 page 8).
Tilting front/rear and left/rightAvoid using the projector tilted at an angle
of more than 15 degrees.
Do not install the projector anywhere other
than on a level surface or on the ceiling.
Installing the projector in such a location
may result in uneven...

Connections and Preparations
15 GB

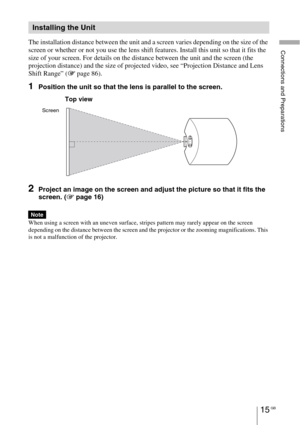

The installation distance between the unit and a screen varies depending on the size of the
screen or whether or not you use the lens shift features. Install this unit so that it fits the
size of your screen. For details on the distance between the unit and the screen (the
projection distance) and the size of projected video, see “Projection Distance and Lens
Shift Range” (1 page 86).
1Position the unit so that the lens is parallel to the screen.
2Project an image...

GB 16

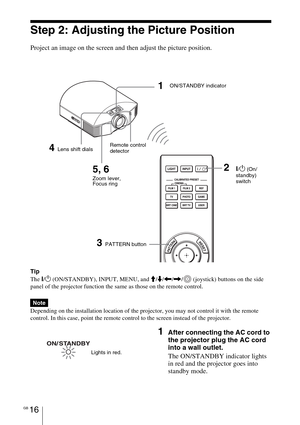

Step 2: Adjusting the Picture Position
Project an image on the screen and then adjust the picture position.
Tip
The
?/1 (ON/STANDBY), INPUT, MENU, and M/m/

Connections and Preparations
17 GB

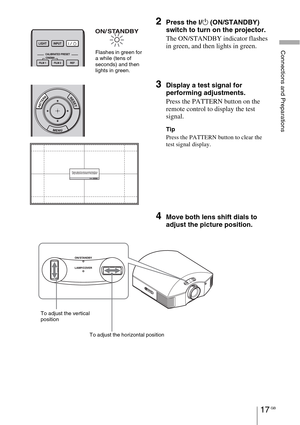

2Press the ?/1 (ON/STANDBY)
switch to turn on the projector.
The ON/STANDBY indicator flashes
in green, and then lights in green.
3Display a test signal for
performing adjustments.
Press the PATTERN button on the
remote control to display the test
signal.
Tip
Press the PATTERN button to clear the
test signal display.
4Move both lens shift dials to
adjust the picture position.
Flashes in green fora while (tens of
seconds) and then
lights in green.
To adjust the...

GB 18

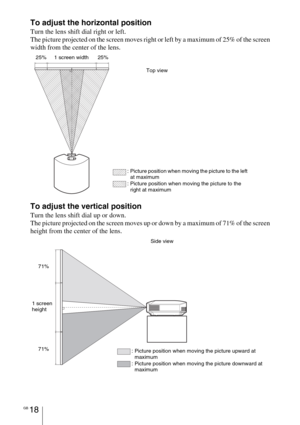

To adjust the horizontal position
Turn the lens shift dial right or left.
The picture projected on the screen moves right or left by a maximum of 25% of the screen
width from the center of the lens.
To adjust the vertical position
Turn the lens shift dial up or down.
The picture projected on the screen moves up or down by a maximum of 71% of the screen
height from the center of the lens.
Top view
: Picture position when moving the picture to the left
at maximum
: Picture position when moving the...

Connections and Preparations
19 GB

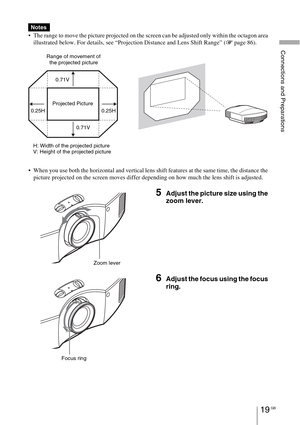

 The range to move the picture projected on the screen can be adjusted only within the octagon area
illustrated below. For details, see “Projection Distance and Lens Shift Range” (1 page 86).
 When you use both the horizontal and vertical lens shift features at the same time, the distance the
picture projected on the screen moves differ depending on how much the lens shift is adjusted.
Notes
5Adjust the picture size using the
zoom lever.
6Adjust the focus using the...

GB 20

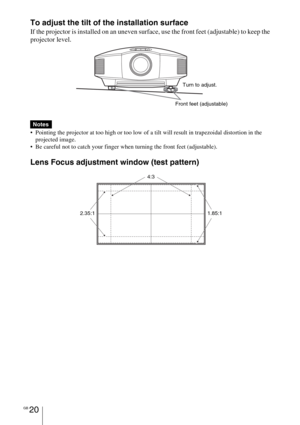

To adjust the tilt of the installation surface
If the projector is installed on an uneven surface, use the front feet (adjustable) to keep the
projector level.

 Pointing the projector at too high or too low of a tilt will result in trapezoidal distortion in the
projected image.
 Be careful not to catch your finger when turning the front feet (adjustable).
Lens Focus adjustment window (test pattern)
Notes
Front feet (adjustable)Turn to adjust.
2.35:14:3
1.85:1
