Sony Projector VPL-HW55ES User Manual

Projecting
31 GB

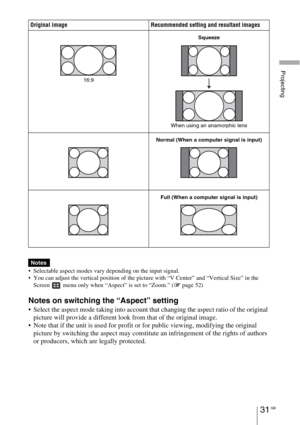

 Selectable aspect modes vary depending on the input signal.
 You can adjust the vertical position of the picture with “V Center” and “Vertical Size” in the
Screen   menu only when “Aspect” is set to “Zoom.” (1 page 52)
Notes on switching the “Aspect” setting
 Select the aspect mode taking into account that changing the aspect ratio of the original
picture will provide a different look from that of the original image.
 Note that if the unit is used for profit or for public viewing,...

GB 32

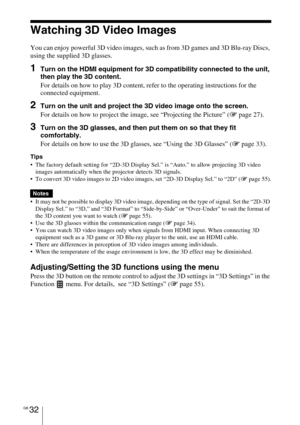

Watching 3D Video Images
You can enjoy powerful 3D video images, such as from 3D games and 3D Blu-ray Discs,
using the supplied 3D glasses.
1Turn on the HDMI equipment for 3D compatibility connected to the unit,
then play the 3D content.
For details on how to play 3D content, refer to the operating instructions for the
connected equipment.
2Turn on the unit and project the 3D video image onto the screen.
For details on how to project the image, see “Projecting the Picture” (1 page 27).
3Turn on...

Projecting
33 GB

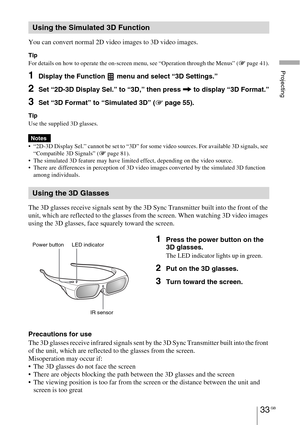

You can convert normal 2D video images to 3D video images.
Tip
For details on how to operate the on-screen menu, see “Operation through the Menus” (1 page 41).
1Display the Function   menu and select “3D Settings.”
2Set “2D-3D Display Sel.” to “3D,” then press , to display “3D Format.”
3Set “3D Format” to “Simulated 3D” (1 page 55).
Tip
Use the supplied 3D glasses.
 “2D-3D Display Sel.” cannot be set to “3D” for some video sources. For available 3D signals, see
“Compatible 3D Signals”...

GB 34
 There are other infrared communication devices nearby
3D glasses communication range

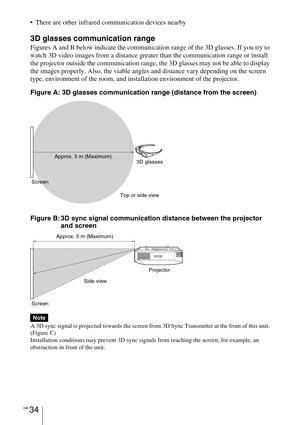

Figures A and B below indicate the communication range of the 3D glasses. If you try to
watch 3D video images from a distance greater than the communication range or install
the projector outside the communication range, the 3D glasses may not be able to display
the images properly. Also, the viable angles and distance vary depending on the screen
type, environment of the room, and installation environment of...

Projecting
35 GB

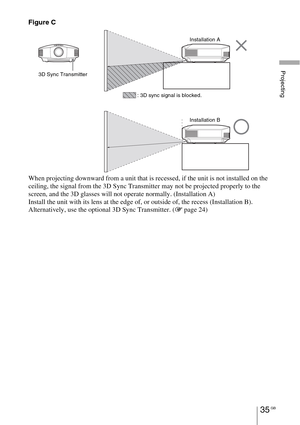

Figure C
When projecting downward from a unit that is recessed, if the unit is not installed on the
ceiling, the signal from the 3D Sync Transmitter may not be projected properly to the
screen, and the 3D glasses will not operate normally. (Installation A)
Install the unit with its lens at the edge of, or outside of, the recess (Installation B).
Alternatively, use the optional 3D Sync Transmitter. (1 page 24)
3D Sync Transmitter
Installation A
Installation B : 3D sync signal is blocked.

GB 36

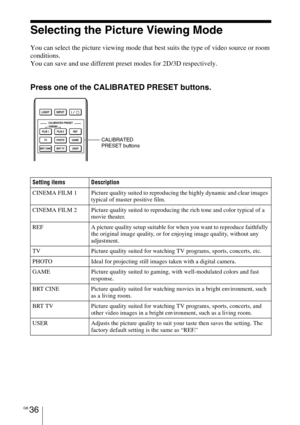

Selecting the Picture Viewing Mode
You can select the picture viewing mode that best suits the type of video source or room
conditions.
You can save and use different preset modes for 2D/3D respectively.
Press one of the CALIBRATED PRESET buttons.
Setting items Description
CINEMA FILM 1 Picture quality suited to reproducing the highly dynamic and clear images
typical of master positive film.
CINEMA FILM 2 Picture quality suited to reproducing the rich tone and color typical of a
movie theater....

Projecting
37 GB

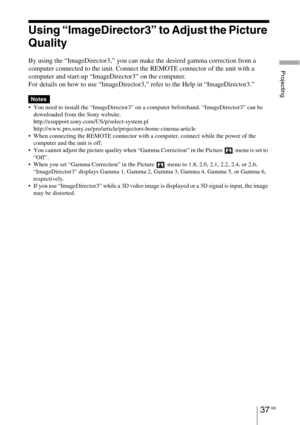

Using “ImageDirector3” to Adjust the Picture
Quality
By using the “ImageDirector3,” you can make the desired gamma correction from a
computer connected to the unit. Connect the REMOTE connector of the unit with a
computer and start-up “ImageDirector3” on the computer.
For details on how to use “ImageDirector3,” refer to the Help in “ImageDirector3.”
 You need to install the “ImageDirector3” on a computer beforehand. “ImageDirector3” can be
downloaded from the Sony website....

GB 38

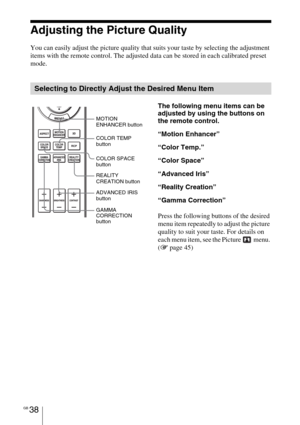

Adjusting the Picture Quality
You can easily adjust the picture quality that suits your taste by selecting the adjustment
items with the remote control. The adjusted data can be stored in each calibrated preset
mode.
Selecting to Directly Adjust the Desired Menu Item
The following menu items can be
adjusted by using the buttons on
the remote control.
“Motion Enhancer”
“Color Temp.”
“Color Space”
“Advanced Iris”
“Reality Creation”
“Gamma Correction”
Press the following buttons of the desired...

Projecting
39 GB

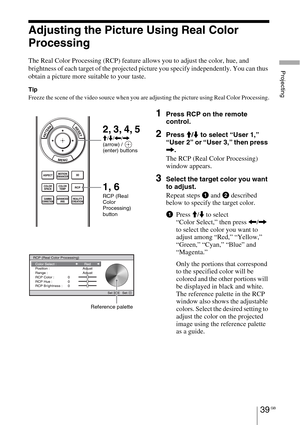

Adjusting the Picture Using Real Color
Processing
The Real Color Processing (RCP) feature allows you to adjust the color, hue, and
brightness of each target of the projected picture you specify independently. You can thus
obtain a picture more suitable to your taste.
Tip
Freeze the scene of the video source when you are adjusting the picture using Real Color Processing.
1Press RCP on the remote
control.
2Press M/m to select “User 1,”
“User 2” or “User 3,” then press
,.
The RCP...

GB 40

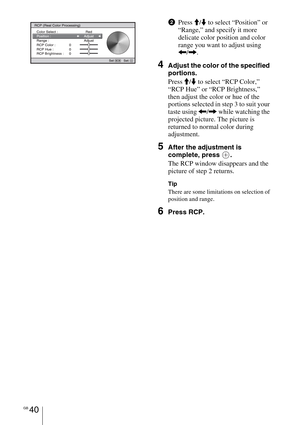

2Press M/m to select “Position” or
“Range,” and specify it more
delicate color position and color
range you want to adjust using
