Sony Projector VPL-HW55ES User Manual

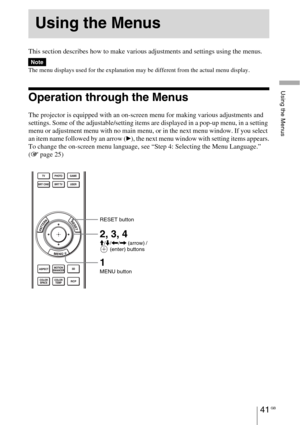

Using the Menus
41 GB

This section describes how to make various adjustments and settings using the menus.
The menu displays used for the explanation may be different from the actual menu display.
Operation through the Menus
The projector is equipped with an on-screen menu for making various adjustments and
settings. Some of the adjustable/setting items are displayed in a pop-up menu, in a setting
menu or adjustment menu with no main menu, or in the next menu window. If you select
an item name...

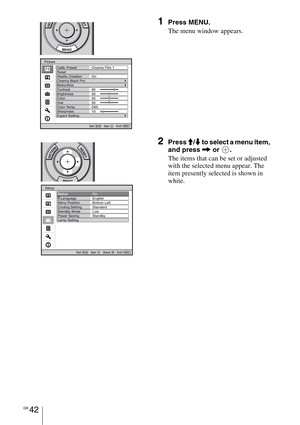

GB 42
1Press MENU.
The menu window appears.
2Press M/m to select a menu item,
and press , or  .
The items that can be set or adjusted
with the selected menu appear. The
item presently selected is shown in
white.

Using the Menus
43 GB

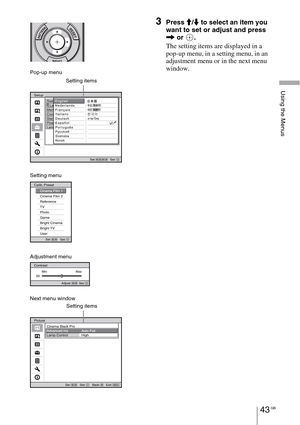

3Press M/m to select an item you
want to set or adjust and press
, or  .
The setting items are displayed in a
pop-up menu, in a setting menu, in an
adjustment menu or in the next menu
window.
Pop-up menu
Setting items
Next menu window
Setting items
Setting menu
Adjustment menu

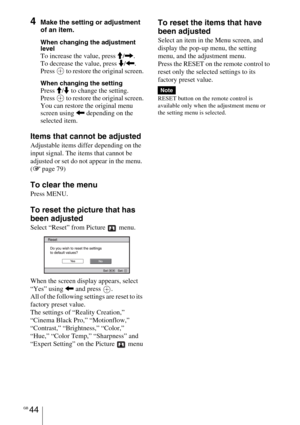

GB 44
4Make the setting or adjustment
of an item.
When changing the adjustment
level
To increase the value, press M/,.
To decrease the value, press m/

Using the Menus

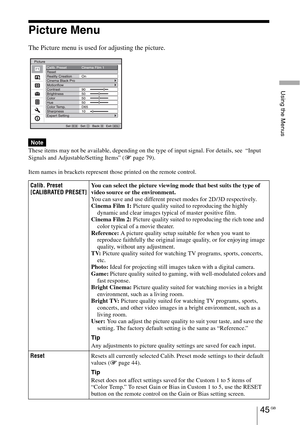

45 GB
Picture Menu
The Picture menu is used for adjusting the picture.
These items may not be available, depending on the type of input signal. For details, see  “Input
Signals and Adjustable/Setting Items” (1 page 79).
Item names in brackets represent those printed on the remote control.
Note
Calib. Preset
[CALIBRATED PRESET]You can select the picture viewing mode that best suits the type of
video source or the environment.
You can save and use different preset modes for 2D/3D...

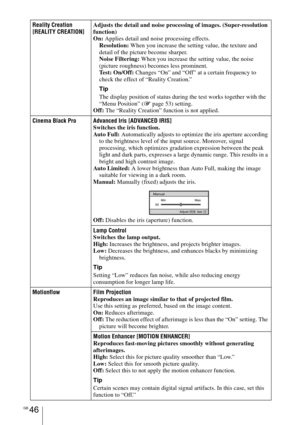

GB 46
Reality Creation
[REALITY CREATION]Adjusts the detail and noise processing of images. (Super-resolution
function)
On: Applies detail and noise processing effects.
Resolution: When you increase the setting value, the texture and
detail of the picture become sharper.
Noise Filtering: When you increase the setting value, the noise
(picture roughness) becomes less prominent.
Test: On/Off: Changes “On” and “Off” at a certain frequency to
check the effect of “Reality Creation.”
Tip
The display...

Using the Menus

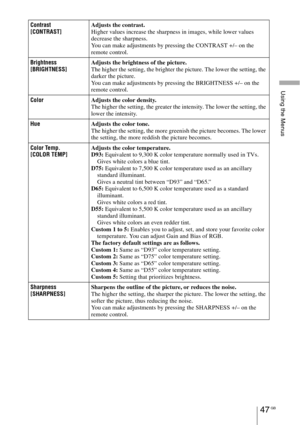

47 GB
Contrast
[CONTRAST]Adjusts the contrast.
Higher values increase the sharpness in images, while lower values
decrease the sharpness.
You can make adjustments by pressing the CONTRAST +/– on the
remote control.
Brightness
[BRIGHTNESS]Adjusts the brightness of the picture.
The higher the setting, the brighter the picture. The lower the setting, the
darker the picture.
You can make adjustments by pressing the BRIGHTNESS +/– on the
remote control.
ColorAdjusts the color density.
The...

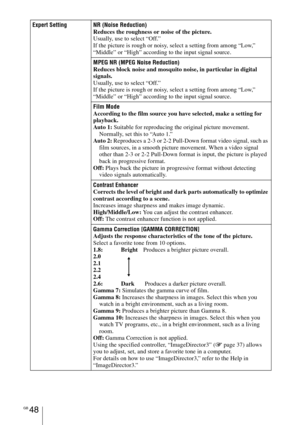

GB 48
Expert Setting NR (Noise Reduction)
Reduces the roughness or noise of the picture.
Usually, use to select “Off.”
If the picture is rough or noisy, select a setting from among “Low,”
“Middle” or “High” according to the input signal source.
MPEG NR (MPEG Noise Reduction)
Reduces block noise and mosquito noise, in particular in digital
signals.
Usually, use to select “Off.”
If the picture is rough or noisy, select a setting from among “Low,”
“Middle” or “High” according to the input signal source....

Using the Menus

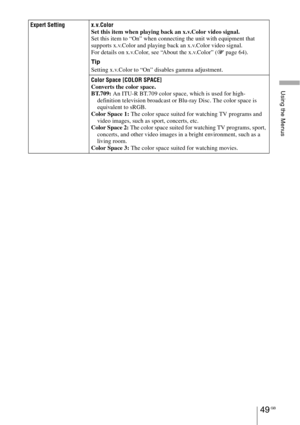

49 GB
Expert Setting x.v.Color
Set this item when playing back an x.v.Color video signal.
Set this item to “On” when connecting the unit with equipment that
supports x.v.Color and playing back an x.v.Color video signal.
For details on x.v.Color, see “About the x.v.Color” (1 page 64).
Tip
Setting x.v.Color to “On” disables gamma adjustment.
Color Space [COLOR SPACE]
Converts the color space.
BT.709: An ITU-R BT.709 color space, which is used for high-
definition television broadcast or...

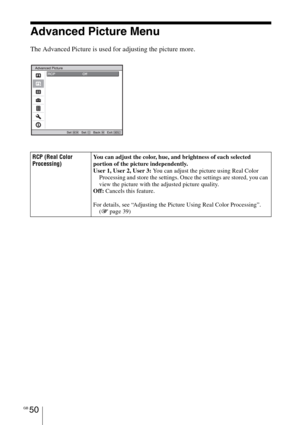

GB 50
Advanced Picture Menu
The Advanced Picture is used for adjusting the picture more.
RCP (Real Color
Processing)You can adjust the color, hue, and brightness of each selected
portion of the picture independently.
User 1, User 2, User 3: You can adjust the picture using Real Color
Processing and store the settings. Once the settings are stored, you can
view the picture with the adjusted picture quality.
Off: Cancels this feature.
For details, see “Adjusting the Picture Using Real Color...
