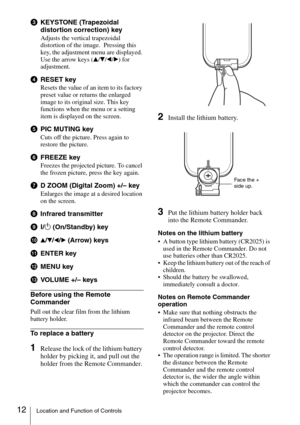

11Location and Function of Controls
Overview

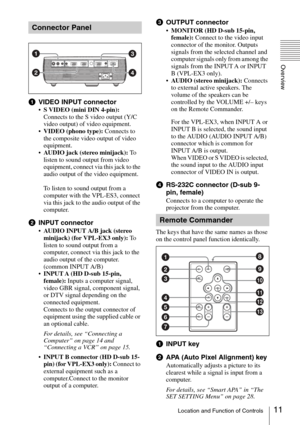

aVIDEO INPUT connector
•S VIDEO (mini DIN 4-pin):
Connects to the S video output (Y/C
video output) of video equipment.
 VIDEO (phono type):  Connects to
the composite video output of video
equipment.
 AUDIO jack (stereo minijack):  To
listen to sound output from video
equipment, connect via this jack to the
audio output of the video equipment.
To listen to sound output from a
computer with the VPL-ES3, connect
via this jack to the audio output of...

12Location and Function of Controls
cKEYSTONE (Trapezoidal
distortion correction) key
Adjusts the vertical trapezoidal
distortion of the image.  Pressing this
key, the adjustment menu are displayed.
Use the arrow keys (v/V/b/B) for
adjustment.
dRESET key
Resets the value of an item to its factory
preset value or returns the enlarged
image to its original size. This key
functions when the menu or a setting
item is displayed on the screen.
ePIC MUTING key
Cuts off the picture. Press again to...

13Installing the Projector
Projecting the Picture
BProjecting the Picture
Installing the Projector
The distance between the lens and the screen varies depending on the size of the screen. Use
the following table as a guide.
There may be a slight difference between the actual value and the design value shown in the table
above.
For details on installation diagram, see “Installation Diagram” on page 46.

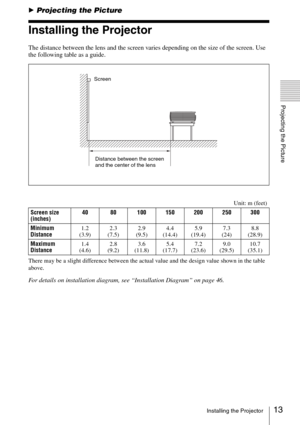

Distance between the screen
and the center of the lens Screen
Unit: m (feet)
Screen size
(inches)40...

14Connecting the Projector

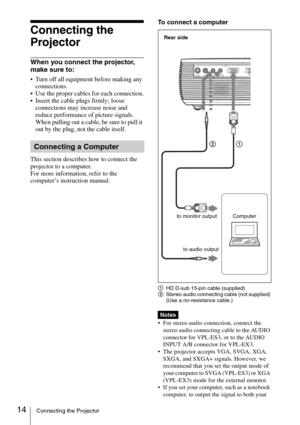

Connecting the
Projector
When you connect the projector,
make sure to:
 Turn off all equipment before making any
connections.
 Use the proper cables for each connection.
 Insert the cable plugs firmly; loose
connections may increase noise and
reduce performance of picture signals.
When pulling out a cable, be sure to pull it
out by the plug, not the cable itself.
This section describes how to connect the
projector to a computer.
For more information, refer to the...

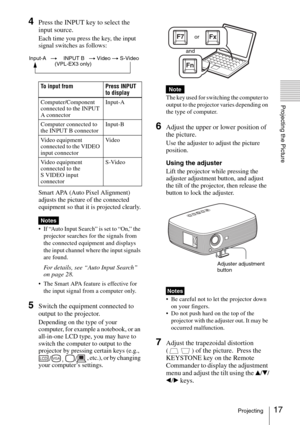

15Connecting the Projector
Projecting the Picture
computer’s display and the external monitor,
the picture of the external monitor may not
appear properly. Set your computer to output
the signal to only the external monitor.
For details, refer to the operating
instructions supplied with your computer.
To connect a Macintosh computer equipped
with a video output connector of a type having
two rows of pins, use a commercially available
plug adaptor.

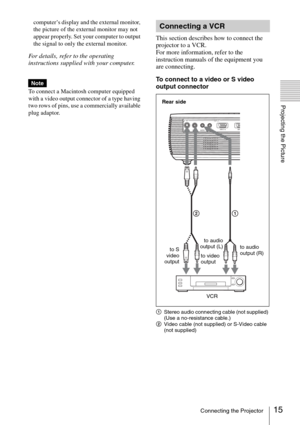

This section describes how to connect the...

16Projecting

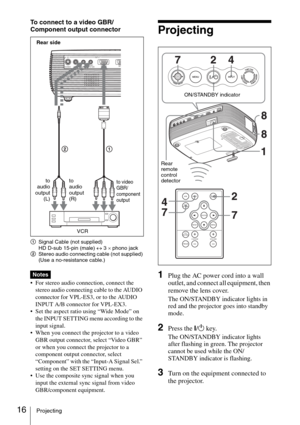

To connect to a video GBR/
Component output connector
1Signal Cable (not supplied)
HD D-sub 15-pin (male) ↔ 3 × phono jack
2Stereo audio connecting cable (not supplied)

(Use a no-resistance cable.)
 For stereo audio connection, connect the
stereo audio connecting cable to the AUDIO
connector for VPL-ES3, or to the AUDIO
INPUT A/B connector for VPL-EX3.
 Set the aspect ratio using “Wide Mode” on
the INPUT SETTING menu according to the
input signal.
 When you connect the projector to a...

17Projecting
Projecting the Picture
4Press the INPUT key to select the
input source.
Each time you press the key, the input
signal switches as follows:
Smart APA (Auto Pixel Alignment)
adjusts the picture of the connected
equipment so that it is projected clearly.
 If “Auto Input Search” is set to “On,” the
projector searches for the signals from
the connected equipment and displays
the input channel where the input signals
are found.
For details, see “Auto Input Search”
on page 28.
 The Smart...

18Turning Off the Power
8Adjust the size of the picture and the
focus.
Adjust the picture size using the Zoom
ring and adjust the picture focus using
the Focus ring.Turning Off the
Power
1Press the ?/1 key.
“POWER OFF? Please press ?/1 key
again.” appears to confirm that you want
to turn off the power.
The message disappears if you press any
key other than the ?/1 key, or if you do not
press any key for five seconds.
2Press the ?/1 key again.
The ON/STANDBY indicator flashes in
green and the fan...

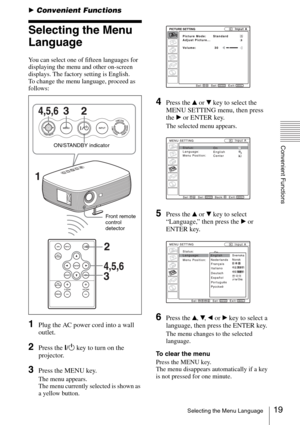

19Selecting the Menu Language
Convenient Functions
BConvenient Functions
Selecting the Menu
Language
You can select one of fifteen languages for
displaying the menu and other on-screen
displays. The factory setting is English.
To change the menu language, proceed as
follows:
1Plug the AC power cord into a wall
outlet.
2Press the ?/1 key to turn on the
projector.
3Press the MENU key.
The menu appears.
The menu currently selected is shown as
a yellow button.
4Press the v or V key to select the
MENU...

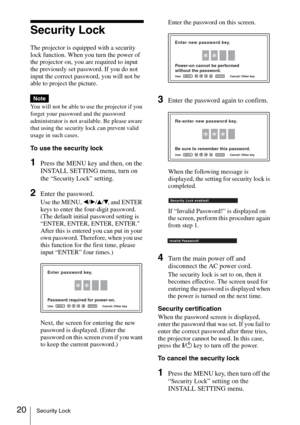

20Security Lock
Security Lock
The projector is equipped with a security
lock function. When you turn the power of
the projector on, you are required to input
the previously set password. If you do not
input the correct password, you will not be
able to project the picture.
You will not be able to use the projector if you
forget your password and the password
administrator is not available. Be please aware
that using the security lock can prevent valid
usage in such cases.
To use the security...
