31The INSTALL SETTING Menu
Adjustments and Settings Using a Menu
The INSTALL SETTING Menu
The INSTALL SETTING menu is used for changing the settings of the projector.
INSTALL SETTINGInput-A
V Keystone:  0
Image Flip:  Off
Background: Blue
Lamp Mode:  Standard
High Altitude Mode: Off
Security Lock:  Off
Setting items Functions Initial setting
V Keystone Corrects the trapezoidal distortion caused by the projection
angle using the v/V/b/B keys on the Remote Commander.
When the bottom of the trapezoid is...

32The INFORMATION Menu
The INFORMATION Menu
The INFORMATION menu displays the model name, serial number, the horizontal and vertical
frequencies of the input signal and the cumulated hours of usage of the lamp.
These are only displayed on the screen. You cannot alter the display, and these is no setting to be
altered.
fH: 48,47kHzfV: 60,00Hz
 No.23
 1024x768
Lamp Timer:  2     H VPL-ES3 Serial No. 3333333
INFORMATIONInput A
Memory number of an input signal
Signal type Model name
Serial number
Setting...

33The INFORMATION Menu
Adjustments and Settings Using a Menu
Input signals and adjustable/setting items
Adjust Picture... menu
z : Adjustable/can be set
– : Not adjustable/cannot be set
*1: Preset memory No. 3, 4 only
INPUT SETTING menu
z : Adjustable/can be set
– : Not adjustable/cannot be set
*1: Expect preset memory No. 3, 4*2: Expect preset memory No. 7, 8, 9, 10, 11
Item Input signal
Video or S-Video
(Y/C)Component Video GBR Computer B&W
Picture Mode
zzzzz
Adjust Picture...
Contrast
zzzzz...

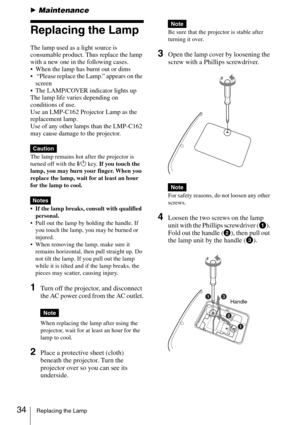

34Replacing the Lamp
BMaintenance
Replacing the Lamp
The lamp used as a light source is
consumable product. Thus replace the lamp
with a new one in the following cases.
 When the lamp has burnt out or dims
  “Please replace the Lamp.” appears on the
screen
 The LAMP/COVER indicator lights up
The lamp life varies depending on
conditions of use.
Use an LMP-C162 Projector Lamp as the
replacement lamp.
Use of any other lamps than the LMP-C162
may cause damage to the projector.
The lamp remains hot...

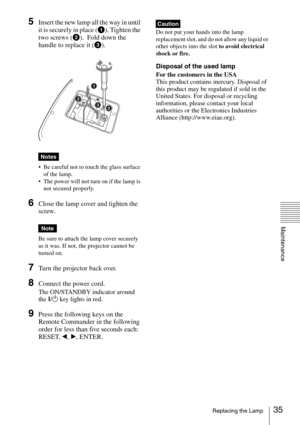

35Replacing the Lamp
Maintenance
5Insert the new lamp all the way in until
it is securely in place (a). Tighten the
two screws (b).  Fold down the
handle to replace it (c).

 Be careful not to touch the glass surface
of the lamp.
 The power will not turn on if the lamp is
not secured properly.
6Close the lamp cover and tighten the
screw.
Be sure to attach the lamp cover securely
as it was. If not, the projector cannot be
turned on.
7Turn the projector back over.
8Connect the power cord.
The...

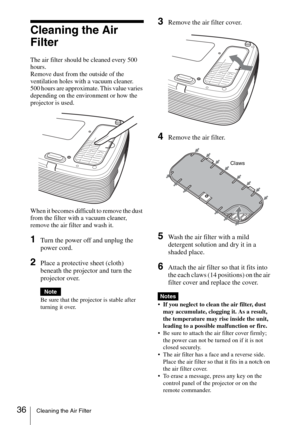

36Cleaning the Air Filter
Cleaning the Air
Filter
The air filter should be cleaned every 500
hours.
Remove dust from the outside of the
ventilation holes with a vacuum cleaner.
500 hours are approximate. This value varies
depending on the environment or how the
projector is used.
When it becomes difficult to remove the dust
from the filter with a vacuum cleaner,
remove the air filter and wash it.
1Turn the power off and unplug the
power cord.
2Place a protective sheet (cloth)
beneath the...

37Troubleshooting
Others
BOthers
Troubleshooting
If the projector appears to be operating erratically, try to diagnose and correct the problem using
the following instructions. If the problem persists, consult with qualified Sony personnel.
Power
Symptom Cause and Remedy
The power is not turned on.  The power has been turned off and on with the ?/1 key at a short
interval.
cWait for about 45 seconds before turning on the power
(see page 18).
 The lamp cover is not secured.
cClose the lamp...

38Troubleshooting
Sound
Remote Commander
Color balance is incorrect.  The picture has not been adjusted properly.
cAdjust the picture (see page 25).
 The projector is set to the wrong color system.
cSet “Color System” on the SET SETTING menu to match the
color system being input (see page 28).
The picture is too dark.  Contrast or brightness has not been adjusted properly.
cAdjust the contrast or brightness on the “Adjust Picture...” menu
properly (see page 25).
 The lamp has burnt out or is dim....

39Troubleshooting
Others
Others
Indicators
Warning Messages
Use the list below to check the meaning of the messages displayed on the screen.
Symptom Cause and Remedy
The control panel keys do
not function.The control panel keys are locked.
cUnlock the control panel keys (see page 29).
Symptom Cause and Remedy
The LAMP/COVER
indicator flashes. The lamp cover or the air filter cover is detached.
cAttach the cover securely (see pages 35 and 36).
 The electrical system may have broken down.
cConsult with...

40Troubleshooting
Caution Messages
Use the list below to check the meaning of the messages displayed on the screen.
Message Meaning and Remedy
Not applicable! You have pressed the wrong key.
cPress the appropriate key.
The panel keys are locked! “Panel Key Lock” on the SET SETTING menu is set to “On.”
cAll the keys on the control panel of the projector are locked.
Operate the projector with the keys on the Remote Commander
(see page 29).
