Sony Vpl Es3 Projector User Manual
Here you can view all the pages of manual Sony Vpl Es3 Projector User Manual. The Sony manuals for Projector are available online for free. You can easily download all the documents as PDF.
Page 41
41Specifications Others Specifications Optical characteristics Projection system 3 LCD panels, 1 lens, projection system LCD panel VPL-ES3: 0.63-inch SVGA panel, about 1,440,000 pixels (480,000 pixels × 3) VPL-EX3: 0.63-inch XGA panel, about 2,360,000 pixels (786,432 pixels × 3) Lens 1.2 times zoom lens f 18.8 to 22.6 mm/F1.6 to 1.94 Lamp 165 W Ultra high pressure lamp Projected picture size 40 to 300 inches (measured diagonally) Light output ANSI lumen 1) 2000 lm (When the Lamp Mode is set to...
Page 42
42Specifications INPUT B (VPL-EX3 only) HD D-sub15-pin (female) Analog RGB: R: 0.7 Vp-p ±2 dB (75 ohms terminated) G: 0.7 Vp-p ±2 dB (75 ohms terminated) G with sync/Y: 1 Vp-p ±2 dB sync negative (75 ohms terminated) B: 0.7 Vp-p ±2 dB (75 ohms terminated) SYNC/HD: Composite sync input: TTL level, positive/ negative Horizontal sync input: TTL level Positive/negative VD: Vertical sync input: TTL level, positive/negative AUDIO INPUT A/B (VPL-EX3 only) Stereo minijack, 500 mVrms, input impedance 47...
Page 43
43Specifications Others RS-232C connector (D-sub 9 pin, female) 5 GND 13 HD/C.Sync 6 GND (R) 14 VD 7 GND (G) 15 DDC/SCL 8 GND (B) 1DCD 6DSR 2RXDA 7RTS 3TXDA 8CTS 4DTR 9RI 5 GND
Page 44
44Specifications Preset signals Memory No.Preset signal fH (kHz) fV (Hz) Sync 1 Video 60 Hz 60 Hz 15.734 59.940 – 2 Video 50 Hz 50 Hz 15.625 50.000 – 3 480/60i 480/60i 15.734 59.940 S on G/Y 4 575/50i 575/50i 15.625 50.000 S on G/Y 5 480/60p 480/60p (Progressive component31.470 60.000 S on G/Y 6 575/50p 575/50p (Progressive component31.250 50.000 S on G/Y 7 1080/60i 1035/60i, 1080/60i 33.750 60.000 S on G/Y 8 1080/50i 1080/50i 28.130 50.000 S on G/Y 10 720/60p 720/60p 45.000 60.000 S on G/Y 11...
Page 45
45Specifications Others When a signal other than the preset signals shown above is input, the picture may not be displayed properly. For the Memory No.49*, the smart APA function and the APA key of the remote commander do not active. Make adjustments for the input signal using the Adjust Signal... on the INPUT SETTING menu. When an SXGA+ signal is input, the image may extend beyond the edges of the screen. In this case, input a signal with no black edges around the image, and disconnect and...
Page 46
46Installation Diagram Installation Diagram This section describes the examples of installing the projector on a desk, etc. See the chart on page 47 concerning the installation measurements. The alphabetical letters in the illustration indicate the distances below. a:distance between the screen and the center of the lens b:distance between the floor and the center of the lens c:distance between the floor and the bottom of the adjusters of the projector x:distance between the floor and the center of the...
Page 47
47Installation Diagram
Others
(The above-mentioned numerical values differ from the design values because the values in the
table include a tolerance.)
a (N) = {(SS × 18.56/0.6299) – 24.0} × 1.03
a (M) = {(SS × 22.61/0.6299) – 24.0} × 0.97
b = x–(SS/0.6299 × 3.2)
c = x–(SS/0.6299 × 3.2 + 67.6)
The installation measurements and their calculation method for each lens are shown above.
The alphabetical letters in the charts and calculation methods indicate the following.
SS:screen size measured diagonally...

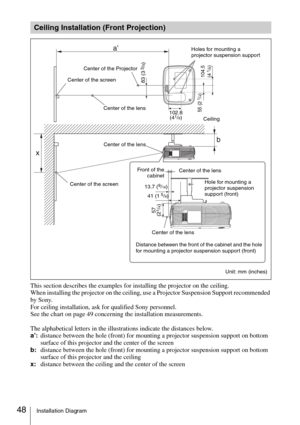

Page 48
48Installation Diagram This section describes the examples for installing the projector on the ceiling. When installing the projector on the ceiling, use a Projector Suspension Support recommended by Sony. For ceiling installation, ask for qualified Sony personnel. See the chart on page 49 concerning the installation measurements. The alphabetical letters in the illustrations indicate the distances below. a’:distance between the hole (front) for mounting a projector suspension support on bottom surface...
Page 49
49Installation Diagram
Others
(The above-mentioned numerical values differ from the design values because the values in the
table include a tolerance.)
a’(N) = {(SS × 18.56/0.6299) + 3.3} × 1.03
a’(M) = {(SS × 22.61/0.6299) +3.3} × 0.97
x = b + (SS/0.6299 × 3.2 + 57.0)
The installation measurements and their calculation method for each lens are shown above.
The alphabetical letters in the charts and calculation methods indicate the following.
SS:screen size measured diagonally (inches)
a’:distance...

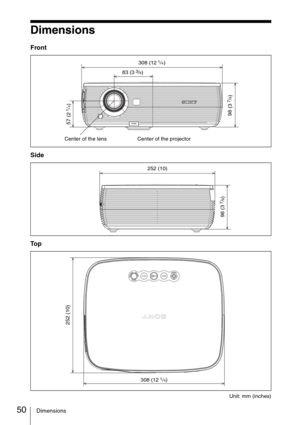

Page 50
50Dimensions Dimensions Front Side To p Unit: mm (inches) Center of the lens Center of the projector 98 (3 7/8) 308 (12 1/4) 83 (3 3/8) 57 (2 1/4) 252 (10) 98 (3 7/8) 308 (12 1/4) 252 (10)
