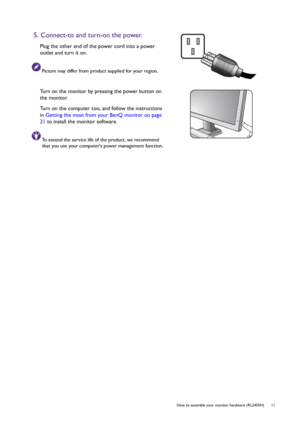

  11   How to assemble your monitor hardware (RL2450H)
5. Connect-to and turn-on the power.
Plug the other end of the power cord into a power
outlet and turn it on.
Picture may differ from product supplied for your region.
Turn on the monitor by pressing the power button on
the monitor.
Turn on the computer too, and follow the instructions
in Getting the most from your BenQ monitor on page
21 to install the monitor software.
To extend the service life of the product, we recommend
that you use your...

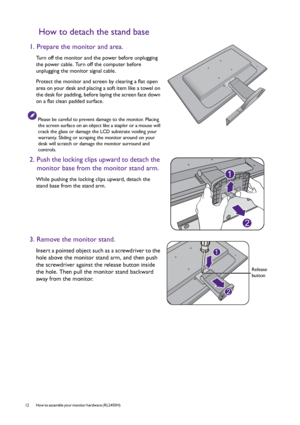

12  How to assemble your monitor hardware (RL2450H)
How to detach the stand base
1. Prepare the monitor and area.
Turn off the monitor and the power before unplugging
the power cable. Turn off the computer before
unplugging the monitor signal cable.
Protect the monitor and screen by clearing a flat open
area on your desk and placing a soft item like a towel on
the desk for padding, before laying the screen face down
on a flat clean padded surface.
Please be careful to prevent damage to the...

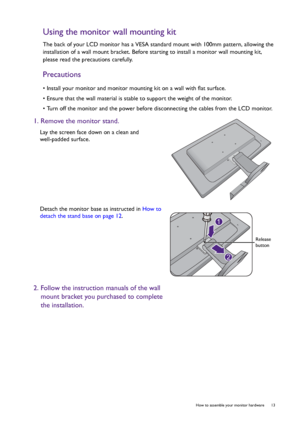

  13   How to assemble your monitor hardware
Using the monitor wall mounting kit
The back of your LCD monitor has a VESA standard mount with 100mm pattern, allowing the
installation of a wall mount bracket. Before starting to install a monitor wall mounting kit,
please read the precautions carefully.
Precautions
• Install your monitor and monitor mounting kit on a wall with flat surface.
• Ensure that the wall material is stable to support the weight of the monitor.
• Turn off the monitor and the power...

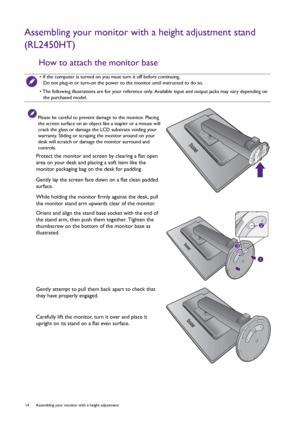

14  Assembling your monitor with a height adjustment
Assembling your monitor with a height adjustment stand
(RL2450HT)
How to attach the monitor base
• If the computer is turned on you must turn it off before continuing.
Do not plug-in or turn-on the power to the monitor until instructed to do so.
• The following illustrations are for your reference only. Available input and output jacks may vary depending on
the purchased model.
Please be careful to prevent damage to the monitor. Placing
the screen...

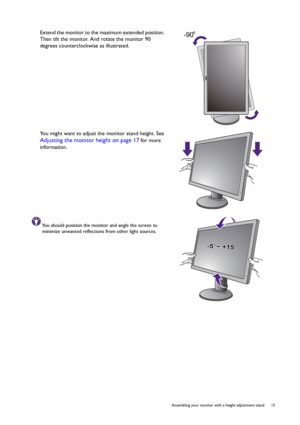

  15   Assembling your monitor with a height adjustment stand
Extend the monitor to the maximum extended position.
Then tilt the monitor. And rotate the monitor 90
degrees counterclockwise as illustrated.
You might want to adjust the monitor stand height. See
Adjusting the monitor height on page 17 for more
information.
You should position the monitor and angle the screen to
minimize unwanted reflections from other light sources.
-90
-5-5O O ~ +15~ +15O-5O ~ +15O

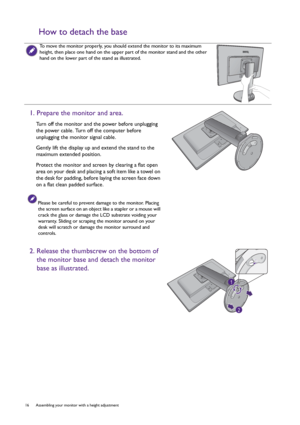

16  Assembling your monitor with a height adjustment
How to detach the base
To move the monitor properly, you should extend the monitor to its maximum
height, then place one hand on the upper part of the monitor stand and the other
hand on the lower part of the stand as illustrated.
1. Prepare the monitor and area.
Turn off the monitor and the power before unplugging
the power cable. Turn off the computer before
unplugging the monitor signal cable.
Gently lift the display up and extend the stand to...

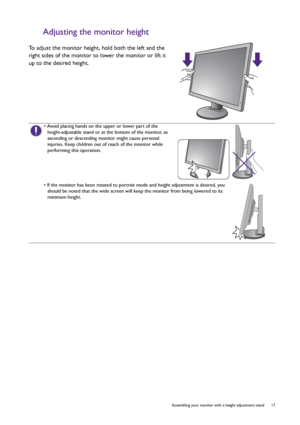

  17   Assembling your monitor with a height adjustment stand
Adjusting the monitor height
To adjust the monitor height, hold both the left and the
right sides of the monitor to lower the monitor or lift it
up to the desired height.
• Avoid placing hands on the upper or lower part of the
height-adjustable stand or at the bottom of the monitor, as
ascending or descending monitor might cause personal
injuries. Keep children out of reach of the monitor while
performing this operation.
• If the monitor...

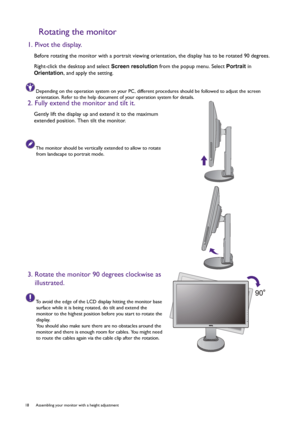

18  Assembling your monitor with a height adjustment
Rotating the monitor
1. Pivot the display.
Before rotating the monitor with a portrait viewing orientation, the display has to be rotated 90 degrees.
Right-click the desktop and select Screen resolution from the popup menu. Select Portrait in
Orientation, and apply the setting.
Depending on the operation system on your PC, different procedures should be followed to adjust the screen
orientation. Refer to the help document of your operation system...

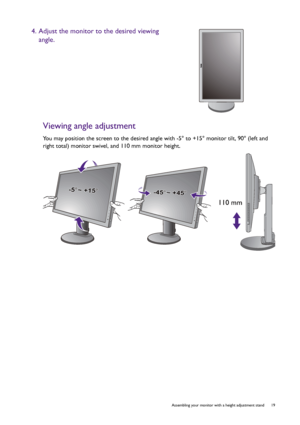

  19   Assembling your monitor with a height adjustment stand
Viewing angle adjustment
You may position the screen to the desired angle with -5° to +15° monitor tilt, 90° (left and
right total) monitor swivel, and 110 mm monitor height.
4. Adjust the monitor to the desired viewing
angle.
-5-5O O ~ +15~ +15O-5O ~ +15O-45-45O O ~ +45~ +45O-45O ~ +45O
110 mm

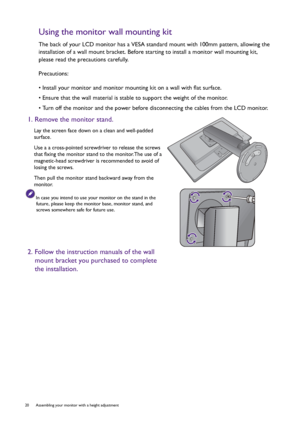

20  Assembling your monitor with a height adjustment
Using the monitor wall mounting kit
The back of your LCD monitor has a VESA standard mount with 100mm pattern, allowing the
installation of a wall mount bracket. Before starting to install a monitor wall mounting kit,
please read the precautions carefully.
Precautions:
• Install your monitor and monitor mounting kit on a wall with flat surface.
• Ensure that the wall material is stable to support the weight of the monitor.
• Turn off the monitor and...
