  21   Getting the most from your BenQ monitor

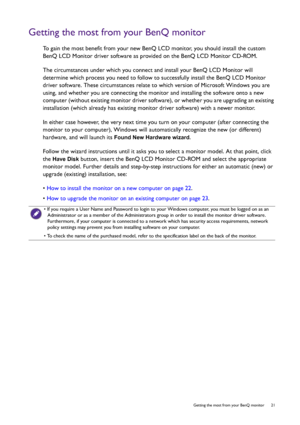

Getting the most from your BenQ monitor
To gain the most benefit from your new BenQ LCD monitor, you should install the custom
BenQ LCD Monitor driver software as provided on the BenQ LCD Monitor CD-ROM.
The circumstances under which you connect and install your BenQ LCD Monitor will
determine which process you need to follow to successfully install the BenQ LCD Monitor
driver software. These circumstances relate to which version of Microsoft Windows you...

22  Getting the most from your BenQ monitor

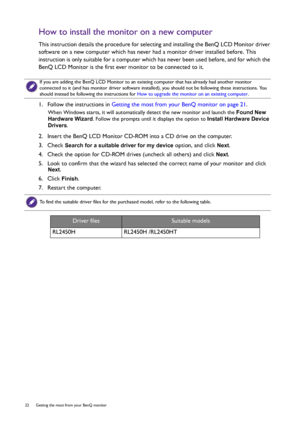

How to install the monitor on a new computer
This instruction details the procedure for selecting and installing the BenQ LCD Monitor driver
software on a new computer which has never had a monitor driver installed before. This
instruction is only suitable for a computer which has never been used before, and for which the
BenQ LCD Monitor is the first ever monitor to be connected to it.
1.  Follow the instructions in Getting the most from your BenQ monitor...

  23   Getting the most from your BenQ monitor

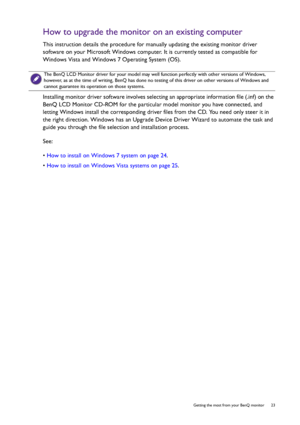

How to upgrade the monitor on an existing computer
This instruction details the procedure for manually updating the existing monitor driver
software on your Microsoft Windows computer. It is currently tested as compatible for
Windows Vista and Windows 7 Operating System (OS).
Installing monitor driver software involves selecting an appropriate information file (.inf) on the
BenQ LCD Monitor CD-ROM for the particular model monitor you have connected, and...

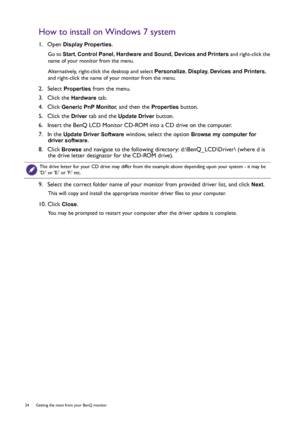

24  Getting the most from your BenQ monitor
How to install on Windows 7 system
1.  Open Display Properties.
Go to Start, Control Panel, Hardware and Sound, Devices and Printers and right-click the
name of your monitor from the menu.
Alternatively, right-click the desktop and select Personalize, Display, Devices and Printers,
and right-click the name of your monitor from the menu.
2.  Select Properties from the menu.
3.  Click the
Hardware tab.
4.  Click
Generic PnP Monitor, and then the Properties...

  25   Getting the most from your BenQ monitor

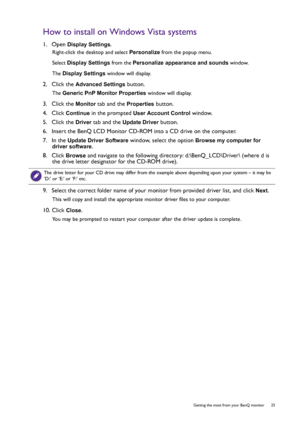

How to install on Windows Vista systems
1.  Open Display Settings.
Right-click the desktop and select Personalize from the popup menu.
Select Display Settings from the Personalize appearance and sounds window.
The Display Settings window will display.
2.  Click the Advanced Settings button.
The Generic PnP Monitor Properties window will display.
3.  Click the Monitor tab and the Properties button.
4.  Click
Continue in the prompted User Account Control...

26  How to adjust your monitor

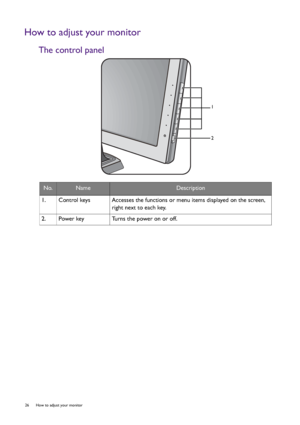

How to adjust your monitor
The control panel
No.NameDescription
1.   Control keys Accesses the functions or menu items displayed on the screen,
right next to each key.
2.   Power key Turns the power on or off.
1
2


  27   How to adjust your monitor

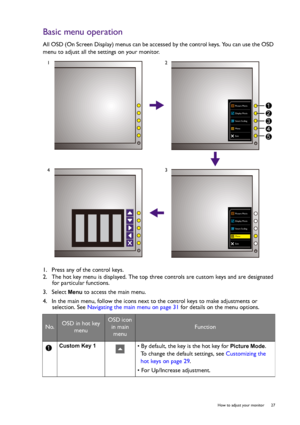

Basic menu operation
All OSD (On Screen Display) menus can be accessed by the control keys. You can use the OSD
menu to adjust all the settings on your monitor.
1.  Press any of the control keys.
2.  The hot key menu is displayed. The top three controls are custom keys and are designated
for particular functions.
3.  Select
Menu to access the main menu.
4.  In the main menu, follow the icons next to the control keys to make adjustments or
selection. See Navigating...

28  How to adjust your monitor

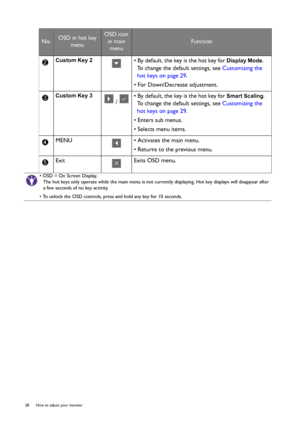

Custom Key 2• By default, the key is the hot key for Display Mode.
To change the default settings, see Customizing the
hot keys on page 29.
• For Down/Decrease adjustment.
Custom Key 3
 / • By default, the key is the hot key for
Smart Scaling.
To change the default settings, see Customizing the
hot keys on page 29.
• Enters sub menus.
• Selects menu items.
MENU • Activates the main menu.
• Returns to the previous menu.
Exit Exits OSD menu.
• OSD = On Screen Display....

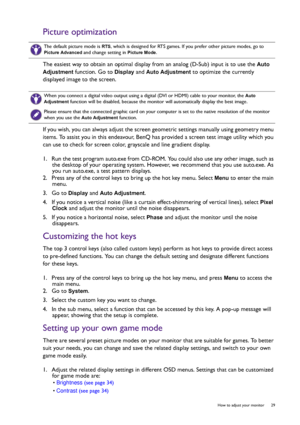

  29   How to adjust your monitor
Picture optimization
The easiest way to obtain an optimal display from an analog (D-Sub) input is to use the Auto
Adjustment
 function. Go to Display and Auto Adjustment to optimize the currently
displayed image to the screen.
If you wish, you can always adjust the screen geometric settings manually using geometry menu
items. To assist you in this endeavour, BenQ has provided a screen test image utility which you
can use to check for screen color, grayscale and line...

30  How to adjust your monitor

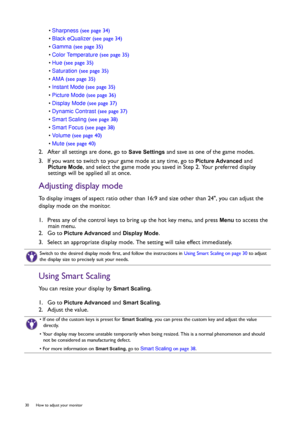

• Sharpness (see page 34)
• Black eQualizer (see page 34)
• Gamma (see page 35)
• Color Temperature (see page 35)
• Hue (see page 35)
• Saturation (see page 35)
• AMA (see page 35)
• Instant Mode (see page 35)
• Picture Mode (see page 36)
• Display Mode (see page 37)
• Dynamic Contrast (see page 37)
• Smart Scaling (see page 38)
• Smart Focus (see page 38)
• Vo l u m e (see page 40)
• Mute (see page 40)
2.  After all settings are done, go to Save Settings and save as one...
