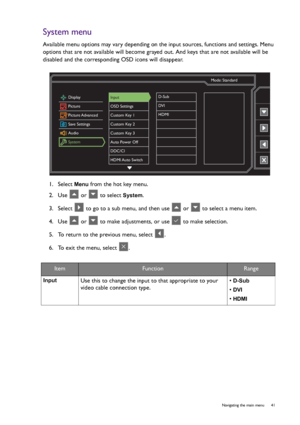

  41   Navigating the main menu
System menu
Available menu options may vary depending on the input sources, functions and settings. Menu
options that are not available will become grayed out. And keys that are not available will be
disabled and the corresponding OSD icons will disappear.
1.  Select
Menu from the hot key menu.
2.  Use   or   to select
System.
3.  Select   to go to a sub menu, and then use   or   to select a menu item.
4.  Use   or   to make adjustments, or use   to make selection.
5....

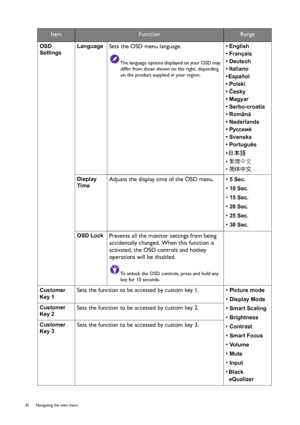

42  Navigating the main menu
OSD
SettingsLanguageSets the OSD menu language.
The language options displayed on your OSD may
differ from those shown on the right, depending
on the product supplied in your region.
• English
• Français
• Deutsch
• Italiano
• Español
• Polski
• Česky
• Magyar
• Serbo-croatia
• Română
• Nederlands
• Русский
• Svenska
• Português
•
日本語
• 繁體中文
• 简体中文
Display
Time
Adjusts the display time of the OSD menu. • 5 Sec.
• 10 Sec.
• 15 Sec.
• 20 Sec.
• 25 Sec.
• 30 Sec.
OSD...

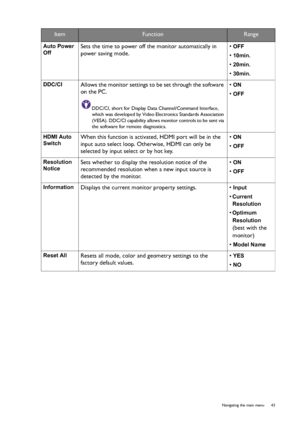

  43   Navigating the main menu
Auto Power
OffSets the time to power off the monitor automatically in
power saving mode.• OFF
• 10min.
• 20min.
• 30min.
DDC/CI
Allows the monitor settings to be set through the software
on the PC.
DDC/CI, short for Display Data Channel/Command Interface,
which was developed by Video Electronics Standards Association
(VESA). DDC/CI capability allows monitor controls to be sent via
the software for remote diagnostics.
• ON
• OFF
HDMI Auto
Switch
When this function is...

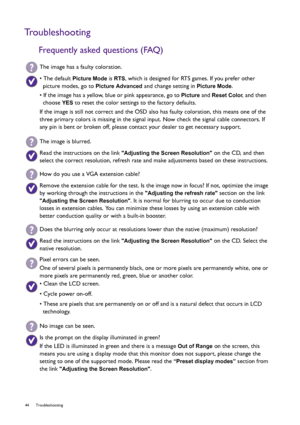

44 Troubleshooting
Troubleshooting
Frequently asked questions (FAQ)
The image has a faulty coloration.
• The default Picture Mode is RTS, which is designed for RTS games. If you prefer other
picture modes, go to
Picture Advanced and change setting in Picture Mode.
• If the image has a yellow, blue or pink appearance, go to
Picture and Reset Color, and then
choose
YES to reset the color settings to the factory defaults.
If the image is still not correct and the OSD also has faulty coloration, this...

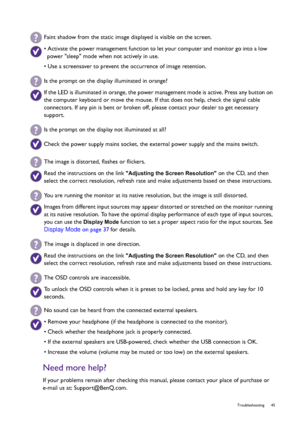

  45   Troubleshooting
Need more help?
If your problems remain after checking this manual, please contact your place of purchase or
e-mail us at: [email protected].
Faint shadow from the static image displayed is visible on the screen.
• Activate the power management function to let your computer and monitor go into a low
power sleep mode when not actively in use.
• Use a screensaver to prevent the occurrence of image retention.
Is the prompt on the display illuminated in orange?
If the LED is...
