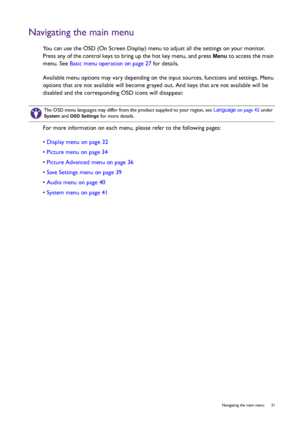

  31   Navigating the main menu
Navigating the main menu
You can use the OSD (On Screen Display) menu to adjust all the settings on your monitor.
Press any of the control keys to bring up the hot key menu, and press
Menu to access the main
menu. See Basic menu operation on page 27 for details.
Available menu options may vary depending on the input sources, functions and settings. Menu
options that are not available will become grayed out. And keys that are not available will be
disabled and the...

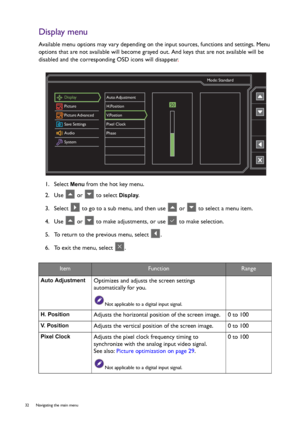

32  Navigating the main menu
Display menu
Available menu options may vary depending on the input sources, functions and settings. Menu
options that are not available will become grayed out. And keys that are not available will be
disabled and the corresponding OSD icons will disappear.
1.  Select
Menu from the hot key menu.
2.  Use   or   to select
Display.
3.  Select   to go to a sub menu, and then use   or   to select a menu item.
4.  Use   or   to make adjustments, or use   to make selection.
5....

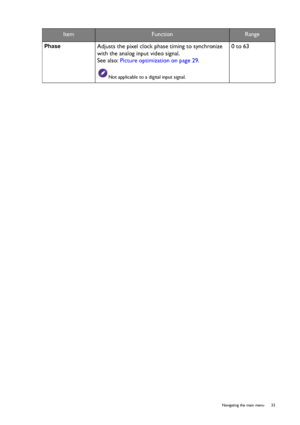

  33   Navigating the main menu
PhaseAdjusts the pixel clock phase timing to synchronize
with the analog input video signal.
See also: Picture optimization on page 29.
Not applicable to a digital input signal.
0 to 63
ItemFunctionRange

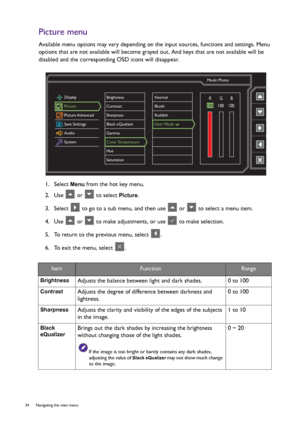

34  Navigating the main menu
Picture menu
Available menu options may vary depending on the input sources, functions and settings. Menu
options that are not available will become grayed out. And keys that are not available will be
disabled and the corresponding OSD icons will disappear.
1.  Select
Menu from the hot key menu.
2.  Use   or   to select
Picture.
3.  Select   to go to a sub menu, and then use   or   to select a menu item.
4.  Use   or   to make adjustments, or use   to make selection.
5....

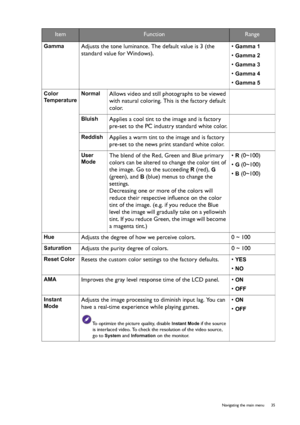

  35   Navigating the main menu
GammaAdjusts the tone luminance. The default value is 3 (the
standard value for Windows).• Gamma 1
• Gamma 2
• Gamma 3
• Gamma 4
• Gamma 5
Color
TemperatureNormal
Allows video and still photographs to be viewed
with natural coloring. This is the factory default
color.
BluishApplies a cool tint to the image and is factory
pre-set to the PC industry standard white color.
ReddishApplies a warm tint to the image and is factory
pre-set to the news print standard white...

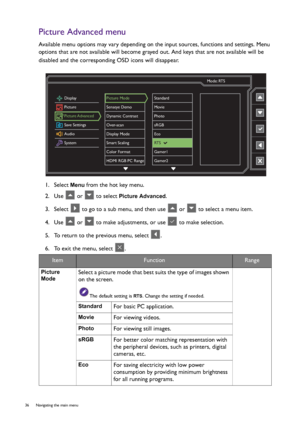

36  Navigating the main menu
Picture Advanced menu
Available menu options may vary depending on the input sources, functions and settings. Menu
options that are not available will become grayed out. And keys that are not available will be
disabled and the corresponding OSD icons will disappear.
1.  Select
Menu from the hot key menu.
2.  Use   or   to select
Picture Advanced.
3.  Select   to go to a sub menu, and then use   or   to select a menu item.
4.  Use   or   to make adjustments, or use   to...

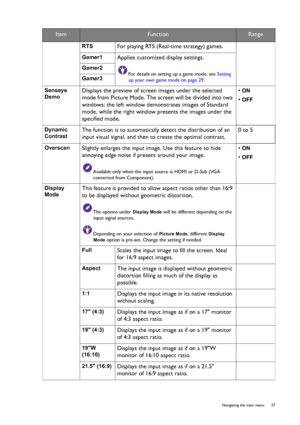

  37   Navigating the main menu
RTSFor playing RTS (Real-time strategy) games.
Gamer1Applies customized display settings.
For details on setting up a game mode, see Setting
up your own game mode on page 29.
Gamer2
Gamer3
Senseye
Demo
Displays the preview of screen images under the selected
mode from Picture Mode. The screen will be divided into two
windows; the left window demonstrates images of Standard
mode, while the right window presents the images under the
specified mode.• ON
• OFF
Dynamic...

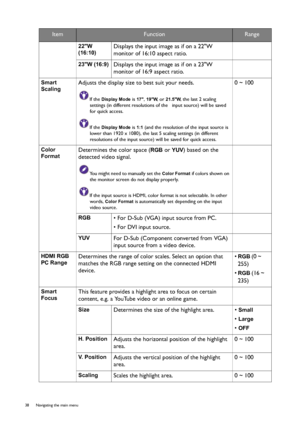

38  Navigating the main menu
22W
(16:10)Displays the input image as if on a 22W
monitor of 16:10 aspect ratio.
23W (16:9)Displays the input image as if on a 23W
monitor of 16:9 aspect ratio.
Smart
ScalingAdjusts the display size to best suit your needs.
If the Display Mode is 17, 19W, or 21.5W, the last 2 scaling
settings (in different resolutions of the   input source) will be saved
for quick access.
If the
Display Mode is 1:1 (and the resolution of the input source is
lower than 1920 x 1080),...

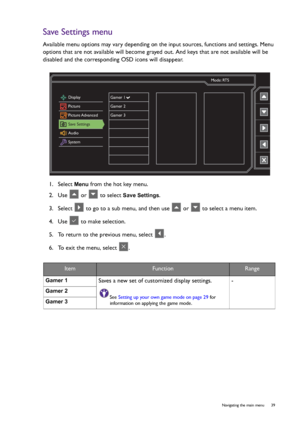

  39   Navigating the main menu
Save Settings menu
Available menu options may vary depending on the input sources, functions and settings. Menu
options that are not available will become grayed out. And keys that are not available will be
disabled and the corresponding OSD icons will disappear.
1.  Select
Menu from the hot key menu.
2.  Use   or   to select
Save Settings.
3.  Select   to go to a sub menu, and then use   or   to select a menu item.
4.  Use   to make selection.
5.  To return to the...

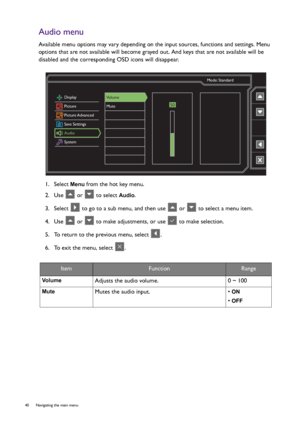

40  Navigating the main menu
Audio menu
Available menu options may vary depending on the input sources, functions and settings. Menu
options that are not available will become grayed out. And keys that are not available will be
disabled and the corresponding OSD icons will disappear.
1.  Select
Menu from the hot key menu.
2.  Use   or   to select
Audio.
3.  Select   to go to a sub menu, and then use   or   to select a menu item.
4.  Use   or   to make adjustments, or use   to make selection.
5.  To...
