Dukane Projector 8120WIA User Manual

81

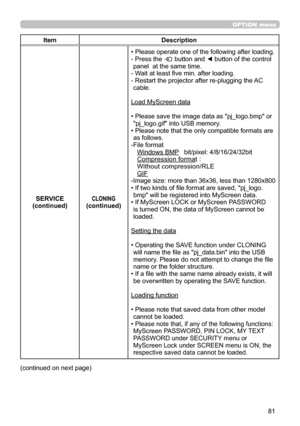

OPTION menu
ItemDescription
SERVICE
(continued)
CLONING(continued)
• Please operate one of the following after loading.
-  Press the  button and ◄ button of the control
panel  at the same time.
- Wait at least five min. after loading.
 -  Restart the projector after re-plugging the AC
cable.
Load MyScreen data
•
 Please save the image data as "pj_logo.bmp" or
"pj_logo.gif" into USB memory.
•
 Please note that the only compatible formats are
as follows.
-File format Windows BMP...

82
OPTION menu
ItemDescription
SERVICE
(continued)
CLONING(continued)
Loading function (continued)
•
 Please note that the saved data of START UP
and MyScreen Lock under SCREEN menu cannot
be loaded if  MyScreen PASSWORD under
SECURITY menu is ON.
•  Please note that the saved data of MY TEXT
WRITING cannot be loaded if MY TEXT
PASSWORD under SECURITY menu is ON.
INFORMATION
Selecting this item displays a dialog titled “INPUT_INFORMATION”.
It shows the information about the current input.
• The...

83

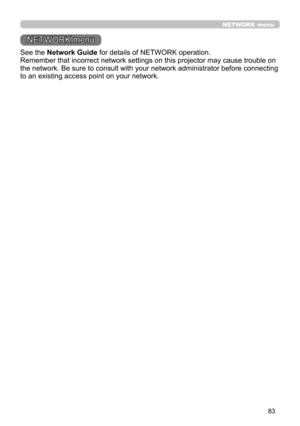

NETWORK menu
See the Network Guide for details of NETWORK operation.
Remember that incorrect network settings on this projector may cause trouble on
the network. Be sure to consult with your network administrator before connecting
to an existing access point on your network.
NETWORK menu

84

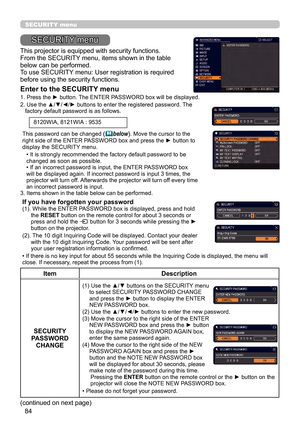

SECURITY menu
ItemDescription
SECURITY
PASSWORD  CHANGE
(1)  Use the ▲/▼ buttons on the SECURITY menu
to select SECURITY PASSWORD CHANGE
and press the ► button to display the ENTER
NEW PASSWORD box.
(2)
 Use the ▲/▼/◄/► buttons to enter the new password.
(3)  Move the cursor to the right side of the ENTER
NEW PASSWORD box and press the ► button
to display the NEW PASSWORD AGAIN box,
enter the same password again.
(4)
 Move the cursor to the right side of the NEW
PASSWORD AGAIN box and press...

85

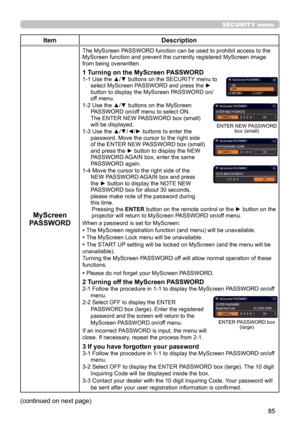

SECURITY menu
ItemDescription
MyScreen
PASSWORD
The MyScreen PASSWORD function can be used to prohibit access to the
MyScreen function and prevent the currently registered MyScreen image
from being overwritten.
1 Turning on the MyScreen PASSWORD1-1  Use the ▲/▼ buttons on the SECURITY menu to
select MyScreen PASSWORD and press the ►
button to display the MyScreen PASSWORD on/
off menu.
1-2
 Use the ▲/▼ buttons on the MyScreen
PASSWORD on/off menu to select ON.
The ENTER NEW PASSWORD box...

86

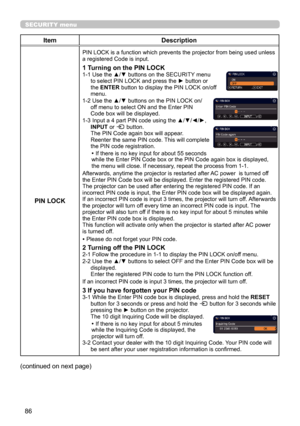

SECURITY menu
ItemDescription
PIN LOCK
PIN LOCK is a function which prevents the projector from being used unless
a registered Code is input.
1 Turning on the PIN LOCK1-1  Use the ▲/▼ buttons on the SECURITY menu
to select PIN LOCK and press the ► button or
the ENTER button to display the PIN LOCK on/off
menu.
1-2
 Use the ▲/▼ buttons on the PIN LOCK on/
off menu to select ON and the Enter PIN
Code box will be displayed.
1-3
 Input a 4 part PIN code using the ▲/▼/◄/►,
INPUT or  button.
The...

87
SECURITY menu
ItemDescription
MY TEXT
PASSWORD
The MY TEXT PASSWORD function can prevent the MY TEXT from being
overwritten. When the password is set for the MY TEXT;
• The MY TEXT DISPLAY menu will be unavailable, which can prohibit
changing the DISPLAY setting.
• The MY TEXT WRITING menu will be unavailable, which can prevent the
MY TEXT from being overwritten.
1 Turning on the MY TEXT PASSWORD1-1  Use the ▲/▼ buttons on the SECURITY menu to
select the MY TEXT PASSWORD and press the
► button...

88

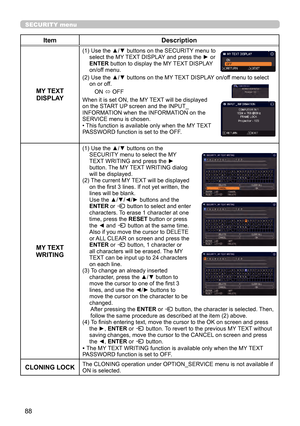

SECURITY menu
ItemDescription
MY TEXT  DISPLAY
(1)  Use the ▲/▼ buttons on the SECURITY menu to
select the MY TEXT DISPLAY and press the ► or
ENTER
 button to display the MY TEXT DISPLAY
on/off menu.
(2)
 Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select
on or of

f.
ON  ó OFF
When it is set ON, the MY TEXT will be displayed
on the START UP screen and the INPUT_
INFORMATION when the INFORMATION on the
SERVICE menu is chosen.
• This function is available only when the MY TEXT...

89

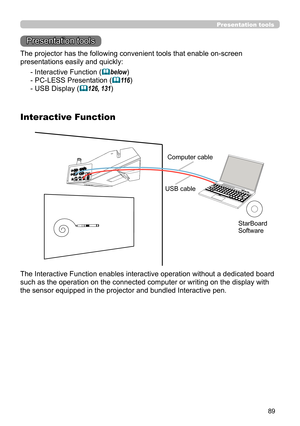

Presentation tools
Presentation tools
The Interactive Function enables interactive operation without a dedicated board
such as the operation on the connected computer or writing on the display with
the sensor equipped in the projector and bundled Interactive pen.
Interactive Function
The projector has the following convenient tools that enable on-screen
presentations easily and quickly:- Interactive Function (
below)
- PC-LESS Presentation (
11 6 )
- USB Display (
126, 131)
Computer cable
USB...

90

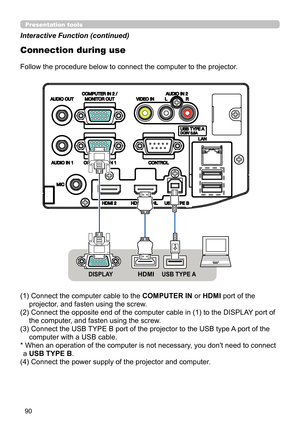

Presentation tools
Follow the procedure below to connect the computer to the projector.
Connection during use
(1)  Connect the computer cable to the COMPUTER IN or HDMI port of the
projector, and fasten using the screw.
(2)
 Connect the opposite end of the computer cable in (1) to the DISPLA Y port of
the computer, and fasten using the screw.
(3)
 Connect the USB TYPE B port of the projector to the USB type A port of the
computer with a USB cable.
*
 When an operation of the computer is not...
