Lucent Technologies DEFINITY Enterprise Communication Server Release 8.2 Administrators Guide

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Phone reference
1117 Cordless telephones
19

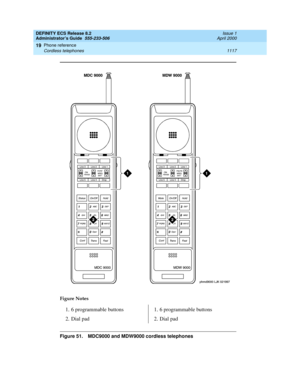

Figure 51. MDC9000 and MDW9000 cordless telephones Figure Notes
1. 6 programmable buttons
2. Dial pad1. 6 programmable buttons
2. Dial pad

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Phone reference
1118 Cordless telephones
19
Figure 52. MDC9000 and MDW9000 cordless telephones Figure Notes
1. 6 programmable buttons
2. Dial pad1. 6 programmable buttons
2. Dial pad

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Phone reference
1119 DEFINITY Internet Protocol (IP) Softphones
19

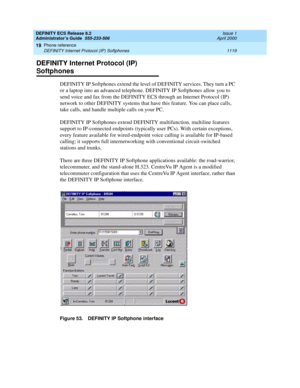

DEFINITY Internet Protocol (IP)
Softphones
DEFINITY IP Softphones extend the level of DEFINITY services. They turn a PC
or a laptop into an advanced telephone. DEFINITY IP Softphones allow you to
send voice and fax from the DEFINITY ECS through an Internet Protocol (IP)
network to other DEFINITY systems that have this feature. You can place calls,
take...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Phone reference
1120 DEFINITY Internet Protocol (IP) Softphones
19
Figure 54. CentreVu IP Agent interface
Road-warrior application
The road-warrior application enables travelers to use DEFINITY ECS features
from temporary remote locations, such as a hotel room. The road-warrior
configuration uses two separate software applications running on a user’s PC that
is connected to a DEFINITY system over an IP network. The...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Phone reference
1121 DEFINITY Internet Protocol (IP) Softphones
19

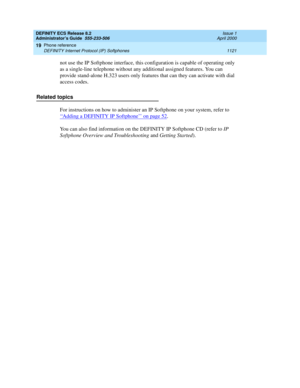

not use the IP Softphone interface, this configuration is capable of operating only
as a single-line telephone without any additional assigned features. You can
provide stand-alone H.323 users only features that can they can activate with dial
access codes.
Related topics
For instructions on how to administer an IP Softphone on your system, refer to
‘‘...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Phone reference
1122 DEFINITY Internet Protocol (IP) Softphones
19

Features and technical reference
1123 AAR and ARS partitioning
20
DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
20
Features and technical reference
AAR and ARS partitioning
You can use Automatic Alternate Routing (AAR) and Automatic Route Selection
(ARS) partitioning to change the call routing plan for up to 8 different user groups
within a single DEFINITY ECS. You assign a Partition Group Number (PGN) to
each user group and identify different call routing treatment...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1124 AAR and ARS partitioning
20
You can assign a route pattern to just one partitioned user group or you can assign
a route pattern to all your partitioned user groups.
You assign the PGN on the Class of Restriction (COR) screen, and then assign the
COR on each station screen. When a user dials an AAR or ARS feature access
code and a number, the switch uses the PGN of the caller’s COR...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1125 AAR/ARS shortcut dialing
20

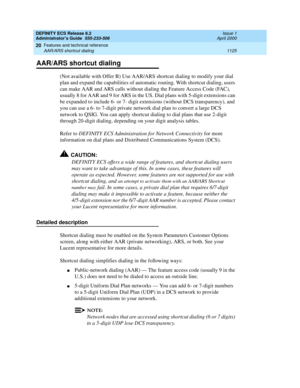

AAR/ARS shortcut dialing
(Not available with Offer B) Use AAR/ARS shortcut dialing to modify your dial
plan and expand the capabilities of automatic routing. With shortcut dialing, users
can make AAR and ARS calls without dialing the Feature Access Code (FAC),
usually 8 for AAR and 9 for ARS in the US. Dial plans with 5-digit extensions can
be expanded to...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1126 AAR/ARS shortcut dialing
20
nQSIG networks — Providing a 6- to 7-digit private-network dialing plan
makes it easier to convert a large DCS network to QSIG. You can
implement QSIG networks with all the QSIG Supplementary Services
installed in your network. It also makes it easier to integrate DEFINITY
ECS into existing networks composed of non-Lucent systems.
n3-digit Uniform Dial...
