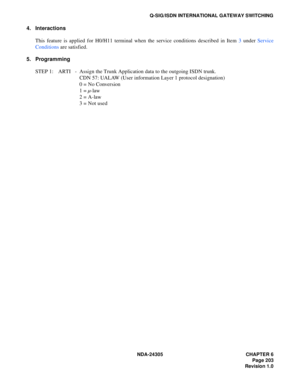

NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 6
Page 203
Revision 1.0
Q-SIG/ISDN INTERNATIONAL GATEWAY SWITCHING
4. Interactions
This feature is applied for H0/H11 terminal when the service conditions described in Item 3 under Service
Conditions are satisfied.
5. Programming
STEP 1: ARTI - Assign the Trunk Application data to the outgoing ISDN trunk.
CDN 57: UALAW (User information Layer 1 protocol designation)
0 = No Conversion
1 = µ-law
2 = A-law
3 = Not used

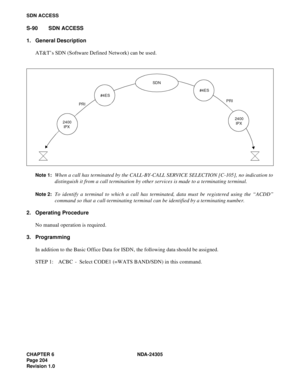

CHAPTER 6 NDA-24305
Pag e 2 04
Revision 1.0
SDN ACCESS
S-90 SDN ACCESS
1. General Description
AT&T’s SDN (Software Defined Network) can be used.
Note 1:When a call has terminated by the CALL-BY-CALL SERVICE SELECTION [C-105], no indication to
distinguish it from a call termination by other services is made to a terminating terminal.
Note 2:To identify a terminal to which a call has terminated, data must be registered using the “ACDD”
command so that a call-terminating terminal can be identified by a...

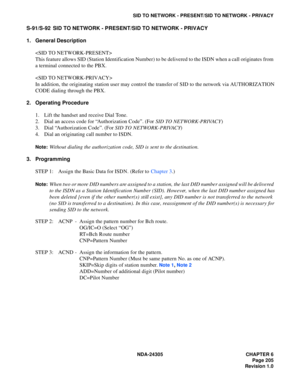

NDA-24305 CHAPTER 6
Page 205
Revision 1.0
SID TO NETWORK - PRESENT/SID TO NETWORK - PRIVACY
S-91/S-92 SID TO NETWORK - PRESENT/SID TO NETWORK - PRIVACY
1. General Description

This feature allows SID (Station Identification Number) to be delivered to the ISDN when a call originates from
a terminal connected to the PBX.

In addition, the originating station user may control the transfer of SID to the network via AUTHORIZATION
CODE dialing through the PBX.
2. Operating Procedure
1. Lift the handset and...

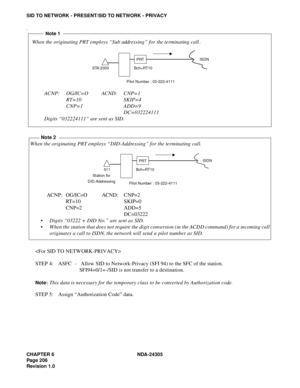

CHAPTER 6 NDA-24305
Pag e 2 06
Revision 1.0
SID TO NETWORK - PRESENT/SID TO NETWORK - PRIVACY
.

STEP 4: ASFC -  Allow SID to Network-Privacy (SFI 94) to the SFC of the station.
SFI94=0/1=-/SID is not transfer to a destination.
Note:This data is necessary for the temporary class to be converted by Authorization code.
STEP 5: Assign “Authorization Code” data.
When the originating PRT employs “Sub addressing” for the t erminating call.
ACNP: OG/IC=O ACND: CNP=1
RT=10 SKIP=4
CNP=1 ADD=9
DC=032224111
Digits...

NDA-24305 CHAPTER 6
Page 207
Revision 1.0

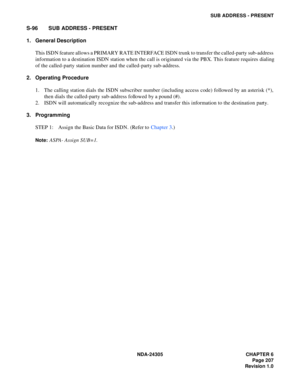

SUB ADDRESS - PRESENT
S-96 SUB ADDRESS - PRESENT
1. General Description
This ISDN feature allows a PRIMARY RATE INTERFACE ISDN trunk to transfer the called-party sub-address
information to a destination ISDN station when the call is originated via the PBX. This feature requires dialing
of the called-party station number and the called-party sub-address.
2. Operating Procedure
1. The calling station dials the ISDN subscriber number (including access code) followed...

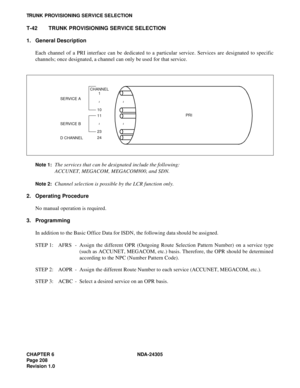

CHAPTER 6 NDA-24305
Pag e 2 08
Revision 1.0
TRUNK PROVISIONING SERVICE SELECTION
T-42 TRUNK PROVISIONING SERVICE SELECTION
1. General Description
Each channel of a PRI interface can be dedicated to a particular service. Services are designated to specific
channels; once designated, a channel can only be used for that service.
Note 1:The services that can be designated include the following:
ACCUNET, MEGACOM, MEGACOM800, and SDN.
Note 2:Channel selection is possible by the LCR function only.
2. Operating...

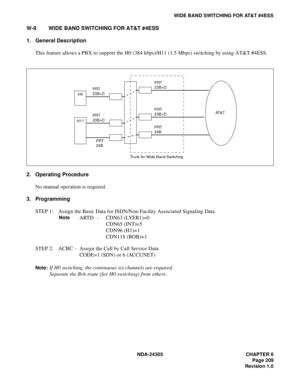

NDA-24305 CHAPTER 6
Page 209
Revision 1.0
WIDE BAND SWITCHING FOR AT&T #4ESS
W-9 WIDE BAND SWITCHING FOR AT&T #4ESS
1. General Description
This feature allows a PBX to support the H0 (384 kbps)/H11 (1.5 Mbps) switching by using AT&T #4ESS.
2. Operating Procedure
No manual operation is required.
3. Programming
STEP 1: Assign the Basic Data for ISDN/Non-Facility Associated Signaling Data.
ARTD - CDN63 (LYER1)=0
CDN65 (INT)=5
CDN96 (H1)=1
CDN118 (BOB)=1
STEP 2: ACBC - Assign the Call by Call Service Data...

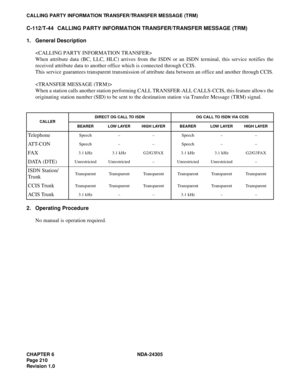

CHAPTER 6 NDA-24305
Pag e 2 10
Revision 1.0
CALLING PARTY INFORMATION TRANSFER/TRANSFER MESSAGE (TRM)
C-112/T-44 CALLING PARTY INFORMATION TRANSFER/TRANSFER MESSAGE (TRM)
1. General Description

When attribute data (BC, LLC, HLC) arrives from the ISDN or an ISDN terminal, this service notifies the
received attribute data to another office which is connected through CCIS.
This service guarantees transparent transmission of attribute data between an office and another through CCIS.

When a station calls...

NDA-24305 CHAPTER 6
Page 211
Revision 1.0

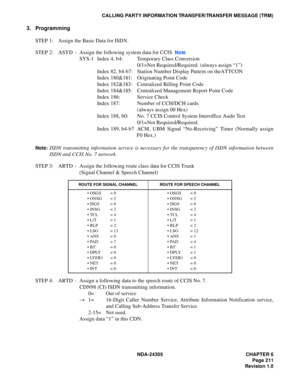

CALLING PARTY INFORMATION TRANSFER/TRANSFER MESSAGE (TRM)
3. Programming
STEP 1: Assign the Basic Data for ISDN.
STEP 2: ASYD - Assign the following system data for CCIS
Note
SYS-1 Index 4, b4: Temporary Class Conversion
0/1=Not Required/Required. (always assign “1”)
Index 82, b4-b7: Station Number Display Pattern on the ATTCON
Index 180&181: Originating Point Code
Index 182&183: Centralized Billing Point Code
Index 184&185: Centralized Management Report Point...

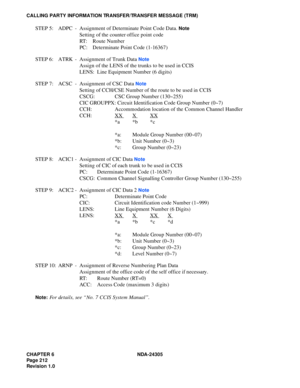

CHAPTER 6 NDA-24305
Pag e 2 12
Revision 1.0
CALLING PARTY INFORMATION TRANSFER/TRANSFER MESSAGE (TRM)
STEP 5: ADPC - Assignment of Determinate Point Code Data. Note
Setting of the counter office point code
RT: Route Number
PC: Determinate Point Code (1-16367)
STEP 6: ATRK - Assignment of Trunk Data
Note
Assign of the LENS of the trunks to be used in CCIS
LENS: Line Equipment Number (6 digits)
STEP 7: ACSC - Assignment of CSC Data
Note
Setting of CCH/CSE Number of the route to be used in CCIS
CSCG: CSC...
