NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 6
Page 223
Revision 1.0
EVENT BASED CCIS - ISDN TRANSPORT
Note:

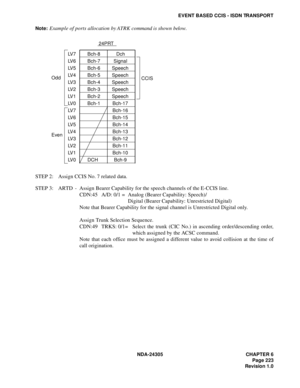

Example of ports allocation by ATRK command is shown below.
STEP 2: Assign CCIS No. 7 related data.
STEP 3: ARTD - Assign Bearer Capability for the speech channels of the E-CCIS line.
CDN:45 A/D: 0/1 =  Analog (Bearer Capability: Speech)/
Digital (Bearer Capability: Unrestricted Digital)
Note that Bearer Capability for the signal channel is Unrestricted Digital only.
Assign Trunk Selection Sequence.
CDN:49 TRKS: 0/1= Select...

CHAPTER 6 NDA-24305
Pag e 2 24
Revision 1.0
EVENT BASED CCIS -  ISDN TRANSPORT

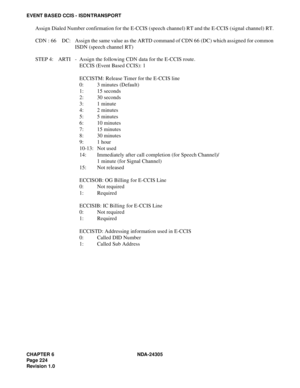

Assign Dialed Number confirmation for the E-CCIS (speech channel) RT and the E-CCIS (signal channel) RT.
CDN : 66 DC: Assign the same value as the ARTD command of CDN 66 (DC) which assigned for common
ISDN (speech channel RT)
STEP 4: ARTI - Assign the following CDN data for the E-CCIS route.
ECCIS (Event Based CCIS): 1
ECCISTM: Release Timer for the E-CCIS line
0: 3 minutes (Default)
1: 15 seconds
2: 30 seconds
3: 1 minute
4:...

NDA-24305 CHAPTER 6
Page 225
Revision 1.0
EVENT BASED CCIS - ISDN TRANSPORT

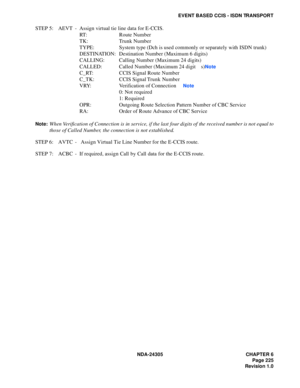

STEP 5: AEVT -  Assign virtual tie line data for E-CCIS.
RT: Route Number
TK: Trunk Number
TYPE: System type (Dch is used commonly or separately with ISDN trunk)
DESTINATION: Destination Number (Maximum 6 digits)
CALLING: Calling Number (Maximum 24 digits)
CALLED: Called Number (Maximum 24 digit s)
Note
C_RT: CCIS Signal Route Number
C_TK: CCIS Signal Trunk Number
VRY: Verification of Connection
Note
0: Not required
1: Required...

CHAPTER 6 NDA-24305
Pag e 2 26
Revision 1.0
EVENT BASED CCIS -  ISDN TRANSPORT

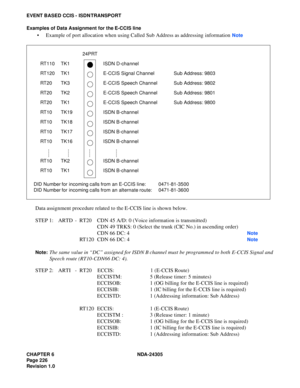

Examples of Data Assignment for the E-CCIS line
 Example of port allocation when using Called Sub Address as addressing information Note
Data assignment procedure related to the E-CCIS line is shown below.
STEP 1: ARTD -  RT20 CDN 45 A/D: 0 (Voice information is transmitted)
CDN 49 TRKS: 0 (Select the trunk (CIC No.) in ascending order)
CDN 66 DC: 4
Note
RT120 CDN 66 DC: 4Note
Note:
The same value in “DC” assigned for ISDN B...

NDA-24305 CHAPTER 6
Page 227
Revision 1.0
EVENT BASED CCIS - ISDN TRANSPORT

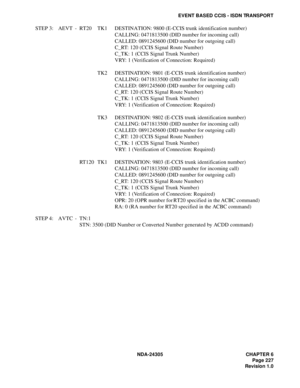

STEP 3: AEVT - RT20 TK1 DESTINATION: 9800 (E-CCIS trunk identification number)
CALLING: 0471813500 (DID number for incoming call)
CALLED: 0891245600 (DID number for outgoing call)
C_RT: 120 (CCIS Signal Route Number)
C_TK: 1 (CCIS Signal Trunk Number)
VRY: 1 (Verification of Connection: Required)
TK2 DESTINATION: 9801 (E-CCIS trunk identification number)
CALLING: 0471813500 (DID number for incoming call)
CALLED: 0891245600 (DID...

CHAPTER 6 NDA-24305
Pag e 2 28
Revision 1.0
EVENT BASED CCIS -  ISDN TRANSPORT

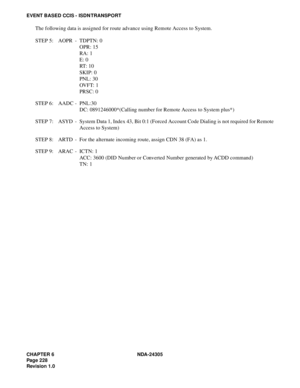

The following data is assigned for route advance using Remote Access to System.
STEP 5: AOPR - TDPTN: 0
OPR: 15
RA: 1
E: 0
RT:  1 0
SKIP: 0
PNL: 30
OV F T:  1
PRSC: 0
STEP 6: AADC - PNL:30
DC: 0891246000*(Calling number for Remote Access to System plus*)
STEP 7: ASYD - System Data 1, Index 43, Bit 0:1 (Forced Account Code Dialing is not required for Remote
Access to System)
STEP 8: ARTD - For the alternate incoming route,...

NDA-24305 CHAPTER 6
Page 229
Revision 1.0
EVENT BASED CCIS - ISDN TRANSPORT

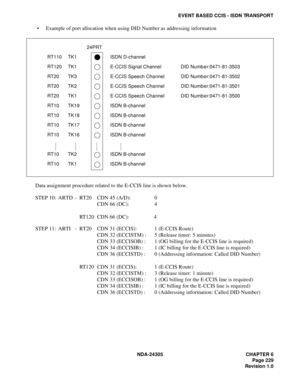

 Example of port allocation when using DID Number as addressing information
Data assignment procedure related to the E-CCIS line is shown below.
STEP 10: ARTD - RT20 CDN 45 (A/D):  0
CDN 66 (DC):  4
RT120 CDN 66 (DC):  4
STEP 11: ARTI -  RT20 CDN 31 (ECCIS): 1 (E-CCIS Route)
CDN 32 (ECCISTM) : 5 (Release timer: 5 minutes)
CDN 33 (ECCISOB) : 1 (OG billing for the E-CCIS line is required)
CDN 34 (ECCISIB) : 1 (IC billing for the...

CHAPTER 6 NDA-24305
Pag e 2 30
Revision 1.0
EVENT BASED CCIS -  ISDN TRANSPORT

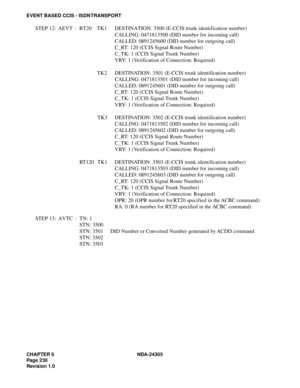

STEP 12: AEVT  - RT20 TK1 DESTINATION: 3500 (E-CCIS trunk identification number)
CALLING: 0471813500 (DID number for incoming call)
CALLED: 0891245600 (DID number for outgoing call)
C_RT: 120 (CCIS Signal Route Number)
C_TK: 1 (CCIS Signal Trunk Number)
VRY: 1 (Verification of Connection: Required)
TK2 DESTINATION: 3501 (E-CCIS trunk identification number)
CALLING: 0471813501 (DID number for incoming call)
CALLED: 0891245601...

NDA-24305 CHAPTER 6
Page 231
Revision 1.0
EVENT BASED CCIS - Q-SIG TRANSPORT

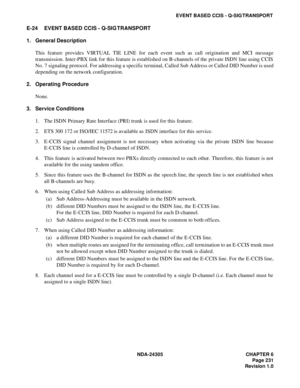

E-24 EVENT BASED CCIS - Q-SIG TRANSPORT
1. General Description
This feature provides VIRTUAL TIE LINE for each event such as call origination and MCI message
transmission. Inter-PBX link for this feature is established on B-channels of the private ISDN line using CCIS
No. 7 signaling protocol. For addressing a specific terminal, Called Sub Address or Called DID Number is used
depending on the network configuration.
2. Operating...

CHAPTER 6 NDA-24305
Pag e 2 32
Revision 1.0
EVENT BASED CCIS - Q-SIG TRANSPORT

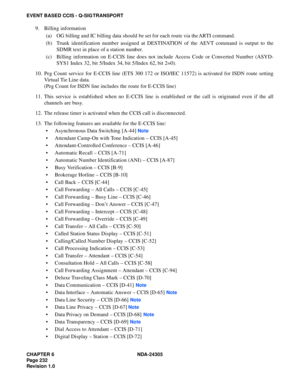

9. Billing information
(a) OG billing and IC billing data should be set for each route via the ARTI command.
(b) Trunk identification number assigned at DESTINATION of the AEVT command is output to the
SDMR text in place of a station number.
(c) Billing information on E-CCIS line does not include Access Code or Converted Number (ASYD-
SYS1 Index 32, bit 5/Index 34, bit 5/Index 62, bit 2=0).
10. Peg Count service for E-CCIS...
