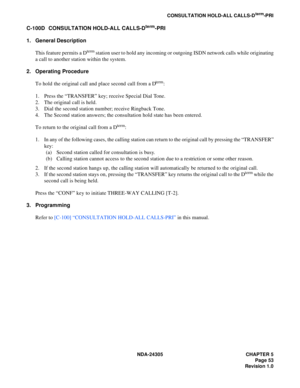

NDA-24305 CHAPTER 5 Page 53 Revision 1.0 CONSULTATION HOLD-ALL CALLS-Dterm-PRI C-100D CONSULTATION HOLD-ALL CALLS-Dterm-PRI 1. General Description This feature permits a D term station user to hold any incoming or outgoing ISDN network calls while originating a call to another station within the system. 2. Operating Procedure To hold the original call and place second call from a D term: 1. Press the “TRANSFER” key; receive Special Dial Tone. 2. The original call is held. 3. Dial the second station...
Page 72
![Page 72
CHAPTER 5 NDA-24305
Pag e 5 4
Revision 1.0

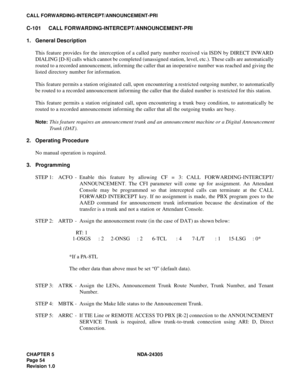

CALL FORWARDING-INTERCEPT/ANNOUNCEMENT-PRI
C-101 CALL FORWARDING-INTERCEPT/ANNOUNCEMENT-PRI
1. General Description
This feature provides for the interception of a called party number received via ISDN by DIRECT INWARD
DIALING [D-8] calls which cannot be completed (unassigned station, level, etc.). These calls are automatically
routed to a recorded announcement, informing the caller that an inoperative number was reached and giving the
listed directory number for...](http://img.usermanuals.tech/thumb/54/84229/w300_nec-ipx-isdn-feature-programming-manual-issue-1_d-71.png "Page 72
CHAPTER 5 NDA-24305
Pag e 5 4
Revision 1.0
CALL FORWARDING-INTERCEPT/ANNOUNCEMENT-PRI
C-101 CALL FORWARDING-INTERCEPT/ANNOUNCEMENT-PRI
1. General Description
This feature provides for the interception of a called party number received via ISDN by DIRECT INWARD
DIALING [D-8] calls which cannot be completed (unassigned station, level, etc.). These calls are automatically
routed to a recorded announcement, informing the caller that an inoperative number was reached and giving the
listed directory number for...")
CHAPTER 5 NDA-24305 Pag e 5 4 Revision 1.0 CALL FORWARDING-INTERCEPT/ANNOUNCEMENT-PRI C-101 CALL FORWARDING-INTERCEPT/ANNOUNCEMENT-PRI 1. General Description This feature provides for the interception of a called party number received via ISDN by DIRECT INWARD DIALING [D-8] calls which cannot be completed (unassigned station, level, etc.). These calls are automatically routed to a recorded announcement, informing the caller that an inoperative number was reached and giving the listed directory number for...
Page 73
![Page 73
NDA-24305 CHAPTER 5
Page 55
Revision 1.0
CALL FORWARDING-INTERCEPT/ANNOUNCEMENT-PRI

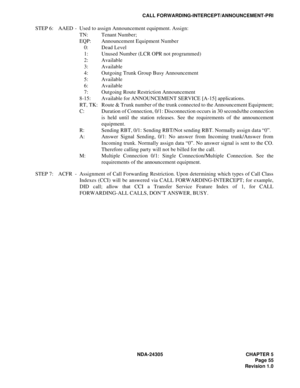

STEP 6: AAED - Used to assign Announcement equipment. Assign:
TN: Tenant Number;
EQP: Announcement Equipment Number
0: Dead Level
1: Unused Number (LCR OPR not programmed)
2: Available
3: Available
4: Outgoing Trunk Group Busy Announcement
5: Available
6: Available
7: Outgoing Route Restriction Announcement
8-15: Available for ANNOUNCEMENT SERVICE [A-15] applications.
RT, TK: Route & Trunk number of the trunk...](http://img.usermanuals.tech/thumb/54/84229/w300_nec-ipx-isdn-feature-programming-manual-issue-1_d-72.png "Page 73
NDA-24305 CHAPTER 5
Page 55
Revision 1.0
CALL FORWARDING-INTERCEPT/ANNOUNCEMENT-PRI
STEP 6: AAED - Used to assign Announcement equipment. Assign:
TN: Tenant Number;
EQP: Announcement Equipment Number
0: Dead Level
1: Unused Number (LCR OPR not programmed)
2: Available
3: Available
4: Outgoing Trunk Group Busy Announcement
5: Available
6: Available
7: Outgoing Route Restriction Announcement
8-15: Available for ANNOUNCEMENT SERVICE [A-15] applications.
RT, TK: Route & Trunk number of the trunk...")
NDA-24305 CHAPTER 5 Page 55 Revision 1.0 CALL FORWARDING-INTERCEPT/ANNOUNCEMENT-PRI STEP 6: AAED - Used to assign Announcement equipment. Assign: TN: Tenant Number; EQP: Announcement Equipment Number 0: Dead Level 1: Unused Number (LCR OPR not programmed) 2: Available 3: Available 4: Outgoing Trunk Group Busy Announcement 5: Available 6: Available 7: Outgoing Route Restriction Announcement 8-15: Available for ANNOUNCEMENT SERVICE [A-15] applications. RT, TK: Route & Trunk number of the trunk...
Page 74

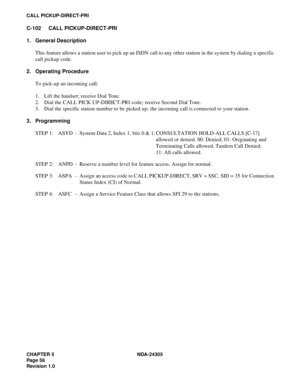

CHAPTER 5 NDA-24305 Pag e 5 6 Revision 1.0 CALL PICKUP-DIRECT-PRI C-102 CALL PICKUP-DIRECT-PRI 1. General Description This feature allows a station user to pick up an ISDN call to any other station in the system by dialing a specific call pickup code. 2. Operating Procedure To pick-up an incoming call: 1. Lift the handset; receive Dial Tone. 2. Dial the CALL PICK UP-DIRECT-PRI code; receive Second Dial Tone. 3. Dial the specific station number to be picked up; the incoming call is connected to your...
Page 75
![Page 75
NDA-24305 CHAPTER 5
Page 57
Revision 1.0

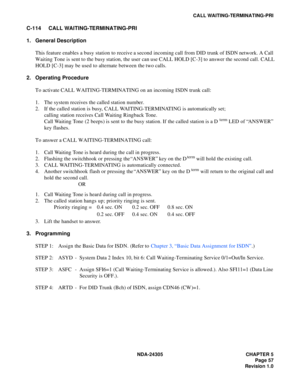

CALL WAITING-TERMINATING-PRI
C-114 CALL WAITING-TERMINATING-PRI
1. General Description
This feature enables a busy station to receive a second incoming call from DID trunk of ISDN network. A Call
Waiting Tone is sent to the busy station, the user can use CALL HOLD [C-3] to answer the second call. CALL
HOLD [C-3] may be used to alternate between the two calls.
2. Operating Procedure
To activate CALL WAITING-TERMINATING on an incoming ISDN trunk call:
1. The system...](http://img.usermanuals.tech/thumb/54/84229/w300_nec-ipx-isdn-feature-programming-manual-issue-1_d-74.png "Page 75
NDA-24305 CHAPTER 5
Page 57
Revision 1.0
CALL WAITING-TERMINATING-PRI
C-114 CALL WAITING-TERMINATING-PRI
1. General Description
This feature enables a busy station to receive a second incoming call from DID trunk of ISDN network. A Call
Waiting Tone is sent to the busy station, the user can use CALL HOLD [C-3] to answer the second call. CALL
HOLD [C-3] may be used to alternate between the two calls.
2. Operating Procedure
To activate CALL WAITING-TERMINATING on an incoming ISDN trunk call:
1. The system...")
NDA-24305 CHAPTER 5 Page 57 Revision 1.0 CALL WAITING-TERMINATING-PRI C-114 CALL WAITING-TERMINATING-PRI 1. General Description This feature enables a busy station to receive a second incoming call from DID trunk of ISDN network. A Call Waiting Tone is sent to the busy station, the user can use CALL HOLD [C-3] to answer the second call. CALL HOLD [C-3] may be used to alternate between the two calls. 2. Operating Procedure To activate CALL WAITING-TERMINATING on an incoming ISDN trunk call: 1. The system...
Page 76
![Page 76
CHAPTER 5 NDA-24305
Pag e 5 8
Revision 1.0

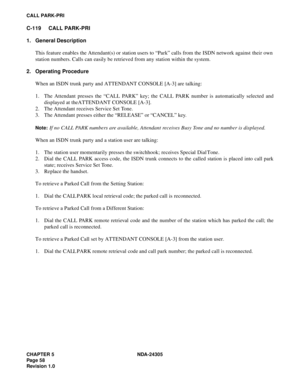

CALL PARK-PRI
C-119 CALL PARK-PRI
1. General Description
This feature enables the Attendant(s) or station users to “Park” calls from the ISDN network against their own
station numbers. Calls can easily be retrieved from any station within the system.
2. Operating Procedure
When an ISDN trunk party and ATTENDANT CONSOLE [A-3] are talking:
1. The Attendant presses the “CALL PARK” key; the CALL PARK number is automatically selected and
displayed at the ATTENDANT...](http://img.usermanuals.tech/thumb/54/84229/w300_nec-ipx-isdn-feature-programming-manual-issue-1_d-75.png "Page 76
CHAPTER 5 NDA-24305
Pag e 5 8
Revision 1.0
CALL PARK-PRI
C-119 CALL PARK-PRI
1. General Description
This feature enables the Attendant(s) or station users to “Park” calls from the ISDN network against their own
station numbers. Calls can easily be retrieved from any station within the system.
2. Operating Procedure
When an ISDN trunk party and ATTENDANT CONSOLE [A-3] are talking:
1. The Attendant presses the “CALL PARK” key; the CALL PARK number is automatically selected and
displayed at the ATTENDANT...")
CHAPTER 5 NDA-24305 Pag e 5 8 Revision 1.0 CALL PARK-PRI C-119 CALL PARK-PRI 1. General Description This feature enables the Attendant(s) or station users to “Park” calls from the ISDN network against their own station numbers. Calls can easily be retrieved from any station within the system. 2. Operating Procedure When an ISDN trunk party and ATTENDANT CONSOLE [A-3] are talking: 1. The Attendant presses the “CALL PARK” key; the CALL PARK number is automatically selected and displayed at the ATTENDANT...
Page 77
![Page 77
NDA-24305 CHAPTER 5
Page 59
Revision 1.0
CALL PARK-PRI
3. Programming

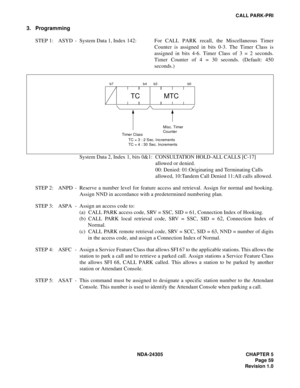

STEP 1: ASYD - System Data 1, Index 142: For CALL PARK recall, the Miscellaneous Timer
Counter is assigned in bits 0-3. The Timer Class is
assigned in bits 4-6. Timer Class of 3 = 2 seconds.
Timer Counter of 4 = 30 seconds. (Default: 450
seconds.)
System Data 2, Index 1, bits 0&1: CONSULTATION HOLD-ALL CALLS [C-17]
allowed or denied.
00: Denied: 01:Originating and Terminating Calls
allowed, 10:Tandem Call Denied 11:All calls allowed....](http://img.usermanuals.tech/thumb/54/84229/w300_nec-ipx-isdn-feature-programming-manual-issue-1_d-76.png "Page 77
NDA-24305 CHAPTER 5
Page 59
Revision 1.0
CALL PARK-PRI
3. Programming
STEP 1: ASYD - System Data 1, Index 142: For CALL PARK recall, the Miscellaneous Timer
Counter is assigned in bits 0-3. The Timer Class is
assigned in bits 4-6. Timer Class of 3 = 2 seconds.
Timer Counter of 4 = 30 seconds. (Default: 450
seconds.)
System Data 2, Index 1, bits 0&1: CONSULTATION HOLD-ALL CALLS [C-17]
allowed or denied.
00: Denied: 01:Originating and Terminating Calls
allowed, 10:Tandem Call Denied 11:All calls allowed....")
NDA-24305 CHAPTER 5 Page 59 Revision 1.0 CALL PARK-PRI 3. Programming STEP 1: ASYD - System Data 1, Index 142: For CALL PARK recall, the Miscellaneous Timer Counter is assigned in bits 0-3. The Timer Class is assigned in bits 4-6. Timer Class of 3 = 2 seconds. Timer Counter of 4 = 30 seconds. (Default: 450 seconds.) System Data 2, Index 1, bits 0&1: CONSULTATION HOLD-ALL CALLS [C-17] allowed or denied. 00: Denied: 01:Originating and Terminating Calls allowed, 10:Tandem Call Denied 11:All calls allowed....
Page 78
![Page 78
CHAPTER 5 NDA-24305
Pag e 6 0
Revision 1.0
CALL FORWARDING-ALL CALLS-ANNOUNCEMENT-PRI
C-123 CALL FORWARDING-ALL CALLS-ANNOUNCEMENT-PRI
1. General Description
This feature permits all calls from ISDN trunks destined for a particular station to be routed to a recorded
announcement. Activation and cancellation may be accomplished either by the individual station user or the
ATTENDANT CONSOLE [A-3].
Note:This service feature r equires “Digital Announcement Trunk (DAT)”
2. Operating Procedure
To activate CALL...](http://img.usermanuals.tech/thumb/54/84229/w300_nec-ipx-isdn-feature-programming-manual-issue-1_d-77.png "Page 78
CHAPTER 5 NDA-24305
Pag e 6 0
Revision 1.0
CALL FORWARDING-ALL CALLS-ANNOUNCEMENT-PRI
C-123 CALL FORWARDING-ALL CALLS-ANNOUNCEMENT-PRI
1. General Description
This feature permits all calls from ISDN trunks destined for a particular station to be routed to a recorded
announcement. Activation and cancellation may be accomplished either by the individual station user or the
ATTENDANT CONSOLE [A-3].
Note:This service feature r equires “Digital Announcement Trunk (DAT)”
2. Operating Procedure
To activate CALL...")
CHAPTER 5 NDA-24305 Pag e 6 0 Revision 1.0 CALL FORWARDING-ALL CALLS-ANNOUNCEMENT-PRI C-123 CALL FORWARDING-ALL CALLS-ANNOUNCEMENT-PRI 1. General Description This feature permits all calls from ISDN trunks destined for a particular station to be routed to a recorded announcement. Activation and cancellation may be accomplished either by the individual station user or the ATTENDANT CONSOLE [A-3]. Note:This service feature r equires “Digital Announcement Trunk (DAT)” 2. Operating Procedure To activate CALL...
Page 79
![Page 79
NDA-24305 CHAPTER 5
Page 61
Revision 1.0
CALL FORWARDING-ALL CALLS-ANNOUNCEMENT-PRI

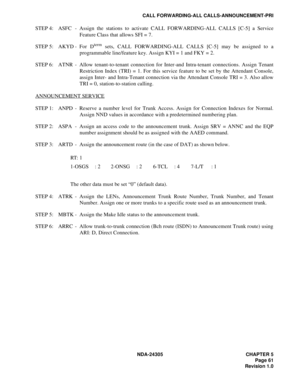

STEP 4: ASFC - Assign the stations to activate CALL FORWARDING-ALL CALLS [C-5] a Service
Feature Class that allows SFI = 7.
STEP 5: AKYD - For D
term sets, CALL FORWARDING-ALL CALLS [C-5] may be assigned to a
programmable line/feature key. Assign KYI = 1 and FKY = 2.
STEP 6: ATNR - Allow tenant-to-tenant connection for Inter-and Intra-tenant connections. Assign Tenant
Restriction Index (TRI) = 1. For this service...](http://img.usermanuals.tech/thumb/54/84229/w300_nec-ipx-isdn-feature-programming-manual-issue-1_d-78.png "Page 79
NDA-24305 CHAPTER 5
Page 61
Revision 1.0
CALL FORWARDING-ALL CALLS-ANNOUNCEMENT-PRI
STEP 4: ASFC - Assign the stations to activate CALL FORWARDING-ALL CALLS [C-5] a Service
Feature Class that allows SFI = 7.
STEP 5: AKYD - For D
term sets, CALL FORWARDING-ALL CALLS [C-5] may be assigned to a
programmable line/feature key. Assign KYI = 1 and FKY = 2.
STEP 6: ATNR - Allow tenant-to-tenant connection for Inter-and Intra-tenant connections. Assign Tenant
Restriction Index (TRI) = 1. For this service...")
NDA-24305 CHAPTER 5 Page 61 Revision 1.0 CALL FORWARDING-ALL CALLS-ANNOUNCEMENT-PRI STEP 4: ASFC - Assign the stations to activate CALL FORWARDING-ALL CALLS [C-5] a Service Feature Class that allows SFI = 7. STEP 5: AKYD - For D term sets, CALL FORWARDING-ALL CALLS [C-5] may be assigned to a programmable line/feature key. Assign KYI = 1 and FKY = 2. STEP 6: ATNR - Allow tenant-to-tenant connection for Inter-and Intra-tenant connections. Assign Tenant Restriction Index (TRI) = 1. For this service...
Page 80
![Page 80

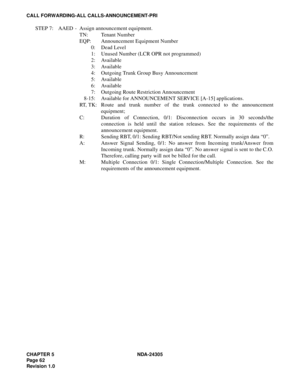

CHAPTER 5 NDA-24305
Pag e 6 2
Revision 1.0
CALL FORWARDING-ALL CALLS-ANNOUNCEMENT-PRI
STEP 7: AAED - Assign announcement equipment.
TN: Tenant Number
EQP: Announcement Equipment Number
0: Dead Level
1: Unused Number (LCR OPR not programmed)
2: Available
3: Available
4: Outgoing Trunk Group Busy Announcement
5: Available
6: Available
7: Outgoing Route Restriction Announcement
8-15: Available for ANNOUNCEMENT SERVICE [A-15] applications.
RT, TK: Route and trunk number of the trunk connected to the...](http://img.usermanuals.tech/thumb/54/84229/w300_nec-ipx-isdn-feature-programming-manual-issue-1_d-79.png "Page 80
CHAPTER 5 NDA-24305
Pag e 6 2
Revision 1.0
CALL FORWARDING-ALL CALLS-ANNOUNCEMENT-PRI
STEP 7: AAED - Assign announcement equipment.
TN: Tenant Number
EQP: Announcement Equipment Number
0: Dead Level
1: Unused Number (LCR OPR not programmed)
2: Available
3: Available
4: Outgoing Trunk Group Busy Announcement
5: Available
6: Available
7: Outgoing Route Restriction Announcement
8-15: Available for ANNOUNCEMENT SERVICE [A-15] applications.
RT, TK: Route and trunk number of the trunk connected to the...")
CHAPTER 5 NDA-24305 Pag e 6 2 Revision 1.0 CALL FORWARDING-ALL CALLS-ANNOUNCEMENT-PRI STEP 7: AAED - Assign announcement equipment. TN: Tenant Number EQP: Announcement Equipment Number 0: Dead Level 1: Unused Number (LCR OPR not programmed) 2: Available 3: Available 4: Outgoing Trunk Group Busy Announcement 5: Available 6: Available 7: Outgoing Route Restriction Announcement 8-15: Available for ANNOUNCEMENT SERVICE [A-15] applications. RT, TK: Route and trunk number of the trunk connected to the...
