NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 5
Page 83
Revision 1.0
HANDS-FREE ANSWER BACK-Dterm-PRI
H-14D HANDS-FREE ANSWER BACK-Dterm-PRI
1. General Description
This feature allows the station user to respond to a VOICE CALL-D
term [V-2D] without lifting the handset.
2. Operating Procedure
To answer a VOICE CALL [V-2D]:
1. Press the “MIC” key; the LED lights.
2. Respond to call hands-free.
3. Programming
No programming is required.

CHAPTER 5 NDA-24305
Pag e 8 4
Revision 1.0

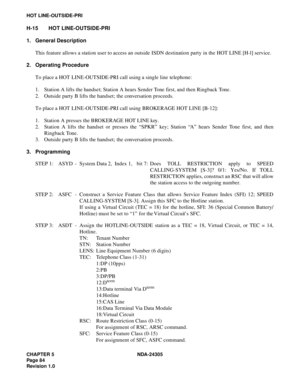

HOT LINE-OUTSIDE-PRI
H-15 HOT LINE-OUTSIDE-PRI
1. General Description
This feature allows a station user to access an outside ISDN destination party in the HOT LINE [H-l] service.
2. Operating Procedure
To place a HOT LINE-OUTSIDE-PRI call using a single line telephone:
1. Station A lifts the handset; Station A hears Sender Tone first, and then Ringback Tone.
2. Outside party B lifts the handset; the conversation proceeds.
To place a HOT LINE-OUTSIDE-PRI call...

NDA-24305 CHAPTER 5
Page 85
Revision 1.0

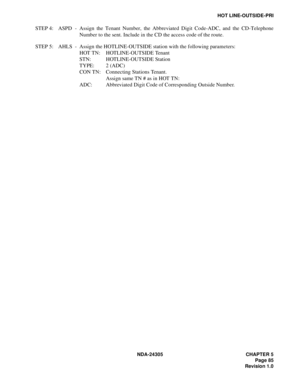

HOT LINE-OUTSIDE-PRI
STEP 4: ASPD - Assign the Tenant Number, the Abbreviated Digit Code-ADC, and the CD-Telephone
Number to the sent. Include in the CD the access code of the route.
STEP 5: AHLS - Assign the HOTLINE-OUTSIDE station with the following parameters:
HOT TN: HOTLINE-OUTSIDE Tenant
STN: HOTLINE-OUTSIDE Station
TYPE: 2 (ADC)
CON TN: Connecting Stations Tenant.
Assign same TN # as in HOT TN:
ADC: Abbreviated Digit Code of Corresponding Outside Number.

CHAPTER 5 NDA-24305
Pag e 8 6
Revision 1.0

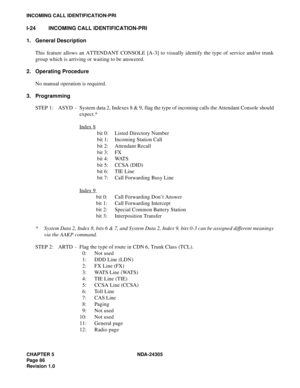

INCOMING CALL IDENTIFICATION-PRI
I-24 INCOMING CALL IDENTIFICATION-PRI
1. General Description
This feature allows an ATTENDANT CONSOLE [A-3] to visually identify the type of service and/or trunk
group which is arriving or waiting to be answered.
2. Operating Procedure
No manual operation is required.
3. Programming
STEP 1: ASYD - System data 2, Indexes 8 & 9, flag the type of incoming calls the Attendant Console should
expect.*
Index 8

bit 0: Listed Directory...

NDA-24305 CHAPTER 5
Page 87
Revision 1.0

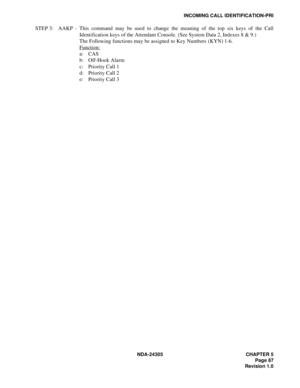

INCOMING CALL IDENTIFICATION-PRI
STEP 3: AAKP - This command may be used to change the meaning of the top six keys of the Call
Identification keys of the Attendant Console. (See System Data 2, Indexes 8 & 9.)
The Following functions may be assigned to Key Numbers (KYN) 1-6.
Function:

a: CAS
b: Off-Hook Alarm
c: Priority Call 1
d: Priority Call 2
e: Priority Call 3

CHAPTER 5 NDA-24305
Pag e 8 8
Revision 1.0
INCOMING ISDN CALL TO TIE LINE CONNECTION-PRI
I-25 INCOMING ISDN CALL TO TIE LINE CONNECTION-PRI
1. General Description
This feature permits an Attendant to connect an incoming ISDN network call, via a tie line, to a station at a
distant PBX.
2. Operating Procedure
To Connect an Incoming Call:
1. The Attendant presses the “LDN” key and answers the incoming PRI trunk call.
2. Dial the Tie Line access code; receive Dial Tone from distant PBX. (in the case of 2nd...

NDA-24305 CHAPTER 5
Page 89
Revision 1.0
INCOMING ISDN CALL TO TIE LINE CONNECTION-PRI
STEP 7: ARRC - Assign for Alternative Route Index (ARI): A, Incoming Route to Outgoing Route via the
ATTCON/station. Allow the Incoming Route Number (ICRT) of the incoming PRI (Bch)
route to be connected to the Outgoing Route Number (OGRT) of the Outgoing TIE Line
route.
Note:When the tie line is CCIS No.7 link, assign CDN98 (CI)=1 of the ARTD command to all speech route of
CCIS No.7 link.

CHAPTER 5 NDA-24305
Pag e 9 0
Revision 1.0
INDIALING THROUGH MAIN-PRI
I-26 INDIALING THROUGH MAIN-PRI
1. General Description
With this feature a call destined for a satellite PBX via DID or Network Inward Dialing (NID) will automatically
be routed to the satellite station by the main PBX over a tie trunk.
2. Operating Procedure
1. A 4-digit number is received via DID or NID at a main PBX.
2. One or more sets of one thousand digits or more are designated for each satellite location. A main PBX
checks the...

NDA-24305 CHAPTER 5
Page 91
Revision 1.0
INDIALING THROUGH MAIN-PRI
STEP 5: ARTD - Assign Tie Line route data and the dummy route data.
For Dummy RT, CDN 6 (TCL)=4, CDN 7 (L/T)=1 and CDN 13 (AC)=1 are necessary.
STEP 6: ATRK - Assign the LENS data of each trunk.
STEP 7: MBTK - Make idle the trunks.
STEP 8: AFRS - Assign NPC (Number Pattern Code) and OPR (Outgoing Route selection pattern Number)
to the dummy route.
STEP 9: AOPR - Make the route selection data using the parameter OPR, SKIP, etc.
STEP 10:...

CHAPTER 5 NDA-24305
Pag e 9 2
Revision 1.0
INTER-PBX COORDINATED STATION NUMBERING PLAN-PRI
I-27 INTER-PBX COORDINATED STATION NUMBERING PLAN-PRI
1. General Description
The INTER-PBX COORDINATED STATION NUMBERING PLAN-PRI [I-27] feature enables the Main-
Satellite network to coordinate the numbering plan for stations in the network. This feature allows a station at
one switch to call a station at another switch by dialing a unique 3- to 7-digit number with no access codes or
pauses for Dial Tone.
This...
