NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 5
Page 103
Revision 1.0

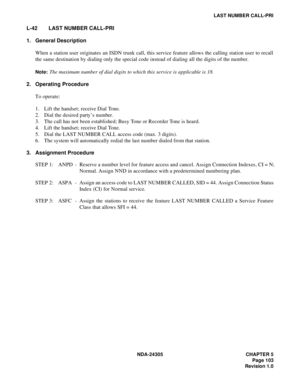

LAST NUMBER CALL-PRI
L-42 LAST NUMBER CALL-PRI
1. General Description
When a station user originates an ISDN trunk call, this service feature allows the calling station user to recall
the same destination by dialing only the special code instead of dialing all the digits of the number.
Note:The maximum number of dial digits to which this service is applicable is 18.
2. Operating Procedure
To operate:
1. Lift the handset; receive Dial Tone.
2. Dial the desired...

CHAPTER 5 NDA-24305
Pag e 1 04
Revision 1.0

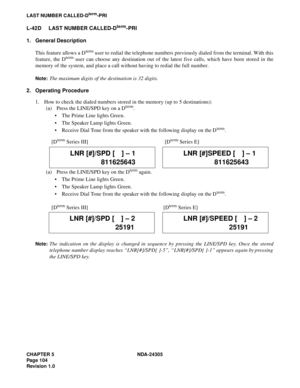

LAST NUMBER CALLED-Dterm-PRI
L-42D LAST NUMBER CALLED-Dterm-PRI
1. General Description
This feature allows a D
term user to redial the telephone numbers previously dialed from the terminal. With this
feature, the Dterm user can choose any destination out of the latest five calls, which have been stored in the
memory of the system, and place a call without having to redial the full number.
Note:The maximum digits of the destination is 32 digits.
2. Operating...

NDA-24305 CHAPTER 5
Page 105
Revision 1.0
LAST NUMBER CALLED-Dterm-PRI
2. How to originate a call:
(a) Press the LINE/SPD key on a Dterm.
 The Prime Line lights Green.
 The Speaker Lamp lights Green.
 Receive Dial Tone from the speaker with the following display on the D
term.
(a) Repeat the above procedure until you reach your desired destination.
(a) Press # to originate your call while the desired destination is being displayed on the D
term.
 The Prime Line lights Green.
 The Speaker Lamp lights...

CHAPTER 5 NDA-24305
Pag e 1 06
Revision 1.0

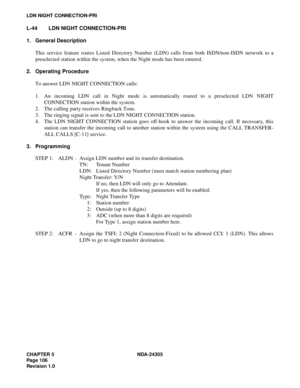

LDN NIGHT CONNECTION-PRI
L-44 LDN NIGHT CONNECTION-PRI
1. General Description
This service feature routes Listed Directory Number (LDN) calls from both ISDN/non-ISDN network to a
preselected station within the system, when the Night mode has been entered.
2. Operating Procedure
To answer LDN NIGHT CONNECTION calls:
1. An incoming LDN call in Night mode is automatically routed to a preselected LDN NIGHT
CONNECTION station within the system.
2. The calling party...

NDA-24305 CHAPTER 5
Page 107
Revision 1.0

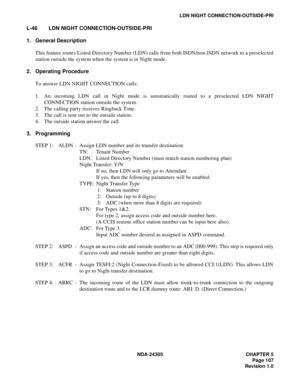

LDN NIGHT CONNECTION-OUTSIDE-PRI
L-46 LDN NIGHT CONNECTION-OUTSIDE-PRI
1. General Description
This feature routes Listed Directory Number (LDN) calls from both ISDN/non-ISDN network to a preselected
station outside the system when the system is in Night mode.
2. Operating Procedure
To answer LDN NIGHT CONNECTION calls:
1. An incoming LDN call in Night mode is automatically routed to a preselected LDN NIGHT
CONNECTION station outside the system.
2. The calling...

CHAPTER 5 NDA-24305
Pag e 1 08
Revision 1.0

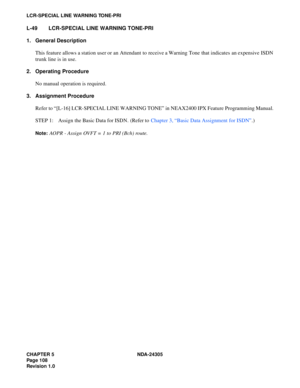

LCR-SPECIAL LINE WARNING TONE-PRI
L-49 LCR-SPECIAL LINE WARNING TONE-PRI
1. General Description
This feature allows a station user or an Attendant to receive a Warning Tone that indicates an expensive ISDN
trunk line is in use.
2. Operating Procedure
No manual operation is required.
3. Assignment Procedure
Refer to “[L-16] LCR-SPECIAL LINE WARNING TONE” in NEAX2400 IPX Feature Programming Manual.
STEP 1: Assign the Basic Data for ISDN. (Refer to Chapter 3,...

NDA-24305 CHAPTER 5
Page 109
Revision 1.0

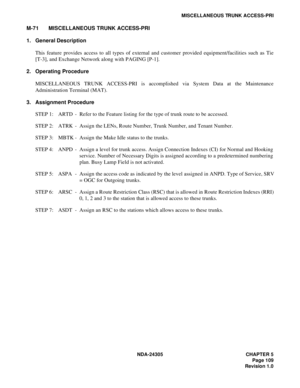

MISCELLANEOUS TRUNK ACCESS-PRI
M-71 MISCELLANEOUS TRUNK ACCESS-PRI
1. General Description
This feature provides access to all types of external and customer provided equipment/facilities such as Tie
[T-3], and Exchange Network along with PAGING [P-1].
2. Operating Procedure
MISCELLANEOUS TRUNK ACCESS-PRI is accomplished via System Data at the Maintenance
Administration Terminal (MAT).
3. Assignment Procedure
STEP 1: ARTD - Refer to the Feature listing for the...

CHAPTER 5 NDA-24305
Pag e 1 10
Revision 1.0

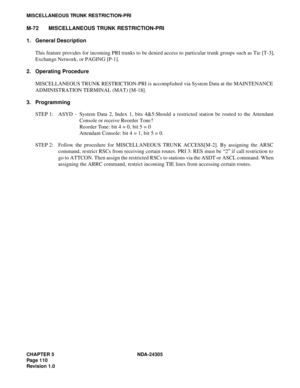

MISCELLANEOUS TRUNK RESTRICTION-PRI
M-72 MISCELLANEOUS TRUNK RESTRICTION-PRI
1. General Description
This feature provides for incoming PRI trunks to be denied access to particular trunk groups such as Tie [T-3],
Exchange Network, or PAGING [P-1].
2. Operating Procedure
MISCELLANEOUS TRUNK RESTRICTION-PRI is accomplished via System Data at the MAINTENANCE
ADMINISTRATION TERMINAL (MAT) [M-18].
3. Programming
STEP 1: ASYD - System Data 2, Index 1, bits 4&5:Should...

NDA-24305 CHAPTER 5
Page 111
Revision 1.0

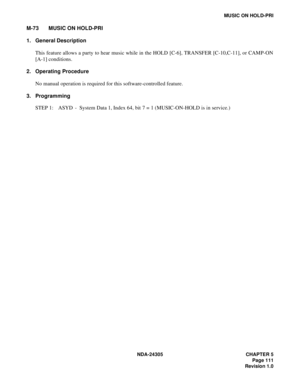

MUSIC ON HOLD-PRI
M-73 MUSIC ON HOLD-PRI
1. General Description
This feature allows a party to hear music while in the HOLD [C-6], TRANSFER [C-10,C-11], or CAMP-ON
[A-1] conditions.
2. Operating Procedure
No manual operation is required for this software-controlled feature.
3. Programming
STEP 1: ASYD - System Data 1, Index 64, bit 7 = 1 (MUSIC-ON-HOLD is in service.)

CHAPTER 5 NDA-24305
Pag e 1 12
Revision 1.0

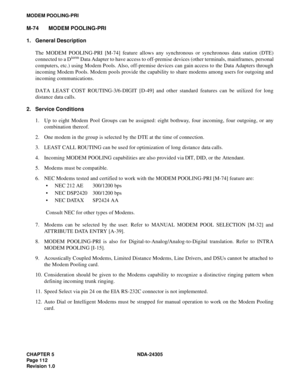

MODEM POOLING-PRI
M-74 MODEM POOLING-PRI
1. General Description
The MODEM POOLING-PRI [M-74] feature allows any synchronous or synchronous data station (DTE)
connected to a D
term Data Adapter to have access to off-premise devices (other terminals, mainframes, personal
computers, etc.) using Modem Pools. Also, off-premise devices can gain access to the Data Adapters through
incoming Modem Pools. Modem pools provide the capability to share modems among users for...
