NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 5
Page 93
Revision 1.0
ISDN INDIVIDUAL CALLING LINE IDENTIFICATION (ICLID)
I-28 ISDN INDIVIDUAL CALLING LINE IDENTIFICATION (ICLID)
1. General Description
The ICLID feature is used to deliver a calling-party’s number through the Public ISDN network to a called-party
in the same PBX.
2. Operating Procedure
No manual operation is required.
3. Programming
STEP 1: Assign the Basic Data for ISDN. (Refer to Chapter 3, “Basic Data Assignment for ISDN”)
STEP 2: Refer to “When the originating...

CHAPTER 5 NDA-24305
Pag e 9 4
Revision 1.0
INTER-OFFICE OFF-HOOK QUEUING-PRI

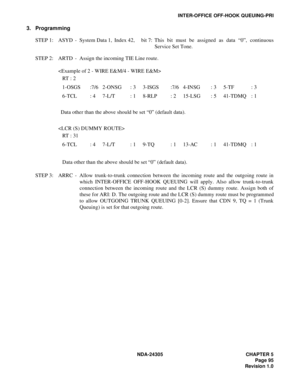

I-36 INTER-OFFICE OFF-HOOK QUEUING-PRI
1. General Description
This feature can be employed in a Main-Satellite configuration to allow a satellite station user to queue for
LEAST COST ROUTING-3/6-DIGIT-PRI [L-31] at the main location. This feature can also be used when all
outgoing ISDN trunks are concentrated at the main location.
Note 1:There are a maximum of 32 “Queuing” per Module Group (MG) available in the system....

NDA-24305 CHAPTER 5
Page 95
Revision 1.0
INTER-OFFICE OFF-HOOK QUEUING-PRI

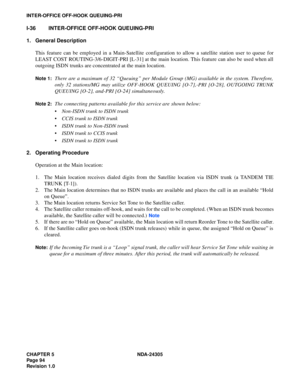

3. Programming
STEP 1: ASYD - System Data 1, Index 42, bit 7: This bit must be assigned as data “0”, continuous
Service Set Tone.
STEP 2: ARTD - Assign the incoming TIE Line route.


STEP 3: ARRC - Allow trunk-to-trunk connection between the incoming route and the outgoing route in
which INTER-OFFICE OFF-HOOK QUEUING will apply. Also allow trunk-to-trunk
connection between the incoming route and the LCR (S) dummy route. Assign...

CHAPTER 5 NDA-24305
Pag e 9 6
Revision 1.0

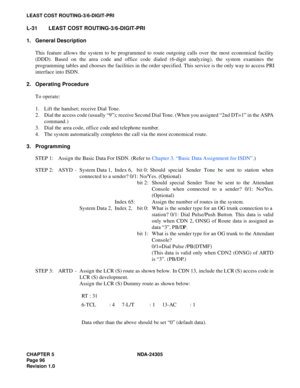

LEAST COST ROUTING-3/6-DIGIT-PRI
L-31 LEAST COST ROUTING-3/6-DIGIT-PRI
1. General Description
This feature allows the system to be programmed to route outgoing calls over the most economical facility
(DDD). Based on the area code and office code dialed (6-digit analyzing), the system examines the
programming tables and chooses the facilities in the order specified. This service is the only way to access PRI
interface into ISDN.
2. Operating Procedure
To...

NDA-24305 CHAPTER 5
Page 97
Revision 1.0
LEAST COST ROUTING-3/6-DIGIT-PRI

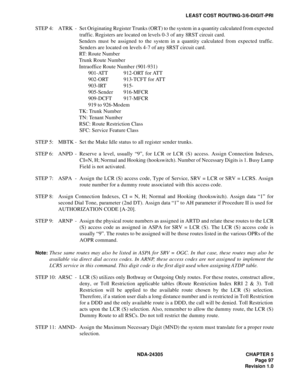

STEP 4: ATRK - Set Originating Register Trunks (ORT) to the system in a quantity calculated from expected
traffic. Registers are located on levels 0-3 of any 8RST circuit card.
Senders must be assigned to the system in a quantity calculated from expected traffic.
Senders are located on levels 4-7 of any 8RST circuit card.
RT: Route Number
Trunk Route Number
Intraoffice Route Number (901-931)
901-ATT 912-ORT for ATT
902-ORT 913-TCFT...

CHAPTER 5 NDA-24305
Pag e 9 8
Revision 1.0
LEAST COST ROUTING-3/6-DIGIT-PRI

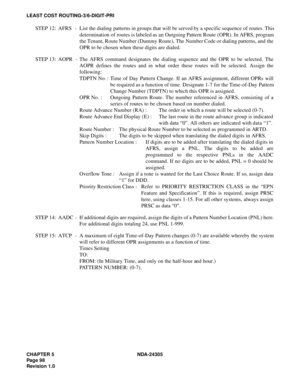

STEP 12: AFRS - List the dialing patterns in groups that will be served by a specific sequence of routes. This
determination of routes is labeled as an Outgoing Pattern Route (OPR). In AFRS, program
the Tenant, Route Number (Dummy Route), The Number Code or dialing patterns, and the
OPR to be chosen when these digits are dialed.
STEP 13: AOPR - The AFRS command designates the dialing sequence and the OPR to be selected. The
AOPR...

NDA-24305 CHAPTER 5
Page 99
Revision 1.0
LCR-TIME OF DAY ROUTING-PRI
L-32 LCR-TIME OF DAY ROUTING-PRI
1. General Description
This feature provides automatic routing of outgoing ISDN calls over alternative customer facilities based on the
DDD number. The system will select the most economical route available at the time of connection. The pattern
of alternate routing can be changed up to 8 times per day based on a pre-arranged time schedule.
2. Operating Procedure
1. Lift the handset; receive Dial Tone....

CHAPTER 5 NDA-24305
Pag e 1 00
Revision 1.0

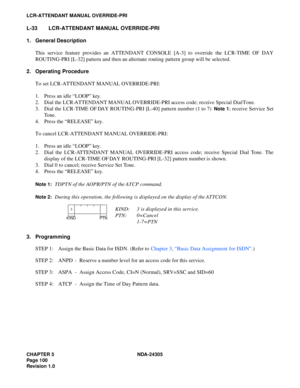

LCR-ATTENDANT MANUAL OVERRIDE-PRI
L-33 LCR-ATTENDANT MANUAL OVERRIDE-PRI
1. General Description
This service feature provides an ATTENDANT CONSOLE [A-3] to override the LCR-TIME OF DAY
ROUTING-PRI [L-32] pattern and then an alternate routing pattern group will be selected.
2. Operating Procedure
To set LCR-ATTENDANT MANUAL OVERRIDE-PRI:
1. Press an idle “LOOP” key.
2. Dial the LCR-ATTENDANT MANUAL OVERRIDE-PRI access code; receive Special Dial Tone.
3. Dial the...

NDA-24305 CHAPTER 5
Page 101
Revision 1.0

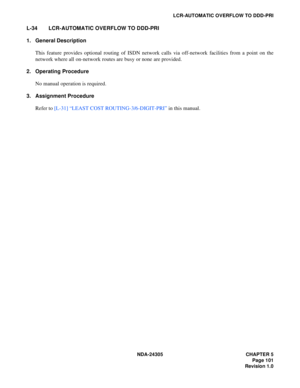

LCR-AUTOMATIC OVERFLOW TO DDD-PRI
L-34 LCR-AUTOMATIC OVERFLOW TO DDD-PRI
1. General Description
This feature provides optional routing of ISDN network calls via off-network facilities from a point on the
network where all on-network routes are busy or none are provided.
2. Operating Procedure
No manual operation is required.
3. Assignment Procedure
Refer to [L-31] “LEAST COST ROUTING-3/6-DIGIT-PRI” in this manual.

CHAPTER 5 NDA-24305
Pag e 1 02
Revision 1.0
LCR-CLOCKED MANUAL OVERRIDE-PRI
L-35 LCR-CLOCKED MANUAL OVERRIDE-PRI
1. General Description
This feature permits the system to override the LCR-TIME OF DAY ROUTING-PRI [L-32] pattern during the
pre-determined time assigned through the MAT.
2. Operating Procedure
No manual operation is required.
3. Assignment Procedure
STEP 1: Assign the Basic Data for ISDN. (Refer to Chapter 3, “Basic Data Assignment for ISDN”)
STEP 2: ACMO - Assign the specific data and time.
