Panasonic Cf Y4hwpzzbm Owners Manual

11
Preparations Getting Started

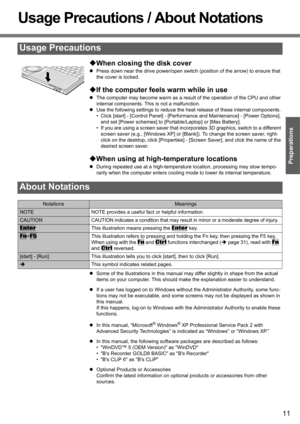

Usage Precautions / About Notations
‹When closing the disk cover
zPress down near the drive power/open switch (position of the arrow) to ensure that
the cover is locked.
‹If the computer feels warm while in use
zThe computer may become warm as a result of the operation of the CPU and other
internal components. This is not a malfunction.
zUse the following settings to reduce the heat release of these internal components.
• Click [start] - [Control Panel] - [Performance...

12
Preparations Getting Started

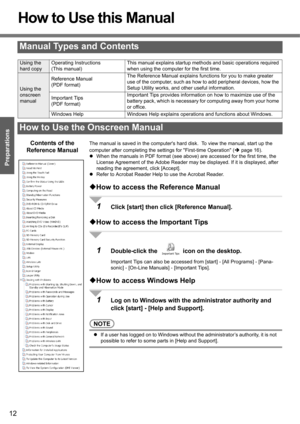

How to Use this Manual
The manual is saved in the computers hard disk.  To view the manual, start up the
computer after completing the settings for First-time Operation (Îpage 16).
zWhen the manuals in PDF format (see above) are accessed for the first time, the
License Agreement of the Adobe Reader may be displayed. If it is displayed, after
reading the agreement, click [Accept].
zRefer to Acrobat Reader Help to use the Acrobat Reader.
‹How to access the Reference...

13
Getting Started
Preparations

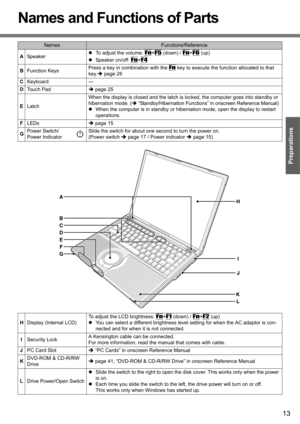

Names and Functions of Parts
NamesFunctions/Reference
ASpeakerzTo adjust the volume:
Fn+F5 (down) / Fn+F6 (up)
zSpeaker on/off:
Fn+F4
BFunction KeysPress a key in combination with the Fn key to execute the function allocated to that
key.Îpage 26
CKeyboard —
DTouch PadÎpage 25
ELatchWhen the display is closed and the latch is locked, the computer goes into standby or
hibernation mode. (Î “Standby/Hibernation Functions” in onscreen Reference Manual)
zWhen the computer...

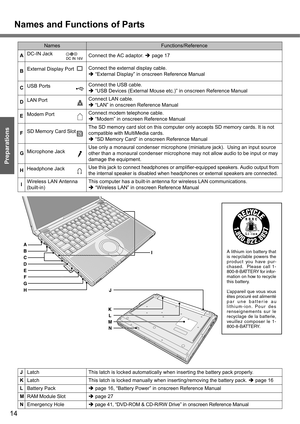

Names and Functions of Parts
14
Getting Started
Preparations
NamesFunctions/Reference
ADC-IN Jack
Connect the AC adaptor. Îpage 17
BExternal Display Port Connect the external display cable.
Î “External Display” in onscreen Reference Manual
CUSB PortsConnect the USB cable.
Î “USB Devices (External Mouse etc.)” in onscreen Reference Manual
DLAN PortConnect LAN cable.
Î “LAN” in onscreen Reference Manual
EModem PortConnect modem telephone cable.
Î “Modem” in onscreen Reference Manual
FSD Memory Card...

15
Getting Started
Preparations

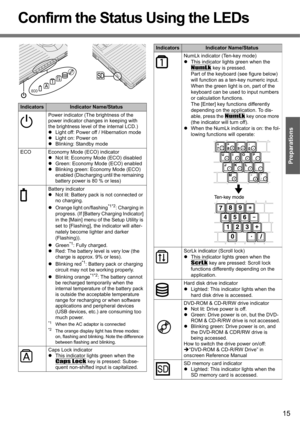

Confirm the Status Using the LEDs
IndicatorsIndicator Name/Status
Power indicator (The brightness of the
power indicator changes in keeping with
the brightness level of the internal LCD.)
zLight off: Power off / Hibernation mode
zLight on: Power on
zBlinking: Standby mode
ECO Economy Mode (ECO) indicator
zNot lit: Economy Mode (ECO) disabled
zGreen: Economy Mode (ECO) enabled
zBlinking green: Economy Mode (ECO)
enabled (Discharging until the remaining
battery power is...

16
Preparations

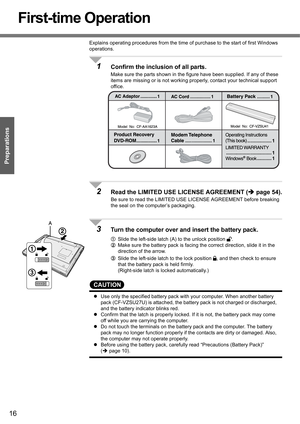

First-time Operation
Explains operating procedures from the time of purchase to the start of first Windows
operations.
1Confirm the inclusion of all parts.
Make sure the parts shown in the figure have been supplied. If any of these
items are missing or is not working properly, contact your technical support
office.
2Read the LIMITED USE LICENSE AGREEMENT (Îpage 54).
Be sure to read the LIMITED USE LICENSE AGREEMENT before breaking
the seal on the computer’s packaging.
3Turn the...

17

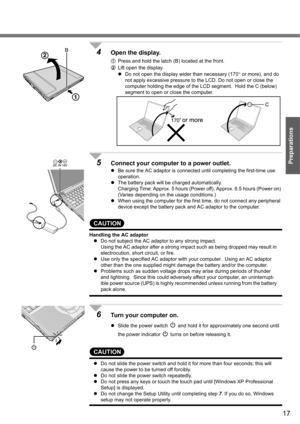

Preparations
4Open the display.
APress and hold the latch (B) located at the front.
BLift open the display.
zDo not open the display wider than necessary (170° or more), and do
not apply excessive pressure to the LCD. Do not open or close the
computer holding the edge of the LCD segment.  Hold the C (below)
segment to open or close the computer.
5Connect your computer to a power outlet.
zBe sure the AC adaptor is connected until completing the first-time use
operation.
zThe battery pack will be...

First-time Operation
18
Getting Started
Preparations

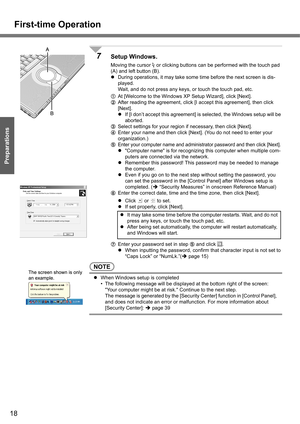

7Setup Windows.
Moving the cursor   or clicking buttons can be performed with the touch pad
(A) and left button (B).
zDuring operations, it may take some time before the next screen is dis-
played.
Wait, and do not press any keys, or touch the touch pad, etc.
AAt [Welcome to the Windows XP Setup Wizard], click [Next].
BAfter reading the agreement, click [I accept this agreement], then click
[Next].
zIf [I don’t accept this agreement] is selected, the...

19
Preparations

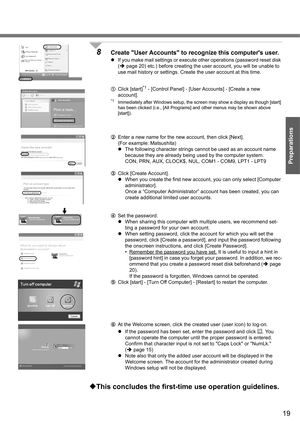

8Create User Accounts to recognize this computers user.
zIf you make mail settings or execute other operations (password reset disk
(Îpage 20) etc.) before creating the user account, you will be unable to
use mail history or settings. Create the user account at this time.
AClick [start]
*1 - [Control Panel] - [User Accounts] - [Create a new
account].
*1Immediately after Windows setup, the screen may show a display as though [start]
has been clicked (i.e., [All Programs] and other...

First-time Operation
20
Getting Started
Preparations

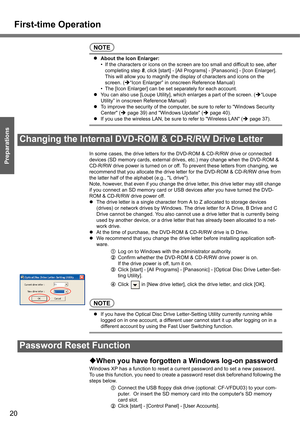

NOTE
zAbout the Icon Enlarger:
• If the characters or icons on the screen are too small and difficult to see, after
completing step 8, click [start] - [All Programs] - [Panasonic] - [Icon Enlarger].
This will allow you to magnify the display of characters and icons on the
screen. (ΓIcon Enlarger” in onscreen Reference Manual)
• The [Icon Enlarger] can be set separately for each account.
zYou can also use [Loupe Utility], which enlarges a part of...
