Panasonic Cf Y4hwpzzbm Owners Manual

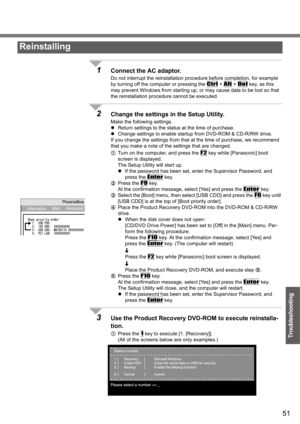

51
Troubleshooting
1Connect the AC adaptor.
Do not interrupt the reinstallation procedure before completion, for example
by turning off the computer or pressing the
Ctrl + Alt + Del key, as this
may prevent Windows from starting up, or may cause data to be lost so that
the reinstallation procedure cannot be executed.
2Change the settings in the Setup Utility.
Make the following settings.
zReturn settings to the status at the time of purchase.
zChange settings to enable startup from DVD-ROM & CD-R/RW...

Reinstalling Software

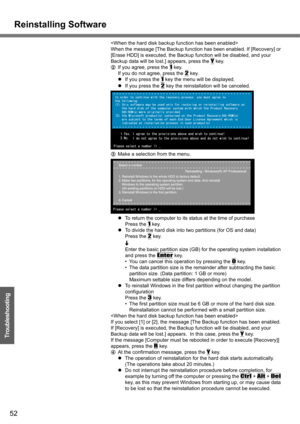

52
Troubleshooting

When the message [The Backup function has been enabled. If [Recovery] or
[Erase HDD] is executed, the Backup function will be disabled, and your
Backup data will be lost.] appears, press the
Y key.
BIf you agree, press the
1 key.
If you do not agree, press the
2 key.
zIf you press the
1 key the menu will be displayed.
zIf you press the
2 key the reinstallation will be canceled.
CMake a selection from the menu.
zTo return the computer to its status at the...

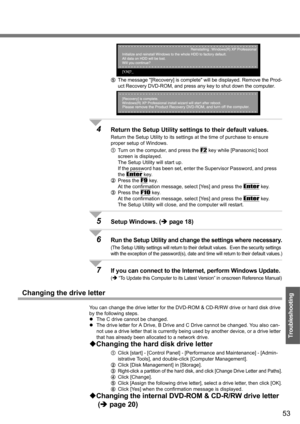

53
Troubleshooting
EThe message [Recovery] is complete will be displayed. Remove the Prod-
uct Recovery DVD-ROM, and press any key to shut down the computer.
4Return the Setup Utility settings to their default values.
Return the Setup Utility to its settings at the time of purchase to ensure
proper setup of Windows.
ATurn on the computer, and press the
F2 key while [Panasonic] boot
screen is displayed.
The Setup Utility will start up.
If the password has been set, enter the Supervisor Password, and...

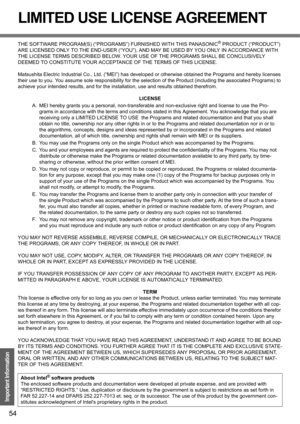

54
Important Information
LIMITED USE LICENSE AGREEMENT
THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)
ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH
THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY
DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses
their...

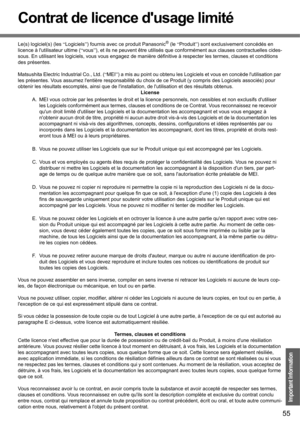

55
Important Information
Contrat de licence dusage limité
Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic® (le “Produit”) sont exclusivement concédés en
licence à lutilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles cides-
sous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et conditions
des présentes.
Matsushita Electric Industrial Co., Ltd. (“MEI”) a mis au point ou obtenu...

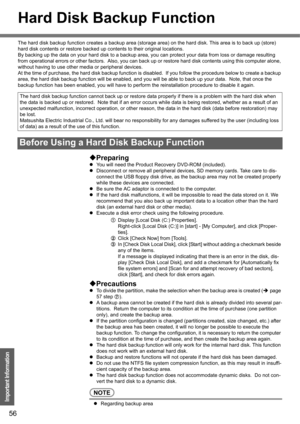

56
Important Information
Hard Disk Backup Function
The hard disk backup function creates a backup area (storage area) on the hard disk. This area is to back up (store)
hard disk contents or restore backed up contents to their original locations.
By backing up the data on your hard disk to a backup area, you can protect your data from loss or damage resulting
from operational errors or other factors.  Also, you can back up or restore hard disk contents using this computer alone,
without having to use...

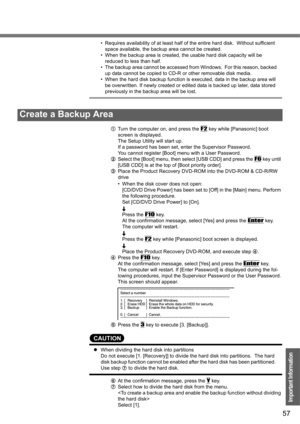

57
Important Information
• Requires availability of at least half of the entire hard disk.  Without sufficient
space available, the backup area cannot be created.
• When the backup area is created, the usable hard disk capacity will be
reduced to less than half.
• The backup area cannot be accessed from Windows.  For this reason, backed
up data cannot be copied to CD-R or other removable disk media.
• When the hard disk backup function is executed, data in the backup area will
be overwritten. If...

Hard Disk Backup Function

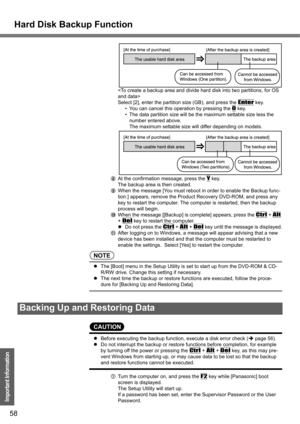

58
Important Information

Select [2], enter the partition size (GB), and press the
Enter key.
• You can cancel this operation by pressing the
0 key.
• The data partition size will be the maximum settable size less the
number entered above.
The maximum settable size will differ depending on models.
HAt the confirmation message, press the
Y key.
The backup area is then created.
IWhen the message [You must reboot in order to enable the Backup func-
tion.] appears, remove the...

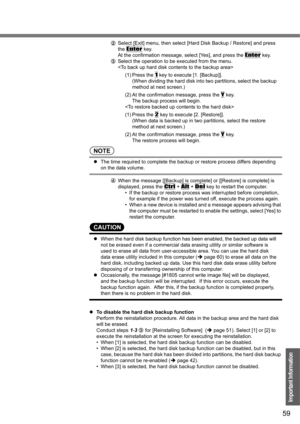

59
Important Information
BSelect [Exit] menu, then select [Hard Disk Backup / Restore] and press
the
Enter key.
At the confirmation message, select [Yes], and press the
Enter key.
CSelect the operation to be executed from the menu.

(1) Press the
1 key to execute [1. [Backup]].
(When dividing the hard disk into two partitions, select the backup
method at next screen.)
(2) At the confirmation message, press the
Y key.
The backup process will begin.

(1) Press the
2 key to execute [2. [Restore]]....

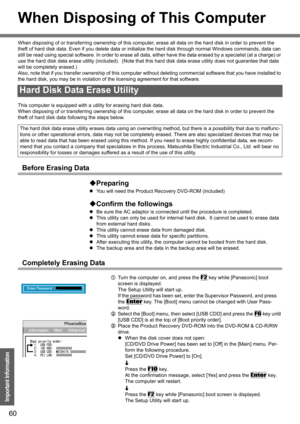

60
Important Information
When Disposing of This Computer
When disposing of or transferring ownership of this computer, erase all data on the hard disk in order to prevent the
theft of hard disk data. Even if you delete data or initialize the hard disk through normal Windows commands, data can
still be read using special software. In order to erase all data, either have the data erased by a specialist (at a charge) or
use the hard disk data erase utility (included).  (Note that this hard disk data...
