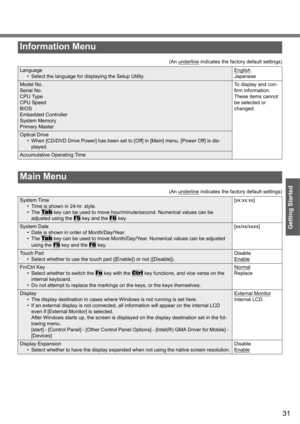

31
Getting Started
Information Menu
(An underline indicates the factory default settings)
Language
• Select the language for displaying the Setup Utility.English
Japanese
Model No.
Serial No.
CPU Type
CPU Speed
BIOS
Embedded Controller
System Memory
Primary MasterTo display and con-
firm information.
These items cannot
be selected or
changed.
Optical Drive
• When [CD/DVD Drive Power] has been set to [Off] in [Main] menu, [Power Off] is dis-
played.
Accumulative Operating Time
Main Menu
(An underline...

Setup Utility
32
Getting Started
NOTE

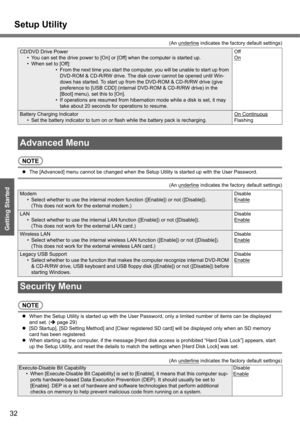

zThe [Advanced] menu cannot be changed when the Setup Utility is started up with the User Password.
NOTE
zWhen the Setup Utility is started up with the User Password, only a limited number of items can be displayed
and set. (Îpage 29)
z[SD Startup], [SD Setting Method] and [Clear registered SD card] will be displayed only when an SD memory
card has been registered.
zWhen starting up the computer, if the message [Hard disk access is prohibited “Hard Disk Lock”]...

33
Getting Started

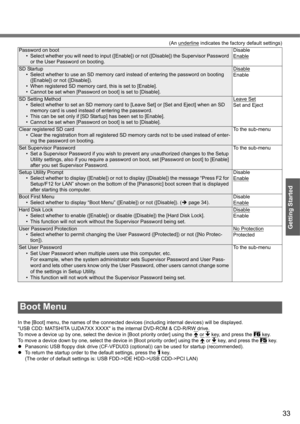

In the [Boot] menu, the names of the connected devices (including internal devices) will be displayed.
USB CDD: MATSHITA UJDA7XX XXXX is the internal DVD-ROM & CD-R/RW drive.
To move a device up by one, select the device in [Boot priority order] using the Ï
 or Ð key, and press the F6 key.
To move a device down by one, select the device in [Boot priority order] using the Ï
 or Ð key, and press the F5 key.
zPanasonic USB floppy disk drive (CF-VFDU03 (optional)) can be used for startup...

Setup Utility
34
Getting Started
NOTE

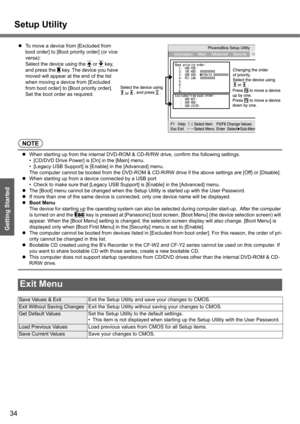

zWhen starting up from the internal DVD-ROM & CD-R/RW drive, confirm the following settings.
• [CD/DVD Drive Power] is [On] in the [Main] menu.
• [Legacy USB Support] is [Enable] in the [Advanced] menu.
The computer cannot be booted from the DVD-ROM & CD-R/RW drive if the above settings are [Off] or [Disable].
zWhen starting up from a device connected by a USB port
• Check to make sure that [Legacy USB Support] is [Enable] in the [Advanced] menu.
zThe [Boot] menu...

35
Operation
Useful Information

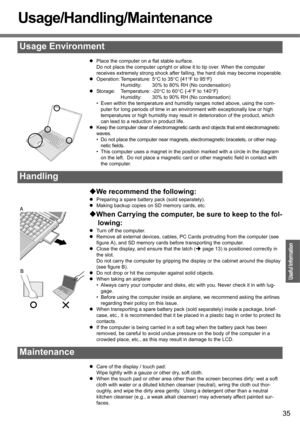

Usage/Handling/Maintenance
zPlace the computer on a flat stable surface.
Do not place the computer upright or allow it to tip over. When the computer
receives extremely strong shock after falling, the hard disk may become inoperable.
zOperation: Temperature: 5°C to 35°C {41°F to 95°F}
Humidity: 30% to 80% RH (No condensation)
zStorage: Temperature: -20°C to 60°C {-4°F to 140°F}
Humidity: 30% to 90% RH (No condensation)
• Even within the temperature and humidity ranges...

Usage/Handling/Maintenance
36
Operation
Useful Information

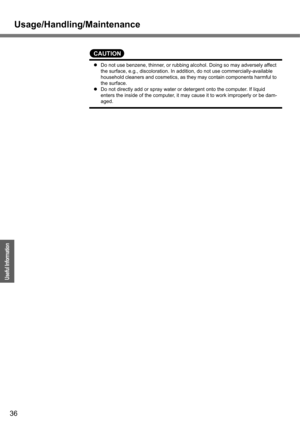

CAUTION
zDo not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect
the surface, e.g., discoloration. In addition, do not use commercially-available
household cleaners and cosmetics, as they may contain components harmful to
the surface.
zDo not directly add or spray water or detergent onto the computer. If liquid
enters the inside of the computer, it may cause it to work improperly or be dam-
aged.

37
Operation
Useful Information

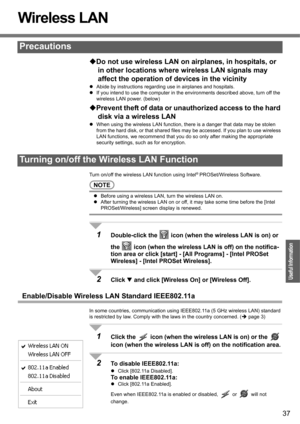

Wireless LAN
‹Do not use wireless LAN on airplanes, in hospitals, or
in other locations where wireless LAN signals may
affect the operation of devices in the vicinity
zAbide by instructions regarding use in airplanes and hospitals.
zIf you intend to use the computer in the environments described above, turn off the
wireless LAN power. (below)
‹Prevent theft of data or unauthorized access to the hard
disk via a wireless LAN
zWhen using the wireless LAN function, there...

38
Operation
Useful Information

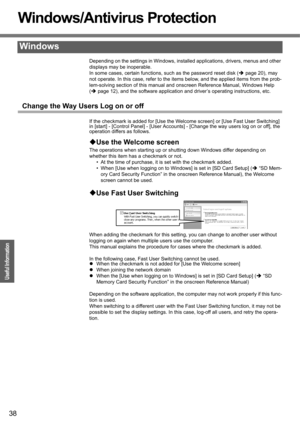

Windows/Antivirus Protection
Depending on the settings in Windows, installed applications, drivers, menus and other
displays may be inoperable.
In some cases, certain functions, such as the password reset disk (Îpage 20), may
not operate. In this case, refer to the items below, and the applied items from the prob-
lem-solving section of this manual and onscreen Reference Manual, Windows Help
(Îpage 12), and the software application and driver’s operating instructions,...

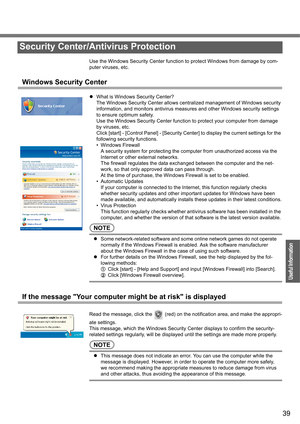

39
Operation
Useful Information
Use the Windows Security Center function to protect Windows from damage by com-
puter viruses, etc.
Windows Security Center
zWhat is Windows Security Center?
The Windows Security Center allows centralized management of Windows security
information, and monitors antivirus measures and other Windows security settings
to ensure optimum safety.
Use the Windows Security Center function to protect your computer from damage
by viruses, etc.
Click [start] - [Control Panel] -...

Windows/Antivirus Protection
40
Operation
Useful Information

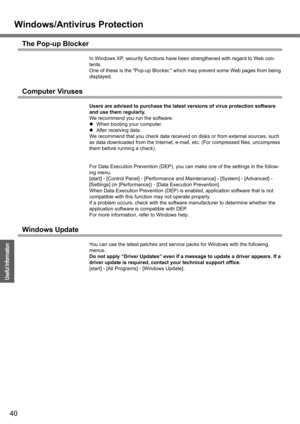

The Pop-up Blocker
In Windows XP, security functions have been strengthened with regard to Web con-
tents.
One of these is the Pop-up Blocker, which may prevent some Web pages from being
displayed.
Computer Viruses
Users are advised to purchase the latest versions of virus protection software
and use them regularly.
We recommend you run the software:
zWhen booting your computer.
zAfter receiving data.
We recommend that you check data received...
