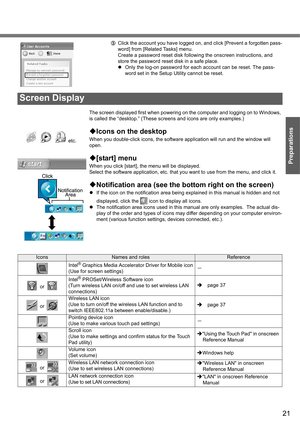

21
Preparations
CClick the account you have logged on, and click [Prevent a forgotten pass-
word] from [Related Tasks] menu.
Create a password reset disk following the onscreen instructions, and
store the password reset disk in a safe place.
zOnly the log-on password for each account can be reset. The pass-
word set in the Setup Utility cannot be reset.
The screen displayed first when powering on the computer and logging on to Windows,
is called the “desktop.” (These screens and icons are only...

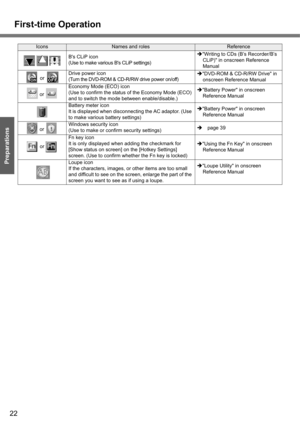

22
Getting Started
Preparations
IconsNames and rolesReference
Bs CLiP icon
(Use to make various Bs CLiP settings)ÎWriting to CDs (B’s Recorder/B’s
CLiP) in onscreen Reference
Manual
 or Drive power icon
(Turn the DVD-ROM & CD-R/RW drive power on/off)ÎDVD-ROM & CD-R/RW Drive in
onscreen Reference Manual
 or Economy Mode (ECO) icon
(Use to confirm the status of the Economy Mode (ECO)
and to switch the mode between enable/disable.)ÎBattery Power in onscreen
Reference Manual
Battery meter icon
It is...

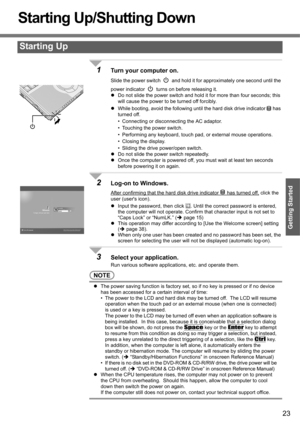

23
Getting Started
Starting Up/Shutting Down
1Turn your computer on.
Slide the power switch   and hold it for approximately one second until the
power indicator   turns on before releasing it.
zDo not slide the power switch and hold it for more than four seconds; this
will cause the power to be turned off forcibly.
zWhile booting, avoid the following until the hard disk drive indicator   has
turned off.
• Connecting or disconnecting the AC adaptor.
• Touching the power switch.
• Performing any...

Starting Up/Shutting Down

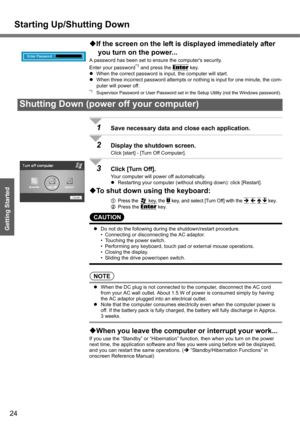

24
Getting Started
‹If the screen on the left is displayed immediately after
you turn on the power...
A password has been set to ensure the computers security.
Enter your password
*1 and press the Enter key.
zWhen the correct password is input, the computer will start.
zWhen three incorrect password attempts or nothing is input for one minute, the com-
puter will power off.
*1Supervisor Password or User Password set in the Setup Utility (not the Windows password).
1Save...

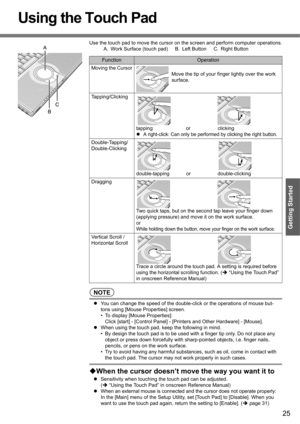

25
Getting Started
Using the Touch Pad
Use the touch pad to move the cursor on the screen and perform computer operations.
A. Work Surface (touch pad) B. Left Button C. Right Button
NOTE
zYou can change the speed of the double-click or the operations of mouse but-
tons using [Mouse Properties] screen.
• To display [Mouse Properties]:
Click [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse].
zWhen using the touch pad, keep the following in mind.
• By design the touch pad is to be used...

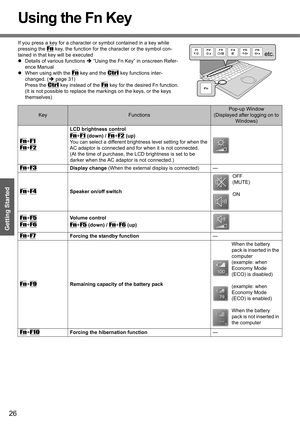

26
Getting Started
Using the Fn Key
If you press a key for a character or symbol contained in a key while
pressing the
Fn key, the function for the character or the symbol con-
tained in that key will be executed
zDetails of various functions Î “Using the Fn Key” in onscreen Refer-
ence Manual
zWhen using with the
Fn key and the Ctrl key functions inter-
changed. (Îpage 31)
Press the
Ctrl key instead of the Fn key for the desired Fn function.
(It is not possible to replace the markings on the keys,...

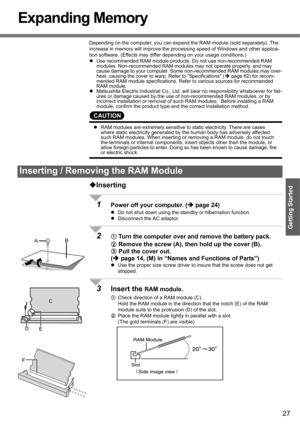

27
Getting Started
Expanding Memory
Depending on the computer, you can expand the RAM module (sold separately). The
increase in memory will improve the processing speed of Windows and other applica-
tion software. (Effects may differ depending on your usage conditions.)
zUse recommended RAM module products. Do not use non-recommended RAM
modules. Non-recommended RAM modules may not operate properly, and may
cause damage to your computer. Some non-recommended RAM modules may over-
heat, causing the...

Expanding Memory

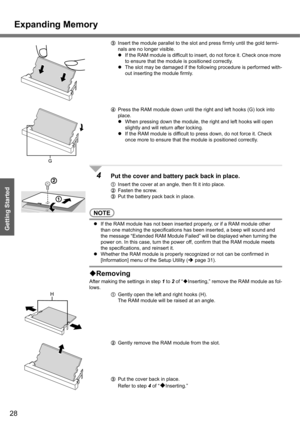

28
Getting Started
CInsert the module parallel to the slot and press firmly until the gold termi-
nals are no longer visible.
zIf the RAM module is difficult to insert, do not force it. Check once more
to ensure that the module is positioned correctly.
zThe slot may be damaged if the following procedure is performed with-
out inserting the module firmly.
DPress the RAM module down until the right and left hooks (G) lock into
place.
zWhen pressing down the module, the right and left...

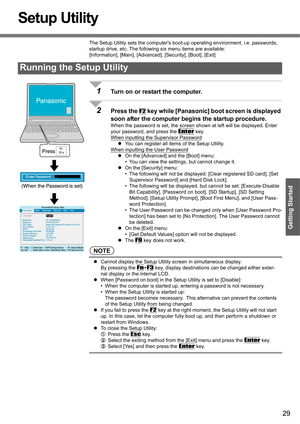

29
Getting Started
Setup Utility
The Setup Utility sets the computers boot-up operating environment, i.e. passwords,
startup drive, etc. The following six menu items are available:
[Information], [Main], [Advanced], [Security], [Boot], [Exit]
1Turn on or restart the computer.
2Press the F2 key while [Panasonic] boot screen is displayed
soon after the computer begins the startup procedure.
When the password is set, the screen shown at left will be displayed. Enter
your password, and press the
Enter...

Setup Utility

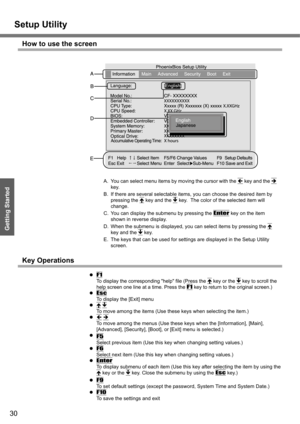

30
Getting Started
How to use the screen
A. You can select menu items by moving the cursor with the Í key and the Î
key.
B. If there are several selectable items, you can choose the desired item by
pressing the Ï
 key and the Ð key.  The color of the selected item will
change.
C. You can display the submenu by pressing the
Enter key on the item
shown in reverse display.
D. When the submenu is displayed, you can select items by pressing the Ï

key and the Ð
 key.
E. The keys that can...
