Panasonic Cf Y4hwpzzbm Owners Manual
Here you can view all the pages of manual Panasonic Cf Y4hwpzzbm Owners Manual. The Panasonic manuals for Personal Computer are available online for free. You can easily download all the documents as PDF.

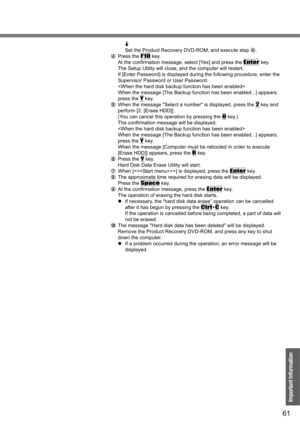

Page 61
![Page 61
61
Important Information
Set the Product Recovery DVD-ROM, and execute step D.
DPress the
F10 key.
At the confirmation message, select [Yes] and press the
Enter key.
The Setup Utility will close, and the computer will restart.
If [Enter Password] is displayed during the following procedure, enter the
Supervisor Password or User Password.
When the message [The Backup function has been enabled...] appears,
press the
Y key.
EWhen the message Select a number is displayed, press the
2 key and
perform...](http://img.usermanuals.tech/thumb/58/59344/w300_cf-y4hwpzzbm_owners-manual-60.png "Page 61
61
Important Information
Set the Product Recovery DVD-ROM, and execute step D.
DPress the
F10 key.
At the confirmation message, select [Yes] and press the
Enter key.
The Setup Utility will close, and the computer will restart.
If [Enter Password] is displayed during the following procedure, enter the
Supervisor Password or User Password.
When the message [The Backup function has been enabled...] appears,
press the
Y key.
EWhen the message Select a number is displayed, press the
2 key and
perform...")
61 Important Information Set the Product Recovery DVD-ROM, and execute step D. DPress the F10 key. At the confirmation message, select [Yes] and press the Enter key. The Setup Utility will close, and the computer will restart. If [Enter Password] is displayed during the following procedure, enter the Supervisor Password or User Password. When the message [The Backup function has been enabled...] appears, press the Y key. EWhen the message Select a number is displayed, press the 2 key and perform...

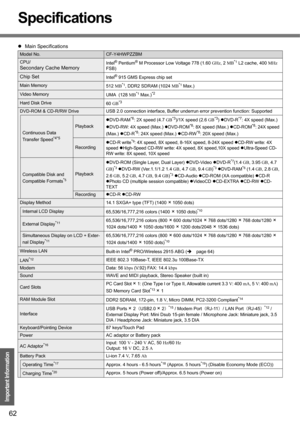

Page 62
62 Important Information Specifications zMain Specifications Model No.CF-Y4HWPZZBM CPU/ Secondary Cache MemoryIntel® Pentium® M Processor Low Voltage 778 (1.60 GHz, 2 MB*1 L2 cache, 400 MHz FSB) Chip SetIntel® 915 GMS Express chip set Main Memory 512 MB*1, DDR2 SDRAM (1024 MB*1 Max.) Video Memory UMA (128 MB*1 Max.)*2 Hard Disk Drive 60 GB*3 DVD-ROM & CD-R/RW Drive USB 2.0 connection interface, Buffer underrun error prevention function: Supported Continuous Data Transfer Speed*4*5 PlaybackzDVD-RAM *6:...

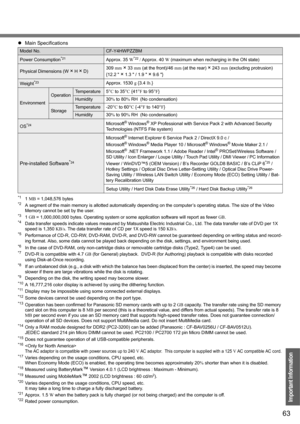

Page 63
63 Important Information *11 MB = 1,048,576 bytes*2A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video Memory cannot be set by the user. *31 GB = 1,000,000,000 bytes. Operating system or some application software will report as fewer GB.*4Data transfer speeds indicate values measured by Matsushita Electric Industrial Co., Ltd. The data transfer rate of DVD per 1X speed is 1,350 KB/s. The data transfer rate of CD per 1X speed is 150...

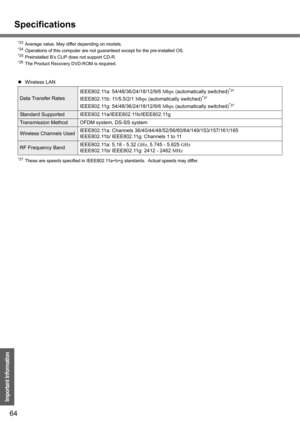

Page 64
Specifications 64 Important Information *23Average value. May differ depending on models.*24Operations of this computer are not guaranteed except for the pre-installed OS.*25Preinstalled B’s CLiP does not support CD-R.*26The Product Recovery DVD-ROM is required. *27These are speeds specified in IEEE802.11a+b+g standards. Actual speeds may differ. zWireless LAN Data Transfer RatesIEEE802.11a: 54/48/36/24/18/12/9/6 Mbps (automatically switched) *27 IEEE802.11b: 11/5.5/2/1 Mbps (automatically switched)*27...

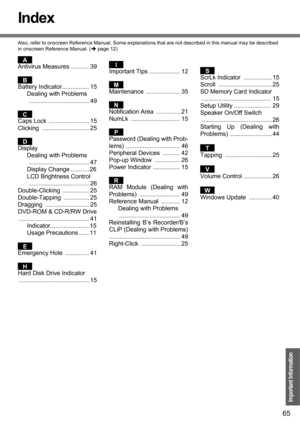

Page 65
65 Important Information Index Also, refer to onscreen Reference Manual. Some explanations that are not described in this manual may be described in onscreen Reference Manual. (Îpage 12) Antivirus Measures ........... 39 Battery Indicator................ 15 Dealing with Problems .................................... 49 Caps Lock ........................ 15 Clicking ............................ 25 Display Dealing with Problems .................................... 47 Display Change ........... 26 LCD...

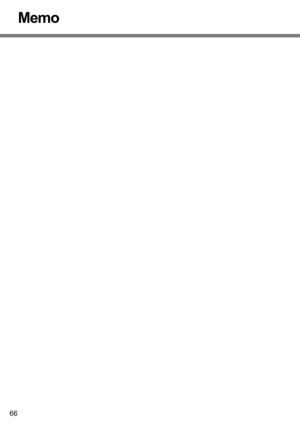

Page 66
66 Memo

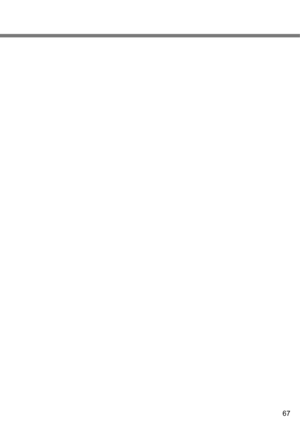

Page 67
67

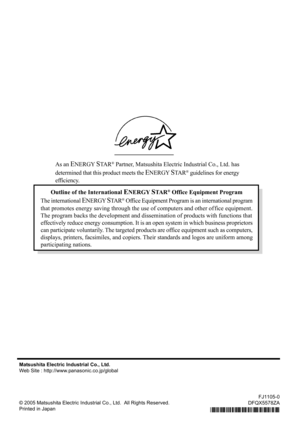

Page 68
Matsushita Electric Industrial Co., Ltd. Web Site : http://www.panasonic.co.jp/global © 2005 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Printed in Japan FJ1105-0 DFQX5578ZA Outline of the International ENERGY STA R® Office Equipment Program The international ENERGY STA R® Office Equipment Program is an international program that promotes energy saving through the use of computers and other of fice equipment. The program backs the development and dissemination of products with...
