Panasonic Cordless Angle Grinder EY46A2 Operating Instructions

- 11  -
Attaching or Removing
Battery Pack
 CAUTION
Before inserting battery pack, check that
the power switch on the tool actuates
properly and returns to the “OFF”
position when released.
1.  To connect the battery pack:
  Align the highlighted marker pointsand attach battery pack.
•  Slide the battery pack until it locks  into position.
Alignment
marks
2.  To remove the battery pack:
  Push down the button and slide the battery pack forward.
Button
IV. OPERATION
NOTE:
Be aware that this tool is...

- 12 -
 WARNING
•  It should never be necessary to force the tool. The weight of the tool
applies adequate pressure. Forcing
and excessive pressure could cause
dangerous grinding disc breakage.
•  ALWAYS replace grinding disc if tool  is dropped while grinding.
•  NEVER bang or hit grinding disc.
•  Avoid bouncing and snagging the  grinding disc, especially when
working corners, sharp edges etc.
This can cause loss of control and
kickback.
 CAUTION
After operation, always switch off the
tool and...

- 13 -
Using a cut-off disc guard
(Available as an accessory, not
included)
1
3
2
Make sure the side.
1. Clamp nut
2. Cut-off disc
3. Disc flange
4. Spindle
4
 WARNING
•  When using an abrasive cut-off disc, be sure to use only the cut-off disc
guard designed for this use with
cut-off disc.
•  NEVER use cut-off disc for grinding.
•  Do not jam the Disc or apply  excessive pressure. Do not attempt
to make an excessive depth of
cut. Overstressing the cut-off
disc increases the loading and...

- 14 -
Overheat warning lamp
Off
(normal
operation) Flashing: Overheat
Indicates operation has
been halted due to battery
overheatin
g.
To protect the battery, be sure to note
the following when carrying out this
operation.
•  If the battery becomes hot, the  protection function will be activated
and the motor or battery will stop
operating. The overheat warning lamp
on the control panel illuminates or
flashes when this feature is active.
•  If the overheating protection feature  activates,...

- 15 -
[Battery Pack]
For Appropriate Use of
Battery pack
Li-ion Battery pack
•  For optimum battery life, store the Li-ion battery pack following use
without charging it.
•  When charging the battery pack,  confirm that the terminals on the
battery charger are free of foreign
substances such as dust and
water etc. Clean the terminals before
charging the battery pack if any
foreign substances are found on the
terminals.
  The life of the battery pack terminals  may be affected by foreign...

- 16 -
overheat warning lamp and the battery low
warning lamp will flash to indicate that safe
operation is not possible, and the main unit
will not rotate normally. Connect the battery
pack into the unit of the tool until the red or
yellow label disappears.
[Battery Charger]
Charging
 CAUTION
•  The charger is designed to operate on standard domestic electrical
power only as stated in the rating
plate. Charge only on the voltage
indicated on the rating plate of unit.
e.g.230V / 50Hz.
•  Do not...

- 17 -

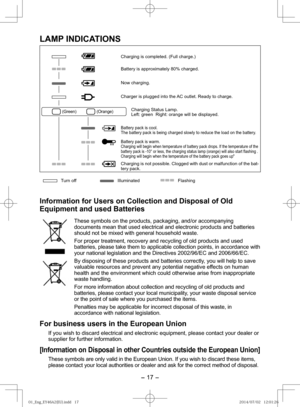

LAMP INDICATIONS
Charging is completed. (Full charge.)
Battery is approximately 80% charged.
Now charging.
Charger is plugged into the AC outlet. Ready to charge.
Charging Status Lamp.
Left: green  Right: orange will be displayed.
Battery pack is cool.
The battery pack is being charged slowly to reduce the load on the batte\
ry.
Battery pack is warm. Charging will begin when temperature of battery pack drops. If the tempe\
rature of the
battery pack is -10° or less, the charging status lamp...

- 18 -
Replacing carbon brushes
Keep the carbon brushes clean and
free to slip in the holders. When it is
less than 5 mm shorter both carbon
brushes should be replaced at the
same time. Use only identical carbon
brushes.
Carbon brush
Brush cap
Screw driver
Use a screwdriver to remove the caps.
Take out the worn carbon brushes,
insert the new ones and secure the
brush caps.
To maintain product SAFETY and
RELIABILITY, repairs, any other
maintenance or adjustment should be
performed by Panasonic...

- 19 -
VII. SPECIFICATIONS
MAIN UNIT
Mounting wheel diameterΦ125 mm
Spindle thread size M14
Mounting wheel hole diameter  22 mm
Weight 1.65 kg (main unit only)
Overall length 300 mm (main unit only)
Noise, Vibration See the included sheet
Motor voltage DC 14.4 VDC 18 V
Rated speed 8000min
-1 (rpm)10000min-1 (rpm)
BATTERY PACK
Model No.EY9L41 EY9L42 EY9L44 EY9L45 EY9L50 EY9L51
Storage battery Li-ion Battery
Battery voltage DC 14.4 VDC 18 V
BATTERY CHARGER
Model No. EY0L82
Electrical rating See the...

- 20 -
ONLY FOR U.K.
IX.  ELECTRICAL
PLUG INFOR-
MATION
FOR YOUR SAFETY PLEASE READ
THE FOLLOWING TEXT CAREFULLY
This appliance is supplied with a moulded
three pin mains plug for your safety and
convenience.
A 5 amp fuse is fitted in this plug.
Should the fuse need to be replaced
please ensure that the replacement
fuse has a rating of 5 amp and that it is
approved by ASTA or BSI to BS1362.
Check for the ASTA mark
 or the BSI
mark
 on the body of the fuse.
If the plug contains a removable fuse...
