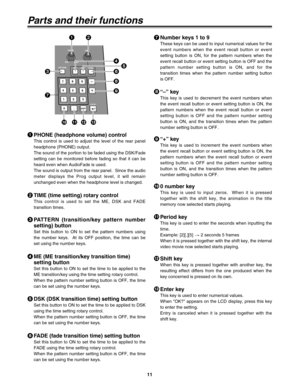

Parts and their functions
PHONE (headphone volume) control
This control is used to adjust the level of the rear panel
headphone (PHONE) output.
The sound of the portion to be faded using the DSK/Fade
setting can be monitored before fading so that it can be
heard even when AudioFade is used.
The sound is output from the rear panel.  Since the audio
meter displays the Prog output level, it will remain...

12

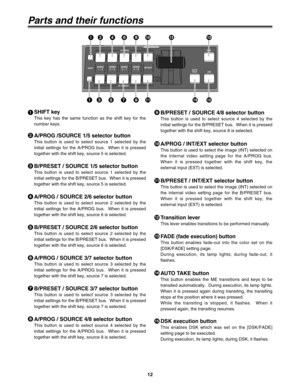

Parts and their functions
Modify
A / PROG
B / PRESET
SHIFTSOURCE1  /  5 2  /  6 3  /  7 4  /  8SOURCE SOURCE SOURCEINT/EXT
FADE
DSK
AUTO
TAKE
MIX EFFECTS
DR
12468:?
SHIFT key
This key has the same function as the shift key for the
number keys.
1
2
A/PROG /SOURCE 1/5 selector button
This button is used to select source 1 selected by the
initial settings for the A/PROG bus.  When it is pressed
together with the shift key, source 5 is selected.
3
B/PRESET / SOURCE 1/5 selector button
This button is used...

13
Parts and their functions

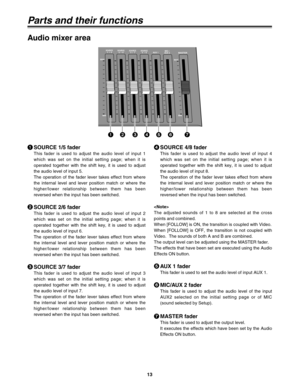

Audio mixer area
Modify
MAX
MINMIN MAX
MASTERSOURCE1  /  5SOURCE2  /  6SOURCE3  /  7SOURCEAUX 1MIC /
AUX 2 4  /  8
DR
1234567
SOURCE 1/5 fader
This fader is used to adjust the audio level of input 1
which was set on the initial setting page; when it is
operated together with the shift key, it is used to adjust
the audio level of input 5.
The operation of the fader lever takes effect from where
the internal level and lever position match or where the
higher/lower relationship...

14

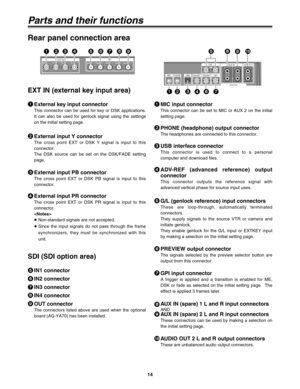

G/L
MICPHONEUSBADV-REFPREVIEWGPI
AUX IN
1
2
L
R
L
R
AUDIO OUT 2
EDITOR
589:
123467
MIC input connector
This connector can be set to MIC or AUX 2 on the initial
setting page.
1
2
PHONE (headphone) output connector
The headphones are connected to this connector.
3
USB interface connector
This connector is used to connect to a personal
computer and download files.
4
5ADV-REF (advanced reference) output
connector
This connector outputs the reference signal with
advanced vertical phase for source input...

15
Y/VP /V5
YC
B
R P
Y/VP /V6
YC
B
R P
Y/VP /V7
YC
B
R P
Y/VP /V8
YC
B
R P VIDEO IN
12
34AUDIO IN

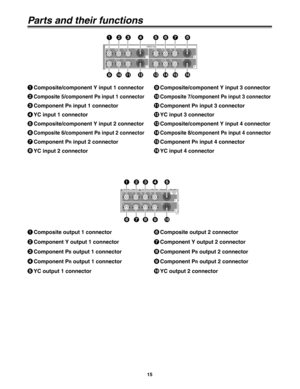

Parts and their functions
Composite/component Y input 1 connector 1
2
Composite 5/component PBinput 1 connector
3
Component PRinput 1 connector
4
YC input 1 connector
5
Composite/component Y input 2 connector
6
Composite 6/component PBinput 2 connector
7
Component PRinput 2 connector
8
YC input 2 connector9
Composite/component Y input 3 connector
:
Composite 7/component PBinput 3 connector
;
Component...

16

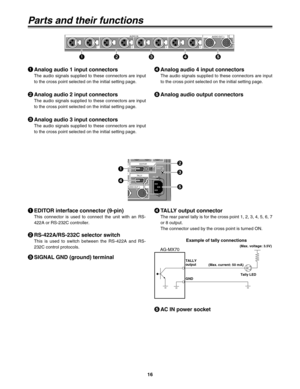

Parts and their functions
L
RL
RL
RL
R
1234LR AUDIO IN
AUDIO OUT 1
1
Analog audio 1 input connectors
The audio signals supplied to these connectors are input
to the cross point selected on the initial setting page.
1
2
Analog audio 2 input connectors
The audio signals supplied to these connectors are input
to the cross point selected on the initial setting page.
3
Analog audio 3 input connectors
The audio signals supplied to these connectors are input
to the cross point selected on the initial setting...

17

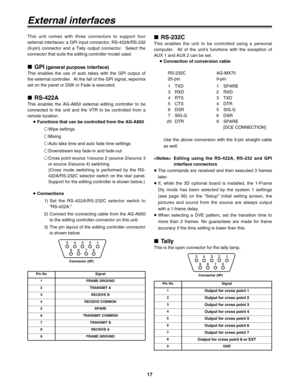

External interfaces
This unit comes with three connectors to support four
external interfaces: a GPI input connector, RS-422A/RS-232
(9-pin) connector and a Tally output connector.  Select the
connector that suits the editing controller model used.
∫GPI(general purpose interface)
This enables the use of auto takes with the GPI output of
the external controller.  At the fall of the GPI signal, wipe/mix
set on the panel or DSK or Fade is executed.
∫RS-422A
This enables the AG-A850 external editing...

18
Through
connection

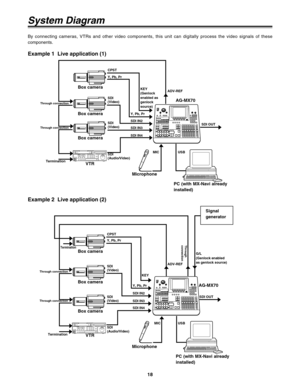

System Diagram
AG-MX70
PC (with MX-Navi already
installed)
ADV-REF
ADV-REF CPST
Through connection
Through connection
Through connection
Through connection
Termination
Termination
TerminationY, Pb, Pr
KEY
(Genlock
enabled as
genlock
source)
KEYG/L
(Genlock enabled
as genlock source) Y, Pb, Pr
SDI IN2
SDI OUT SDI
(Video)
SDI
(Video)
SDI
(Video)SDI
(Video)
SDI
(Audio/Video)
SDI
(Audio/Video)SDI IN3
SDI IN4
Y, Pb, Pr Y, Pb, Pr CPST
SDI IN2
SDI IN3
SDI IN4MIC USB
Box camera
Box camera...

19

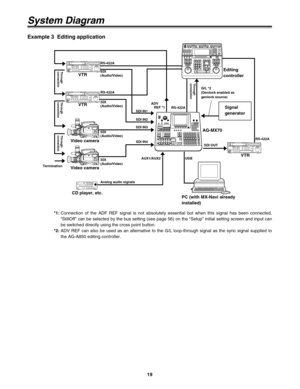

System Diagram
ADV
REF *1
RS-422A
RS-422A RS-422A
RS-422AG/L *2
(Genlock enabled as
genlock source)
SDI
(Audio/Video) SDI
(Audio/Video) SDI
(Audio/Video) SDI
(Audio/Video)
SDI IN2 SDI IN1
SDI IN3
SDI IN4
AUX1/AUX2
AG-MX70
PC (with MX-Navi already
installed)
SDI OUT
Analog audio signalsUSBVideo camera
Video cameraVTR
VTR
VTR
CD player, etc.Signal
generator Editing
controller
Example 3  Editing application
*1:Connection of the ADF REF signal is not absolutely essential but when this signal has been...

20

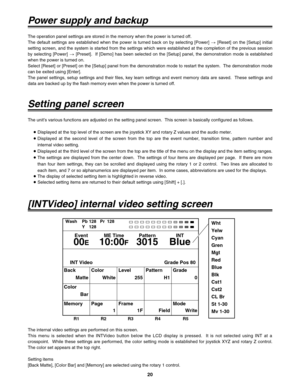

Setting panel screen
[INTVideo] internal video setting screen Power supply and backup
The operation panel settings are stored in the memory when the power is turned off.
The default settings are established when the power is turned back on by selecting [Power] >[Reset] on the [Setup] initial
setting screen, and the system is started from the settings which were established at the completion of the previous session
by selecting [Power] >[Preset].  If [Demo] has been selected on the [Setup] panel, the...
