Panasonic Digital AV Mixer Agmx70 Operating Instructions
Here you can view all the pages of manual Panasonic Digital AV Mixer Agmx70 Operating Instructions. The Panasonic manuals for Music Mixer are available online for free. You can easily download all the documents as PDF.

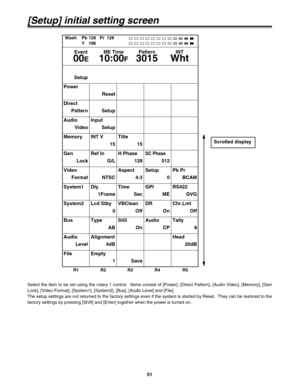

Page 51
![Page 51
51
[Setup] initial setting screen
Select the item to be set using the rotary 1 control. Items consist of [Power], [Direct Pattern], [Audio Video], [Memory], [Gen
Lock], [Video Format], [System1], [System2], [Bus], [Audio Level] and [File].
The setup settings are not returned to the factory settings even if the system is started by Reset. They can be restored to the
factory settings by pressing [Shift] and [Enter] together when the power is turned on.
Wash Pb 128 Pr 128
Y 196
Event ME Time Pattern INT...](http://img.usermanuals.tech/thumb/58/67957/w300_agmx70_en_om_d-50.png "Page 51
51
[Setup] initial setting screen
Select the item to be set using the rotary 1 control. Items consist of [Power], [Direct Pattern], [Audio Video], [Memory], [Gen
Lock], [Video Format], [System1], [System2], [Bus], [Audio Level] and [File].
The setup settings are not returned to the factory settings even if the system is started by Reset. They can be restored to the
factory settings by pressing [Shift] and [Enter] together when the power is turned on.
Wash Pb 128 Pr 128
Y 196
Event ME Time Pattern INT...")
51 [Setup] initial setting screen Select the item to be set using the rotary 1 control. Items consist of [Power], [Direct Pattern], [Audio Video], [Memory], [Gen Lock], [Video Format], [System1], [System2], [Bus], [Audio Level] and [File]. The setup settings are not returned to the factory settings even if the system is started by Reset. They can be restored to the factory settings by pressing [Shift] and [Enter] together when the power is turned on. Wash Pb 128 Pr 128 Y 196 Event ME Time Pattern INT...

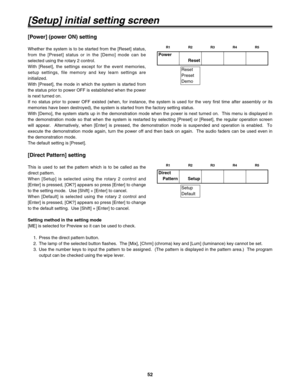

Page 52
![Page 52
52
[Setup] initial setting screen
[Power] (power ON) setting
Whether the system is to be started from the [Reset] status,
from the [Preset] status or in the [Demo] mode can be
selected using the rotary 2 control.
With [Reset], the settings except for the event memories,
setup settings, file memory and key learn settings are
initialized.
With [Preset], the mode in which the system is started from
the status prior to power OFF is established when the power
is next turned on.
Power
Reset
Reset
Preset
Demo...](http://img.usermanuals.tech/thumb/58/67957/w300_agmx70_en_om_d-51.png "Page 52
52
[Setup] initial setting screen
[Power] (power ON) setting
Whether the system is to be started from the [Reset] status,
from the [Preset] status or in the [Demo] mode can be
selected using the rotary 2 control.
With [Reset], the settings except for the event memories,
setup settings, file memory and key learn settings are
initialized.
With [Preset], the mode in which the system is started from
the status prior to power OFF is established when the power
is next turned on.
Power
Reset
Reset
Preset
Demo...")
52 [Setup] initial setting screen [Power] (power ON) setting Whether the system is to be started from the [Reset] status, from the [Preset] status or in the [Demo] mode can be selected using the rotary 2 control. With [Reset], the settings except for the event memories, setup settings, file memory and key learn settings are initialized. With [Preset], the mode in which the system is started from the status prior to power OFF is established when the power is next turned on. Power Reset Reset Preset Demo...

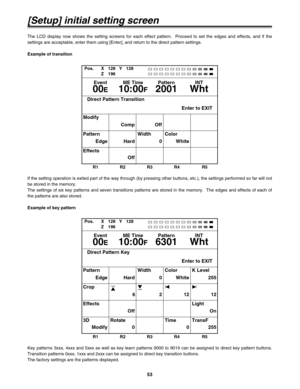

Page 53
![Page 53
53
[Setup] initial setting screen
The LCD display now shows the setting screens for each effect pattern. Proceed to set the edges and effects, and if the
settings are acceptable, enter them using [Enter], and return to the direct pattern settings.
Example of transition
Pos. X 128 Y 128
Z 196
Event ME Time Pattern INT
00E10:00F2001 Wht
Direct Pattern Transition
Enter to EXIT
Modify
Effects
Off Comp Off
Pattern
Edge HardWidth
0Color
White
If the setting operation is exited part of the way through (by...](http://img.usermanuals.tech/thumb/58/67957/w300_agmx70_en_om_d-52.png "Page 53
53
[Setup] initial setting screen
The LCD display now shows the setting screens for each effect pattern. Proceed to set the edges and effects, and if the
settings are acceptable, enter them using [Enter], and return to the direct pattern settings.
Example of transition
Pos. X 128 Y 128
Z 196
Event ME Time Pattern INT
00E10:00F2001 Wht
Direct Pattern Transition
Enter to EXIT
Modify
Effects
Off Comp Off
Pattern
Edge HardWidth
0Color
White
If the setting operation is exited part of the way through (by...")
53 [Setup] initial setting screen The LCD display now shows the setting screens for each effect pattern. Proceed to set the edges and effects, and if the settings are acceptable, enter them using [Enter], and return to the direct pattern settings. Example of transition Pos. X 128 Y 128 Z 196 Event ME Time Pattern INT 00E10:00F2001 Wht Direct Pattern Transition Enter to EXIT Modify Effects Off Comp Off Pattern Edge HardWidth 0Color White If the setting operation is exited part of the way through (by...

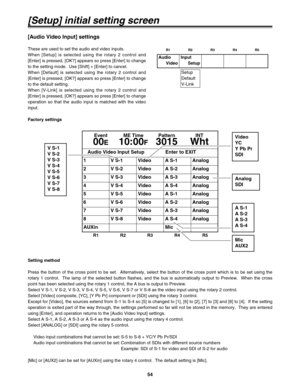

Page 54
![Page 54
54
R1 R2 R3 R4 R5
[Setup] initial setting screen
[Audio Video Input] settings
These are used to set the audio and video inputs.
When [Setup] is selected using the rotary 2 control and
[Enter] is pressed, [OK?] appears so press [Enter] to change
to the setting mode. Use [Shift] + [Enter] to cancel.
When [Default] is selected using the rotary 2 control and
[Enter] is pressed, [OK?] appears so press [Enter] to change
to the default setting.
When [V-Link] is selected using the rotary 2 control and
[Enter]...](http://img.usermanuals.tech/thumb/58/67957/w300_agmx70_en_om_d-53.png "Page 54
54
R1 R2 R3 R4 R5
[Setup] initial setting screen
[Audio Video Input] settings
These are used to set the audio and video inputs.
When [Setup] is selected using the rotary 2 control and
[Enter] is pressed, [OK?] appears so press [Enter] to change
to the setting mode. Use [Shift] + [Enter] to cancel.
When [Default] is selected using the rotary 2 control and
[Enter] is pressed, [OK?] appears so press [Enter] to change
to the default setting.
When [V-Link] is selected using the rotary 2 control and
[Enter]...")
54 R1 R2 R3 R4 R5 [Setup] initial setting screen [Audio Video Input] settings These are used to set the audio and video inputs. When [Setup] is selected using the rotary 2 control and [Enter] is pressed, [OK?] appears so press [Enter] to change to the setting mode. Use [Shift] + [Enter] to cancel. When [Default] is selected using the rotary 2 control and [Enter] is pressed, [OK?] appears so press [Enter] to change to the default setting. When [V-Link] is selected using the rotary 2 control and [Enter]...

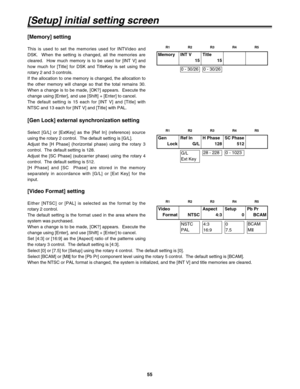

Page 55
![Page 55
55
[Setup] initial setting screen
[Memory] setting
This is used to set the memories used for INTVideo and
DSK. When the setting is changed, all the memories are
cleared. How much memory is to be used for [INT V] and
how much for [Title] for DSK and TitleKey is set using the
rotary 2 and 3 controls.
If the allocation to one memory is changed, the allocation to
the other memory will change so that the total remains 30.
When a change is to be made, [OK?] appears. Execute the
change using [Enter], and use...](http://img.usermanuals.tech/thumb/58/67957/w300_agmx70_en_om_d-54.png "Page 55
55
[Setup] initial setting screen
[Memory] setting
This is used to set the memories used for INTVideo and
DSK. When the setting is changed, all the memories are
cleared. How much memory is to be used for [INT V] and
how much for [Title] for DSK and TitleKey is set using the
rotary 2 and 3 controls.
If the allocation to one memory is changed, the allocation to
the other memory will change so that the total remains 30.
When a change is to be made, [OK?] appears. Execute the
change using [Enter], and use...")
55 [Setup] initial setting screen [Memory] setting This is used to set the memories used for INTVideo and DSK. When the setting is changed, all the memories are cleared. How much memory is to be used for [INT V] and how much for [Title] for DSK and TitleKey is set using the rotary 2 and 3 controls. If the allocation to one memory is changed, the allocation to the other memory will change so that the total remains 30. When a change is to be made, [OK?] appears. Execute the change using [Enter], and use...

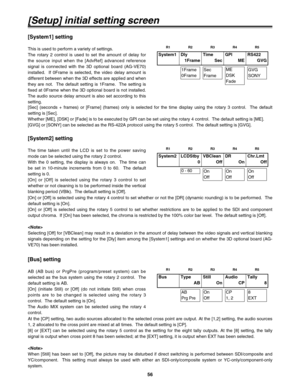

Page 56
![Page 56
56
[Setup] initial setting screen
System1 Dly
1FrameTime
SecGPI
MERS422
GVG
1Frame
0Frame
Sec
FrameME
DSK
FadeGVG
SONY
System2 LCDStby
0VBClean
OffDR
OnChr.Lmt
Off
0 - 60On
OffOn
OffOn
Off
[System1] setting
This is used to perform a variety of settings.
The rotary 2 control is used to set the amount of delay for
the source input when the [AdvRef] advanced reference
signal is connected with the 3D optional board (AG-VE70)
installed. If 0Frame is selected, the video delay amount is
different between when...](http://img.usermanuals.tech/thumb/58/67957/w300_agmx70_en_om_d-55.png "Page 56
56
[Setup] initial setting screen
System1 Dly
1FrameTime
SecGPI
MERS422
GVG
1Frame
0Frame
Sec
FrameME
DSK
FadeGVG
SONY
System2 LCDStby
0VBClean
OffDR
OnChr.Lmt
Off
0 - 60On
OffOn
OffOn
Off
[System1] setting
This is used to perform a variety of settings.
The rotary 2 control is used to set the amount of delay for
the source input when the [AdvRef] advanced reference
signal is connected with the 3D optional board (AG-VE70)
installed. If 0Frame is selected, the video delay amount is
different between when...")
56 [Setup] initial setting screen System1 Dly 1FrameTime SecGPI MERS422 GVG 1Frame 0Frame Sec FrameME DSK FadeGVG SONY System2 LCDStby 0VBClean OffDR OnChr.Lmt Off 0 - 60On OffOn OffOn Off [System1] setting This is used to perform a variety of settings. The rotary 2 control is used to set the amount of delay for the source input when the [AdvRef] advanced reference signal is connected with the 3D optional board (AG-VE70) installed. If 0Frame is selected, the video delay amount is different between when...

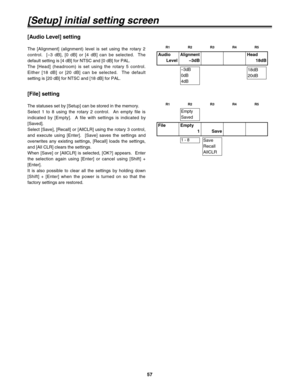

Page 57
![Page 57
57
[Setup] initial setting screen
Audio
LevelAlignment
–3dBHead
18dB
–3dB
0dB
4dB18dB
20dB
[Audio Level] setting
The [Alignment] (alignment) level is set using the rotary 2
control. [–3 dB], [0 dB] or [4 dB] can be selected. The
default setting is [4 dB] for NTSC and [0 dB] for PAL.
The [Head] (headroom) is set using the rotary 5 control.
Either [18 dB] or [20 dB] can be selected. The default
setting is [20 dB] for NTSC and [18 dB] for PAL.
File Empty
1 Save
1 - 8
Empty
Saved
Save
Recall
AllCLR
[File]...](http://img.usermanuals.tech/thumb/58/67957/w300_agmx70_en_om_d-56.png "Page 57
57
[Setup] initial setting screen
Audio
LevelAlignment
–3dBHead
18dB
–3dB
0dB
4dB18dB
20dB
[Audio Level] setting
The [Alignment] (alignment) level is set using the rotary 2
control. [–3 dB], [0 dB] or [4 dB] can be selected. The
default setting is [4 dB] for NTSC and [0 dB] for PAL.
The [Head] (headroom) is set using the rotary 5 control.
Either [18 dB] or [20 dB] can be selected. The default
setting is [20 dB] for NTSC and [18 dB] for PAL.
File Empty
1 Save
1 - 8
Empty
Saved
Save
Recall
AllCLR
[File]...")
57 [Setup] initial setting screen Audio LevelAlignment –3dBHead 18dB –3dB 0dB 4dB18dB 20dB [Audio Level] setting The [Alignment] (alignment) level is set using the rotary 2 control. [–3 dB], [0 dB] or [4 dB] can be selected. The default setting is [4 dB] for NTSC and [0 dB] for PAL. The [Head] (headroom) is set using the rotary 5 control. Either [18 dB] or [20 dB] can be selected. The default setting is [20 dB] for NTSC and [18 dB] for PAL. File Empty 1 Save 1 - 8 Empty Saved Save Recall AllCLR [File]...

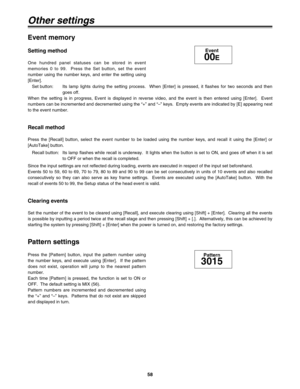

Page 58
![Page 58
58
Other settings
Setting method
One hundred panel statuses can be stored in event
memories 0 to 99. Press the Set button, set the event
number using the number keys, and enter the setting using
[Enter].
Event memory
Event
00E
Press the [Pattern] button, input the pattern number using
the number keys, and execute using [Enter]. If the pattern
does not exist, operation will jump to the nearest pattern
number.
Each time [Pattern] is pressed, the function is set to ON or
OFF. The default setting is MIX...](http://img.usermanuals.tech/thumb/58/67957/w300_agmx70_en_om_d-57.png "Page 58
58
Other settings
Setting method
One hundred panel statuses can be stored in event
memories 0 to 99. Press the Set button, set the event
number using the number keys, and enter the setting using
[Enter].
Event memory
Event
00E
Press the [Pattern] button, input the pattern number using
the number keys, and execute using [Enter]. If the pattern
does not exist, operation will jump to the nearest pattern
number.
Each time [Pattern] is pressed, the function is set to ON or
OFF. The default setting is MIX...")
58 Other settings Setting method One hundred panel statuses can be stored in event memories 0 to 99. Press the Set button, set the event number using the number keys, and enter the setting using [Enter]. Event memory Event 00E Press the [Pattern] button, input the pattern number using the number keys, and execute using [Enter]. If the pattern does not exist, operation will jump to the nearest pattern number. Each time [Pattern] is pressed, the function is set to ON or OFF. The default setting is MIX...

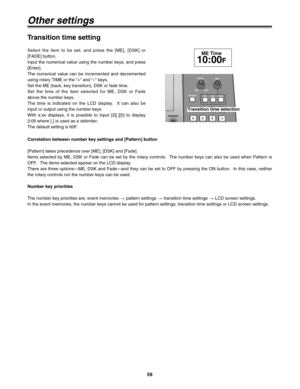

Page 59
![Page 59
59
Select the item to be set, and press the [ME], [DSK] or
[FADE] button.
Input the numerical value using the number keys, and press
[Enter].
The numerical value can be incremented and decremented
using rotary TIME or the “+” and “–” keys.
Set the ME (back, key transition), DSK or fade time.
Set the time of the item selected for ME, DSK or Fade
above the number keys.
The time is indicated on the LCD display. It can also be
input or output using the number keys.
With x:xx displays, it is possible to...](http://img.usermanuals.tech/thumb/58/67957/w300_agmx70_en_om_d-58.png "Page 59
59
Select the item to be set, and press the [ME], [DSK] or
[FADE] button.
Input the numerical value using the number keys, and press
[Enter].
The numerical value can be incremented and decremented
using rotary TIME or the “+” and “–” keys.
Set the ME (back, key transition), DSK or fade time.
Set the time of the item selected for ME, DSK or Fade
above the number keys.
The time is indicated on the LCD display. It can also be
input or output using the number keys.
With x:xx displays, it is possible to...")
59 Select the item to be set, and press the [ME], [DSK] or [FADE] button. Input the numerical value using the number keys, and press [Enter]. The numerical value can be incremented and decremented using rotary TIME or the “+” and “–” keys. Set the ME (back, key transition), DSK or fade time. Set the time of the item selected for ME, DSK or Fade above the number keys. The time is indicated on the LCD display. It can also be input or output using the number keys. With x:xx displays, it is possible to...

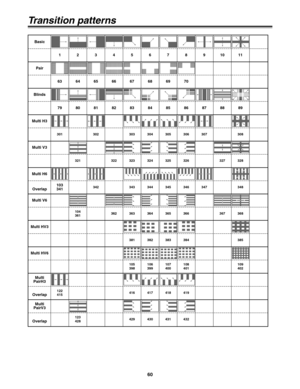

Page 60
60 Transition patterns Blinds 79 80 81 8283 84 85 86 Basic 1234567891011 Pair 63 64 65 6667 68 69 70 87 88 89 Multi H3 301 302303 304 305 306307 308 Multi PairH3 Overlap122 415416 417 418 419 Multi H6 Overlap103 341342343 344 345 346347 348 Multi V3 321 322323 324 325 326327 328 Multi PairV3 Overlap123 428429 430 431 432 Multi V6 104 361362363 364 365 366367 368 Multi HV3 381 382 383 384385 Multi HV6 105 398106 399107 400108 401109 402
