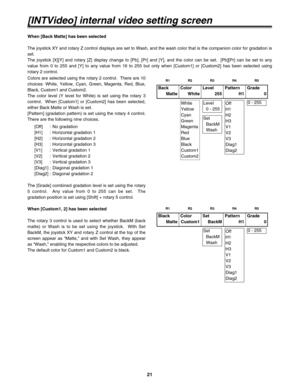

21
[INTVideo] internal video setting screen
Colors are selected using the rotary 2 control.  There are 10
choices: White, Yellow, Cyan, Green, Magenta, Red, Blue,
Black, Custom1 and Custom2.
The color level (Y level for White) is set using the rotary 3
control.  When [Custom1] or [Custom2] has been selected,
either Back Matte or Wash is set.
[Pattern] (gradation pattern) is set using the rotary 4 control.
There are the following nine choices.
[Off] : No gradation
[H1] : Horizontal gradation 1
[H2] :...

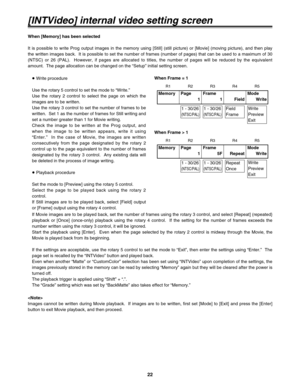

22
[INTVideo] internal video setting screen
When [Memory] has been selected
It is possible to write Prog output images in the memory using [Still] (still picture) or [Movie] (moving picture), and then play
the written images back.  It is possible to set the number of frames (number of pages) that can be used to a maximum of 30
(NTSC) or 26 (PAL).  However, if pages are allocated to titles, the number of pages will be reduced by the equivalent
amount.  The page allocation can be changed on the “Setup”...

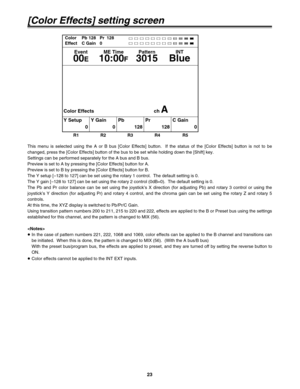

23
This menu is selected using the A or B bus [Color Effects] button.  If the status of the [Color Effects] button is not to be
changed, press the [Color Effects] button of the bus to be set while holding down the [Shift] key.
Settings can be performed separately for the A bus and B bus.
Preview is set to A by pressing the [Color Effects] button for A.
Preview is set to B by pressing the [Color Effects] button for B.
The Y setup [–128 to 127] can be set using the rotary 1 control.  The default setting is...

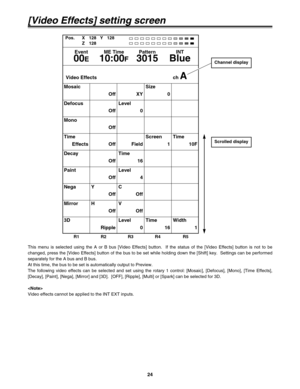

24
[Video Effects] setting screen
This menu is selected using the A or B bus [Video Effects] button.  If the status of the [Video Effects] button is not to be
changed, press the [Video Effects] button of the bus to be set while holding down the [Shift] key.  Settings can be performed
separately for the A bus and B bus.
At this time, the bus to be set is automatically output to Preview.
The following video effects can be selected and set using the rotary 1 control: [Mosaic], [Defocus], [Mono], [Time...

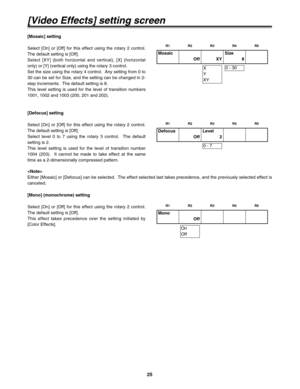

25
[Video Effects] setting screen
[Mosaic] setting
Select [On] or [Off] for this effect using the rotary 2 control.
The default setting is [Off].
Select [XY] (both horizontal and vertical), [X] (horizontal
only) or [Y] (vertical only) using the rotary 3 control.
Set the size using the rotary 4 control.  Any setting from 0 to
30 can be set for Size, and the setting can be changed in 2-
step increments.  The default setting is 8.
This level setting is used for the level of transition numbers
1001, 1002 and...

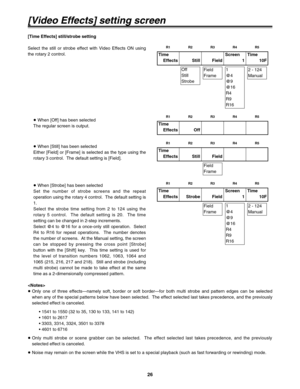

26
[Time Effects] still/strobe setting
Select the still or strobe effect with Video Effects ON using
the rotary 2 control.
Time
Effects Still FieldScreen
1Time
10F
Off
Still
Strobe
Field
Frame
Field
Frame
Field
Frame
1
@4
@9
@16
R4
R9
R16
1
@4
@9
@16
R4
R9
R16
2 - 124
Manual
2 - 124
Manual
≥When [Off] has been selected
The regular screen is output.
≥When [Still] has been selected
Either [Field] or [Frame] is selected as the type using the
rotary 3 control.  The default setting is [Field].Time
Effects...

27
[Decay] setting
The A and B multi strobe, transition, Key, DSK shadow and
trail cannot be selected at the same time.  Only one of these
effects is valid at a time.
Select [On] or [Off] for the effect using the rotary 2 control.
Any time setting from 0 to 32 can be selected using the
rotary 3 control.  The default setting is 16.
This level setting is used for the level of transition number
1066 (219).
Decay
OffTime
16
0 - 32
[Paint] setting
Select [On] or [Off] for the effect using the rotary 2...

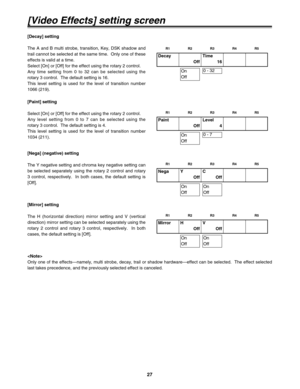

28
[Video Effects] setting screen
On
Off
≥When [Multi] (multi-screen) has been selected
[Size] can be set to any value from 0 to 15 using the
rotary 3 control.  The default setting is 8.
[Pitch] can be set to any value from 0 to 255 using the
rotary 4 control.  The default setting is 16.
[Reverse] can be set to [On] or [Off] using the rotary 5
control.  The default setting is [Off].
This level and other settings are used as the transition
number 1983 settings.
≥When [Spark] has been selected

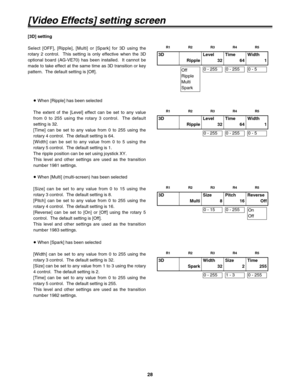

[Width] can...

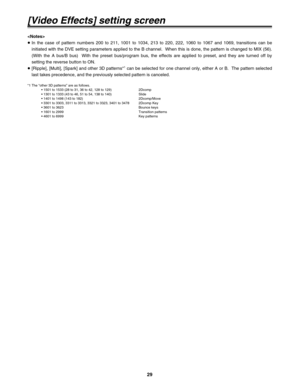

29
[Video Effects] setting screen

≥In the case of pattern numbers 200 to 211, 1001 to 1034, 213 to 220, 222, 1060 to 1067 and 1069, transitions can be
initiated with the DVE setting parameters applied to the B channel.  When this is done, the pattern is changed to MIX (56).
(With the A bus/B bus)  With the preset bus/program bus, the effects are applied to preset, and they are turned off by
setting the reverse button to ON.
≥[Ripple], [Multi], [Spark] and other 3D patterns*
1can be selected for one...

30

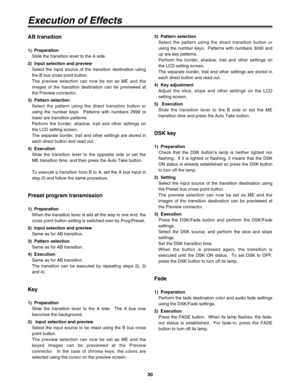

Execution of Effects
3)  Pattern selection
Select the pattern using the direct transition button or
using the number keys.  Patterns with numbers 3000 and
up are key patterns.
Perform the border, shadow, trail and other settings on
the LCD setting screen.
The separate border, trail and other settings are stored in
each direct button and read out.
4)  Key adjustment
Adjust the slice, slope and other settings on the LCD
setting screen.
5)   Execution
Slide the transition lever to the B side or set the...
