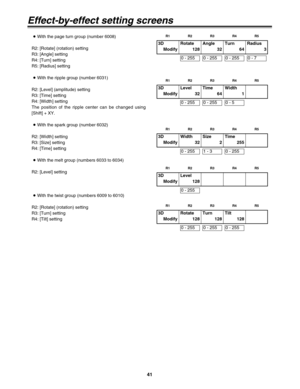

R2: [Rotate] (rotation) setting
R3: [Angle] setting
R4: [Turn] setting
R5: [Radius] setting
≥With the ripple group (number 6031)
R2: [Level] (amplitude) setting
R3: [Time] setting
R4: [Width] setting
The position of the ripple center can be changed using
[Shift] + XY.
≥With the spark group (number 6032)
R2: [Width] setting
R3: [Size] setting
R4: [Time] setting
≥With the melt group (numbers 6033 to 6034)
R2: [Level] setting
≥With the twist group (numbers 6009...

42
3D
ModifyEmpty
9000 Setup
9000 - 9019
Empty
Saved
Setup
Preview
CLR
All CLR

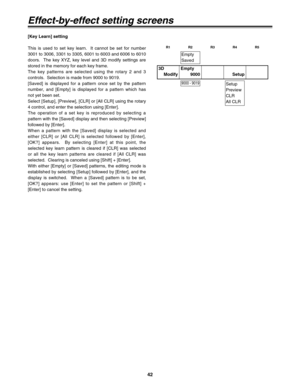

Effect-by-effect setting screens
[Key Learn] setting
This is used to set key learn.  It cannot be set for number
3001 to 3006, 3301 to 3305, 6001 to 6003 and 6006 to 6010
doors.  The key XYZ, key level and 3D modify settings are
stored in the memory for each key frame.
The key patterns are selected using the rotary 2 and 3
controls.  Selection is made from 9000 to 9019.
[Saved] is displayed for a pattern once set by the...

43
With Sphere (#6001)
Effect-by-effect setting screens
Pos. X 128 Y 128
Z 196
Event ME Time Pattern INT
00E10:00F3013 Wht
Key
Learn
CLR KF
CopyK Frame
00K Level
255
Insert
Replace Basic
Paste
Exit9000

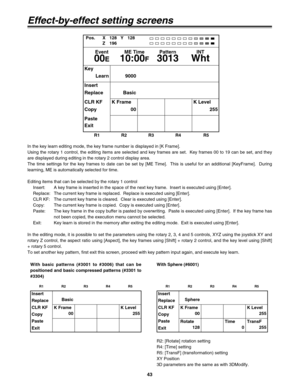

In the key learn editing mode, the key frame number is displayed in [K Frame].
Using the rotary 1 control, the editing items are selected and key frames are set.  Key frames 00 to 19 can be set, and they
are displayed during editing in the rotary 2 control display area.
The time settings for the key frames...

44

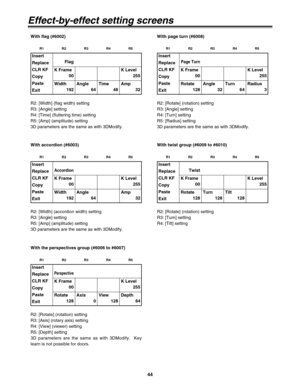

With flag (#6002)
Effect-by-effect setting screens
Insert
Replace
CLR KF
Copy
Paste
ExitFlag
K Frame
00K Level
255
Width
192Angle
64Time
48Amp
32
R2: [Width] (flag width) setting
R3: [Angle] setting
R4: [Time] (fluttering time) setting
R5: [Amp] (amplitude) setting
3D parameters are the same as with 3DModify.
With accordion (#6003)
Insert
Replace
CLR KF
Copy
Paste
Exit
Accordion
K Frame
00K Level
255
Width
192Angle
64Amp
32
R2: [Width] (accordion width) setting
R3: [Angle] setting
R5: [Amp]...

45

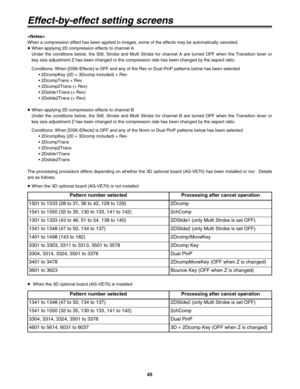

Effect-by-effect setting screens

When a compression effect has been applied to images, some of the effects may be automatically canceled.
≥When applying 2D compression effects to channel A
Under the conditions below, the Still, Strobe and Multi Strobe for channel A are turned OFF when the Transition lever or
key size adjustment Z has been changed or the compression rate has been changed by the aspect ratio.
Conditions: When [DSK-Effects] is OFF and any of the Rev or Dual PinP patterns below has been...

46

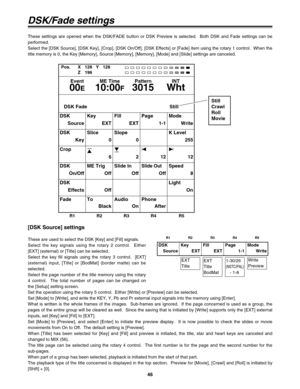

[DSK Source] settings
These are used to select the DSK [Key] and [Fill] signals.
Select the key signals using the rotary 2 control.  Either
[EXT] (external) or [Title] can be selected.
Select the key fill signals using the rotary 3 control.  [EXT]
(external) input, [Title] or [BodMat] (border matte) can be
selected.
Select the page number of the title memory using the rotary
4 control.  The total number of pages can be changed on
the [Setup] setting screen.
DSK
SourceKey
EXTFill
EXTPage
1-1Mode
Write...

47

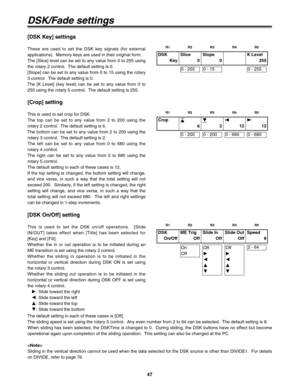

DSK/Fade settings
[DSK Key] settings
These are used to set the DSK key signals (for external
applications).  Memory keys are used in their original form.
The [Slice] level can be set to any value from 0 to 255 using
the rotary 2 control.  The default setting is 0.
[Slope] can be set to any value from 0 to 15 using the rotary
3 control.  The default setting is 0.
The [K Level] (key level) can be set to any value from 0 to
255 using the rotary 5 control.  The default setting is 255.
[Crop] setting
This...

48

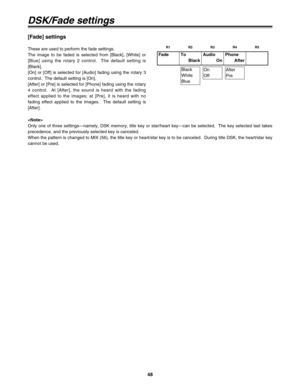

DSK/Fade settings
[Fade] settings
These are used to perform the fade settings.
The image to be faded is selected from [Black], [White] or
[Blue] using the rotary 2 control.  The default setting is
[Black].
[On] or [Off] is selected for [Audio] fading using the rotary 3
control.  The default setting is [On].
[After] or [Pre] is selected for [Phone] fading using the rotary
4 control.  At [After], the sound is heard with the fading
effect applied to the images; at [Pre], it is heard with no
fading effect...

49

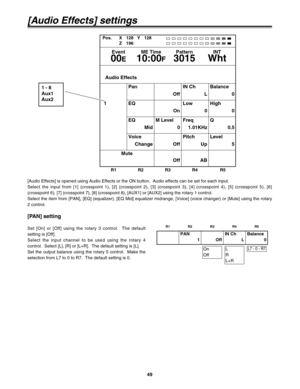

[Audio Effects] settings
[PAN] setting
Set [On] or [Off] using the rotary 3 control.  The default
setting is [Off].
Select the input channel to be used using the rotary 4
control.  Select [L], [R] or [L+R].  The default setting is [L].
Set the output balance using the rotary 5 control.  Make the
selection from L7 to 0 to R7.  The default setting is 0.
PAN
1 OffIN Ch
LBalance
0
L7 - 0 - R7On
OffL
R
L+R
Pos. X 128 Y 128
Z 196
Event ME Time Pattern INT
00E10:00F3015 Wht
Audio Effects
EQ
MidM Level
0Freq...

50

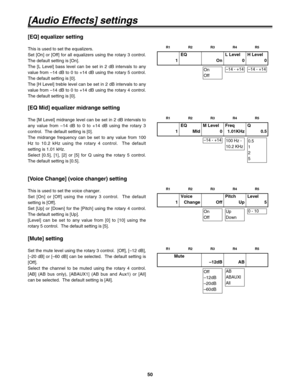

[Audio Effects] settings
[EQ Mid] equalizer midrange setting
The [M Level] midrange level can be set in 2 dB intervals to
any value from –14 dB to 0 to +14 dB using the rotary 3
control.  The default setting is [0].
The midrange frequency can be set to any value from 100
Hz to 10.2 kHz using the rotary 4 control.  The default
setting is 1.01 kHz.
Select [0.5], [1], [2] or [5] for Q using the rotary 5 control.
The default setting is [0.5].
[Voice Change] (voice changer) setting
This is used to set the...
