Panasonic Digital Copier Dp 150fx Operating Instructions
Here you can view all the pages of manual Panasonic Digital Copier Dp 150fx Operating Instructions. The Panasonic manuals for Copier are available online for free. You can easily download all the documents as PDF.
Page 11
GETTING TO KNOW YOUR MACHINE 11 GETTING TO KNOW YOUR MACHINE Installation (see Note 1) The copier should not be installed in areas with the following conditions: Extremely high or low temperature and humidity. Proper ambient conditions are: Temperature: 50ºF - 86ºF Relative humidity: 30% - 80% Where temperature and humidity can change rapidly, causing condensation. Direct exposure to sunlight. Directly in the air conditioning flow. In areas of high dust concentration. In areas of poor...
Page 12
GETTING TO KNOW YOUR MACHINE 12 Overview External View Front & Right Side View Exit Tray Control Panel ADF (Automatic Document Feeder) Right Cover Sheet Bypass Release Button 2nd Paper Feed Module (Optional) Push here when closing the Right Cover Front Cover Paper Tray Power Switch ON OFF
Page 13
GETTING TO KNOW YOUR MACHINE 13 GETTING TO KNOW YOUR MACHINE Rear & Left Side View Do not block the ventilation openings Handset Kit (Optional) Telephone Line Jack External Telephone Jack Optional Telephone Handset Jack LINE TEL HANDSET Overview
Page 14
GETTING TO KNOW YOUR MACHINE 14 Control panel Keys and Indicators (For Facsimile) 2SIDEDDP-150FX PAPER TRAY SELECT SE 2 in 1 ZOOM(50~200%)SEARCHDIRECTORYabc..D ATA COPY FA XPHOTO AUTO SORT DARKER LIGHTER ON LINE+ - 2 SIDED 2 in 1 D ATA COPY FA XPHOTO AUTO SORT ON LINE 2 SIDED DARKER LIGHTER MESSAGE DISPLAY Displays the date and time, or the current COPY Used to select the COPY mode.FA X Used to select the FAX mode. ZOOM/DIRECTORY SEARCH/ VO LU M E Used to adjuct the Copy Zoom ratio from 50 -...
Page 15
GETTING TO KNOW YOUR MACHINE 15 GETTING TO KNOW YOUR MACHINE FX START 12 45 78 03 6 9ABC DEF GHI JKL MNO PQRSTUVWXYZFUNCTION CLEAR/STOP SET HORY PAUSE REDIAL/ FLASH/ MONITOR SAVER ENERGYRESET SUB-ADDR TONE-/() ENERGY SAVER Used to switch the machine into energy saving mode.RESET Used to reset all temporary settings to the initial power-on default. CLEAR/STOP Used to cancel operations.START Used to start operations.TONE Used to temporarily change the dialing mode to Tone when pulse mode is...
Page 16
GETTING TO KNOW YOUR MACHINE 16 Function Selection Selecting the Fax or Copy Mode You can set the Power ON default mode to either Fax or Copy Mode. (See page 37) Factory Standard Setting is Copy Mode. (see Note 1) NOTE 1. Beep sound indicates unavailable combined operations. 2SIDEDDP-150FX START 12 45 78 03 6 9ABC DEF GHI JKL MNO PQRSTUVWXYZPAPER TRAY SELECTFUNCTION CLEAR/STOP SET 2 in 1 ZOOM(50~200%)SEARCHDIRECTORYabc..D ATA COPY FA XPHOTOAUTO SORTPAUSE REDIAL/ FLASH/ MONITOR SAVER ENERGYRESET DARKER...

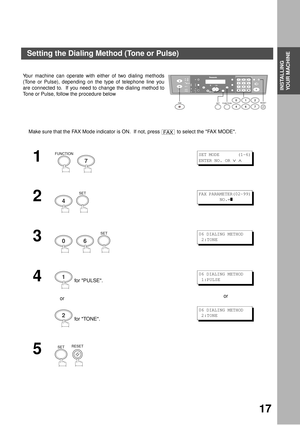

Page 17
17 INSTALLING YOUR MACHINE INSTALLING YOUR MACHINE Setting the Dialing Method (Tone or Pulse) Your machine can operate with either of two dialing methods (Tone or Pulse), depending on the type of telephone line you are connected to. If you need to change the dialing method to Tone or Pulse, follow the procedure below Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1 2 3 4 for PULSE. or for TONE.or 5 12 45 78 03 6 9 abc..+ - FUNCTIONSET74 0 6...
Page 18
INSTALLING YOUR MACHINE 18 Adjusting the Volume Setting the Monitor and / or Ringer Volume Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. Setting the Monitor Volume You can adjust the monitor and ringer volume on your machine. The built-in speaker enables you to hear the dial tone, dialing signals, and busy tone. The ringer sounds when your machine receives a call. 1 You will hear the dial tone through the speaker. 2 repeatedly to raise the volume. or...
Page 19
INSTALLING YOUR MACHINE 19 INSTALLING YOUR MACHINE Setting the Ringer Volume (see Note 1) 1 Standby 2 repeatedly to raise the volume. or repeatedly to lower the volume. NOTE 1. You can also adjust the volume of the key touch tone and the volume of the buzzer in the Fax Parameter No. 10 (KEY/BUZZER VOLUME). (See page 35) OCT-12-2000 15:00 00% + - + - RINGER VOLUME ((( ))) RINGER VOLUME Adjusting the Volume
Page 20
INSTALLING YOUR MACHINE 20 How To Enter Characters To enter characters or symbols for the Station Name (See page 25), Logo (See page 22), Character ID (See page 23), etc., follow the steps below. 2SIDEDDP-150FX START 12 45 78 03 6 9ABC DEF GHI JKL MNO PQRSTUVWXYZPAPER TRAY SELECTFUNCTION CLEAR/STOP SET 2 in 1 ZOOM(50~200%)SEARCHDIRECTORYabc..D ATA COPY FA XPHOTOAUTO SORTPAUSE REDIAL/ FLASH/ MONITOR SAVER ENERGYRESET DARKER LIGHTERON LINE SUB-ADDR + - 2 SIDED TONE-/() FA XSET MONITOR Select and...
