Panasonic Digital Copier Dp 150fx Operating Instructions

INSTALLING YOUR MACHINE
21
INSTALLING
YOUR MACHINE
User Parameters
Setting the Date and Time
At standby the display will show the date and time.  Once the standby display is set, it will automatically be
updated.
 (see Note 1)
 (see Note 2)Your facsimile machine has several basic settings (User
Parameters) to help you keep records of the documents you
send or receive.  For example, the built-in clock keeps the
current date and time, and your LOGO and ID Number help to
identify you when you send or...

INSTALLING YOUR MACHINE
22

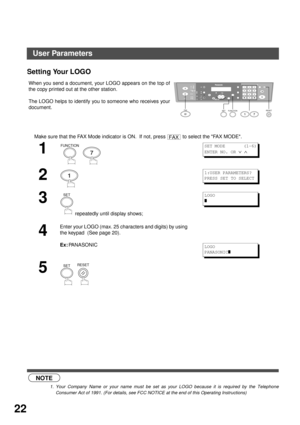

Setting Your LOGO
 (see Note 1)When you send a document, your LOGO appears on the top of
the copy printed out at the other station.
The LOGO helps to identify you to someone who receives your
document.
Make sure that the FAX Mode indicator is ON.  If not, press   to select the FAX MODE.
1

2
3
 repeatedly until display shows;
4
Enter your LOGO (max. 25 characters and digits) by using
the keypad  (See page 20).
Ex:
PANASONIC
5

NOTE
1. Your Company Name or your name must be...

INSTALLING YOUR MACHINE
23
INSTALLING
YOUR MACHINE
Setting Your Character ID
.
20If the remote machine has Character ID capabilities, when you
are sending or receiving, your Character ID will appear on the
remote machines display and the remote machines Character
ID will appear on your display.
Make sure that the FAX Mode indicator is ON.  If not, press   to select the FAX MODE.
1

2
3
 repeatedly until display shows;
4
Enter your Character ID (max. 16 characters and digits)
by using the keypad  (See...

INSTALLING YOUR MACHINE
24
Setting Your ID Number (Fax Telephone Number)
 (see Note 1)
 (see Note 2)If the remote machine does not have a Character ID but has
an ID Number, when sending or receiving, your ID Number
will appear on the remote machines display and their ID
Number will appear on your display.
We suggest you use your facsimile telephone number as
your ID number. (max. 20 digits)
Make sure that the FAX Mode indicator is ON.  If not, press   to select the FAX MODE.
1

2
3
 repeatedly until...

25
PROGRAMMING
YOUR MACHINE
PROGRAMMING YOUR MACHINE
Directory Search Dialing
Entering the Directory Search Dialing
To use the Directory Search Dialing, you must first store the
station names and their telephone numbers using the following
procedure.
Make sure that the FAX Mode indicator is ON.  If not, press   to select the FAX MODE.
1

2

3
4
↓3 sec. later
5
Enter the station name from the keypad
(up to 15 characters). (See Note below and page
 20)
Ex:
6
12
45
78
03
6
9
abc..+ -
FUNCTIONSET7
12FA...

PROGRAMMING YOUR MACHINE
26
7
Enter the telephone number
(up to 36 digits including pauses and spaces).
Ex:
Select and continue pressing the appropriate key on the
keypad until the desired Character / Symbol is displayed,
then select another key on the keypad to enter other
Characters / Symbols.
If the next Character / Symbol that you wish to enter falls
on the same key, press  , to set the first Character /
Symbol first before continuing.  Press   to
complete the registration.
Ex:
To set O and N,...

PROGRAMMING YOUR MACHINE
27
PROGRAMMING
YOUR MACHINE
Changing Directory Search Dialing
If you have to change any of the Directory Search Dialing
Stations, follow the steps below.
Make sure that the FAX Mode indicator is ON.  If not, press   to select the FAX MODE.
1

2

3
↓
3.0 sec. later
4
Use   or   to search the station you wish to change.
5
 then enter a new station name. (See Note 1)
Ex:
6
12
45
78
03
6
9
abc..+ -
FUNCTIONSET72FA XSTARTCLEAR/STOP
FAX
FUNCTION
72
SETDIR. STN. DIAL (1-3)...

PROGRAMMING YOUR MACHINE
28
 (see Note 1)
 (see Note 2)
7
 then enter a new telephone number.
(See Note 1)
Ex:
8
To return to standby, press
NOTE
1. If you make a mistake, use   or   to move the cursor beyond the incorrect number, press
then re-enter the new number.
2. If the Directory Search Dialing Station has been used for a communication reservation, the settings cannot be
changed or erased until the communication has finished.
To change or erase the settings, cancel the communication first by...

PROGRAMMING YOUR MACHINE
29
PROGRAMMING
YOUR MACHINE
Erasing the Directory Search Dialing
 (see Note 1)
If you have to erase any of the Directory Search Dialing
Stations, follow the steps below.
Make sure that the FAX Mode indicator is ON.  If not, press   to select the FAX MODE.
1

2
3
↓
3.0 sec. later
4
Use   or   to search the station you wish to delete.
5
To return to standby, press  .↓
3.0 sec. later
(When all stations were
deleted)
NOTE
1. If the Directory Search Dialing Station has...

PROGRAMMING YOUR MACHINE
30
Setting Up Group Dialing
To set a Group Dialing, follow the steps below.
Make sure that the FAX Mode indicator is ON.  If not, press   to select the FAX MODE.
1

2

3
4
↓
3.0 sec. later
5
Enter a Group name using character keys
(up to 15 characters). (See page 20)
Ex:
6
7
Enter the telephone number
(up to 36 digits including pauses and spaces).
Ex:
8
Enter the next telephone number and press   (up to 10
telephone numbers).
To record another Group, repeat steps 5 to 8 (up...
