51 BASIC OPERATIONS Direct Transmission (see Note 1) Manual Number Dialing (Direct Transmission) To dial the telephone number manually, follow the steps below. If your machines memory is full or you wish to send the document immediately, use Direct Transmission. (To use Direct Transmission, you must change the Fax Parameter No. 05 (MEMORY) setting to OFF in advance. (See page 35 and Note 1 below) NOTE 1. After the Direct Transmission is completed, reset the Fax Parameter No. 05 (MEMORY) setting to ON...
Page 52
52 (see Note 1) (see Note 2) (see Note 3)ADF Scanning 4a The machine starts to dial the telephone number. Platen Glass (Flatbed) Scanning 4b When an original is placed on the Platen Glass, the display is as shown to the right. Press or to select the size of the original on the Platen Glass and press to star t dialing. NOTE 1. If you need a special access number to get an outside line, dial it first then press to enter a pause (represented by a -) before dialing the full number. Ex: 9 PAUSE...
Page 53
53 BASIC OPERATIONS Directory Search Dialing (Direct Transmission) (see Note 1) Directory Search Dialing allows you to dial a full telephone number by searching the stations name. (To use Direct Transmission, you must change the Fax Parameter No. 05 (MEMORY) setting to OFF in advance. (See page 35 and Note 1 below) NOTE 1. After the Direct Transmission is completed, reset the Fax Parameter No. 05 (MEMORY) setting to ON (factory default position). Make sure that the FAX Mode indicator is ON. If not,...
Page 54
54 Voice Mode Transmission Off-Hook Dialing For Off-Hook Dialing, follow the steps below. (see Note 1) (see Note 2)If you wish to send the document after talking with other par ty first, use Voice Mode Transmission. Your machine requires an optional fax handset or an external telephone. Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1 Set the original(s) face up on the ADF. 2 Lift the fax handset or the external telephone and dial the telephone number from the...
Page 55
55 BASIC OPERATIONS On-Hook Dialing (see Note 1) (see Note 2) (see Note 3) For On-Hook Dialing, follow the steps below. Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1 Set the original(s) face up on the ADF. 2 You will hear dial tone through the monitor speaker. 3 Dial the telephone number from the keypad or use Directory Search Dialing. Ex: 4 When you hear a beep, NOTE 1. If you need a special access number to get an outside line, dial it first then press to...
Page 56
56 Transmission Reservation Memory Transmission Reservation (Multi-tasking) If your machine is on-line busy transmitting from memory, receiving or printing received documents, you can reserve a transmission by the following procedure. (see Note 1) You can reserve the next transmission into memory (up to 5 different files) while sending a document from memory or receiving a document. Make sure that the FAX Mode indicator is ON. If not, press to select the FAX MODE. 1 Your machine is on-line, the ON...
Page 57
57 BASIC OPERATIONS Redialing Automatic Redialing Manual Redialing You can also redial the last dialed number manually by pressing key. To redial the last dialed number through memory (see Note 1)If a busy line is detected, the machine will redial the number up to 5 times at 3 minutes interval. However, if a busy line is not detected, the machine will redial only one time. During that time, a message will appear as shown to the right. A file number is shown in the upper right hand corner of the...
Page 58

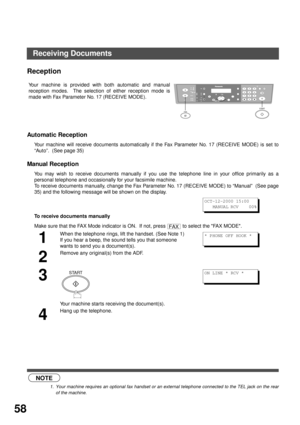

58 Receiving Documents Reception Automatic Reception Your machine will receive documents automatically if the Fax Parameter No. 17 (RECEIVE MODE) is set to “Auto”. (See page 35) Manual Reception You may wish to receive documents manually if you use the telephone line in your office primarily as a personal telephone and occasionally for your facsimile machine. To receive documents manually, change the Fax Parameter No. 17 (RECEIVE MODE) to “Manual” (See page 35) and the following message will be shown...
Page 59
59 BASIC OPERATIONS Print Reduction This machine can use Letter, Legal or A4 size plain paper for recording. Sometimes, oversized documents sent to you by the other parties cannot be printed within a single page. When this occurs, the document will be divided into separate pages. This machine is equipped with a Print Reduction function to solve this problem. You may select the most appropriate setting from the selections described below. 1. Automatic Reduction Each received document is first stored...
Page 60
60 Receiving Oversize Documents If the received document is extremely long (over 39% longer than the recording paper), the document will be divided into separate pages. When printing on separate pages, the bottom 0.4 in (10 mm) of first page will be overlapped on top of the next page. (see Note 1) NOTE 1. If the reduction method is set to the Automatic Reduction mode, the document prints with no reduction when printing separate pages. If the reduction method is set to Fixed Reduction mode, the printed...
