PROGRAMMING YOUR MACHINE
31
PROGRAMMING
YOUR MACHINE
Changing Group Dialing
If you have to change the Group Dialing, follow the steps below.
Make sure that the FAX Mode indicator is ON.  If not, press   to select the FAX MODE.
1

2

3
↓
3.0 sec. later
4
Use   or   to search the Group you wish to change.
5
 then enter a new Group name. (See Note 1)
Ex:
6
12
45
78
03
6
9
abc..+ -
FUNCTIONSET3
7
2FA XSTART
FAX
FUNCTION
73
SETDIR.GROUP DIAL (1-3)
ENTER NO. OR
∨ ∧
22:MODIFY GROUP
PRESS SET TO...

PROGRAMMING YOUR MACHINE
32
 (see Note 1)
 (see Note 2)

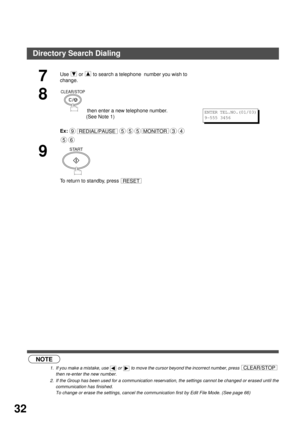

7
Use   or   to search a telephone  number you wish to
change.
8
 then enter a new telephone number.
(See Note 1)
Ex:
9
To return to standby, press
NOTE
1. If you make a mistake, use   or   to move the cursor beyond the incorrect number, press
then re-enter the new number.
2. If the Group has been used for a communication reservation, the settings cannot be changed or erased until the
communication has finished.
To change or erase the settings,...

PROGRAMMING YOUR MACHINE
33
PROGRAMMING
YOUR MACHINE

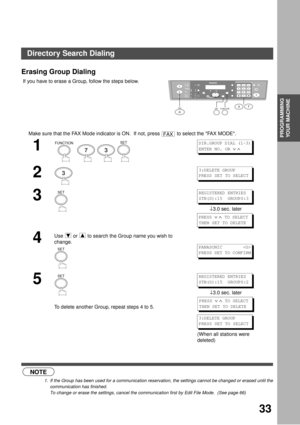

Erasing Group Dialing
 (see Note 1)
If you have to erase a Group, follow the steps below.
Make sure that the FAX Mode indicator is ON.  If not, press   to select the FAX MODE.
1

2

3
↓
3.0 sec. later
4
Use   or   to search the Group name you wish to
change.
5
To delete another Group, repeat steps 4 to 5.↓
3.0 sec. later
(When all stations were
deleted)
NOTE
1. If the Group has been used for a communication reservation, the settings cannot...

PROGRAMMING YOUR MACHINE
34
Fax Parameters
Setting the Fax Parameters
  (see Note 1)  (see Note 2)Your facsimile machine has a variety of adjustable Fax
Parameters.  These parameters, listed in the Parameter Table,
are preset for you and do not need to be changed.  If you do
want to make a change, read the table carefully.
Make sure that the FAX Mode indicator is ON.  If not, press   to select the FAX MODE.
1

2

3
Enter Fax Parameter number from the Parameter Table.
(See pages 35 to 37)
Ex:
for...

PROGRAMMING YOUR MACHINE
35
PROGRAMMING
YOUR MACHINE
Fax Parameter Table
No. ParameterSetting
NumberSetting Comments
02 RESOLUTION *1 Standard Setting the home position for the RESOLUTION.
2Fine
3S-Fine
05 MEMORY 1 Off Setting the home position for the MEMORY.
*2 On
06 DIALING METHOD 1 Pulse Selecting the dialing method.
*2 Tone
07 HEADER PRINT *1 Inside Selecting the printing position of the header.
Inside : Inside TX copy area.
Outside : Outside TX copy area.
No print : Header is not printed. 2...

PROGRAMMING YOUR MACHINE
36
34 ENERGY SAVE TIMER 1 5 min. To reduce the power consumption in standby, your machine is
designed to power down to the Energy Saver Mode and Sleep
Mode after a specified period of inactivity.  You may change the
delay time to enter into each mode as required.
Energy Saver Mode: Saves energy by consuming less power than
when in standby mode by turning off the fuser
unit after a specified time.
Sleep Mode: This is the lowest power state the machine
enters after the specified...

PROGRAMMING YOUR MACHINE
37
PROGRAMMING
YOUR MACHINE
 (see Note 1)
 (see Note 2)
58 LANGUAGE *1 A-English Selecting the language to be shown on the display and reports.
2 C-French
3 Spanish
61 FAX/COPY MODE 1 Fax Setting the home position to either FAX or COPY Mode during
standby. The “Remain” setting means continuation of the last
mode used (either FAX or COPY Mode). *2 Copy
3 Remain
63 PC-FAX RCV MODE *1 Print Selecting how to the machine will execute the receiving Fax
document(s).
Print: Print the...
