Panasonic Digital Imaging System DP-3510/4510/6010 Copier & Network Scanner Operating Instructions

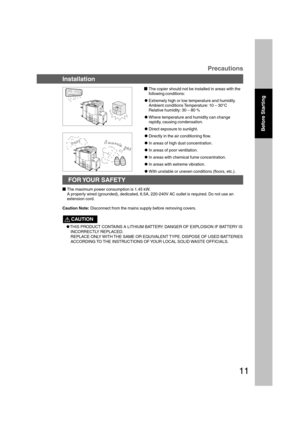

11

The copier should not be installed in areas with the
following conditions:
CExtremely high or low temperature and humidity.
Ambient conditions Temperature: 10 – 30°C
Relative humidity: 30 – 80 %
CWhere temperature and humidity can change
rapidly, causing condensation.
CDirect exposure to sunlight.
CDirectly in the air conditioning flow.
CIn areas of high dust concentration.
CIn areas of poor ventilation.
CIn areas with chemical fume concentration.
CIn areas with extreme vibration.
CWith unstable or...

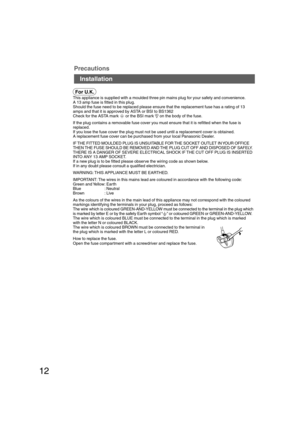

12
This appliance is supplied with a moulded three pin mains plug for your safety and convenience.
A 13 amp fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 13
amps and that it is approved by ASTA or BSI to BS1362
Check for the ASTA mark 7 or the BSI mark 6 on the body of the fuse.
If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is
replaced.
If you lose the fuse cover the plug must not be...

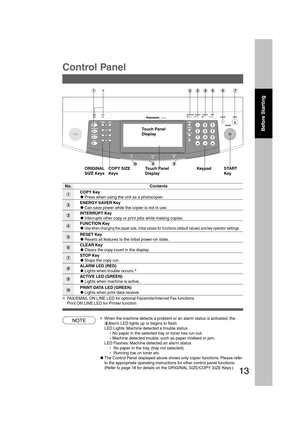

13
B4·FLS
ORIGINAL
SIZE KeysCOPY SIZE
KeysTouch Panel
DisplayKeypad START
Key
No. Contents
#COPY Key
CPress when using the unit as a photocopier.
NOTE
$ENERGY SAVER Key
CCan save power while the copier is not in use.
%INTERRUPT Key
CInterrupts other copy or print jobs while making copies.
&FUNCTION Key
CUse when changing the paper size, initial values for functions (default values) and key operator settings.
(RESET Key
CResets all features to the initial power-on state.
)CLEAR Key
CClears the copy count...

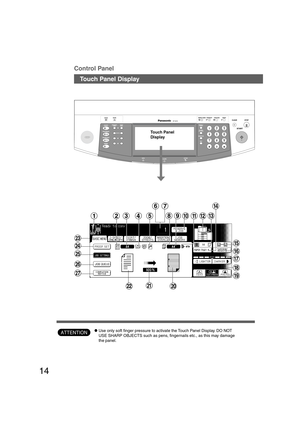

14
B4·FLS
Control Panel
Touch Panel Display
ATTENTION
Touch Panel
Display
CUse only soft finger pressure to activate the Touch Panel Display. DO NOT
USE SHARP OBJECTS such as pens, fingernails etc., as this may damage
the panel.
P014-015_4510(pb).p657/31/02, 10:44 AM 14

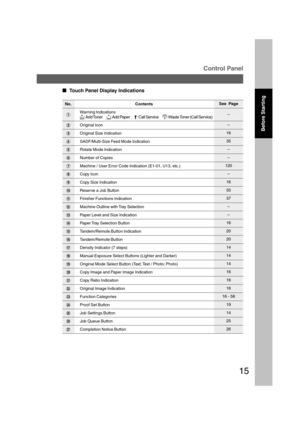

15

Touch Panel Display Indications
No. Contents
#Warning Indications
?: Add Tonerk: Add Paper2: Call ServiceB: Waste Toner (Call Service)
$Original Icon
%Original Size Indication
&SADF/Multi-Size Feed Mode Indication
(Rotate Mode Indication
)Number of Copies
*Machine / User Error Code Indication (E1-01, U13, etc.)
+Copy Icon
-Copy Size Indication
.Reserve a Job Button
/Finisher Functions Indication
0Machine Outline with Tray Selection
1Paper Level and Size Indication
2Paper Tray Selection Button...

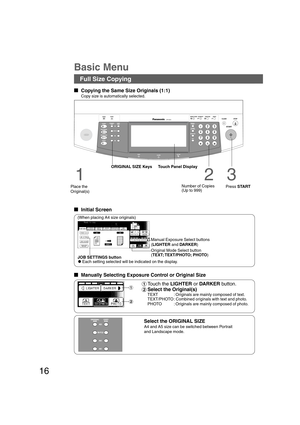

16
B4·FLS
Basic Menu
Full Size Copying






Copying the Same Size Originals (1:1)
Copy size is automatically selected.
1
Place the
Original(s)ORIGINAL SIZE Keys Touch Panel Display
2
Number of Copies
(Up to 999)
3
Press START






Initial Screen
(When placing A4 size originals)
Select the ORIGINAL SIZE
A4 and A5 size can be switched between Portrait
and Landscape mode.Manual Exposure Select buttons
(LIGHTER and DARKER)
#Touch the LIGHTER or DARKER button.
$Select the Original(s)
TEXT : Originals...

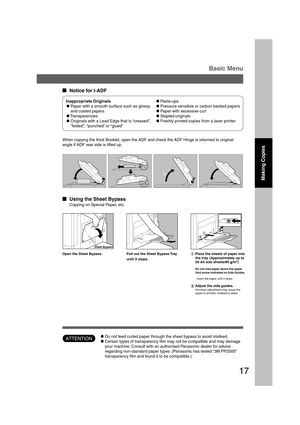

17
# Place the sheets of paper into
the tray. (Approximately up to
50 A4 size sheets/80
g gg g
g/m
2)
ATTENTION
Basic Menu






Using the Sheet Bypass
Copying on Special Paper, etc.
Open the Sheet Bypass. Pull out the Sheet Bypass Tray
until it stops.
Insert the paper until it stops.
$ Adjust the side guides.Incorrect adjustment may cause the
paper to wrinkle, misfeed or skew.
CDo not feed curled paper through the sheet bypass to avoid misfeed.
CCertain types of transparency film may not be...

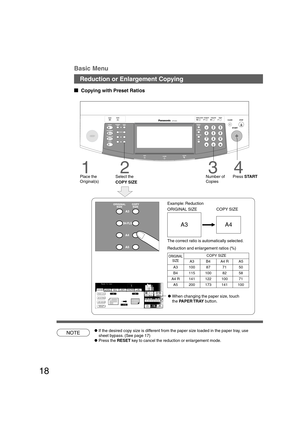

18
B4·FLS
Reduction or Enlargement Copying
NOTE






Copying with Preset Ratios
Basic Menu
1
Place the
Original(s)
2
Select the
COPY SIZE
3
Number of
Copies
CIf the desired copy size is different from the paper size loaded in the paper tray, use
sheet bypass. (See page 17)
CPress the RESET key to cancel the reduction or enlargement mode.
4
Press START
Example: Reduction
ORIGINAL SIZE COPY SIZE
A3A4
The correct ratio is automatically selected.
Reduction and enlargement ratios (%)
ORIGINAL
SIZECOPY...

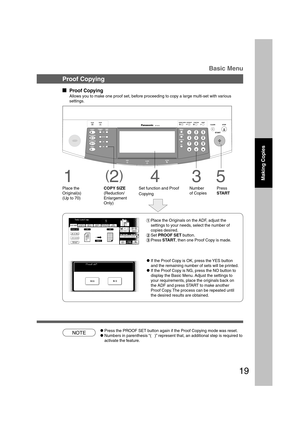

19
Making Copies
B4·FLS
NOTE
Proof Copying






Proof Copying
Allows you to make one proof set, before proceeding to copy a large multi-set with various
settings.
1
Place the
Original(s)
(Up to 70)
Basic Menu
(2)
COPY SIZE
(Reduction/
Enlargement
Only)
4
Set function and Proof
Copying
3
Number
of Copies
5
Press
START
#Place the Originals on the ADF, adjust the
settings to your needs, select the number of
copies desired.
$Set PROOF SET button.
%Press START, then one Proof Copy is made.
CIf the Proof...

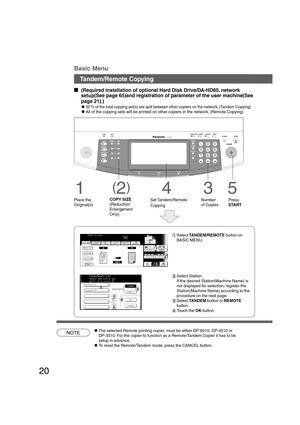

20
B4·FLS
NOTE
Tandem/Remote Copying






(Required installation of optional Hard Disk Drive/DA-HD60, network
setup(See page 65)and registration of parameter of the user machine(See
page 21).)
C50 % of the total copying set(s) are split between other copiers on the network. (Tandem Copying)
CAll of the copying sets will be printed on other copiers in the network. (Remote Copying)
1
Place the
Original(s)
Basic Menu
(2)
COPY SIZE
(Reduction/
Enlargement
Only)
4
Set Tandem/Remote
Copying
3
Number
of...
