    Page 41

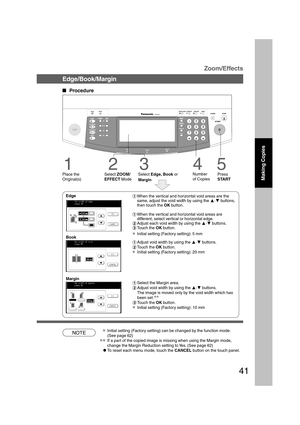

    Page 41 41 NOTE B4·FLS Edge/Book/Margin    Procedure Zoom/Effects ∗Initial setting (Factory setting) can be changed by the function mode. (See page 62) ∗∗If a part of the copied image is missing when using the Margin mode, change the Margin Reduction setting to Yes. (See page 62) CTo reset each menu mode, touch the CANCEL button on the touch panel. Edge #When the vertical and horizontal void areas are the same, adjust the void width by using the F·G buttons, then touch the OK button. #When the vertical and...
    41
NOTE
B4·FLS
Edge/Book/Margin

Procedure
Zoom/Effects
∗Initial setting (Factory setting) can be changed by the function mode.
(See page 62)
∗∗If a part of the copied image is missing when using the Margin mode,
change the Margin Reduction setting to Yes. (See page 62)
CTo reset each menu mode, touch the CANCEL button on the touch panel. Edge
#When the vertical and horizontal void areas are the
same, adjust the void width by using the F·G buttons,
then touch the OK button.
#When the vertical and...

    Page 42

    Page 42 42 NOTE B4·FLS ∗The page numbering format can be changed in function mode. (See page 63) CThe i-ADF is required for Page Numbering. CTo reset each mode menu, touch the CANCEL button on the touch panel. Stamping (Page Numbering) Zoom/Effects    Feature The page number can be automatically printed on each page. 5 Press START #Select the Orientation. $Select the Layout for Page Numbering. %Select the Starting Page to begin page numbering. Page 1, 2 or 3 can be selected. &Touch the OK button. CPage...
    42
NOTE
B4·FLS
∗The page numbering format can be changed in function mode.
(See page 63)
CThe i-ADF is required for Page Numbering.
CTo reset each mode menu, touch the CANCEL button on the touch panel.
Stamping (Page Numbering) Zoom/Effects

Feature
The page number can be automatically printed on each page.
5
Press
START
#Select the Orientation.
$Select the Layout for Page Numbering.
%Select the Starting Page to begin page
numbering. Page 1, 2 or 3 can be selected.
&Touch the OK button.
CPage...

    Page 43

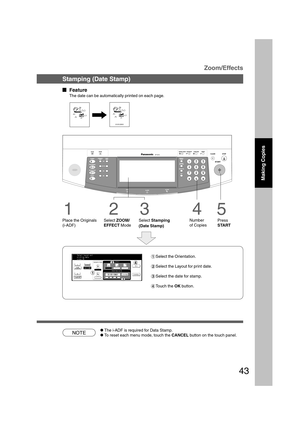

    Page 43 43 NOTE Stamping (Date Stamp) B4·FLS Zoom/Effects    Feature The date can be automatically printed on each page. 5 Press START #Select the Orientation. $Select the Layout for print date. %Select the date for stamp. &Touch the OK button. CThe i-ADF is required for Data Stamp. CTo reset each menu mode, touch the CANCEL button on the touch panel. 1 Place the Originals (i-ADF) 2 Select ZOOM/ EFFECT Mode 3 Select Stamping (Date Stamp) 4 Number of Copies Making Copies 01/01/2001...
    43
NOTE
Stamping (Date Stamp)
B4·FLS
Zoom/Effects

Feature
The date can be automatically printed on each page.
5
Press
START
#Select the Orientation.
$Select the Layout for print date.
%Select the date for stamp.
&Touch the OK button.
CThe i-ADF is required for Data Stamp.
CTo reset each menu mode, touch the CANCEL button on the touch panel.
1
Place the Originals
(i-ADF)
2
Select ZOOM/
EFFECT Mode
3
Select Stamping
(Date Stamp)
4
Number
of Copies
Making Copies
01/01/2001...

    Page 44

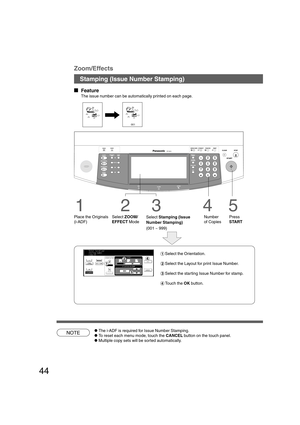

    Page 44 44 NOTE B4·FLS CThe i-ADF is required for Issue Number Stamping. CTo reset each menu mode, touch the CANCEL button on the touch panel. CMultiple copy sets will be sorted automatically. Stamping (Issue Number Stamping) Zoom/Effects    Feature The issue number can be automatically printed on each page. 5 Press START #Select the Orientation. $Select the Layout for print Issue Number. %Select the starting Issue Number for stamp. &Touch the OK button. 1 Place the Originals (i-ADF) 2 Select ZOOM/ EFFECT...
    44
NOTE
B4·FLS
CThe i-ADF is required for Issue Number Stamping.
CTo reset each menu mode, touch the CANCEL button on the touch panel.
CMultiple copy sets will be sorted automatically.
Stamping (Issue Number Stamping) Zoom/Effects

Feature
The issue number can be automatically printed on each page.
5
Press
START
#Select the Orientation.
$Select the Layout for print Issue Number.
%Select the starting Issue Number for stamp.
&Touch the OK button.
1
Place the Originals
(i-ADF)
2
Select ZOOM/
EFFECT...

    Page 45

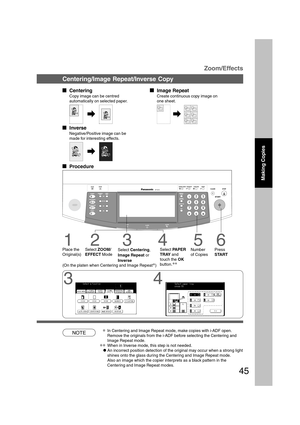

    Page 45 45 NOTE Making Copies B4·FLS Centering/Image Repeat/Inverse Copy    Centering Copy image can be centred automatically on selected paper.    Image Repeat Create continuous copy image on one sheet.    Inverse Negative/Positive image can be made for interesting effects.    Procedure Zoom/Effects 1 Place the Original(s) ∗In Centering and Image Repeat mode, make copies with i-ADF open. Remove the originals from the i-ADF before selecting the Centering and Image Repeat mode. ∗∗When in...
    45
NOTE
Making Copies
B4·FLS
Centering/Image Repeat/Inverse Copy

Centering
Copy image can be centred
automatically on selected paper.

Image Repeat
Create continuous copy image on
one sheet.

Inverse
Negative/Positive image can be
made for interesting effects.

Procedure
Zoom/Effects
1
Place the
Original(s)
∗In Centering and Image Repeat mode, make copies with i-ADF open.
Remove the originals from the i-ADF before selecting the Centering and
Image Repeat mode.
∗∗When in...

    Page 46

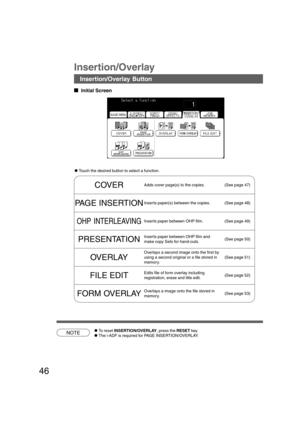

    Page 46 46 NOTE Insertion/Overlay Button Insertion/Overlay    Initial Screen CTouch the desired button to select a function. COVERAdds cover page(s) to the copies. (See page 47) PAGE INSERTIONInserts paper(s) between the copies. (See page 48) OHP INTERLEAVINGInserts paper between OHP film. (See page 49) PRESENTATIONInserts paper between OHP film and make copy Sets for hand-outs.(See page 50) OVERLAY Overlays a second image onto the first by using a second original or a file stored in memory.(See page 51)...
    46
NOTE
Insertion/Overlay Button
Insertion/Overlay

Initial Screen
CTouch the desired button to select a function.
COVERAdds cover page(s) to the copies. (See page 47)
PAGE INSERTIONInserts paper(s) between the copies. (See page 48)
OHP INTERLEAVINGInserts paper between OHP film. (See page 49)
PRESENTATIONInserts paper between OHP film and
make copy Sets for hand-outs.(See page 50)
OVERLAY
Overlays a second image onto the first by
using a second original or a file stored in
memory.(See page 51)...

    Page 47

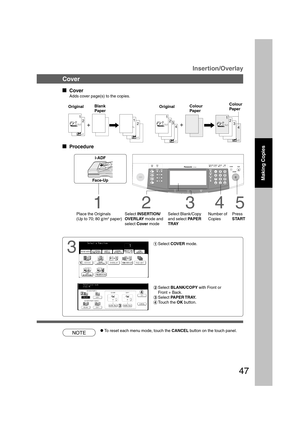

    Page 47 47 NOTE B4·FLS    Cover Adds cover page(s) to the copies.    Procedure Insertion/Overlay Cover i-ADF Face-Up Select INSERTION/ OVERLAY mode and select Cover mode 4 Number of Copies 5 Press START 1 Place the Originals (Up to 70; 80 g/m2 paper) 3 #Select COVER mode. $Select BLANK/COPY with Front or Front + Back. %Select PAPER TRAY. &Touch the OK button. 23 Select Blank/Copy and select PAPER TRAY Making Copies CTo reset each menu mode, touch the CANCEL button on the touch panel. OriginalBlank...
    47
NOTE
B4·FLS

Cover
Adds cover page(s) to the copies.

Procedure
Insertion/Overlay
Cover
i-ADF
Face-Up
Select INSERTION/
OVERLAY mode and
select Cover mode
4
Number of
Copies
5
Press
START
1
Place the Originals
(Up to 70; 80 g/m2 paper)
3
#Select COVER mode.
$Select BLANK/COPY with Front or
Front + Back.
%Select PAPER TRAY.
&Touch the OK button.
23
Select Blank/Copy
and select PAPER
TRAY
Making Copies
CTo reset each menu mode, touch the CANCEL button on the touch panel.
OriginalBlank...

    Page 48

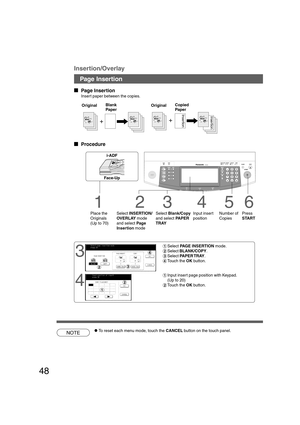

    Page 48 48 NOTE B4·FLS    Page Insertion Insert paper between the copies.    Procedure Insertion/Overlay Page Insertion i-ADF Face-Up Select INSERTION/ OVERLAY mode and select Page Insertion mode 1 Place the Originals (Up to 70) 2 Select Blank/Copy and select PAPER TRAY 35 Number of Copies 6 Press START 3 #Select PAGE INSERTION mode. $Select BLANK/COPY. %Select PAPER TRAY. &Touch the OK button. 4 #Input insert page position with Keypad. (Up to 20) $Touch the OK button. 4 Input insert position CTo reset...
    48
NOTE
B4·FLS

Page Insertion
Insert paper between the copies.

Procedure
Insertion/Overlay
Page Insertion
i-ADF
Face-Up
Select INSERTION/
OVERLAY mode
and select Page
Insertion mode
1
Place the
Originals
(Up to 70)
2
Select Blank/Copy
and select PAPER
TRAY
35
Number of
Copies
6
Press
START
3
#Select PAGE INSERTION mode.
$Select BLANK/COPY.
%Select PAPER TRAY.
&Touch the OK button.
4
#Input insert page position with Keypad.
(Up to 20)
$Touch the OK button.
4
Input insert
position
CTo reset...

    Page 49

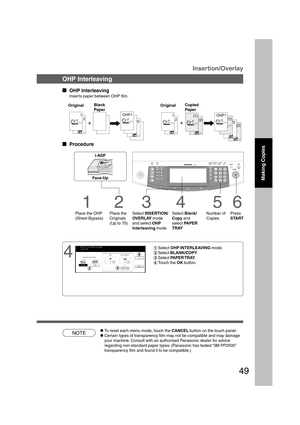

    Page 49 49 NOTE    OHP Interleaving Inserts paper between OHP film. Insertion/Overlay OHP Interleaving B4·FLS    Procedure i-ADF Face-Up Place the Originals (Up to 70) 1 Place the OHP (Sheet Bypass) 2 Select INSERTION/ OVERLAY mode and select OHP Interleaving mode 35 Number of Copies 6 Press START 4 #Select OHP INTERLEAVING mode. $Select BLANK/COPY. %Select PAPER TRAY. &Touch the OK button. 4 Select Blank/ Copy and select PAPER TRAY Making Copies CTo reset each menu mode, touch the CANCEL button on the...
    49
NOTE

OHP Interleaving
Inserts paper between OHP film.
Insertion/Overlay
OHP Interleaving
B4·FLS

Procedure
i-ADF
Face-Up
Place the
Originals
(Up to 70)
1
Place the OHP
(Sheet Bypass)
2
Select INSERTION/
OVERLAY mode
and select OHP
Interleaving mode
35
Number of
Copies
6
Press
START
4
#Select OHP INTERLEAVING mode.
$Select BLANK/COPY.
%Select PAPER TRAY.
&Touch the OK button.
4
Select Blank/
Copy and
select PAPER
TRAY
Making Copies
CTo reset each menu mode, touch the CANCEL button on the...

    Page 50

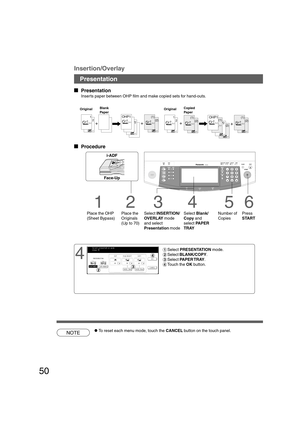

    Page 50 50    Presentation Inserts paper between OHP film and make copied sets for hand-outs. Insertion/Overlay Presentation B4·FLS    Procedure i-ADF Face-Up Place the Originals (Up to 70) 1 Place the OHP (Sheet Bypass) 2 Select INSERTION/ OVERLAY mode and select Presentation mode 35 Number of Copies 6 Press START 4 #Select PRESENTATION mode. $Select BLANK/COPY. %Select PAPER TRAY. &Touch the OK button. 4 Select Blank/ Copy and select PAPER TRAY NOTECTo reset each menu mode, touch the CANCEL button on...
    50

Presentation
Inserts paper between OHP film and make copied sets for hand-outs.
Insertion/Overlay
Presentation
B4·FLS

Procedure
i-ADF
Face-Up
Place the
Originals
(Up to 70)
1
Place the OHP
(Sheet Bypass)
2
Select INSERTION/
OVERLAY mode
and select
Presentation mode
35
Number of
Copies
6
Press
START
4
#Select PRESENTATION mode.
$Select BLANK/COPY.
%Select PAPER TRAY.
&Touch the OK button.
4
Select Blank/
Copy and
select PAPER
TRAY
NOTECTo reset each menu mode, touch the CANCEL button on...
