Panasonic Digital Imaging System DP-3510/4510/6010 Copier & Network Scanner Operating Instructions

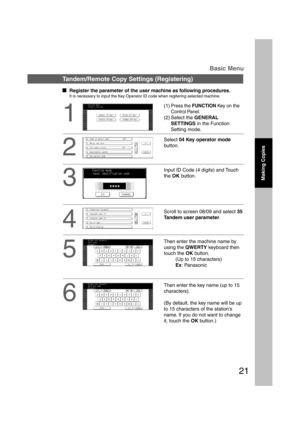

21
1
(1)Press the FUNCTION Key on the
Control Panel.
(2) Select the GENERAL
SETTINGS in the Function
Setting mode.
Tandem/Remote Copy Settings (Registering)Basic Menu
2
Select 04 Key operator mode
button.
3
Input ID Code (4 digits) and Touch
the OK button.
4
Scroll to screen 08/09 and select 35
Tandem user parameter.
5
Then enter the machine name by
using the QWERTY keyboard then
touch the OK button.
(Up to 15 characters)
Ex: Panasonic
Making Copies






Register the parameter of the user machine as...

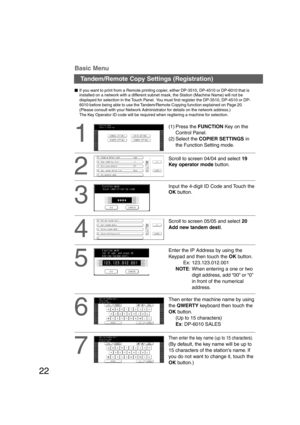

22
1
Tandem/Remote Copy Settings (Registration) Basic Menu
2
Input the 4-digit ID Code and Touch the
OK button.
3
4






If you want to print from a Remote printing copier, either DP-3510, DP-4510 or DP-6010 that is
installed on a network with a different subnet mask, the Station (Machine Name) will not be
displayed for selection in the Touch Panel.  You must first register the DP-3510, DP-4510 or DP-
6010 before being able to use the Tandem/Remote Copying function explained on Page 20.
(Please...

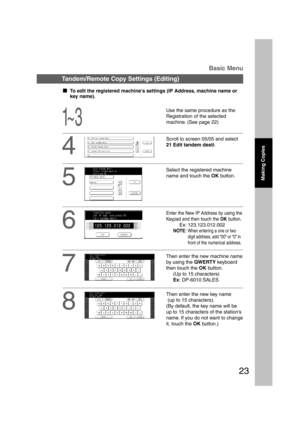

23
1~ 3
Tandem/Remote Copy Settings (Editing)Basic Menu
4
Select the registered machine
name and touch the OK button.
5






To edit the registered machines settings (IP Address, machine name or
key name).
Use the same procedure as the
Registration of the selected
machine. (See page 22)
Scroll to screen 05/05 and select
21 Edit tandem desti.
Making Copies
Enter the New IP Address by using the
Keypad and then touch the OK button.
Ex: 123.123.012.002
NOTE:When entering a one or two
digit address, add...

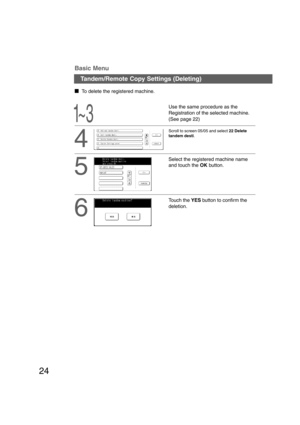

24
1~ 3
Tandem/Remote Copy Settings (Deleting) Basic Menu
4
Select the registered machine name
and touch the OK button.
5
6






To delete the registered machine.
Scroll to screen 05/05 and select 22 Delete
tandem desti.
Touch the YES button to confirm the
deletion. Use the same procedure as the
Registration of the selected machine.
(See page 22)
P024_4510(pb).P658/2/02, 10:39 AM 24

25
Job QueueBasic Menu






Can refer to a job list waiting for printing, delete or change of priority
(only for print job).






Procedure
Ex. Delete print job.
NOTE
#Touch JOB QUEUE button.
$Touch PRINT JOB QUEUE
button.
%Input password (4-digit) then
touch the OK button.
CThe PRINT JOB QUEUE requires the Key Operator’s Password, however, the
COPY JOB QUEUE does not require a password.
CThe Job Queue selection function is only available when the optional HDD is
installed.
∗You can select to...

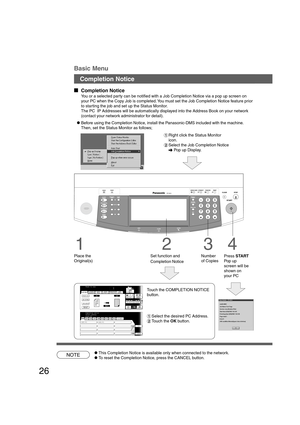

26
NOTE
B4·FLS






Completion Notice
You or a selected party can be notified with a Job Completion Notice via a pop up screen on
your PC when the Copy Job is completed. You must set the Job Completion Notice feature prior
to starting the job and set up the Status Monitor.
The PC  IP Addresses will be automatically displayed into the Address Book on your network
(contact your network administrator for detail).
1
Place the
Original(s)
2
Set function and
Completion Notice
3
Number
of Copies
4
Press...

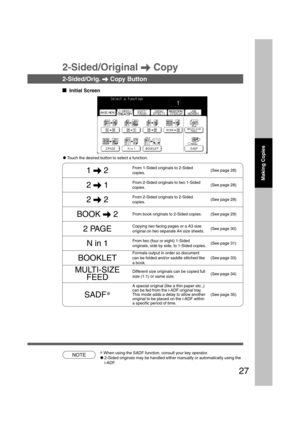

27
NOTE
2-Sided/Orig. \ Copy Button
2-Sided/Original \ Copy






Initial Screen
CTouch the desired button to select a function.
1 \ 2From 1-Sided originals to 2-Sided
copies.(See page 28)
2 \ 1From 2-Sided originals to two 1-Sided
copies.(See page 28)
2 \ 2From 2-Sided originals to 2-Sided
copies.(See page 28)
BOOK \ 2From book originals to 2-Sided copies. (See page 29)
2 PAGECopying two facing pages or a A3 size
original on two separate A4 size sheets.(See page 30)
N in 1From two (four or eight)...

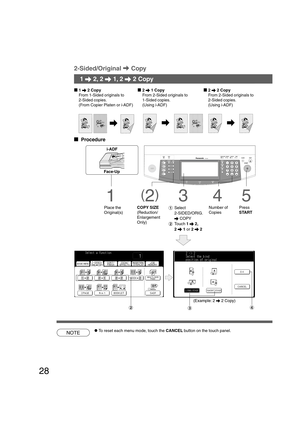

28
1
\ \\ \
\ 2, 2
\ \\ \
\ 1, 2
\ \\ \
\ 2 Copy
B4·FLS

1
\ \\ \
\ 2 Copy
From 1-Sided originals to
2-Sided copies.
(From Copier Platen or i-ADF)
2
\ \\ \
\ 1 Copy
From 2-Sided originals to
1-Sided copies.
(Using i-ADF)






Procedure
i-ADF
Face-Up
1
Place the
Original(s)
(2)
COPY SIZE
(Reduction/
Enlargement
Only)
3
#Select
2-SIDED/ORIG.
\ \\ \
\ COPY
$Touch 1
\ \\ \
\ 2,
2
\ \\ \
\ 1 or 2
\ \\ \
\ 2
4
Number of
Copies
5
Press
START
CTo reset each menu mode, touch the CANCEL button on the...

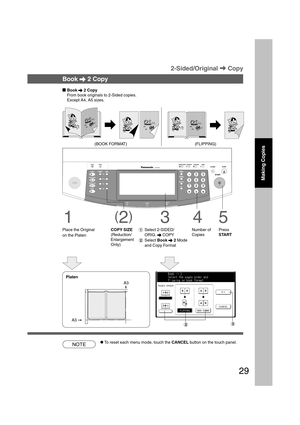

29
NOTE
Book
\ \\ \
\ 2 Copy
B4·FLS

Book
\ \\ \
\ 2 Copy
From book originals to 2-Sided copies.
Except A4, A5 sizes.
(BOOK FORMAT) (FLIPPING)
1
Place the Original
on the Platen
(2)
COPY SIZE
(Reduction/
Enlargement
Only)
3
#Select 2-SIDED/
ORIG.
\ \\ \
\ COPY
$Select Book
\ \\ \
\ 2 Mode
and Copy Format
4
Number of
Copies
5
Press
START
CTo reset each menu mode, touch the CANCEL button on the touch panel. Platen
2-Sided/Original \
 Copy
A3A3
Making Copies
P029_4510(pb).p657/31/02, 10:44 AM 29

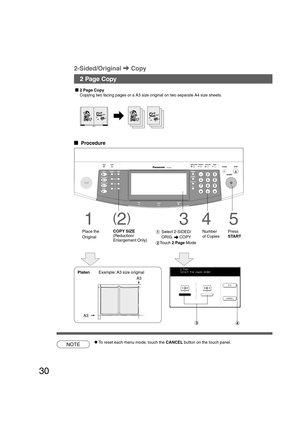

30
B4·FLS
CTo reset each menu mode, touch the CANCEL button on the touch panel.NOTE

2 Page Copy
Copying two facing pages or a A3 size original on two separate A4 size sheets.






Procedure
1
Place the
Original
(2)
COPY SIZE
(Reduction/
Enlargement Only)
3
#Select 2-SIDED/
ORIG.
\ \\ \
\ COPY
$Touch 2 Page Mode
4
Number
of Copies
5
Press
START
PlatenExample: A3 size original
2 Page Copy 2-Sided/Original \
 Copy
A3A3
P030_4510(pb).p657/31/02, 10:44 AM 30
