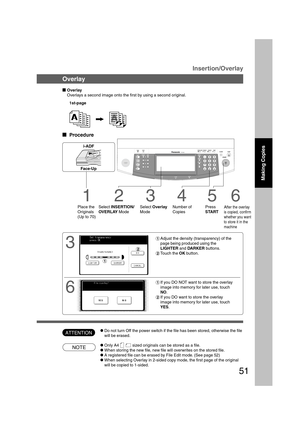

Panasonic Digital Imaging System DP-3510/4510/6010 Copier & Network Scanner Operating Instructions

51
Making Copies
3
#Adjust the density (transparency) of the
page being produced using the
LIGHTER and DARKER buttons.
$Touch the OK button.
6
#If you DO NOT want to store the overlay
image into memory for later use, touch
NO.
$If you DO want to store the overlay
image into memory for later use, touch
YES.
B4·FLS

Overlay
Overlays a second image onto the first by using a second original.
1st-page






Procedure
Select INSERTION/
OVERLAY Mode
4
Number of
Copies
5
Press
START
1
Place the
Originals
(Up...

52

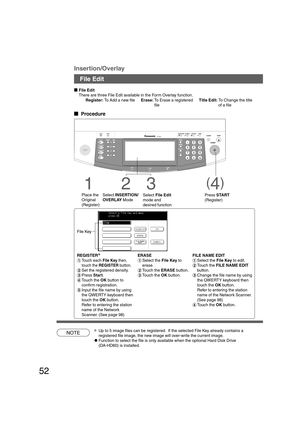

REGISTER*
#Touch each File Key then,
touch the REGISTER button.
$Set the registered density.
%Press Start.
&Touch the OK button to
confirm registration.
(Input the file name by using
the QWERTY keyboard then
touch the OK button.
Refer to entering the station
name of the Network
Scanner. (See page 98)
B4·FLS

File Edit
There are three File Edit available in the Form Overlay function.






Procedure
Select INSERTION/
OVERLAY Mode
(4)
Press START
(Register)
1
Place the
Original
(Register)
23
Select...

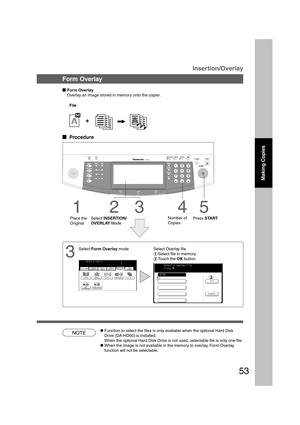

53
3
Select Overlay file
#Select file in memory.
$Touch the OK button.
B4·FLS

Form Overlay
Overlay an image stored in memory onto the copier.
File






Procedure
Select INSERTION/
OVERLAY Mode
4
Number of
Copies
5
Press START
1
Place the
Original
23
Insertion/Overlay
CFunction to select the files is only available when the optional Hard Disk
Drive (DA-HD60) is installed.
When the optional Hard Disk Drive is not used, selectable file is only one file.
CWhen the image is not available in the memory to...

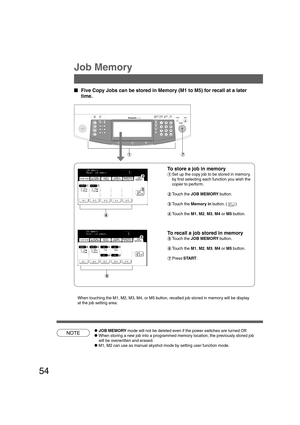

54
NOTE
B4·FLS
Job Memory






Five Copy Jobs can be stored in Memory (M1 to M5) for recall at a later
time.
To store a job in memory
#Set up the copy job to be stored in memory,
by first selecting each function you wish the
copier to perform.
$Touch the JOB MEMORY button.
%Touch the Memory in button. ( )
&Touch the M1, M2, M3, M4 or M5 button.
To recall a job stored in memory
(Touch the JOB MEMORY button.
)Touch the M1, M2, M3, M4 or M5 button.
*Press START.
When touching the M1, M2, M3, M4, or M5...

55
NOTE
B4·FLS

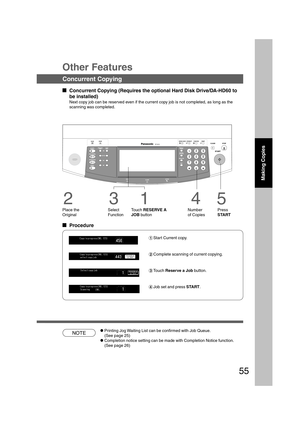

Concurrent Copying
Other Features






Concurrent Copying (Requires the optional Hard Disk Drive/DA-HD60 to
be installed)
Next copy job can be reserved even if the current copy job is not completed, as long as the
scanning was completed.
5
Press
START
2
Place the
Original
3
Select
Function
1
Touch RESERVE A
JOB button
4
Number
of Copies






Procedure
Making Copies
&Job set and press START. $Complete scanning of current copying.
%Touch Reserve a Job button. #Start Current copy....

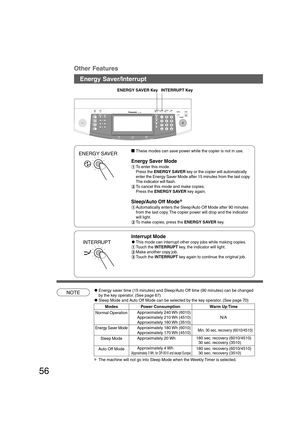

56
B4·FLS
Energy Saver/Interrupt
NOTE
ENERGY SAVER Key INTERRUPT Key

These modes can save power while the copier is not in use.
Energy Saver Mode
#To enter this mode.
Press the ENERGY SAVER key or the copier will automatically
enter the Energy Saver Mode after 15 minutes from the last copy.
The indicator will flash.
$To cancel this mode and make copies.
Press the ENERGY SAVER key again.
Sleep/Auto Off Mode*
#Automatically enters the Sleep/Auto Off Mode after 90 minutes
from the last copy. The copier...

57
Making Copies
B4·FLS
NOTE
Other Features

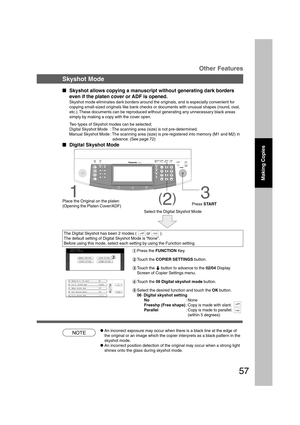

Skyshot Mode






Skyshot allows copying a manuscript without generating dark borders
even if the platen cover or ADF is opened.
Skyshot mode eliminates dark borders around the originals, and is especially convenient for
copying small-sized originals like bank checks or documents with unusual shapes (round, oval,
etc.). These documents can be reproduced without generating any unnecessary black areas
simply by making a copy with the cover open.
Two types of...

58
B4·FLS
NOTE
Skyshot Mode
12
Place the
Original*Touch the JOB
MEMORY button
This setting should be carried out by a Key Operator.

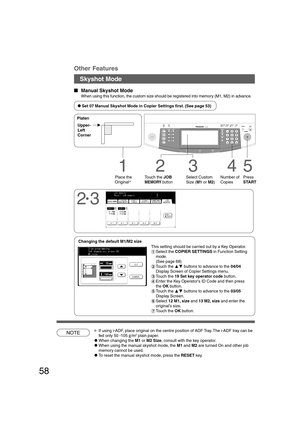

#Select the COPIER SETTINGS in Function Setting
mode.
(See page 68)
$Touch the FG buttons to advance to the 04/04
Display Screen of Copier Settings menu.
%Touch the 19 Set key operator code button.
&Enter the Key Operator’s ID Code and then press
the OK button.
(Touch the FG buttons to advance to the 03/05
Display Screen.
)Select 12 M1, size and 13 M2, size and enter the...

59

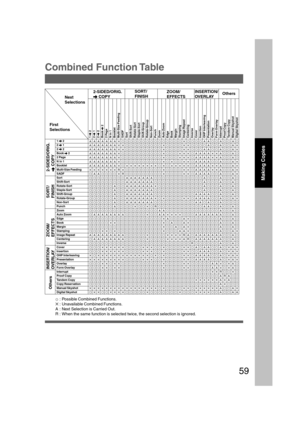

AAAAAAA✕bbbbbbbbbbbbbbb✕bbbbAAbbAbbAb
AAAAAAA✕✕bbbbbbbbb✕bbbb✕✕bbbbAbbAbbA✕
AAAAAAA✕✕bbbbbbbbb✕bbbb✕✕bbbAAbbAbbA✕
AAAAAAA✕bbbbbbbbbb✕bbb✕✕✕bAAAA✕✕AbbAb
AAAAAAA✕bbbbbbbbbb✕bbb✕✕✕bAAAA✕✕AbbAb
AAAAAAA✕bbbbbbbbbb✕b✕bb✕✕bAAAAbbAbbA✕
✕✕✕✕✕✕✕R✕bbbbbbbbb✕bbbb✕✕bAAAA✕✕AbbA✕ AAAAAAA✕b✕✕✕✕✕✕✕✕b✕b✕✕✕✕✕bAAAA✕✕AbbA✕
bAAbbbb✕Rbbbbbbbbb✕bbbb✕✕bAAAAbbAbbA✕
bbbbbbbbbAAAAAAAbbbbbbbbbbbbAbbbAbbAb
bbbbbbbbbAAAAAAAbbbbbbbbbbbbAbbbAbbAb
bbbbbbAbbAAAAAAA✕bbbbbbbbbbbAbbbAbbAb
bbbbbbAbbAAAAAAAbbbbbbbbbbbbAbbbAbbAb...

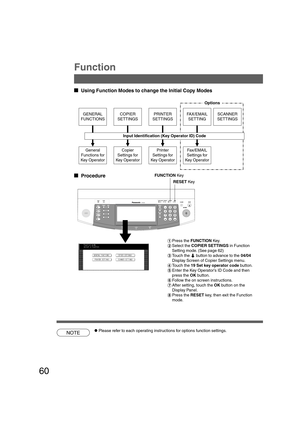

60
