Making Copies
NOTE
Function

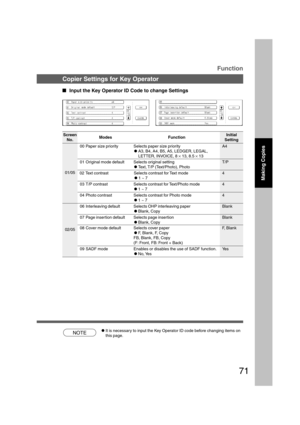

Copier Settings for Key Operator






Input the Key Operator ID Code to change Settings
Screen
No.ModesInitial
Setting Function
01/0501 Original mode default
Selects contrast for Text/Photo mode
C1 ~ 7 03 T/P contrast 4
04 Photo contrast Selects contrast for Photo mode
C1 ~ 7T/P Selects original setting
CText, T/P (Text/Photo), Photo
4 Selects contrast for Text mode
C1 ~ 7 02 Text contrast
02/054
06 Interleaving default Selects OHP interleaving paper
CBlank, CopyBlank
09...

72
Copier Settings for Key Operator
NOTE






Input the Key Operator ID Code to change Settings
Screen
No.ModesInitial
Setting Function
03/0510 Maximum copy setting Determines whether to limit number of copies
(0-99).
Input a size in job memory 2 for frequently
used size.
CX: 5~432/Y: 5~297 mm
(See page 54)0
(No limit)
13 M2, Size
95×220 mm(X) (Y)
70×160 mm(X) (Y)Input a size in job memory 1 for frequently
used size.
CX: 5~432/Y: 5~297 mm
(See page 54) 12 M1, Size
04/0516 Memory overflow...

73






Input the Key Operator ID Code to change Settings
Screen
No.ModesInitial
Setting Function

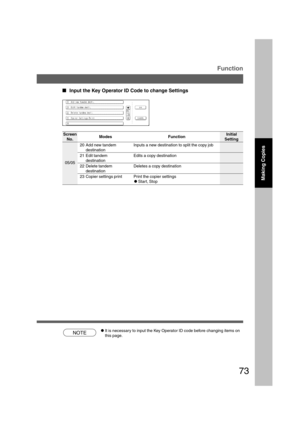

05/0520 Add new tandem
destinationInputs a new destination to split the copy job
Edits a copy destination 21 Edit tandem
destination
Deletes a copy destination 22 Delete tandem
destination
Function
Making CopiesPrint the copier settings
CStart, Stop 23 Copier settings print
NOTECIt is necessary to input the Key Operator ID code before changing items on
this page.
P072-073_4510(pb).p657/31/02, 10:50 AM 73

74

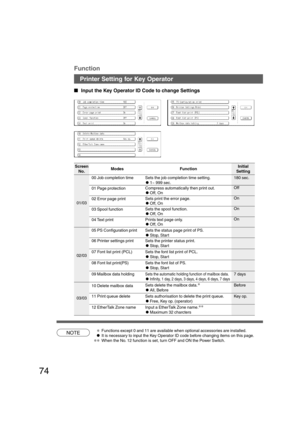

Printer Setting for Key Operator
NOTE






Input the Key Operator ID Code to change Settings
Screen
No.Initial
Setting Function
01/03Sets the job completion time setting.
C1~ 999 sec.
Sets print the error page.
COff, On180 sec.
On Off
Compress automatically then print out.
COff, On
02/03Sets the status page print of PS.
CStop, Start
Sets the printer status print.
CStop, Start
Sets the font list print of PCL.
CStop, Start
∗Functions except 0 and 11 are available when optional accessories are...

75
Making Copies
Function Setting for Key Operator

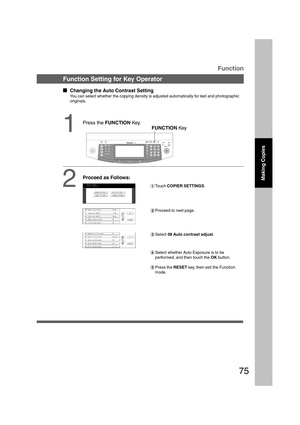

Changing the Auto Contrast Setting
You can select whether the copying density is adjusted automatically for text and photographic
originals.
1FUNCTION Key
2#Touch COPIER SETTINGS.
Function
$Proceed to next page.
%Select 08 Auto contrast adjust.
&Select whether Auto Exposure is to be
performed, and then touch the OK button.
(Press the RESET key, then exit the Function
mode.
Proceed as Follows:
B4·FLS
Press the FUNCTION Key....

76
Function Setting for Key Operator

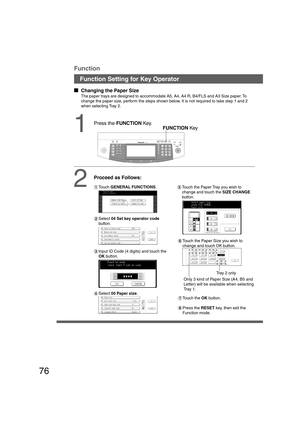

Changing the Paper Size
The paper trays are designed to accommodate A5, A4, A4 R, B4/FLS and A3 Size paper. To
change the paper size, perform the steps shown below. It is not required to take step 1 and 2
when selecting Tray 2.
1FUNCTION Key
2
Proceed as Follows:
#Touch GENERAL FUNCTIONS.
$Select 04 Set key operator code
button.
%Input ID Code (4 digits) and touch the
OK button.
&Select 00 Paper size.(Touch the Paper Tray you wish to
change and touch the SIZE...

77
NOTE
Function

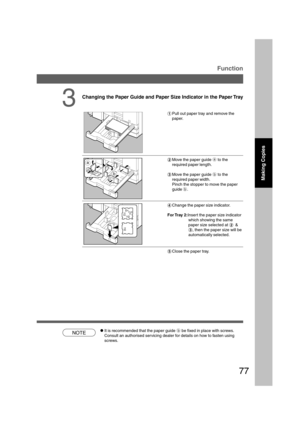

Changing the Paper Guide and Paper Size Indicator in the Paper Tray
#Pull out paper tray and remove the
paper.
$Move the paper guide a to the
required paper length.
%Move the paper guide b to the
required paper width.
Pinch the stopper to move the paper
guide b.
&Change the paper size indicator.
For Tray  2:Insert the paper size indicator
which showing the same
paper size selected at $&
%, then the paper size will be
automatically selected.
(Close the paper tray.
3
CIt is recommended...

78
B4·FLS

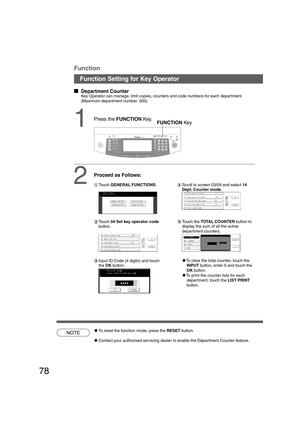

Department Counter
Key Operator can manage, limit copies, counters and code numbers for each department.
(Maximum department number: 300)
1FUNCTION Key
2
Proceed as Follows:
#Touch GENERAL FUNCTIONS.
$Touch 04 Set key operator code
button.
%Input ID Code (4 digits) and touch
the OK button.&Scroll to screen 03/09 and select 14
Dept. Counter mode.
(Touch the TOTAL COUNTER button to
display the sum of all the active
department counters.
NOTECTo reset the function mode, press the RESET...

79
Depar tment No.
(3 digits)
3

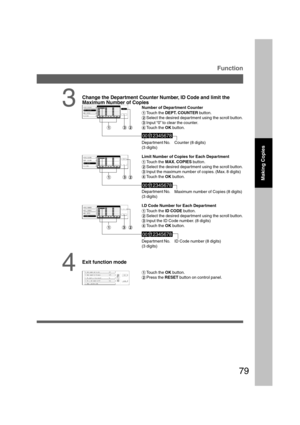

Change the Department Counter Number, ID Code and limit the
Maximum Number of Copies
Number of Department Counter
#Touch the DEPT. COUNTER button.
$Select the desired department using the scroll button.
%Input “0” to clear the counter.
&Touch the OK button.
Function
Counter (8 digits)
Depar tment No.
(3 digits)
Depar tment No.
(3 digits) Limit Number of Copies for Each Department
#Touch the MAX. COPIES button.
$Select the desired department using the scroll button.
%Input...

80
B4·FLS

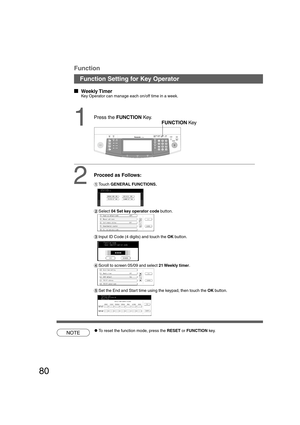

Weekly Timer
Key Operator can manage each on/off time in a week.
1FUNCTION Key
2
Proceed as Follows:
#Touch GENERAL FUNCTIONS.
$Select 04 Set key operator code button.
%Input ID Code (4 digits) and touch the OK button.
&Scroll to screen 05/09 and select 21 Weekly  timer.
NOTECTo reset the function mode, press the RESET or FUNCTION key.
Function Setting for Key Operator
Function
(Set the End and Start time using the keypad, then touch the OK button.
Press the FUNCTION Key....
