- 131 -
Wi-Fi

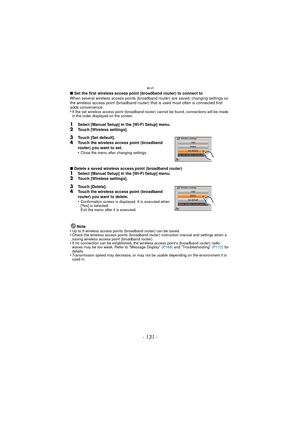

∫Set the first wireless access point (broadband router) to connect to
When several wireless access points (broadband router) are saved, changing settings so
the wireless access point (broadband router) that is used most often is connected first
adds convenience.
•
If the set wireless access point (broadband router) cannot be found, connections will be made
in the order displayed on the screen.
1Select [Manual Setup] in the [Wi-Fi Setup] menu.
2Touch [Wireless settings].
∫ Delete a saved...

Wi-Fi

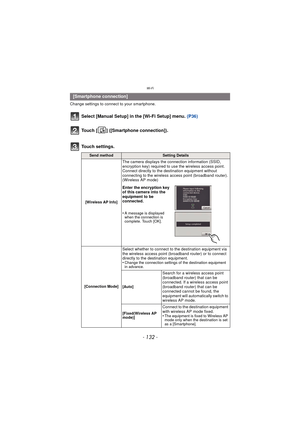

- 132 -
Change settings to connect to your smartphone.
Select [Manual Setup] in the [Wi-Fi Setup] menu. (P36)
Touch [ ] ([Smartphone connection]).
Touch settings.
[Smartphone connection]
Send methodSetting Details
[Wireless AP Info]
The camera displays the connection information (SSID,
encryption key) required to use the wireless access point.
Connect directly to the destination equipment without
connecting to the wireless access point (broadband router).
(Wireless AP mode)
Enter the...

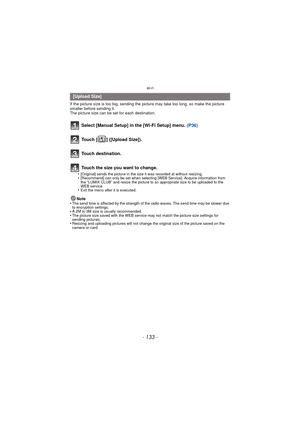

- 133 -
Wi-Fi
If the picture size is too big, sending the picture may take too long, so make the picture
smaller before sending it.
The picture size can be set for each destination.
Select [Manual Setup] in the [Wi-Fi Setup] menu. (P36)
Touch [ ] ([Upload Size]).
Touch destination.
Touch the size you want to change.
•[Original] sends the picture in the size it was recorded at without resizing.•[Recommend] can only be set when selecting [WEB Service]. Acquire information from
the “LUMIX CLUB” and resize...

Wi-Fi

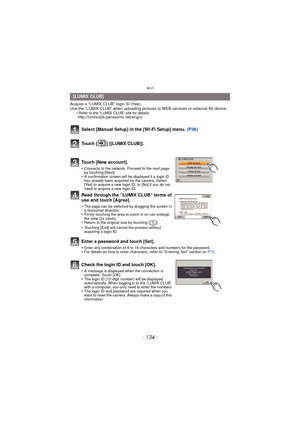

- 134 -
Acquire a “LUMIX CLUB” login ID (free).
Use the “LUMIX CLUB” when uploading pictures to WEB services or external AV device.
–
Refer to the “LUMIX CLUB” site for details.http://lumixclub.panasonic.net/eng/c/
Select [Manual Setup] in the [Wi-Fi Setup] menu.  (P36)
Touch [ ] ([LUMIX CLUB]).
Touch [New account].
•Connects to the network. Proceed to the next page
by touching [Next].
•A confirmation screen will be displayed if a login ID
has already been acquired for the camera. Select
[Yes]...

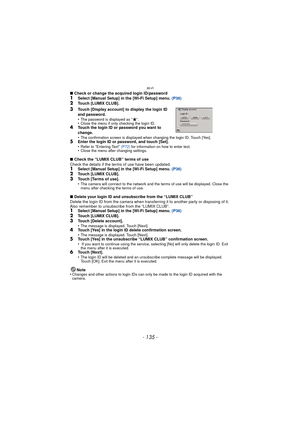

- 135 -
Wi-Fi
∫Check or change the acquired login ID/password1Select [Manual Setup] in the [Wi-Fi Setup] menu.  (P36)2Touch [LUMIX CLUB].
3Touch [Display account] to display the login ID
and password.
•
The password is displayed as “ ”.•Close the menu if only checking the login ID.4Touch the login ID or password you want to
change.
•
The confirmation screen is displayed when changing the login ID. Touch [Yes].5Enter the login ID or password, and touch [Set].
•Refer to “Entering Text” (P72)  for...

Wi-Fi

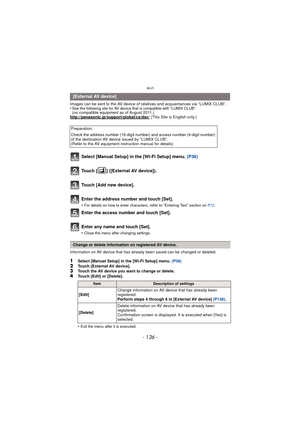

- 136 -
Images can be sent to the AV device of relatives and acquaintances via “LUMIX CLUB”.
•See the following site for AV device that is compatible with “LUMIX CLUB”.(no compatible equipment as of August 2011.)
http://panasonic.jp/support/global/cs/dsc/ (This Site is English only.)
Select [Manual Setup] in the [Wi-Fi Setup] menu.  (P36)
Touch [ ] ([External AV device]).
Touch [Add new device].
Enter the address number and touch [Set].
•For details on how to enter characters, refer to “Entering...

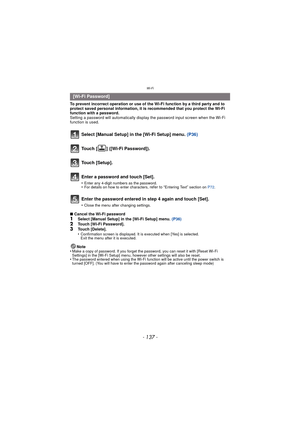

- 137 -
Wi-Fi
To prevent incorrect operation or use of the Wi-Fi function by a third party and to
protect saved personal information, it is recommended that you protect the Wi-Fi
function with a password.
Setting a password will automatically display the password input screen when the Wi-Fi
function is used.
Select [Manual Setup] in the [Wi-Fi Setup] menu. (P36)
Touch [ ] ([Wi-Fi Password]).
Touch [Setup].
Enter a password and touch [Set].
•Enter any 4-digit numbers as the password.•For details on how...

Wi-Fi
- 138 -

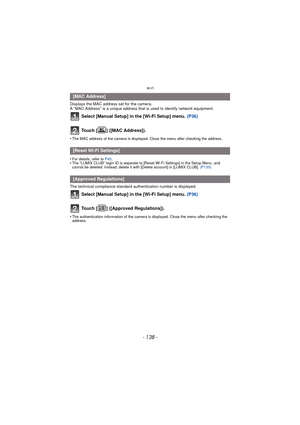

Displays the MAC address set for the camera.
A “MAC Address” is a unique address that is used to identify network equipment.
Select [Manual Setup] in the [Wi-Fi Setup] menu. (P36)
Touch [ ] ([MAC Address]).
•The MAC address of the camera is displayed. Close the menu after checking the address.
•For details, refer to  P45.•The “LUMIX CLUB” login ID is separate to [Reset Wi-Fi Settings] in the Setup Menu, and
cannot be deleted. Instead, delete it with [Delete account] in [LUMIX CLUB]....

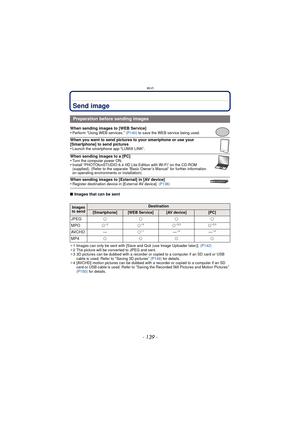

- 139 -
Wi-Fi
Send image
∫Images that can be sent
¢1 Images can only be sent with [Save and Quit (use Image Uploader later)].  (P142)
¢ 2 The picture will be converted to JPEG and sent.
¢ 3 3D pictures can be dubbed with a recorder or copied to a computer if an SD card or USB
cable is used. Refer to
“Saving 3D pictures” (P149)  for details.
¢ 4 [AVCHD] motion pictures can be dubbed with a recorder or copied to a computer if an SD
card or USB cable is used. Refer to
“Saving the Recorded Still Pictures...

Wi-Fi

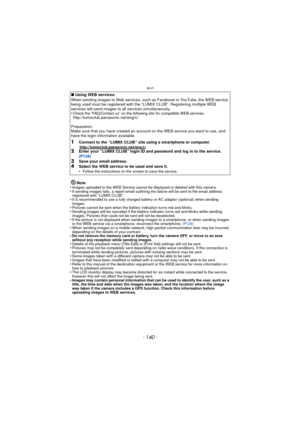

- 140 -
Note
•Images uploaded to the WEB Service cannot be displayed or deleted with this camera.•If sending images fails, a report email outlining the failure will be sent to the email address
registered with “LUMIX CLUB”.
•It is recommended to use a fully charged batt ery or AC adaptor (optional) when sending
images.
•Pictures cannot be sent when the battery indication turns red and blinks.•Sending images will be canceled if the battery indicator turns red and blinks while sending
images....
