Panasonic Dmc Fx90 Owners Manual

- 151 -
Connecting to other equipment

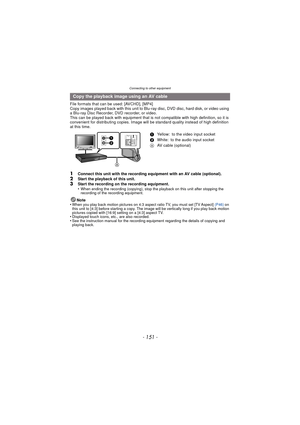

File formats that can be used: [AVCHD], [MP4]
Copy images played back with this unit to Blu-ray disc, DVD disc, hard disk, or video using
a Blu-ray Disc Recorder, DVD recorder, or video.
This can be played back with equipment that is not compatible with high definition, so it is
convenient for distributing copies. Image will be standard quality instead of high definition
at this time.
1Connect this unit with the recording equipment with an AV cable (optional)....

Connecting to other equipment
- 152 -

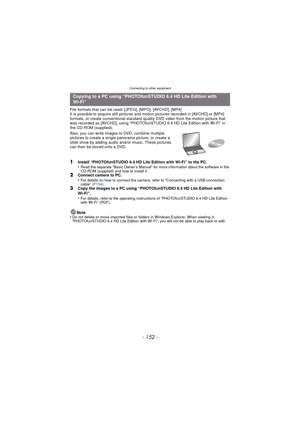

File formats that can be used: [JPEG], [MPO], [AVCHD], [MP4]
It is possible to acquire still pictures and motion pictures recorded in [AVCHD] or [MP4]
formats, or create conventional standard qualit y DVD video from the motion picture that
was recorded as [AVCHD], using “PHOTOfunSTUDIO 6.4 HD Lite Edition with Wi-Fi” in
the CD-ROM (supplied).
Also, you can write images to DVD, combine multiple
pictures to create a single  panorama picture, or create a
slide show...

- 153 -
Connecting to other equipment

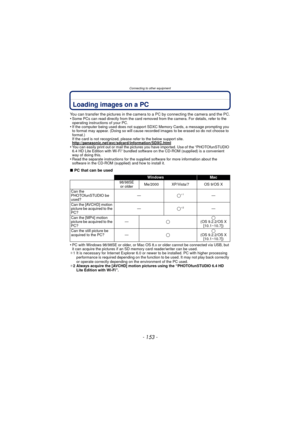

Loading images on a PC
You can transfer the pictures in the camera to a PC by connecting the camera and the PC.
•Some PCs can read directly from the card removed from the camera. For details, refer to the
operating instructions of your PC.
•If the computer being used does not support SDXC Memory Cards, a message prompting you
to format may appear. (Doing so will cause reco rded images to be erased so do not choose to
format.)
If the card is not recognized, please...

Connecting to other equipment
- 154 -

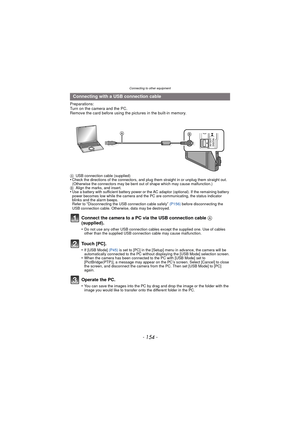

Preparations:
Turn on the camera and the PC.
Remove the card before using the pictures in the built-in memory.
AUSB connection cable (supplied)•Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which may cause malfunction.)
B Align the marks, and insert.
•Use a battery with sufficient battery power or the AC adaptor (optional). If the remaining battery
power becomes low...

- 155 -
Connecting to other equipment

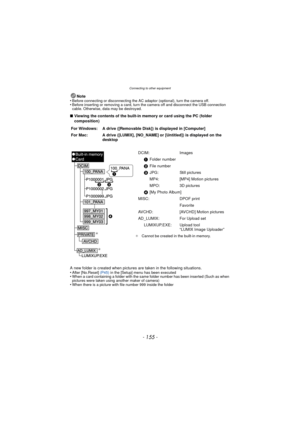

Note
•Before connecting or disconnecting the AC adaptor (optional), turn the camera off.•Before inserting or removing a card, turn the camera off and disconnect the USB connection
cable. Otherwise, data may be destroyed.
∫ Viewing the contents of the built-in memory or card using the PC (folder
composition)
A new folder is created when pictures are taken in the following situations.
•
After [No.Reset]  (P45) in the [Setup] menu has been executed•When a card...

Connecting to other equipment
- 156 -

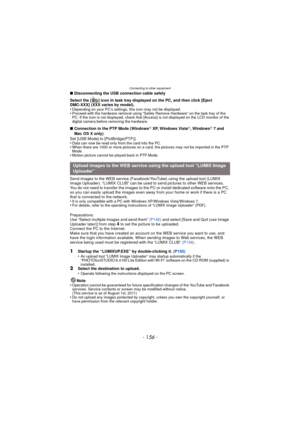

∫Disconnecting the USB connection cable safely
Select the [ ] icon in task tray displayed on the PC, and then click [Eject
DMC-XXX] (XXX varies by model).
•
Depending on your PC’s settings, this icon may not be displayed.•Proceed with the hardware removal using “Safely Remove Hardware” on the task tray of the
PC. If the icon is not displayed, check that [Access] is not displayed on the LCD monitor of the
digital camera before removing the hardware.
∫ Connection in...

- 157 -
Connecting to other equipment

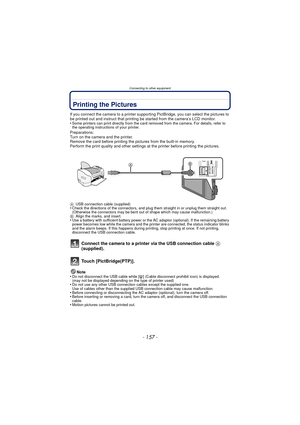

Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to
be printed out and instruct that printing be started from the camera’s LCD monitor.
•
Some printers can print directly from the card removed from the camera. For details, refer to
the operating instructions of your printer.
Preparations:
Turn on the camera and the printer.
Remove the card before printing the pictures from the built-in memory.
Perform...

Connecting to other equipment
- 158 -

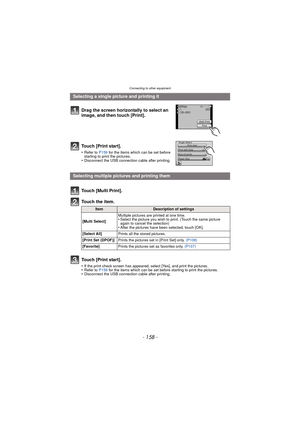

Selecting a single picture and printing itDrag the screen horizontally to select an
image, and then touch [Print].
Touch [Print start].
•Refer to  P159 for the items which can be set before
starting to print the pictures.
•Disconnect the USB connecti on cable after printing.
Selecting multiple pictures and printing them
Touch [Multi Print].
To u c h  t h e  i t e m .
ItemDescription of settings
[Multi Select] Multiple pictures are printed at one time.
•Select the...

- 159 -
Connecting to other equipment

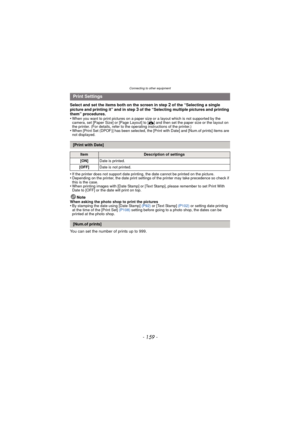

Select and set the items both on the screen in step 2 of the “Selecting a single
picture and printing it” and in step 3 of the “Selecting multiple pictures and printing
them” procedures.
•
When you want to print pictures on a paper size or a layout which is not supported by the
camera, set [Paper Size] or [Page Layout] to [ {] and then set the paper size or the layout on
the printer. (For details, refer to the operating instructions of the printer.)
•When [Print...

Connecting to other equipment
- 160 -

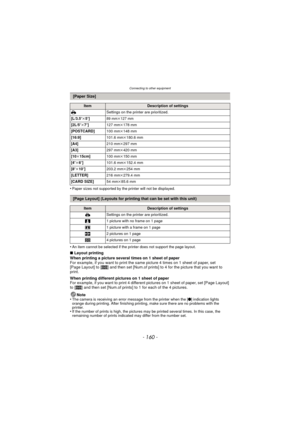

•Paper sizes not supported by the printer will not be displayed.
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[Page Layout] to [ ä] and then set [Num.of prints] to 4 for the picture that you want to
print.
When printing different pictures on 1 sheet of paper
For example, if you...
