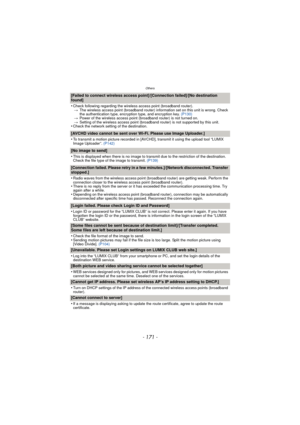

- 171 -
Others
[Failed to connect wireless access point]/[Connection failed]/[No destination
found]
•
Check following regarding the wireless access point (broadband router).> The wireless access point (broadband router) information set on this unit is wrong. Check
the authentication type, encryption type, and encryption key. (P130)
> Power of the wireless access point (broadband router) is not turned on.
> Setting of the wireless access point (broadband router) is not supported by this unit.
•Check the...

Others

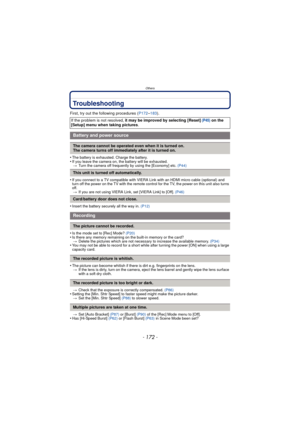

- 172 -
Troubleshooting
First, try out the following procedures (P172–183).
•
The battery is exhausted. Charge the battery.•If you leave the camera on,  the battery will be exhausted.
> Turn the camera off frequently by using the [Economy] etc.  (P44)
•If you connect to a TV compatible with VIERA Link with an HDMI micro cable (optional) and
turn off the power on the TV with the remote control for the TV, the power on this unit also turns
off.
> If you are not using VIERA Link, set [VIERA Link]...

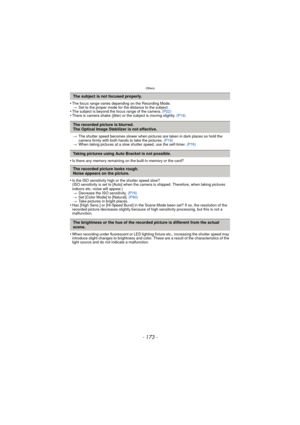

- 173 -
Others
•The focus range varies depending on the Recording Mode.> Set to the proper mode for the distance to the subject.
•The subject is beyond the focus range of the camera.  (P22)•There is camera shake (jitter) or the subject is moving slightly.  (P19)
> The shutter speed becomes slower when pictures are taken in dark places so hold the
camera firmly with both hands to take the pictures.  (P19)
> When taking pictures at a slow shutter speed, use the self-timer.  (P76)
•Is there any memory...

Others

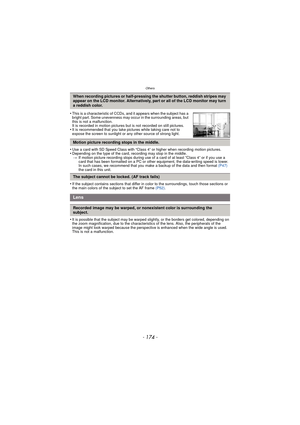

- 174 -
•Use a card with SD Speed Class with “Class 4” or higher when recording motion pictures.•Depending on the type of the card, recording may stop in the middle.> If motion picture recording stops during use of a card of at least “Class 4” or if you use a
card that has been formatted on a PC or other equipment, the data-writing speed is lower.
In such cases, we recommend that you make a backup of the data and then format  (P47)
the card in this unit.
•If the subject contains sections that...

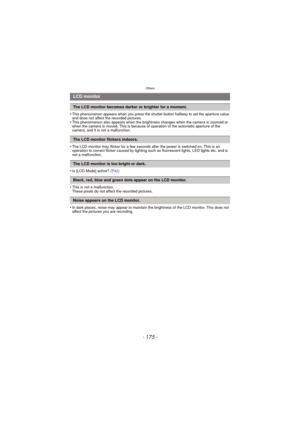

- 175 -
Others
•This phenomenon appears when you press the shutter button halfway to set the aperture value
and does not affect the recorded pictures.
•This phenomenon also appears when the brightness changes when the camera is zoomed or
when the camera is moved. This is because of operation of the automatic aperture of the
camera, and it is not a malfunction.
•The LCD monitor may flicker for a few seconds after the power is switched on. This is an
operation to correct flicker caused by lighting such...

Others

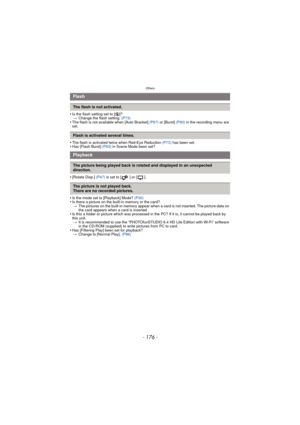

- 176 -
•Is the flash setting set to [Œ]?
> Change the flash setting.  (P73)
•The flash is not available when [Auto Bracket]  (P87) or [Burst]  (P90) in the recording menu are
set.
•The flash is activated twice when Red-Eye Reduction  (P73) has been set.•Has [Flash Burst]  (P63) in Scene Mode been set?
•[Rotate Disp.]  (P47) is set to [ ] or [ ].
•Is the mode set to [Playback] Mode?  (P30)•Is there a picture on the built-in memory or the card?
> The pictures on the built-in memory appear when a...

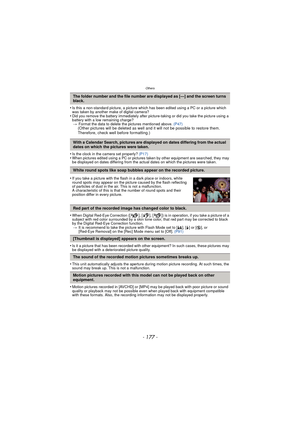

- 177 -
Others
•Is this a non-standard picture, a picture which has been edited using a PC or a picture which
was taken by another make of digital camera?
•Did you remove the battery immediately after pict ure-taking or did you take the picture using a
battery with a low remaining charge? > Format the data to delete the pictures mentioned above.  (P47)
(Other pictures will be deleted as well and it will not be possible to restore them.
Therefore, check well before formatting.)
•
Is the clock in the...

Others

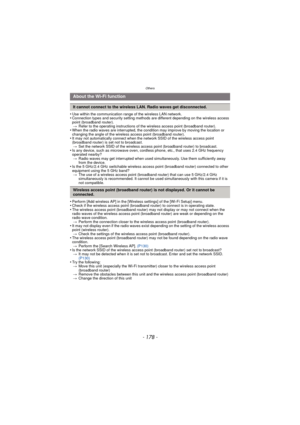

- 178 -
•Use within the communication range of the wireless LAN network.•Connection types and security setting methods are different depending on the wireless access
point (broadband router).> Refer to the operating instructions of the wireless access point (broadband router).
•When the radio waves are interrupted, the condition may improve by moving the location or
changing the angle of the wireless access point (broadband router).
•It may not automatically connect when the network SSID of the...

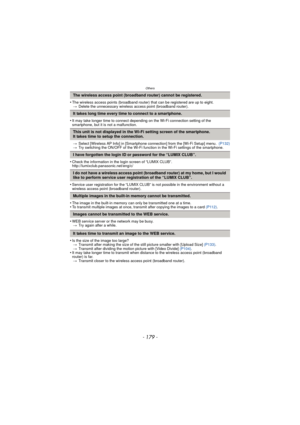

- 179 -
Others
•The wireless access points (broadband router) that can be registered are up to eight.> Delete the unnecessary wireless access point (broadband router).
•It may take longer time to connect depending on the Wi-Fi connection setting of the
smartphone, but it is not a malfunction.
> Select [Wireless AP Info] in [Smartphone connection] from the [Wi-Fi Setup] menu.   (P132)
> Try switching the ON/OFF of the Wi-Fi function in the Wi-Fi settings of the smartphone.
•Check the information in the...

Others

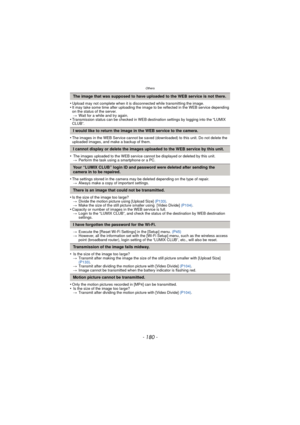

- 180 -
•Upload may not complete when it is disconnected while transmitting the image.•It may take some time after uploading the image to be reflected in the WEB service depending
on the status of the server.> Wait for a while and try again.
•Transmission status can be checked in WEB destination settings by logging into the “LUMIX
CLUB”.
•The images in the WEB Service cannot be saved (downloaded) to this unit. Do not delete the
uploaded images, and make a backup of them.
• The images uploaded...
