- 161 -
Others

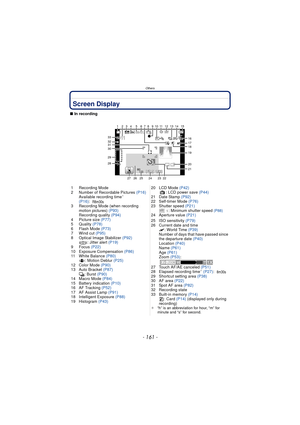

OthersScreen Display
∫In recording
1 Recording Mode
2 Number of Recordable Pictures  (P16)
Available recording time
¢
(P16) :
3 Recording Mode (when recording  motion pictures)  (P93)
Recording quality  (P94)
4 Picture size (P77)
5 Quality  (P78)
6 Flash Mode  (P73)
7 Wind cut  (P95)
8 Optical Image Stabilizer  (P92)
: Jitter alert  (P19)
9 Focus  (P22)
10 Exposure Compensation (P86)
11 White Balance  (P80)
: Motion Deblur  (P25)
12 Color Mode  (P90)
13 Auto Bracket  (P87)
˜ : Burst...

Others
- 162 -

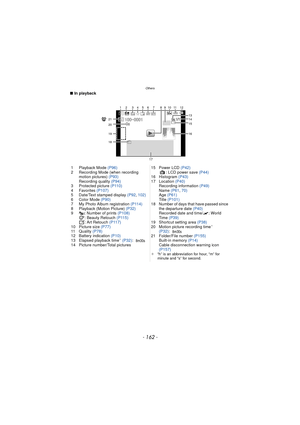

∫In playback
1 Playback Mode (P96)
2 Recording Mode (when recording  motion pictures)  (P93)
Recording quality  (P94)
3 Protected picture  (P110)
4 Favorites  (P107)
5 Date/Text stamped display  (P92, 102)
6 Color Mode  (P90)
7 My Photo Album registration  (P114)
8 Playback (Motion Picture)  (P32)
9 : Number of prints  (P108)
: Beauty Retouch  (P115)
: Art Retouch  (P117)
10 Picture size (P77)
11 Quality  (P78)
12 Battery indication  (P10)
13 Elapsed playback time
¢  (P32) :
14 Picture...

- 163 -
Others

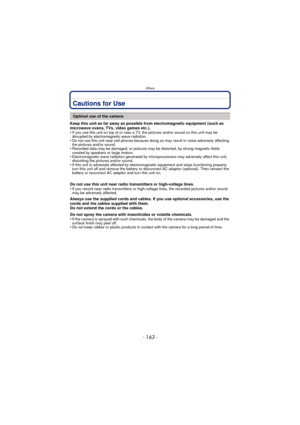

Cautions for Use
Keep this unit as far away as possible from electromagnetic equipment (such as
microwave ovens, TVs, video games etc.).
•
If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be
disrupted by electromagnetic wave radiation.
•Do not use this unit near cell phones because doing so may result in noise adversely affecting
the pictures and/or sound.
•Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields...

Others
- 164 -

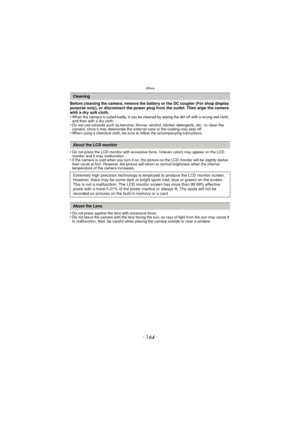

Before cleaning the camera, remove the battery or the DC coupler (For shop display
purpose only), or disconnect the power plug from the outlet. Then wipe the camera
with a dry soft cloth.
•
When the camera is soiled badly, it can be cleaned by wiping the dirt off with a wrung wet cloth,
and then with a dry cloth.
•Do not use solvents such as benzine, thinner, alcohol, kitchen detergents, etc., to clean the
camera, since it may deteriorate the external case or the coating may peel off....

- 165 -
Others

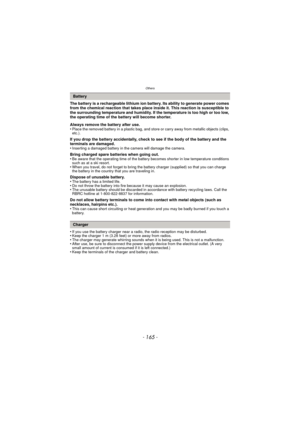

The battery is a rechargeable lithium ion battery. Its ability to generate power comes
from the chemical reaction that takes place inside it. This reaction is susceptible to
the surrounding temperature and humidity. If the temperature is too high or too low,
the operating time of the battery will become shorter.
Always remove the battery after use.
•
Place the removed battery in a plastic bag, and store or carry away from metallic objects (clips,
etc.).
If you drop the battery...

Others
- 166 -

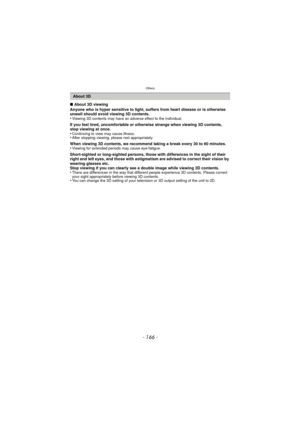

∫About 3D viewing
Anyone who is hyper sensitive to light, suffers from heart disease or is otherwise
unwell should avoid viewing 3D contents.
•
Viewing 3D contents may have an adv erse effect to the individual.
If you feel tired, uncomfortable or otherwise strange when viewing 3D contents,
stop viewing at once.
•
Continuing to view may cause illness.•After stopping viewing, please rest appropriately.
When viewing 3D contents, we recommend taking a break every 30 to 60 minutes.
•Viewing...

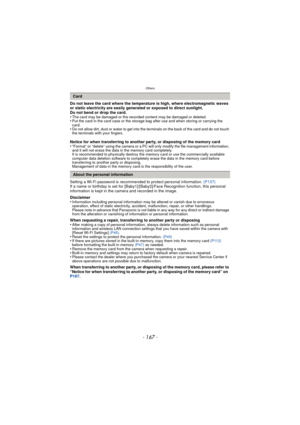

- 167 -
Others
Do not leave the card where the temperature is high, where electromagnetic waves
or static electricity are easily generated or exposed to direct sunlight.
Do not bend or drop the card.
•
The card may be damaged or the recorded content may be damaged or deleted.•Put the card in the card case or the storage bag after use and when storing or carrying the
card.
•Do not allow dirt, dust or water to get into the terminals on the back of the card and do not touch
the terminals with your...

Others
- 168 -

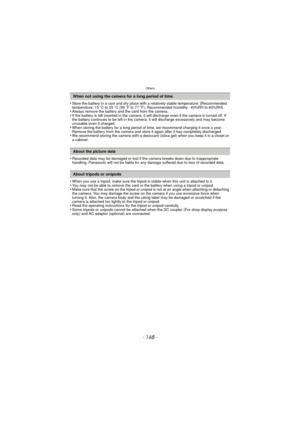

•Store the battery in a cool and dry place with a relatively stable temperature: [Recommended
temperature: 15oC to 25 oC (59 oF to 77 oF), Recommended humidity: 40%RH to 60%RH]
•Always remove the battery and the card from the camera.•If the battery is left inserted in the camera, it will discharge even if the camera is turned off. If
the battery continues to be left in the camera, it will discharge excessively and may become
unusable even if charged.
•When storing the battery for a long...

- 169 -
Others

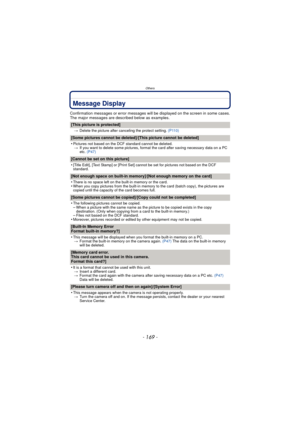

Message Display
Confirmation messages or error messages will be displayed on the screen in some cases.
The major messages are described below as examples.
[This picture is protected]
>Delete the picture after canceling the protect setting.  (P110)
[Some pictures cannot be deleted]/[This picture cannot be deleted]
•
Pictures not based on the DCF standard cannot be deleted.
> If you want to delete some pictures, format the card after saving necessary data on a PC
etc.  (P47)
[Cannot be set...

Others

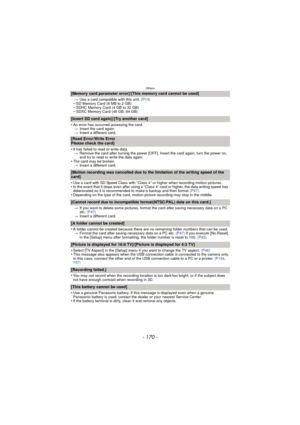

- 170 -
[Memory card parameter error]/[This memory card cannot be used]
>Use a card compatible with this unit.  (P14)–SD Memory Card (8 MB to 2 GB)–SDHC Memory Card (4 GB to 32 GB)–SDXC Memory Card (48 GB, 64 GB)
[Insert SD card again]/[Try another card]
•
An error has occurred accessing the card.
> Insert the card again.
> Insert a different card.
[Read Error/Write Error
Please check the card]
•
It has failed to read or write data.
> Remove the card after turning the power [OFF]. Insert the card...
