Panasonic Dmc Fz1000 Owners Manual

121
4. Recording Modes
You can easily call up the settings y ou have registered using [Cust.Set Mem.].
Set the mode dial to [ ], or [ ]
•The custom set will be called up. If you set the mo de dial to [ ], the custom set you used last
time ([ ], [ ], or [ ]) will be called up.
∫ To change a custom set in [ ]
1Set the mode dial to [ ].
2Press [MENU/SET] to display the menu.
3Press  2/1 to select the custom setting you want to use, and then
press [MENU/SET].
•Saving of the selected custom settings is...

122
5.Image and Picture Quality Settings
Adjusting the Picture Quality by Adding an
Effect
([Photo Style])
Applicable modes:
You can select effects to match the type of image you wish to record.
You can adjust the color and image quality of the effects.
¢ 1 This is disabled when Intelligen t Auto Plus Mode is selected.
¢ 2 These can be set only in Creative Video Mode.
¢ 3 When the actual brightness and the brightness to be captured are adjusted at each
brightness level, the relationship between these...

123
5. Image and Picture Quality Settings
∫ Adjusting the picture quality
•Picture quality cannot be adjusted in the Intelligent Auto Plus
Mode.
1Press  2/1  to select the type of Photo Style.
2Press  3/4  to select the items, and then press 2 /1
to adjust.
¢ 1 [Color Tone] is displayed only when [Monochrome] is selected. In other cases,
[Saturation] will be displayed.
¢ 2 [Filter Effect] is displayed only when [Monochrome] is selected.
•If you adjust the picture quality, [ _] is displayed beside the...

5. Image and Picture Quality Settings
124
Adjusting Bright/Dark Portions ([Highlight Shadow])
Applicable modes:
You can adjust the brightness of bright and dark portions on an image while checking the
brightness on the screen.
1Select the menu.
2Press  2/1 to select the item.
3Rotate the rear dial to adjust the brightness
of bright/dark portions.
A Bright portion
B Dark portion
C Preview display
•Each time you press the rear dial, you can switch
between the adjustment of the dark portion and that of...

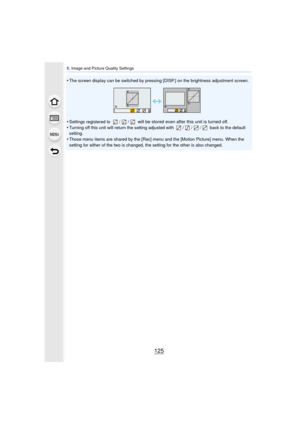

125
5. Image and Picture Quality Settings
•The screen display can be switched by pressing [DISP.] on the brightness adjustment screen.
•Settings registered to  / / will be stored even after this unit is turned off.•Turning off this unit will return the setting adjusted with  /// back to the default
setting.
•Those menu items are shared by the [Rec] menu and the [Motion Picture] menu. When the
setting for either of the two is changed, the setting for the other is also changed.
0ä 0ä0Ò0ä 0ä0Ó0ä 0ä0Ô

5. Image and Picture Quality Settings
126
Adjusting the White Balance
Applicable modes:
In sunlight, under incandescent lights or in ot her such conditions where the color of white
takes on a reddish or bluish tinge, this item adjusts to the color of white which is closest to
what is seen by the eye in ac cordance with the light source.
1Press 1 [].
2Select the White Balance by rotating the rear
dial.
3Press the rear dial to set.
¢It will operate as [AWB] during motion picture recording.
[AWB]...

127
5. Image and Picture Quality Settings
•The White Balance is only calculated for subjects within the range of the camera’s flash.  (P201)
•In Scene Guide Mode, changing the scene or Recording Mode will return White Balance
settings (including the White Balance fine adjustment setting) back to [AWB].
•In the Scene Guide Modes listed below, White Balance is fixed to [AWB].
–[Backlit Softness]/[Relaxing Tone]/[Distinct Scenery]/[Bright Blue Sky]/[Romantic Sunset
Glow]/[Vivid Sunset Glow]/[Glistening...

5. Image and Picture Quality Settings
128
Set the White Balance value. Use to match the condition when taking photographs.
1Press  1 [].2Rotate the rear dial to select [ ], [ ], [ ], or  [ ], and then press 3 .3Aim the camera at a sheet of white paper etc. so that
the frame in the center is filled by the white object
only and then press [MENU/SET].
•
White Balance may not be set when the subject is too bright or too dark. Set the White Balance
again after adjusting to appropriate brightness.
You can...

129
5. Image and Picture Quality Settings

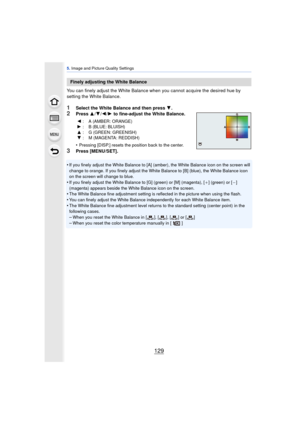

You can finely adjust the White Balance when you cannot acquire the desired hue by
setting the White Balance.
1Select the White Balance and then press  4.2Press 3/4 /2 /1  to fine-adjust the White Balance.
•
Pressing [DISP.] resets the position back to the center.
3Press [MENU/SET].
•
If you finely adjust the White Balance to [A] (amber), the White Balance icon on the screen will
change to orange. If you finely adjust the White Balance to [B] (blue), the White...

5. Image and Picture Quality Settings
130

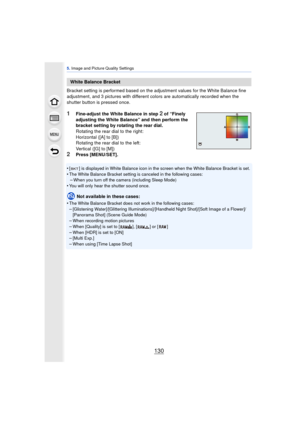

Bracket setting is performed based on the adju stment values for the White Balance fine
adjustment, and 3 pictures with different co lors are automatically recorded when the
shutter button is pressed once.
1Fine-adjust the White Balance in step 2 of “Finely
adjusting the White Balance” and then perform the
bracket setting by rotating the rear dial.
Rotating the rear dial to the right:
Horizontal ([A] to [B])
Rotating the rear dial to the left:
Vertical ([G]...
