Panasonic Dmc Fz18 Operating Instructions Manual

Operating Instructions
Digital Camera
Model No. DMC-FZ18
VQT1F83
 Before connecting, operating or
adjusting this product, please read
the instructions completely.
For USA assistance, please call: 1-800-272-7033 or send e-mail to : [email protected]
For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or
                                    send e-mail to: [email protected]
PCP
DMC-FZ18ENG.book  1 ページ  ２００７年７月１８日　水曜日　午後５時３２分

Before Use
2VQT1F83
Before UseDear Customer,
Thank you for choosing Panasonic!
You have purchased one of the most
sophisticated and reliable products on the
market today. Used properly, we’re sure it
will bring you and your family years of
enjoyment. Please take time to fill in the
information on the below.
The serial number is on the tag located on
the underside of your Camera. Be sure to
retain this manual as your convenient
Camera information source.Information for Your
Safety
Carefully...

Before Use
3VQT1F83
 Please note that the actual controls and
components, menu items, etc. of your
Digital Camera may look somewhat
different from those shown in the
illustrations in these Operating
Instructions.
 SDHC Logo is a trademark.
 Leica is a registered trademark of Leica
Microsystems IR GmbH.
 Elmarit is a registered trademark of Leica
Camera AG.
 Other names, company names, and
product names printed in these
instructions are trademarks or registered
trademarks of the companies...

Before Use
4VQT1F83
-If you see this symbol-
∫About the battery pack Declaration of Conformity
Trade Name: Panasonic
Model No.: DMC-FZ18
Responsible party: Panasonic
Corporation of
North America
One Panasonic Way,
Secaucus, NJ 07094
Support Contact: Panasonic
Consumer
Electronics Company
1-800-272-7033
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any...

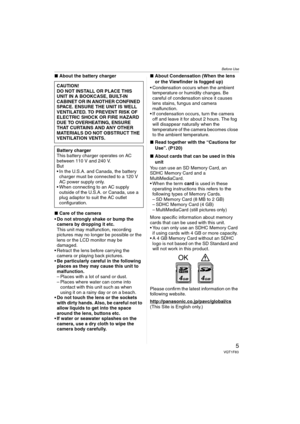

Before Use
5VQT1F83
∫About the battery charger
∫Care of the camera
Do not strongly shake or bump the
camera by dropping it etc.
This unit may malfunction, recording
pictures may no longer be possible or the
lens or the LCD monitor may be
damaged.
 Retract the lens before carrying the
camera or playing back pictures.
Be particularly careful in the following
places as they may cause this unit to
malfunction.
– Places with a lot of sand or dust.
– Places where water can come into
contact with this...

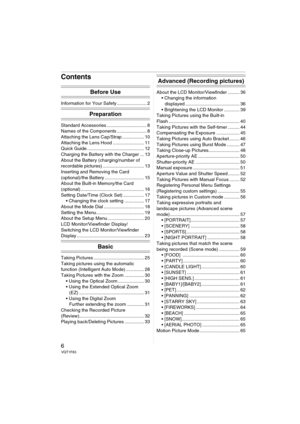

6VQT1F83
Contents
Before Use
Information for Your Safety ....................... 2
Preparation
Standard Accessories ............................... 8
Names of the Components ....................... 8
Attaching the Lens Cap/Strap ................. 10
Attaching the Lens Hood ........................ 11
Quick Guide ............................................ 12
Charging the Battery with the Charger ... 13
About the Battery (charging/number of
recordable pictures) ................................ 13...

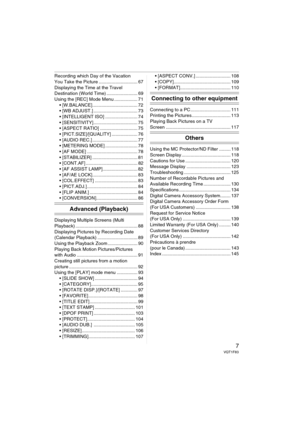

7VQT1F83
Recording which Day of the Vacation
You Take the Picture .............................. 67
Displaying the Time at the Travel
Destination (World Time) ........................ 69
Using the [REC] Mode Menu .................. 71
 72
 ADJUST.] .................................. 73
 ISO] ......................... 74
 .................................. 75
 RATIO] ............................. 75
 .................... 76
 REC.] ................................... 77
 MODE] ............................

Preparation

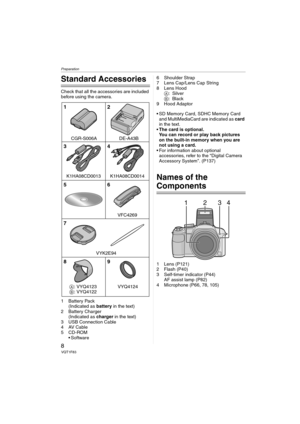

8VQT1F83
Preparation
Standard Accessories
Check that all the accessories are included
before using the camera.
1 Battery Pack
(Indicated as battery in the text)
2 Battery Charger
(Indicated as charger in the text)
3 USB Connection Cable
4AV Cable
5CD-ROM
 Software6 Shoulder Strap
7 Lens Cap/Lens Cap String
8 Lens Hood
A: Silver
B:Black
9 Hood Adaptor
 SD Memory Card, SDHC Memory Card
and MultiMediaCard are indicated as card
in the text.
The card is optional.
You can record or play back...

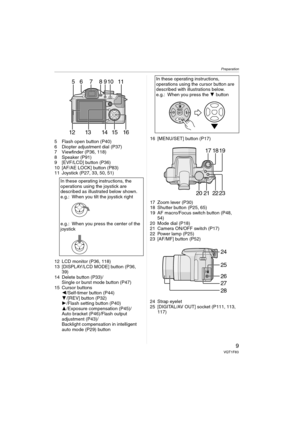

Preparation
9VQT1F83
5 Flash open button (P40)
6 Diopter adjustment dial (P37)
7 Viewfinder (P36, 118)
8 Speaker (P91)
9 [EVF/LCD] button (P36)
10 [AF/AE LOCK] button (P83)
11 Joystick (P27, 33, 50, 51)
12 LCD monitor (P36, 118)
13 [DISPLAY/LCD MODE] button (P36,
39)
14 Delete button (P33)/
Single or burst mode button (P47)
15 Cursor buttons
2/Self-timer button (P44)
4/[REV] button (P32)
1/Flash setting button (P40)
3/Exposure compensation (P45)/
Auto bracket (P46)/Flash output
adjustment (P43)/...

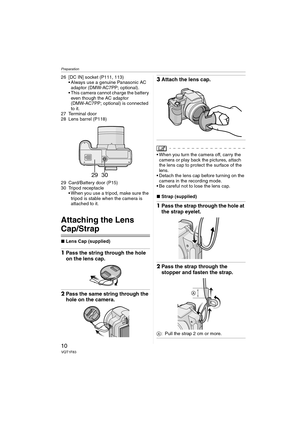

Preparation
10VQT1F83
26 [DC IN] socket (P111, 113)
 Always use a genuine Panasonic AC
adaptor (DMW-AC7PP; optional).
 This camera cannot charge the battery
even though the AC adaptor
(DMW-AC7PP; optional) is connected
to it.
27 Terminal door
28 Lens barrel (P118)
29 Card/Battery door (P15)
30 Tripod receptacle
 When you use a tripod, make sure the
tripod is stable when the camera is
attached to it.
Attaching the Lens
Cap/Strap
∫Lens Cap (supplied)
1Pass the string through the hole
on the lens...
