Panasonic Dmc Fz18 Operating Instructions Manual

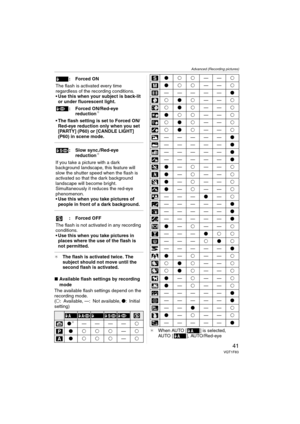

Advanced (Recording pictures)
41VQT1F83
¢The flash is activated twice. The
subject should not move until the
second flash is activated.
∫Available flash settings by recording
mode
The available flash settings depend on the
recording mode.
(±: Available, —: Not available, ¥: Initial
setting)
¢When AUTO [ ] is selected,
AUTO [ ], AUTO/Red-eye  : Forced ON
The flash is activated every time
regardless of the recording conditions.
Use this when your subject is back-lit
or under fluorescent light.
:...

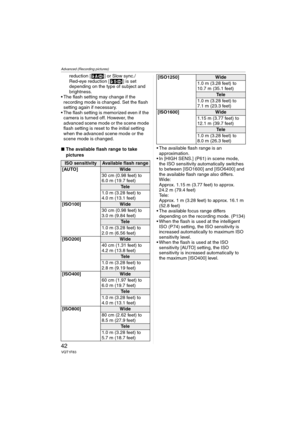

Advanced (Recording pictures)
42VQT1F83
reduction [ ] or Slow sync./
Red-eye reduction [ ] is set
depending on the type of subject and
brightness.
 The flash setting may change if the
recording mode is changed. Set the flash
setting again if necessary.
 The flash setting is memorized even if the
camera is turned off. However, the
advanced scene mode or the scene mode
flash setting is reset to the initial setting
when the advanced scene mode or the
scene mode is changed.
∫The available flash...

Advanced (Recording pictures)

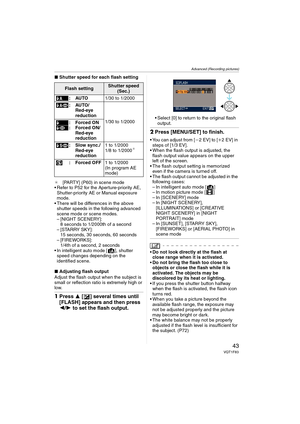

43VQT1F83
∫Shutter speed for each flash setting
¢[PARTY] (P60) in scene mode
 Refer to P52 for the Aperture-priority AE,
Shutter-priority AE or Manual exposure
mode.
 There will be differences in the above
shutter speeds in the following advanced
scene mode or scene modes.
– [NIGHT SCENERY]:
8 seconds to 1/2000th of a second
– [STARRY SKY]:
15 seconds, 30 seconds, 60 seconds
– [FIREWORKS]:
1/4th of a second, 2 seconds
 In intelligent auto mode [ ], shutter
speed...

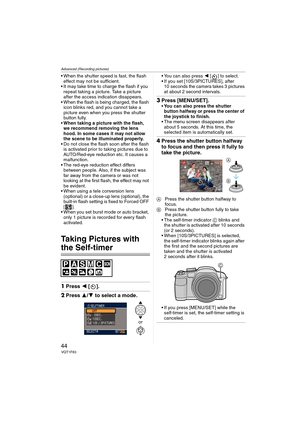

Advanced (Recording pictures)
44VQT1F83
 When the shutter speed is fast, the flash
effect may not be sufficient.
 It may take time to charge the flash if you
repeat taking a picture. Take a picture
after the access indication disappears.
 When the flash is being charged, the flash
icon blinks red, and you cannot take a
picture even when you press the shutter
button fully.
When taking a picture with the flash,
we recommend removing the lens
hood. In some cases it may not allow
the scene to be...

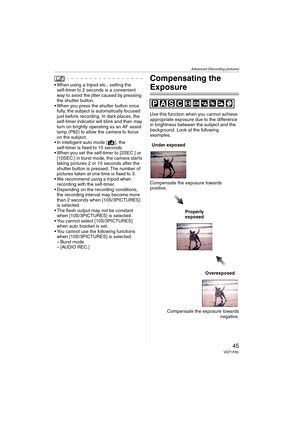

Advanced (Recording pictures)
45VQT1F83
 When using a tripod etc., setting the
self-timer to 2 seconds is a convenient
way to avoid the jitter caused by pressing
the shutter button.
 When you press the shutter button once
fully, the subject is automatically focused
just before recording. In dark places, the
self-timer indicator will blink and then may
turn on brightly operating as an AF assist
lamp (P82) to allow the camera to focus
on the subject.
 In intelligent auto mode [ ], the
self-timer...

Advanced (Recording pictures)

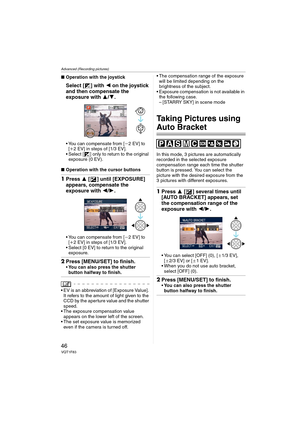

46VQT1F83
∫Operation with the joystick
Select [ ] with 2 on the joystick
and then compensate the
exposure with 3/4.
 You can compensate from [j2EV] to
[i2 EV] in steps of [1/3 EV].
 Select [ ] only to return to the original
exposure (0 EV).
∫Operation with the cursor buttons
1Press 3 [ ] until [EXPOSURE]
appears, compensate the
exposure with 2/1.
 You can compensate from [j2EV] to
[i2 EV] in steps of [1/3 EV].
 Select [0 EV] to return to the original
exposure.
2Press...

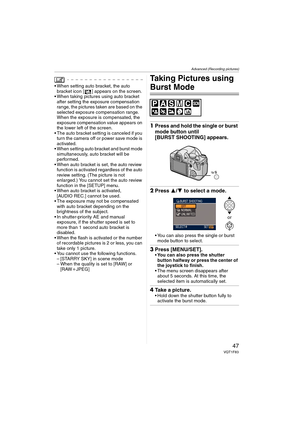

Advanced (Recording pictures)
47VQT1F83
 When setting auto bracket, the auto
bracket icon [ ] appears on the screen.
 When taking pictures using auto bracket
after setting the exposure compensation
range, the pictures taken are based on the
selected exposure compensation range.
When the exposure is compensated, the
exposure compensation value appears on
the lower left of the screen.
 The auto bracket setting is canceled if you
turn the camera off or power save mode is
activated.
 When setting...

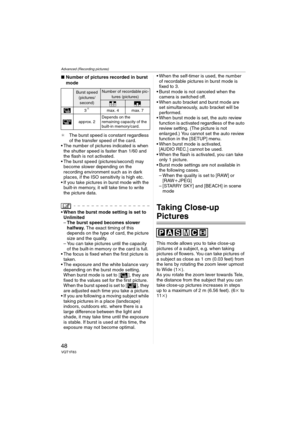

Advanced (Recording pictures)
48VQT1F83
∫Number of pictures recorded in burst
mode
¢The burst speed is constant regardless
of the transfer speed of the card.
 The number of pictures indicated is when
the shutter speed is faster than 1/60 and
the flash is not activated.
 The burst speed (pictures/second) may
become slower depending on the
recording environment such as in dark
places, if the ISO sensitivity is high etc.
 If you take pictures in burst mode with the
built-in memory, it will take time...

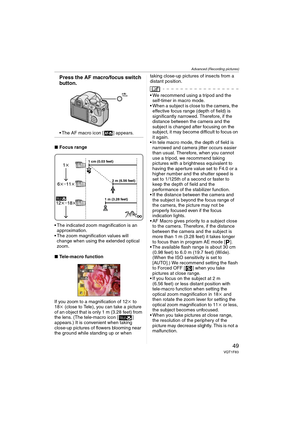

Advanced (Recording pictures)
49VQT1F83
Press the AF macro/focus switch
button.
 The AF macro icon [ ] appears.
∫Focus range
 The indicated zoom magnification is an
approximation.
 The zoom magnification values will
change when using the extended optical
zoom.
∫Tele-macro function
If you zoom to a magnification of 12k to
18k (close to Tele), you can take a picture
of an object that is only 1 m (3.28 feet) from
the lens. (The tele-macro icon [ ]
appears.) It is convenient when taking
close-up...

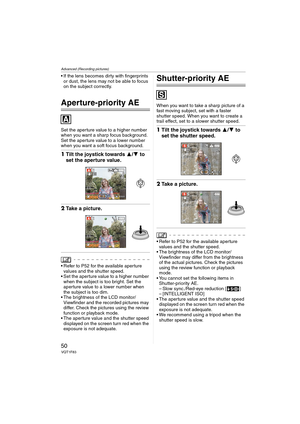

Advanced (Recording pictures)
50VQT1F83
 If the lens becomes dirty with fingerprints
or dust, the lens may not be able to focus
on the subject correctly.
Aperture-priority AE
Set the aperture value to a higher number
when you want a sharp focus background.
Set the aperture value to a lower number
when you want a soft focus background.
1Tilt the joystick towards 3/4 to
set the aperture value.
2Take a picture.
 Refer to P52 for the available aperture
values and the shutter speed.
 Set the aperture...
