Preparation

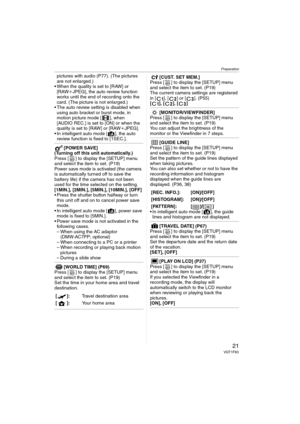

21VQT1F83
pictures with audio (P77). (The pictures
are not enlarged.)
 When the quality is set to [RAW] or
[RAWiJPEG], the auto review function
works until the end of recording onto the
card. (The picture is not enlarged.)
 The auto review setting is disabled when
using auto bracket or burst mode, in
motion picture mode [ ], when
[AUDIO REC.] is set to [ON] or when the
quality is set to [RAW] or [RAWiJPEG].
 In intelligent auto mode [ ], the auto
review function is fixed to [1SEC.]....

Preparation

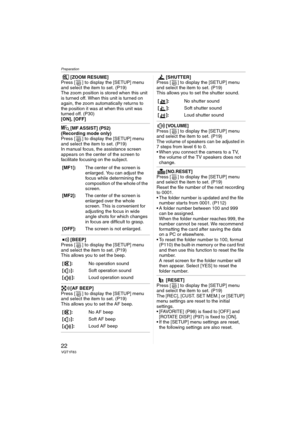

22VQT1F83
[ZOOM RESUME]
Press [ ] to display the [SETUP] menu
and select the item to set. (P19)
The zoom position is stored when this unit
is turned off. When this unit is turned on
again, the zoom automatically returns to
the position it was at when this unit was
turned off. (P30)
[ON], [OFF]
[MF ASSIST] (P52)
(Recording mode only)
Press [ ] to display the [SETUP] menu
and select the item to set. (P19)
In manual focus, the assistance screen
appears on the center of the screen to...

Preparation

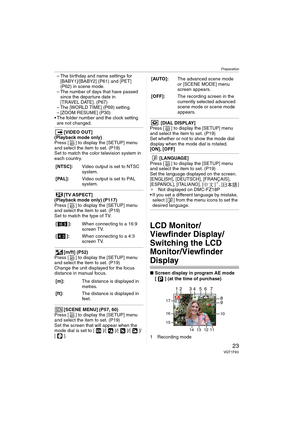

23VQT1F83
– The birthday and name settings for
[BABY1]/[BABY2] (P61) and [PET]
(P62) in scene mode.
– The number of days that have passed
since the departure date in
[TRAVEL DATE]. (P67)
– The [WORLD TIME] (P69) setting.
– [ZOOM RESUME] (P30)
 The folder number and the clock setting
are not changed.
[VIDEO OUT]
(Playback mode only)
Press [ ] to display the [SETUP] menu
and select the item to set. (P19)
Set to match the color television system in
each country.
[TV ASPECT]
(Playback mode...

Preparation

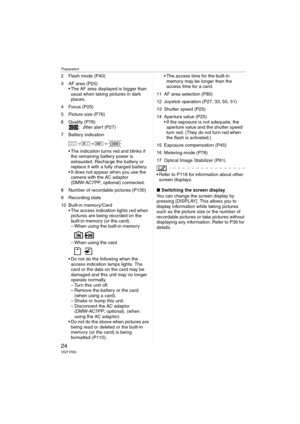

24VQT1F83
2 Flash mode (P40)
3 AF area (P25)
 The AF area displayed is bigger than
usual when taking pictures in dark
places.
4 Focus (P25)
5 Picture size (P76)
6 Quality (P76)
: Jitter alert (P27)
7 Battery indication
 The indication turns red and blinks if
the remaining battery power is
exhausted. Recharge the battery or
replace it with a fully charged battery.
 It does not appear when you use the
camera with the AC adaptor
(DMW-AC7PP; optional) connected.
8 Number of recordable...

Basic

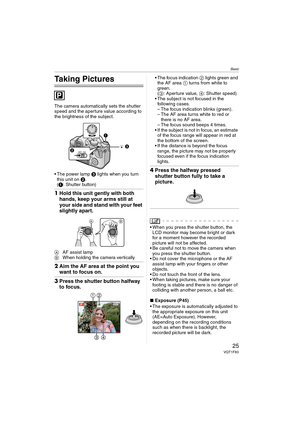

25VQT1F83
Basic
Taking Pictures
The camera automatically sets the shutter
speed and the aperture value according to
the brightness of the subject.
 The power lamp 3 lights when you turn
this unit on 2.
(1: Shutter button)
1Hold this unit gently with both
hands, keep your arms still at
your side and stand with your feet
slightly apart.
AAF assist lamp
BWhen holding the camera vertically
2Aim the AF area at the point you
want to focus on.
3Press the shutter button halfway
to focus.
 The...

Basic

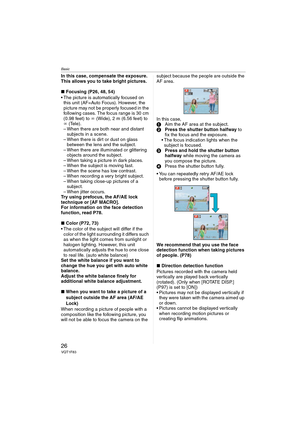

26VQT1F83
In this case, compensate the exposure.
This allows you to take bright pictures.
∫Focusing (P26, 48, 54)
 The picture is automatically focused on
this unit (AF=Auto Focus). However, the
picture may not be properly focused in the
following cases. The focus range is 30 cm
(0.98 feet) to ¶ (Wide), 2 m (6.56 feet) to
¶ (Tele).
– When there are both near and distant
subjects in a scene.
– When there is dirt or dust on glass
between the lens and the subject.
– When there are illuminated...

Basic

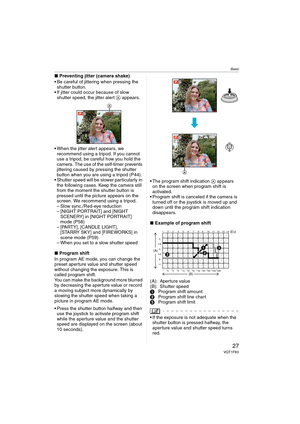

27VQT1F83
∫Preventing jitter (camera shake)
 Be careful of jittering when pressing the
shutter button.
 If jitter could occur because of slow
shutter speed, the jitter alert A appears.
 When the jitter alert appears, we
recommend using a tripod. If you cannot
use a tripod, be careful how you hold the
camera. The use of the self-timer prevents
jittering caused by pressing the shutter
button when you are using a tripod (P44).
 Shutter speed will be slower particularly in
the following cases....

Basic

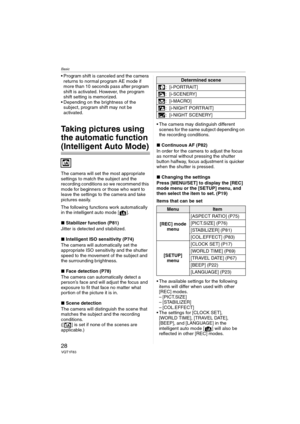

28VQT1F83
 Program shift is canceled and the camera
returns to normal program AE mode if
more than 10 seconds pass after program
shift is activated. However, the program
shift setting is memorized.
 Depending on the brightness of the
subject, program shift may not be
activated.
Taking pictures using
the automatic function
(Intelligent Auto Mode)
The camera will set the most appropriate
settings to match the subject and the
recording conditions so we recommend this
mode for beginners or...

Basic

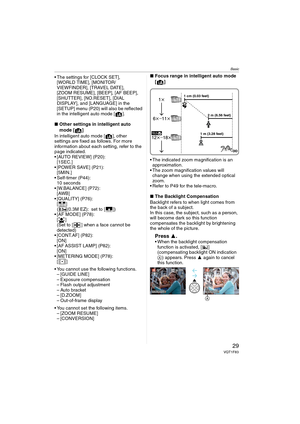

29VQT1F83
 The settings for [CLOCK SET],
[WORLD TIME], [MONITOR/
VIEWFINDER], [TRAVEL DATE],
[ZOOM RESUME], [BEEP], [AF BEEP],
[SHUTTER], [NO.RESET], [DIAL
DISPLAY], and [LANGUAGE] in the
[SETUP] menu (P20) will also be reflected
in the intelligent auto mode [ ].
∫Other settings in intelligent auto
mode [ ]
In intelligent auto mode [ ], other
settings are fixed as follows. For more
information about each setting, refer to the
page indicated.
 [AUTO REVIEW] (P20):
[1SEC.]
 [POWER SAVE]...

Basic

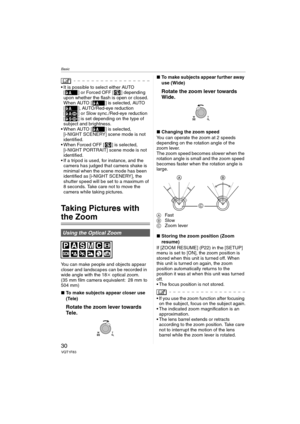

30VQT1F83
 It is possible to select either AUTO
[ ] or Forced OFF [ ] depending
upon whether the flash is open or closed.
When AUTO [ ] is selected, AUTO
[ ], AUTO/Red-eye reduction
[ ] or Slow sync./Red-eye reduction
[ ] is set depending on the type of
subject and brightness.
 When AUTO [ ] is selected,
[i-NIGHT SCENERY] scene mode is not
identified.
 When Forced OFF [ ] is selected,
[i-NIGHT PORTRAIT] scene mode is not
identified.
 If a tripod is used, for instance, and the
camera has...
