Basic
31VQT1F83

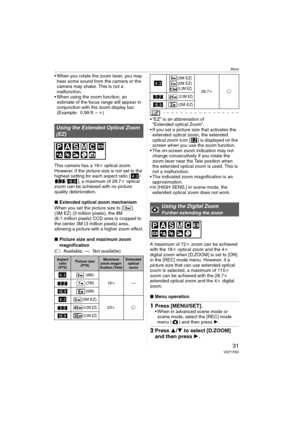

 When you rotate the zoom lever, you may
hear some sound from the camera or the
camera may shake. This is not a
malfunction.
 When using the zoom function, an
estimate of the focus range will appear in
conjunction with the zoom display bar.
(Example: 0.99 ft. –¶)
This camera has a 18k optical zoom.
However, if the picture size is not set to the
highest setting for each aspect ratio [ /
/ ], a maximum of 28.7k optical
zoom can be achieved with no picture
quality deterioration....

Basic
32VQT1F83

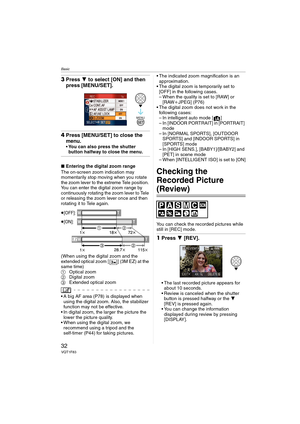

3Press 4 to select [ON] and then
press [MENU/SET].
4Press [MENU/SET] to close the
menu.
You can also press the shutter
button halfway to close the menu.
∫Entering the digital zoom range
The on-screen zoom indication may
momentarily stop moving when you rotate
the zoom lever to the extreme Tele position.
You can enter the digital zoom range by
continuously rotating the zoom lever to Tele
or releasing the zoom lever once and then
rotating it to Tele again.
(When using the digital...

Basic
33VQT1F83

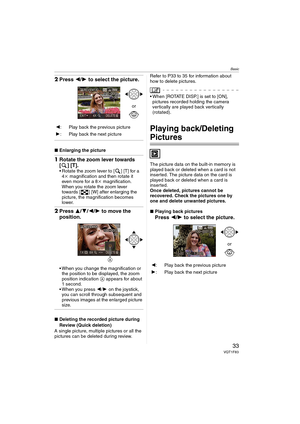

2Press 2/1 to select the picture.
∫Enlarging the picture
1Rotate the zoom lever towards
[ ] [T].
 Rotate the zoom lever to [ ] [T] for a
4k magnification and then rotate it
even more for a 8k magnification.
When you rotate the zoom lever
towards [ ] [W] after enlarging the
picture, the magnification becomes
lower.
2Press 3/4/2/1 to move the
position.
 When you change the magnification or
the position to be displayed, the zoom
position indication A appears for about
1 second....

Basic
34VQT1F83

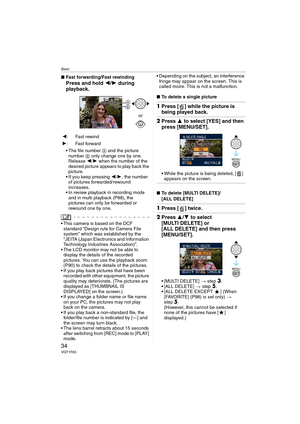

∫Fast forwarding/Fast rewinding
Press and hold 2/1 during
playback.
 The file number A and the picture
number B only change one by one.
Release 2/1 when the number of the
desired picture appears to play back the
picture.
 If you keep pressing 2/1, the number
of pictures forwarded/rewound
increases.
 In review playback in recording mode
and in multi playback (P88), the
pictures can only be forwarded or
rewound one by one.
 This camera is based on the DCF
standard “Design rule...

Basic
35VQT1F83

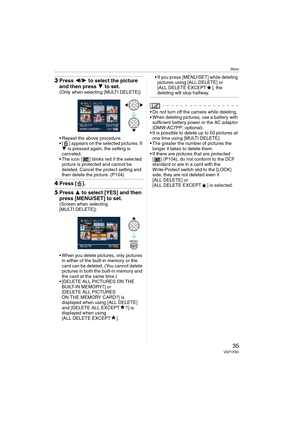

3Press 2/1 to select the picture
and then press 4 to set.
(Only when selecting [MULTI DELETE])
 Repeat the above procedure.
 [ ] appears on the selected pictures. If
4 is pressed again, the setting is
canceled.
 The icon [ ] blinks red if the selected
picture is protected and cannot be
deleted. Cancel the protect setting and
then delete the picture. (P104)
4Press [ ].
5Press 3 to select [YES] and then
press [MENU/SET] to set.
(Screen when selecting
[MULTI DELETE])
 When you delete...

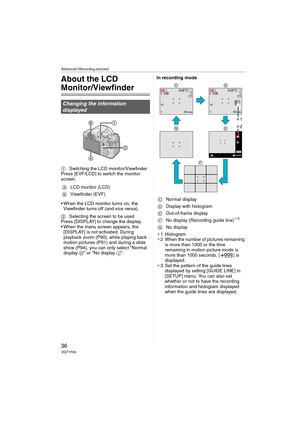

Advanced (Recording pictures)
36VQT1F83
Advanced (Recording pictures)
About the LCD
Monitor/Viewfinder
1Switching the LCD monitor/Viewfinder
Press [EVF/LCD] to switch the monitor
screen.
 When the LCD monitor turns on, the
Viewfinder turns off (and vice versa).
2Selecting the screen to be used
Press [DISPLAY] to change the display.
 When the menu screen appears, the
[DISPLAY] is not activated. During
playback zoom (P90), while playing back
motion pictures (P91) and during a slide
show (P94), you...

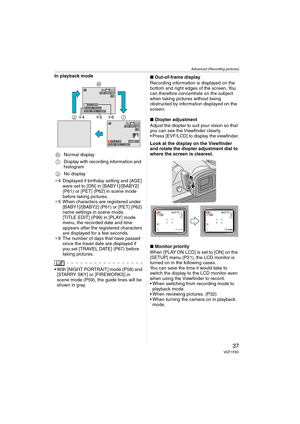

Advanced (Recording pictures)
37VQT1F83
In playback mode
¢4 Displayed if birthday setting and [AGE]
were set to [ON] in [BABY1]/[BABY2]
(P61) or [PET] (P62) in scene mode
before taking pictures.
¢5 When characters are registered under
[BABY1]/[BABY2] (P61) or [PET] (P62)
name settings in scene mode,
[TITLE EDIT] (P99) in [PLAY] mode
menu, the recorded date and time
appears after the registered characters
are displayed for a few seconds.
¢6 The number of days that have passed
since the travel...

Advanced (Recording pictures)
38VQT1F83

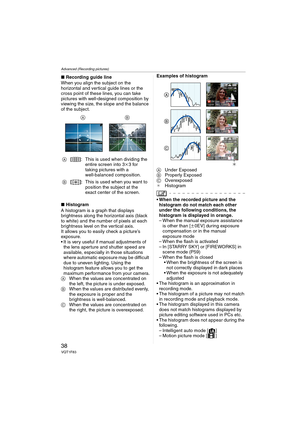

∫Recording guide line
When you align the subject on the
horizontal and vertical guide lines or the
cross point of these lines, you can take
pictures with well-designed composition by
viewing the size, the slope and the balance
of the subject.
∫Histogram
A histogram is a graph that displays
brightness along the horizontal axis (black
to white) and the number of pixels at each
brightness level on the vertical axis.
It allows you to easily check a picture’s...

Advanced (Recording pictures)
39VQT1F83

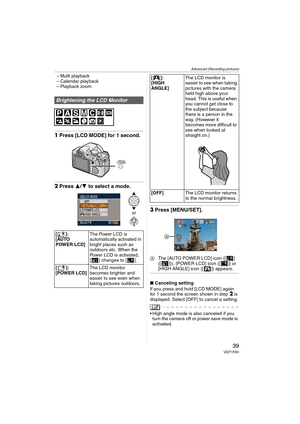

– Multi playback
– Calendar playback
– Playback zoom
1Press [LCD MODE] for 1 second.
2Press 3/4 to select a mode.
3Press [MENU/SET].
AThe [AUTO POWER LCD] icon ([ ]
([ ])), [POWER LCD] icon ([ ]) or
[HIGH ANGLE] icon ([ ]) appears.
∫Canceling setting
If you press and hold [LCD MODE] again
for 1 second the screen shown in step
2 is
displayed. Select [OFF] to cancel a setting.
 High angle mode is also canceled if you
turn the camera off or power save mode is...

Advanced (Recording pictures)
40VQT1F83

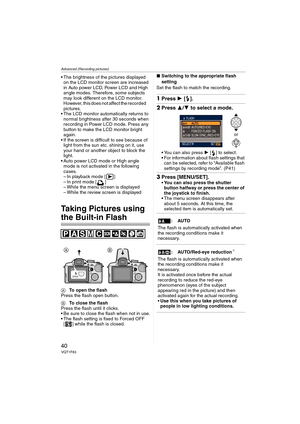

 The brightness of the pictures displayed
on the LCD monitor screen are increased
in Auto power LCD, Power LCD and High
angle modes. Therefore, some subjects
may look different on the LCD monitor.
However, this does not affect the recorded
pictures.
 The LCD monitor automatically returns to
normal brightness after 30 seconds when
recording in Power LCD mode. Press any
button to make the LCD monitor bright
again.
 If the screen is difficult to see...
