Panasonic Dmc Fz18 Operating Instructions Manual

Preparation
11VQT1F83
 Attach the strap to the other side of the
camera being careful not to twist it.
 Check that the strap is firmly attached to
the camera.
 Attach the strap so that the “L
UMIX” LOGO
is on the outside.
 We recommend attaching the strap when
using the camera to prevent it from
dropping.
Attaching the Lens
Hood
In bright sunlight or backlight, the lens hood
will minimize lens flare and ghosting. The
lens hood cuts off excess lighting and
improves the picture quality.
 Check...

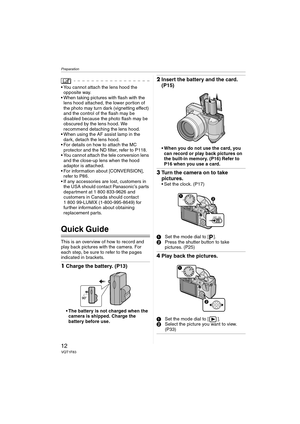

Preparation
12VQT1F83
 You cannot attach the lens hood the
opposite way.
 When taking pictures with flash with the
lens hood attached, the lower portion of
the photo may turn dark (vignetting effect)
and the control of the flash may be
disabled because the photo flash may be
obscured by the lens hood. We
recommend detaching the lens hood.
 When using the AF assist lamp in the
dark, detach the lens hood.
 For details on how to attach the MC
protector and the ND filter, refer to P118.
 You cannot...

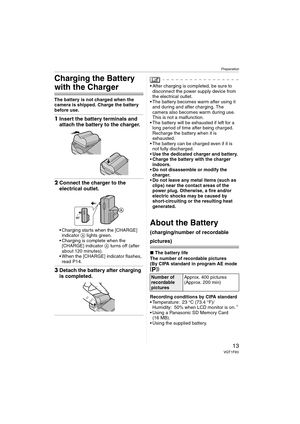

Preparation
13VQT1F83
Charging the Battery
with the Charger
The battery is not charged when the
camera is shipped. Charge the battery
before use.
1Insert the battery terminals and
attach the battery to the charger.
2Connect the charger to the
electrical outlet.
 Charging starts when the [CHARGE]
indicator A lights green.
 Charging is complete when the
[CHARGE] indicator A turns off (after
about 120 minutes).
 When the [CHARGE] indicator flashes,
read P14.
3Detach the battery after charging
is...

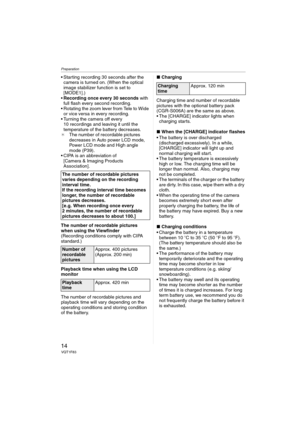

Preparation
14VQT1F83
 Starting recording 30 seconds after the
camera is turned on. (When the optical
image stabilizer function is set to
[MODE1].)
Recording once every 30 seconds with
full flash every second recording.
 Rotating the zoom lever from Tele to Wide
or vice versa in every recording.
 Turning the camera off every
10 recordings and leaving it until the
temperature of the battery decreases.
¢The number of recordable pictures
decreases in Auto power LCD mode,
Power LCD mode and High...

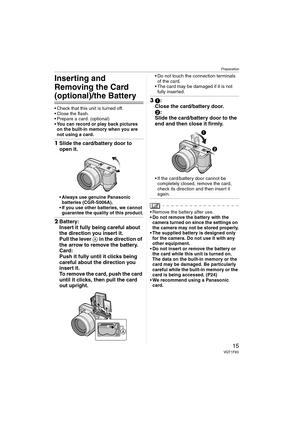

Preparation
15VQT1F83
Inserting and
Removing the Card
(optional)/the Battery
 Check that this unit is turned off.
 Close the flash.
 Prepare a card. (optional)
You can record or play back pictures
on the built-in memory when you are
not using a card.
1Slide the card/battery door to
open it.
Always use genuine Panasonic
batteries (CGR-S006A).
If you use other batteries, we cannot
guarantee the quality of this product.
2Battery:
Insert it fully being careful about
the direction you insert it.
Pull...

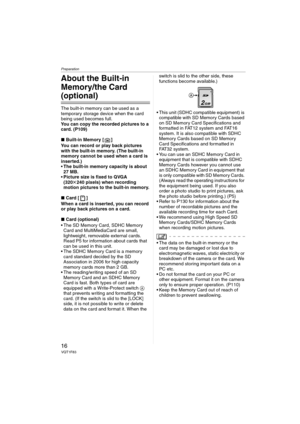

Preparation
16VQT1F83
About the Built-in
Memory/the Card
(optional)
The built-in memory can be used as a
temporary storage device when the card
being used becomes full.
You can copy the recorded pictures to a
card. (P109)
∫Built-in Memory [ ]
You can record or play back pictures
with the built-in memory. (The built-in
memory cannot be used when a card is
inserted.)
The built-in memory capacity is about
27 MB.
Picture size is fixed to QVGA
(320k240 pixels) when recording
motion pictures to the...

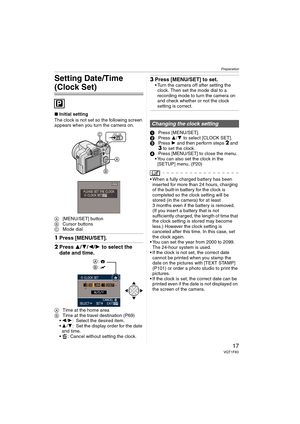

Preparation
17VQT1F83
Setting Date/Time
(Clock Set)
∫Initial setting
The clock is not set so the following screen
appears when you turn the camera on.
A[MENU/SET] button
BCursor buttons
CMode dial
1Press [MENU/SET].
2Press 3/4/2/1 to select the
date and time.
ATime at the home area
BTime at the travel destination (P69)
2/1: Select the desired item.
3/4: Set the display order for the date
and time.
 : Cancel without setting the clock.
3Press [MENU/SET] to set. Turn the camera off after setting the...

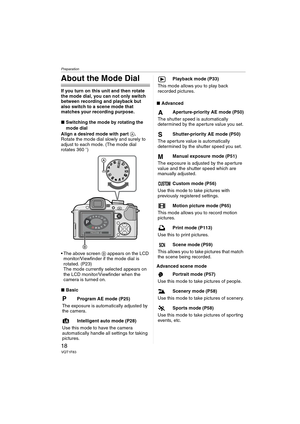

Preparation
18VQT1F83
About the Mode Dial
If you turn on this unit and then rotate
the mode dial, you can not only switch
between recording and playback but
also switch to a scene mode that
matches your recording purpose.
∫Switching the mode by rotating the
mode dial
Align a desired mode with part A.
Rotate the mode dial slowly and surely to
adjust to each mode. (The mode dial
rotates 360o)
 The above screen B appears on the LCD
monitor/Viewfinder if the mode dial is
rotated. (P23)
The mode...

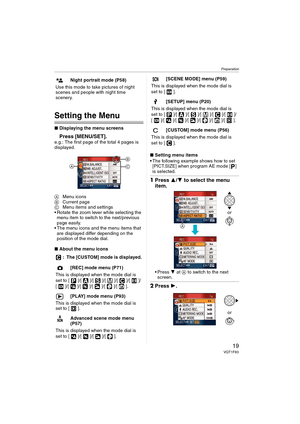

Preparation
19VQT1F83
Setting the Menu
∫Displaying the menu screens
Press [MENU/SET].e.g.: The first page of the total 4 pages is
displayed.
AMenu icons
BCurrent page
CMenu items and settings
 Rotate the zoom lever while selecting the
menu item to switch to the next/previous
page easily.
 The menu icons and the menu items that
are displayed differ depending on the
position of the mode dial.
∫About the menu icons
: The [CUSTOM] mode is displayed.∫Setting menu items
 The following example shows how to...

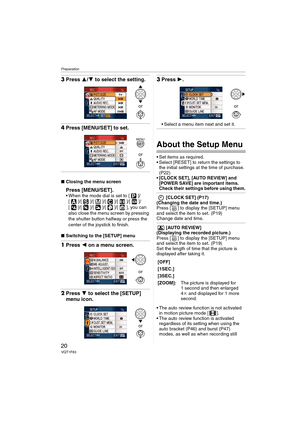

Preparation
20VQT1F83
3Press 3/4 to select the setting.
4Press [MENU/SET] to set.
∫Closing the menu screen
Press [MENU/SET]. When the mode dial is set to [ ]/
[ ]/[ ]/[ ]/[ ]/[ ]/[ ]/
[ ]/[ ]/[ ]/[ ]/[ ], you can
also close the menu screen by pressing
the shutter button halfway or press the
center of the joystick to finish.
∫Switching to the [SETUP] menu
1Press 2 on a menu screen.
2Press 4 to select the [SETUP]
menu icon.
3Press 1.
 Select a menu item next and set it.
About the Setup Menu
 Set items...
