Panasonic Dmc Fz18 Operating Instructions Manual

Connecting to other equipment
111VQT1F83
Connecting to other equipment

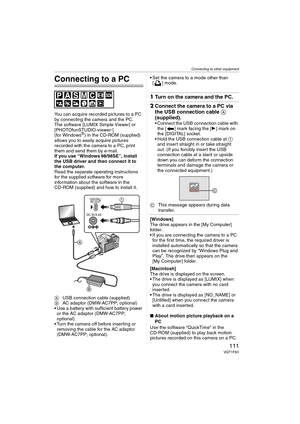

Connecting to a PC
You can acquire recorded pictures to a PC
by connecting the camera and the PC.
The software [LUMIX Simple Viewer] or
[PHOTOfunSTUDIO-viewer-]
(for Windows
®) in the CD-ROM (supplied)
allows you to easily acquire pictures
recorded with the camera to a PC, print
them and send them by e-mail.
If you use “Windows
 98/98SE”, install
the USB driver and then connect it to
the computer.
Read the separate operating...

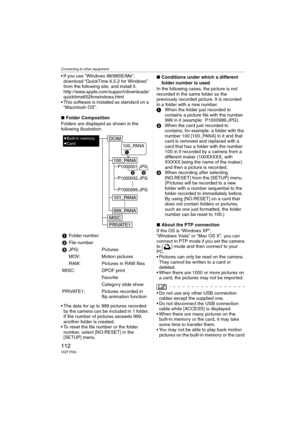

Connecting to other equipment
112VQT1F83
 If you use “Windows 98/98SE/Me”,
download “QuickTime 6.5.2 for Windows”
from the following site, and install it.
http://www.apple.com/support/downloads/
quicktime652forwindows.html
 This software is installed as standard on a
“Macintosh OS”.
∫Folder Composition
Folders are displayed as shown in the
following illustration.
 The data for up to 999 pictures recorded
by the camera can be included in 1 folder.
If the number of pictures exceeds 999,
another...

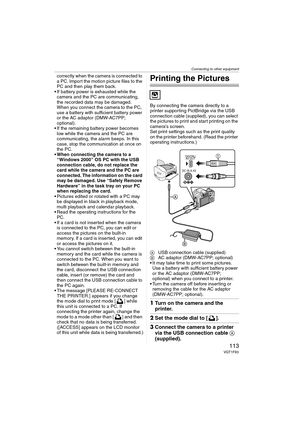

Connecting to other equipment
113VQT1F83
correctly when the camera is connected to
a PC. Import the motion picture files to the
PC and then play them back.
 If battery power is exhausted while the
camera and the PC are communicating,
the recorded data may be damaged.
When you connect the camera to the PC,
use a battery with sufficient battery power
or the AC adaptor (DMW-AC7PP;
optional).
 If the remaining battery power becomes
low while the camera and the PC are
communicating, the alarm beeps....

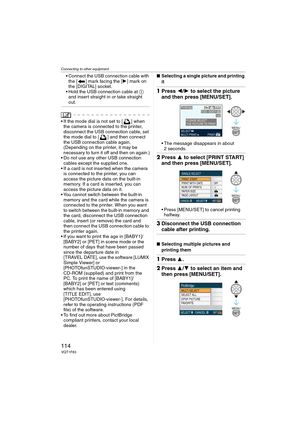

Connecting to other equipment
114VQT1F83
 Connect the USB connection cable with
the [ ] mark facing the [1] mark on
the [DIGITAL] socket.
 Hold the USB connection cable at 1
and insert straight in or take straight
out.
 If the mode dial is not set to [ ] when
the camera is connected to the printer,
disconnect the USB connection cable, set
the mode dial to [ ] and then connect
the USB connection cable again.
(Depending on the printer, it may be
necessary to turn it off and then on again.)
 Do...

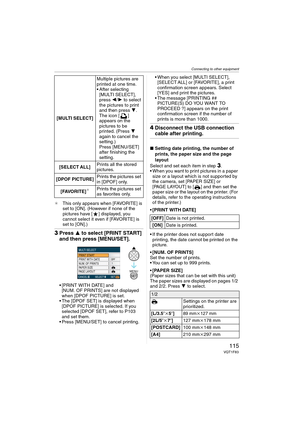

Connecting to other equipment
115VQT1F83
¢This only appears when [FAVORITE] is
set to [ON]. (However if none of the
pictures have [ ] displayed, you
cannot select it even if [FAVORITE] is
set to [ON].)
3Press 3 to select [PRINT START]
and then press [MENU/SET].
 [PRINT WITH DATE] and
[NUM. OF PRINTS] are not displayed
when [DPOF PICTURE] is set.
 The [DPOF SET] is displayed when
[DPOF PICTURE] is selected. If you
selected [DPOF SET], refer to P103
and set them.
 Press [MENU/SET] to cancel...

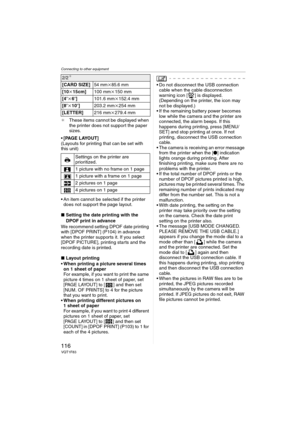

Connecting to other equipment
116VQT1F83
¢These items cannot be displayed when
the printer does not support the paper
sizes.
[PAGE LAYOUT]
(Layouts for printing that can be set with
this unit)
 An item cannot be selected if the printer
does not support the page layout.
∫Setting the date printing with the
DPOF print in advance
We recommend setting DPOF date printing
with [DPOF PRINT] (P104) in advance
when the printer supports it. If you select
[DPOF PICTURE], printing starts and the
recording...

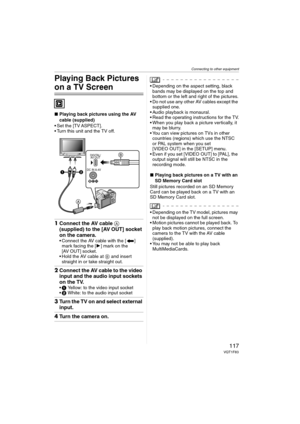

Connecting to other equipment
117VQT1F83
Playing Back Pictures
on a TV Screen
∫Playing back pictures using the AV
cable (supplied)
 Set the [TV ASPECT].
 Turn this unit and the TV off.
1Connect the AV cable A
(supplied) to the [AV OUT] socket
on the camera.
 Connect the AV cable with the [ ]
mark facing the [1] mark on the
[AV OUT] socket.
 Hold the AV cable at B and insert
straight in or take straight out.
2Connect the AV cable to the video
input and the audio input sockets
on the TV.
1 Yellow:...

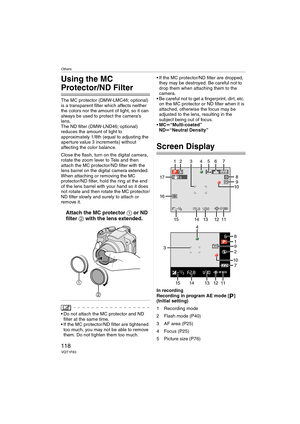

Others
118VQT1F83
Others
Using the MC
Protector/ND Filter
The MC protector (DMW-LMC46; optional)
is a transparent filter which affects neither
the colors nor the amount of light, so it can
always be used to protect the camera’s
lens.
The ND filter (DMW-LND46; optional)
reduces the amount of light to
approximately 1/8th (equal to adjusting the
aperture value 3 increments) without
affecting the color balance.
Close the flash, turn on the digital camera,
rotate the zoom lever to Tele and then...

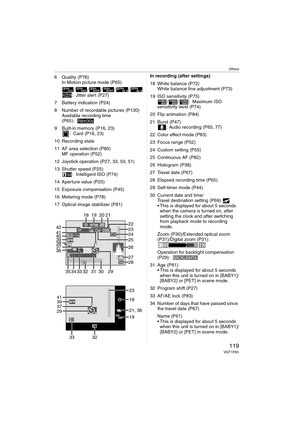

Others
119VQT1F83
6 Quality (P76)
In Motion picture mode (P65)
//// /
: Jitter alert (P27)
7 Battery indication (P24)
8 Number of recordable pictures (P130)
Available recording time
(P65):
9 Built-in memory (P16, 23)
: Card (P16, 23)
10 Recording state
11 AF area selection (P80)
MF operation (P52)
12 Joystick operation (P27, 33, 50, 51)
13 Shutter speed (P25)
: Intelligent ISO (P74)
14 Aperture value (P25)
15 Exposure compensation (P45)
16 Metering mode (P78)
17 Optical image stabilizer (P81)In...

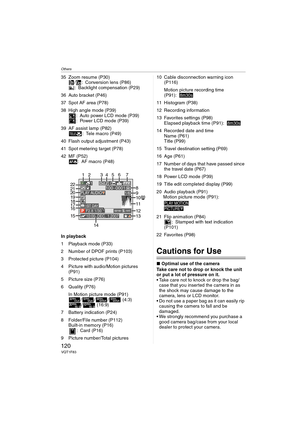

Others
120VQT1F83
35 Zoom resume (P30)
/ : Conversion lens (P86)
: Backlight compensation (P29)
36 Auto bracket (P46)
37 Spot AF area (P78)
38 High angle mode (P39)
: Auto power LCD mode (P39)
: Power LCD mode (P39)
39 AF assist lamp (P82)
: Tele macro (P49)
40 Flash output adjustment (P43)
41 Spot metering target (P78)
42 MF (P52)
: AF macro (P48)
In playback
1 Playback mode (P33)
2 Number of DPOF prints (P103)
3 Protected picture (P104)
4 Picture with audio/Motion pictures
(P91)
5 Picture size (P76)
6...
