Advanced (Playback)

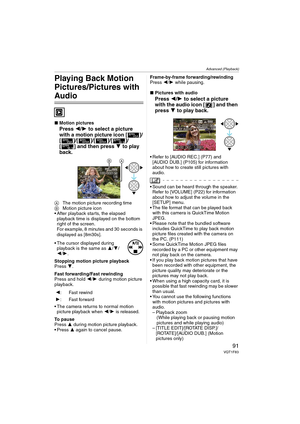

91VQT1F83
Playing Back Motion
Pictures/Pictures with
Audio
∫Motion pictures
Press 2/1 to select a picture
with a motion picture icon [ ]/
[ ]/[ ]/[ ]/[ ]/
[ ] and then press 4 to play
back.
AThe motion picture recording time
BMotion picture icon
 After playback starts, the elapsed
playback time is displayed on the bottom
right of the screen.
For example, 8 minutes and 30 seconds is
displayed as [8m30s].
 The cursor displayed during
playback is the same as 3/4/
2/1.
Stopping...

Advanced (Playback)
92VQT1F83
– [TEXT STAMP]/[RESIZE]/[TRIMMING]/
[ASPECT CONV.]

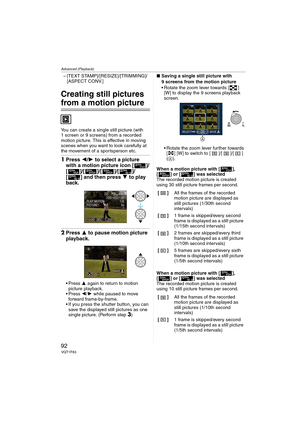

Creating still pictures
from a motion picture
You can create a single still picture (with
1 screen or 9 screens) from a recorded
motion picture. This is effective in moving
scenes when you want to look carefully at
the movement of a sportsperson etc.
1Press 2/1 to select a picture
with a motion picture icon [ ]/
[]/[]/[]/[ ]/
[ ] and then press 4 to play
back.
2Press 3 to pause motion picture
playback.
 Press 3 again...

Advanced (Playback)

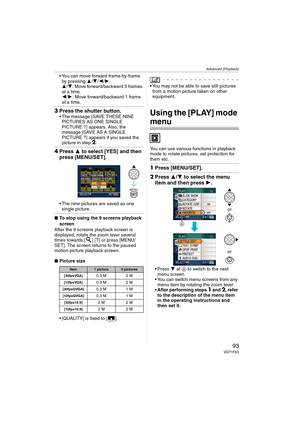

93VQT1F83
 You can move forward frame-by-frame
by pressing 3/4/2/1.
3/4: Move forward/backward 3 frames
at a time.
2/1: Move forward/backward 1 frame
at a time.
3Press the shutter button. The message [SAVE THESE NINE
PICTURES AS ONE SINGLE
PICTURE ?] appears. Also, the
message [SAVE AS A SINGLE
PICTURE ?] appears if you saved the
picture in step
2.
4Press 3 to select [YES] and then
press [MENU/SET].
 The nine pictures are saved as one
single picture.
∫To stop using the 9...

Advanced (Playback)

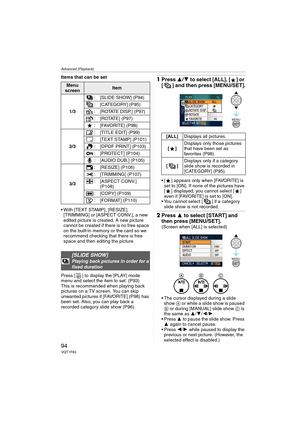

94VQT1F83
Items that can be set
 With [TEXT STAMP], [RESIZE],
[TRIMMING] or [ASPECT CONV.], a new
edited picture is created. A new picture
cannot be created if there is no free space
on the built-in memory or the card so we
recommend checking that there is free
space and then editing the picture.
Press [ ] to display the [PLAY] mode
menu and select the item to set. (P93)
This is recommended when playing back
pictures on a TV screen. You can skip
unwanted pictures if...

Advanced (Playback)

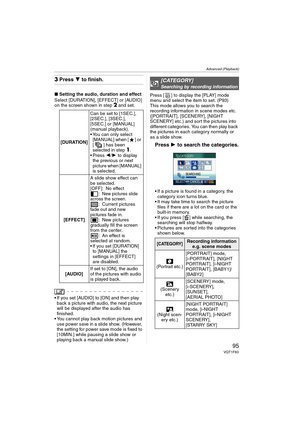

95VQT1F83
3Press 4 to finish.
∫Setting the audio, duration and effect
Select [DURATION], [EFFECT] or [AUDIO]
on the screen shown in step
2 and set.
 If you set [AUDIO] to [ON] and then play
back a picture with audio, the next picture
will be displayed after the audio has
finished.
 You cannot play back motion pictures and
use power save in a slide show. (However,
the setting for power save mode is fixed to
[10MIN.] while pausing a slide show or
playing back a manual slide...

Advanced (Playback)
96VQT1F83

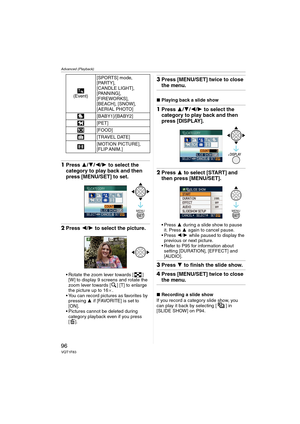

1Press 3/4/2/1 to select the
category to play back and then
press [MENU/SET] to set.
2Press 2/1 to select the picture.
 Rotate the zoom lever towards [ ]
[W] to display 9 screens and rotate the
zoom lever towards [ ] [T] to enlarge
the picture up to 16a.
 You can record pictures as favorites by
pressing 3 if [FAVORITE] is set to
[ON].
 Pictures cannot be deleted during
category playback even if you press
[].
3Press [MENU/SET] twice to close
the menu.
∫Playing back...

Advanced (Playback)

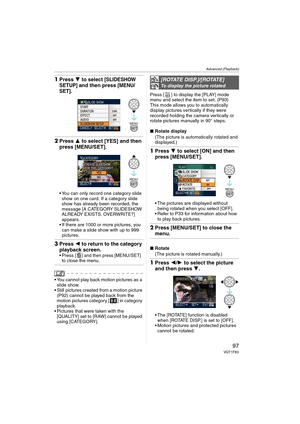

97VQT1F83
1Press 4 to select [SLIDESHOW
SETUP]
and then press [MENU/
SET].
2Press 3 to select [YES] and then
press [MENU/SET].
 You can only record one category slide
show on one card. If a category slide
show has already been recorded, the
message [A CATEGORY SLIDESHOW
ALREADY EXISTS. OVERWRITE?]
appears.
 If there are 1000 or more pictures, you
can make a slide show with up to 999
pictures.
3Press 2 to return to the category
playback screen.
 ] and then press [MENU/SET]...

Advanced (Playback)

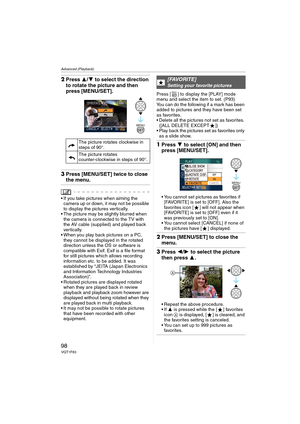

98VQT1F83
2Press 3/4 to select the direction
to rotate the picture and then
press [MENU/SET].
3Press [MENU/SET] twice to close
the menu.
 If you take pictures when aiming the
camera up or down, it may not be possible
to display the pictures vertically.
 The picture may be slightly blurred when
the camera is connected to the TV with
the AV cable (supplied) and played back
vertically.
 When you play back pictures on a PC,
they cannot be displayed in the rotated
direction...

Advanced (Playback)

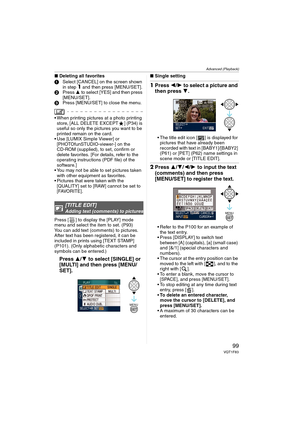

99VQT1F83
∫Deleting all favorites
1Select [CANCEL] on the screen shown
in step
1 and then press [MENU/SET].
2Press 3 to select [YES] and then press
[MENU/SET].
3Press [MENU/SET] to close the menu.
 When printing pictures at a photo printing
store, [ALL DELETE EXCEPT ] (P34) is
useful so only the pictures you want to be
printed remain on the card.
 Use [LUMIX Simple Viewer] or
[PHOTOfunSTUDIO-viewer-] on the
CD-ROM (supplied), to set, confirm or
delete favorites. [For details,...

Advanced (Playback)

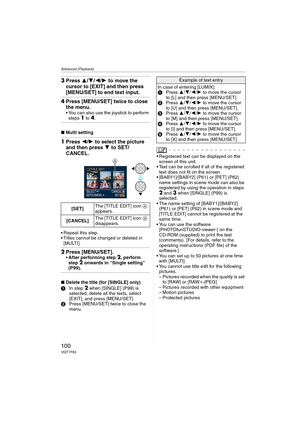

100VQT1F83
3Press 3/4/2/1 to move the
cursor to [EXIT] and then press
[MENU/SET] to end text input.
4Press [MENU/SET] twice to close
the menu.
 You can also use the joystick to perform
steps1 to 4.
∫Multi setting
1Press 2/1 to select the picture
and then press 4 to SET/
CANCEL.
 Repeat this step.
 Titles cannot be changed or deleted in
[MULTI].
2Press [MENU/SET].After performing step 2, perform
step 2 onwards in “Single setting”
(P99).
∫Delete the title (for [SINGLE] only)
1In...
